Toyota Corolla sed/lb/wg EE90 INTERIOR LAMP

EE90R-AEHDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

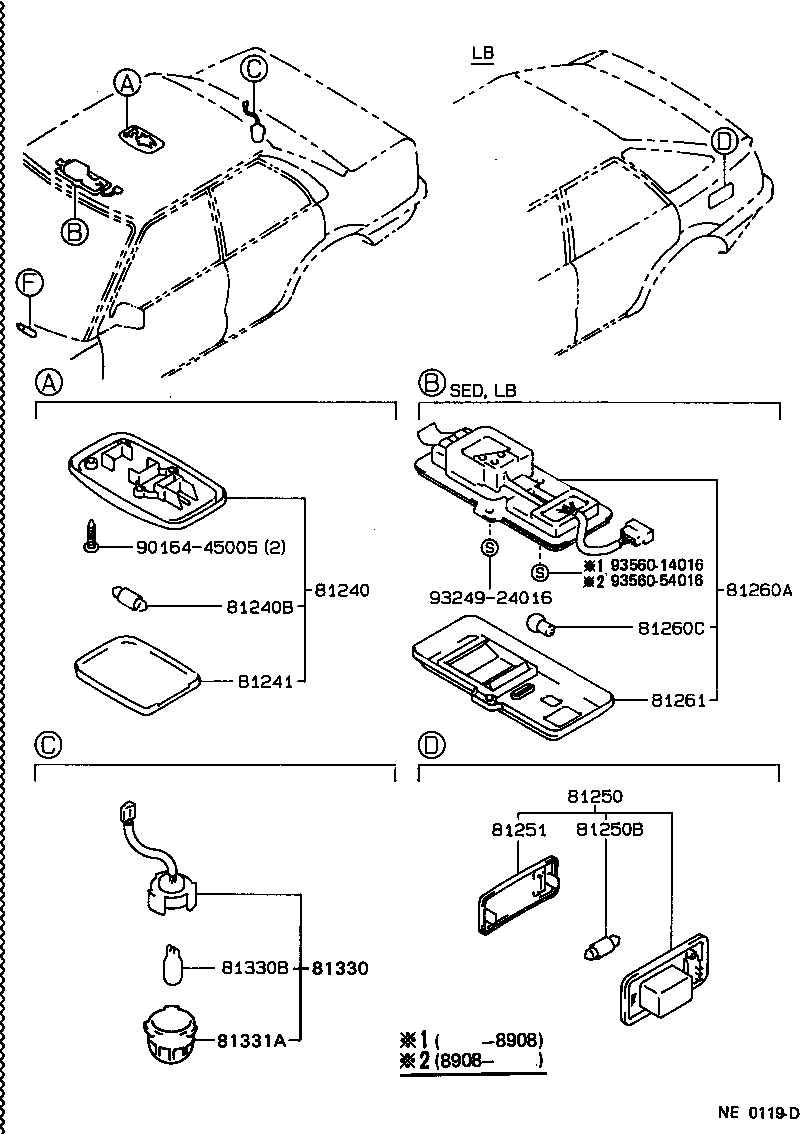

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-1203002	AE92,EE90..RHD..(LB,SED)..XL W(SUSPENDED ROOF HEADLINING),MAROON,MAROON,TRIM3#	08/1987 - 05/1988	1
81240-1203003	AE92,CE90,EE90..(LB,SED)..(STD,XL)..GEN W(SUSPENDED ROOF HEADLINING),LIGHT GRAY,LIGHT GRAY,TRIM1#	05/1987 - 05/1988	1
81240-1202003	AE9#,CE90,EE90 LIGHT GRAY,TRIM1#	05/1987 - 08/1989	1
81240-1202002	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	05/1987 - 08/1989	1
81240-1203005	AE92,CE90,EE90..(LB,SED)..(STD,XL)..GEN W(SUSPENDED ROOF HEADLINING),LIGHT BEIGE,LIGHT BEIGE,TRIM4#	05/1987 - 05/1988	1
81240-1203002	AE92,EE90..RHD..SED..XL..GEN W(SUSPENDED ROOF HEADLINING),MAROON,MAROON,TRIM3#	05/1988 - 08/1989	1
81240-1203005	AE92,CE90,EE90..SED..(STD,XL)..GEN W(SUSPENDED ROOF HEADLINING),LIGHT BEIGE,LIGHT BEIGE,TRIM4#	05/1988 - 08/1989	1
81240-1203002	EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	08/1989 - 06/1991	1
81240-1203003	EE97;AE92..LHD..LB;EE90..RHD..GEN;AE92..LHD..(STD,XL)..GEN LIGHT GRAY,TRIM1#	08/1989 - 06/1991	1
81240-1202005	AE9#,CE90,EE90..GL,SE,SR5,STD,XL LIGHT BEIGE,TRIM4#	05/1987 - 08/1989	1
81240-1203003	AE92,CE90,EE90..SED..(STD,XL)..GEN W(SUSPENDED ROOF HEADLINING),LIGHT GRAY,LIGHT GRAY,TRIM1#	05/1988 - 08/1989	1
81240-1202002	AE92..SE..GCC;AE92,EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	06/1991 - 09/1991	1
81240-1203004	EE97;AE92..LHD..LB;EE90..RHD..GEN;AE92..LHD..(STD,XL)..GEN LIGHT BLUE,TRIM8#	08/1989 - 06/1991	1
81240-12030S3	AE92..4FC..XL;EE90..RHD..SED..XL..GEN LIGHT GRAY,TRIM1#	06/1991 - 09/1991	1
81240-1203002	AE92..4FC..XL;EE90..RHD..SED..XL..GEN W(SUSPENDED ROOF HEADLINING),MAROON,MAROON,TRIM3#	06/1991 - 09/1991	1
81240-1203004	AE92..4FC..XL;EE90..RHD..SED..XL..GEN LIGHT BLUE,TRIM8#	06/1991 - 09/1991	1
81240-1203002	EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	09/1991 - 05/1992	1
81240-1203004	AE92..LHD..LB;EE90..RHD..GEN;AE92..LHD..(STD,XL)..GEN LIGHT BLUE,TRIM8#	09/1991 - 05/1992	1
81240-12030S3	AE92..LHD..LB;EE90..RHD..GEN;AE92..LHD..(STD,XL)..GEN LIGHT GRAY,TRIM1#	09/1991 - 05/1992	1
81240B - BULB, ROOM LAMP, NO.1
99132-12100	AE9#,CE90,EE9# 12V 10W	05/1987 - 08/1993	1
81241 - LENS, ROOM LAMP, NO.1
81241-12020	AE9#,CE90,EE9#	05/1987 - 08/1993	1
81260A - LAMP ASSY, MAP
81260-1604003	AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
81260-1604002	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	05/1987 - 09/1988	1
81260-16040E0	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
81260-1604005	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
81260-16040D0	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	09/1988 - 08/1989	1
81260-16040D0	AE92,EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	08/1989 - 08/1990	1
81260C - BULB(FOR MAP LAMP)
90981-12014	AE95,CE90;AE92,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) 12V 10W	05/1987 - 07/1992	1
81261 - LENS AND COVER, MAP LAMP
81261-2006102	EE90..LB..GL;EE90..RHD..SED..(GL,XL)..GEN;AE9#..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	05/1987 - 09/1988	1
81261-20061E0	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
81261-2006105	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
81261-2006113	AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
81261-20061D0	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	09/1988 - 08/1989	1
81261-20061D0	AE92,EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	08/1989 - 08/1990	1
Common parts
90164-45005
93249-24016
93560-14016
93560-54016

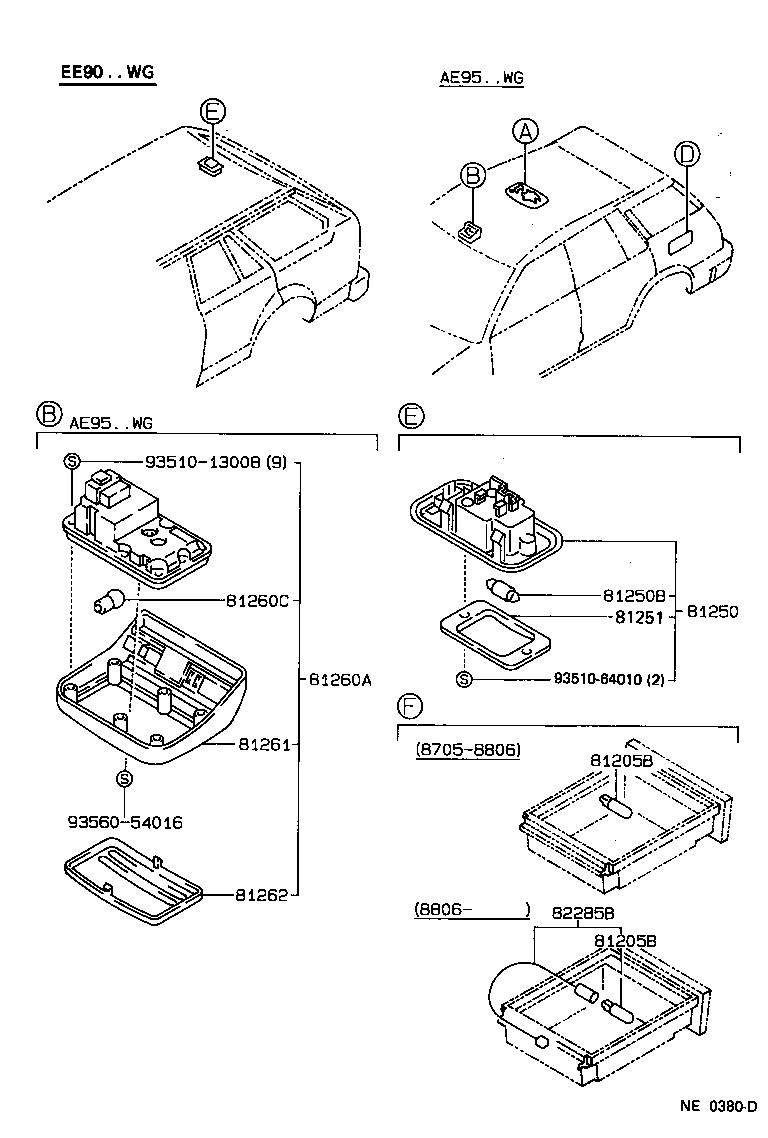

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014	AE9#,CE90,EE9# 14V 1.4W	05/1987 - 08/1993	1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014	AE9#,CE90,EE9# 14V 1.4W	05/1987 - 08/1993	1
81260A - LAMP ASSY, MAP
81260-1604003	AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
81260-1604002	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	05/1987 - 09/1988	1
81260-16040E0	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
81260-1604005	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
81260-16040D0	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	09/1988 - 08/1989	1
81260-16040D0	AE92,EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	08/1989 - 08/1990	1
81260C - BULB(FOR MAP LAMP)
90981-12014	AE95,CE90;AE92,EE90..(LB,SED)..(GL,GTI,SE,XL)..(GCC,GEN) 12V 10W	05/1987 - 07/1992	1
81261 - LENS AND COVER, MAP LAMP
81261-2006102	EE90..LB..GL;EE90..RHD..SED..(GL,XL)..GEN;AE9#..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	05/1987 - 09/1988	1
81261-20061E0	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	09/1988 - 08/1989	1
81261-2006105	AE9#,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) LIGHT BEIGE,TRIM4#	05/1987 - 09/1988	1
81261-2006113	AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) LIGHT GRAY,TRIM1#	05/1987 - 09/1988	1
81261-20061D0	AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3#	09/1988 - 08/1989	1
81261-20061D0	AE92,EE90..RHD..SED..(GL,XL)..GEN MAROON,TRIM3#	08/1989 - 08/1990	1
Common parts
93510-13008
93510-64010
93560-54016
