EE90R-AEHDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )EE9#..RHD

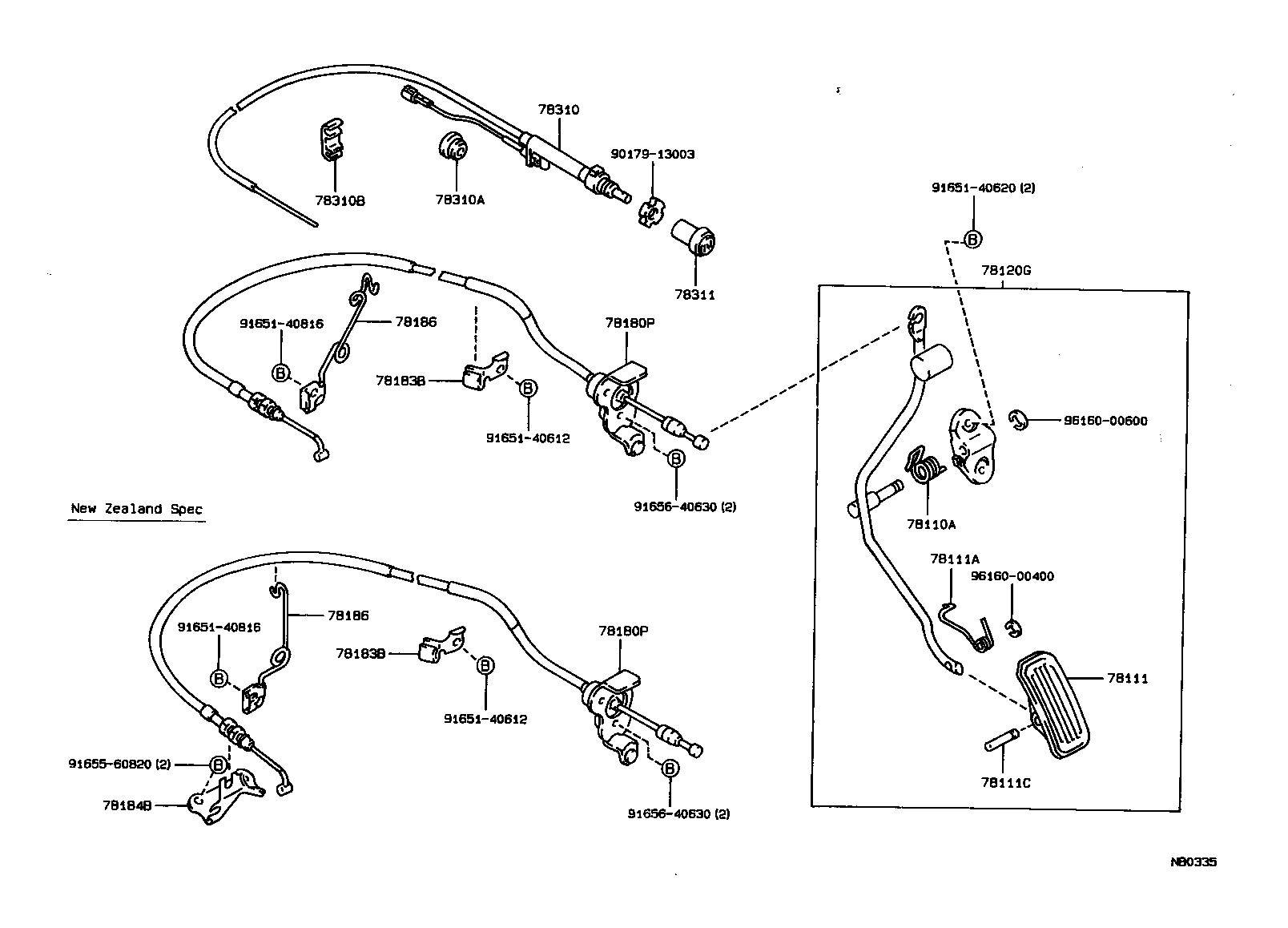

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78180P 78183B 78183B 78184B 78186 78186 78310 78310A 78310B 78311 9017913003 9165140612 9165140612 9165140620 9165140816 9165140816 9165560820 9165640630 9165640630 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18025

AE9#,EE9#..GL,SE,SR5,STD,XL

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE9#,CE90,EE9#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE9#,CE90,EE9#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE9#,CE90,EE9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12080

AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12840

EE90..RHD..GEN

NEW ZEALAND SPEC

 1
78180-12850

EE9#..RHD

 1
78180-12850

EE9#..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-12840

EE90..RHD..GEN

NEW ZEALAND SPEC

 1
78180-12850

EE9#..RHD

 1
78180-12850

EE9#..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE9#,EE9#..RHD

TYPE A

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12100

AE9#,EE9#..RHD

TYPE A

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EE90..RHD..GEN

NEW ZEALAND SPEC

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12200

EE9#..RHD

 1
78186-12180

EE90..RHD..GEN

NEW ZEALAND SPEC

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12200

EE9#..RHD

 1
78186-12180

EE90..RHD..GEN

NEW ZEALAND SPEC

 1
78310 - CABLE ASSY, CHOKE
84506-12060

EE9#..RHD

 1
78310A - GROMMET, CHOKE CABLE
90480-13055

EE9#..GEN,SA;EE90..SED..GCC

 1
78310B - CLAMP, CHOKE CABLE
90464-00117

EE9#..GEN,SA;EE90..SED..GCC

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12021

EE9#..GEN,SA;EE90..SED..GCC

 1
Common parts
90179-13003
91651-40612
91651-40620
91651-40816
91655-60820
91656-40630
96160-00400
96160-00600
