EE90R-AEHDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8705- )RHD

Click highlighted areas on diagram

diagram 44730 44730 44730 44730F 44730F 44730F 44758 44758 44763A 44772B 44772B 44772B 44773F 44773F 44774 9046716002 9046716002 9046716002 9046716002 9046716002 9046716024 9165140614 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44580-22030

EE9#;AE9#..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EE9#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EE9#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EE9#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12070

EE9#..RHD

 1
44763-12070

EE9#..RHD..GEN

 1
44763-12070

EE9#..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12360

EE9#..RHD

 1
44772-12360

EE9#..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12360

EE9#..RHD

 1
44772-12360

EE9#..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12360

EE9#..RHD

 1
44772-12360

EE9#..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12090

EE9#..RHD

 1
44774-12090

EE9#..RHD..GEN

 1
44774-12090

EE9#..RHD

 1
Common parts
90467-16002
90467-16024
91651-40614

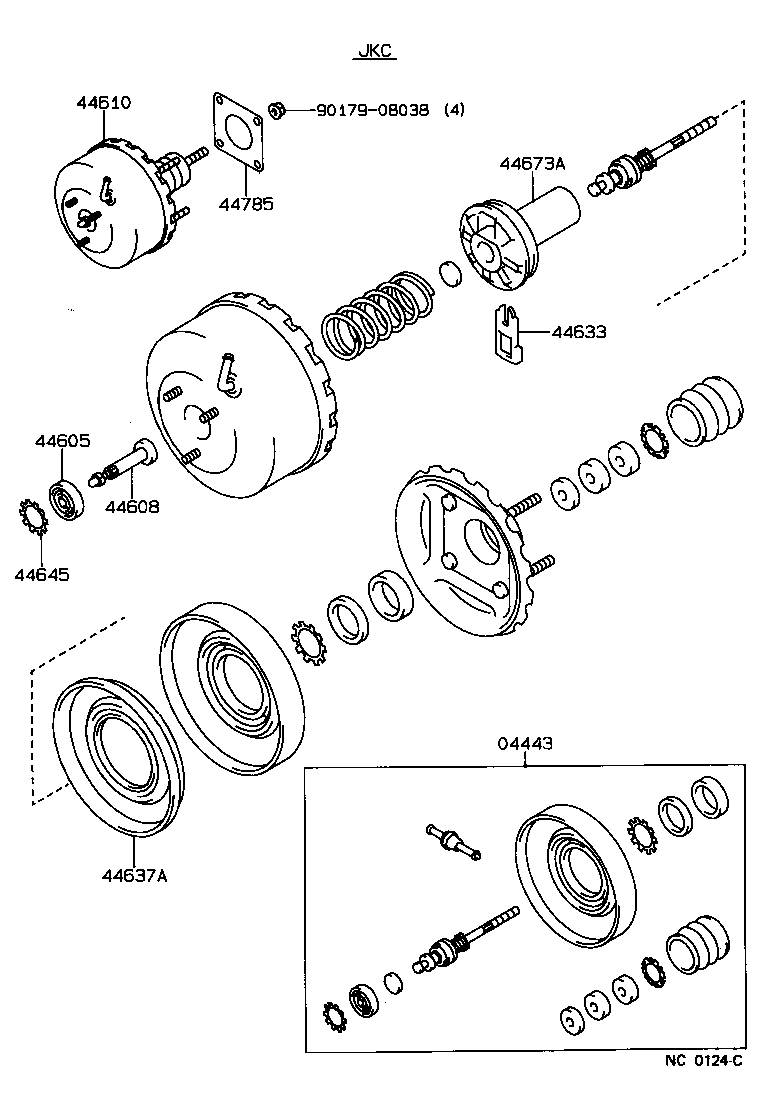

ILLUST NO. 1 OF 2(8705- )GCC,GEN

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12570

AE9#..LHD;EE90..(LB,SED)..(GCC,GEN)

 1
04443-12570

AE92..LHD;EE90..(LB,SED)..(GCC,GEN)

 1
04443-12540

EE90..RHD..GEN

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

AE9#,CE90,EE9#..GCC,GEN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AE9#,CE90,EE9#..GCC,GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-12670

AE9#..RHD..(GL,XL)..GEN;EE90..RHD..(LB,SED)..GEN

 1
44610-12670

AE92,EE90..RHD..(LB,SED)..(GL,STD,XL)..GEN

 1
44610-12720

AE92,EE90..RHD..(LB,SED)..(GL,STD,XL)..GEN

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AE9#,CE90,EE9#..GCC,GEN

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32020

EE90..(LB,SED)..(GCC,GEN);AE9#,CE90..(GL,STD,XL)..GEN

 1
44637-32020

AE92,CE90,EE90..(LB,SED)..(GL,SE,STD,XL)..(GCC,GEN)

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

AE9#,CE90,EE9#..GCC,GEN

 1
44673A - BODY, BOOSTER VALVE
44673-32020

EE90..(LB,SED)..(GCC,GEN);AE9#,CE90..(GL,STD,XL)..GEN

 1
44673-32020

AE95,CE90..LHD;AE92,EE90..(LB,SED)..(GL,SE,STD,XL)..(GCC,GEN)

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AE9#,CE90,EE9#..GCC,GEN,SA

 1
44785-32010

AE9#,CE90,EE9#

 1
Common parts
90179-08038
