EE90L-AWKDSV (1987)

Toyota Corolla Sed/Lb/Wg

Production Oct 1987 - Aug 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

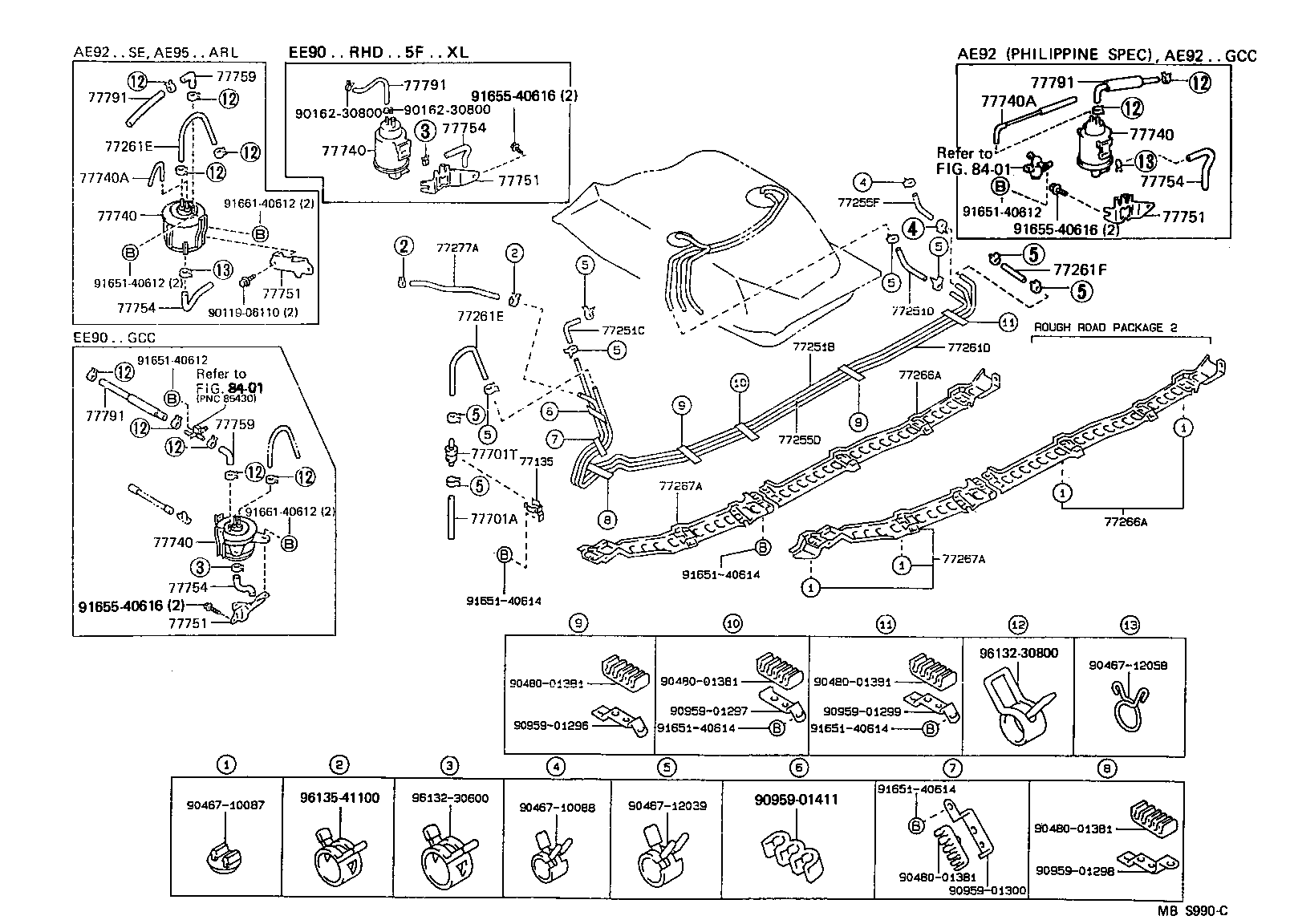

ILLUST NO. 3 OF 3(8908- )AE92,EE9#..GL,STD,XL

Click highlighted areas on diagram

diagram 77135 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261E 77261F 77266A 77266A 77267A 77267A 77277A 77701A 77701T 77740 77740 77740 77740 77740A 77740A 77751 77751 77751 77751 77754 77754 77754 77754 77759 77759 77791 77791 77791 77791 8401 8401 9011906110 9016230800 9016230800 9046710087 9046710088 9046712039 9046712058 9048001381 9048001381 9048001381 9048001381 9048001381 9095901296 9095901297 9095901298 9095901299 9095901300 9095901411 9165140612 9165140612 9165140612 9165140614 9165140614 9165140614 9165140614 9165140614 9165540616 9165540616 9165540616 9166140612 9166140612 9613230600 9613230800 9613541100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12380

EE90..LHD

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12150

EE90..LHD

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

AE92,EE9#..GL,SE,STD,XL

*H,L=200

 1
95333-06020

EE9#;AE92..LB..3FC;AE92..LHD..LB..5F;AE92..SED..(GL,SE,STD,XL)

*H,L=200

 1
95333-06020

EE90;AE92..RHD..(GL,XL)

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12260

CE90,EE90..LHD

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12140

AE92..RHD;CE90,EE90

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12140

AE92..RHD;CE90,EE90

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE92..RHD;CE90,EE90

*H,L=200

 1
95333-06020

AE92,CE90,EE9#

*H,L=200

 1
95333-06020

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

 1
77266-12030

AE92,CE90,EE9#

 1
77266-12030

AE92..RHD;CE90,EE90

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

 1
77266-12030

AE92,CE90,EE9#

 1
77266-12030

AE92..RHD;CE90,EE90

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE92..RHD;CE90,EE90

 1
77267-12060

AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F

 1
77267-12060

AE9#,CE90,EE9#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE92..RHD;CE90,EE90

 1
77267-12060

AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F

 1
77267-12060

AE9#,CE90,EE9#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-11011

EE9#

*H,L=400

 1
23271-11011

EE9#..GCC,GEN

*H,L=400

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-11010

EE90..GCC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-11010

EE90..GCC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-11010

EE90..GCC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-11010

EE90..GCC

 1
Common parts
90119-06110
90162-30800
90467-10087
90467-10088
90467-12039
90467-12058
90480-01381
90959-01296
90959-01297
90959-01298
90959-01299
90959-01300
90959-01411
91651-40612
91651-40614
91655-40616
91661-40612
96132-30600
96132-30800
96135-41100
Linked diagrams
8401

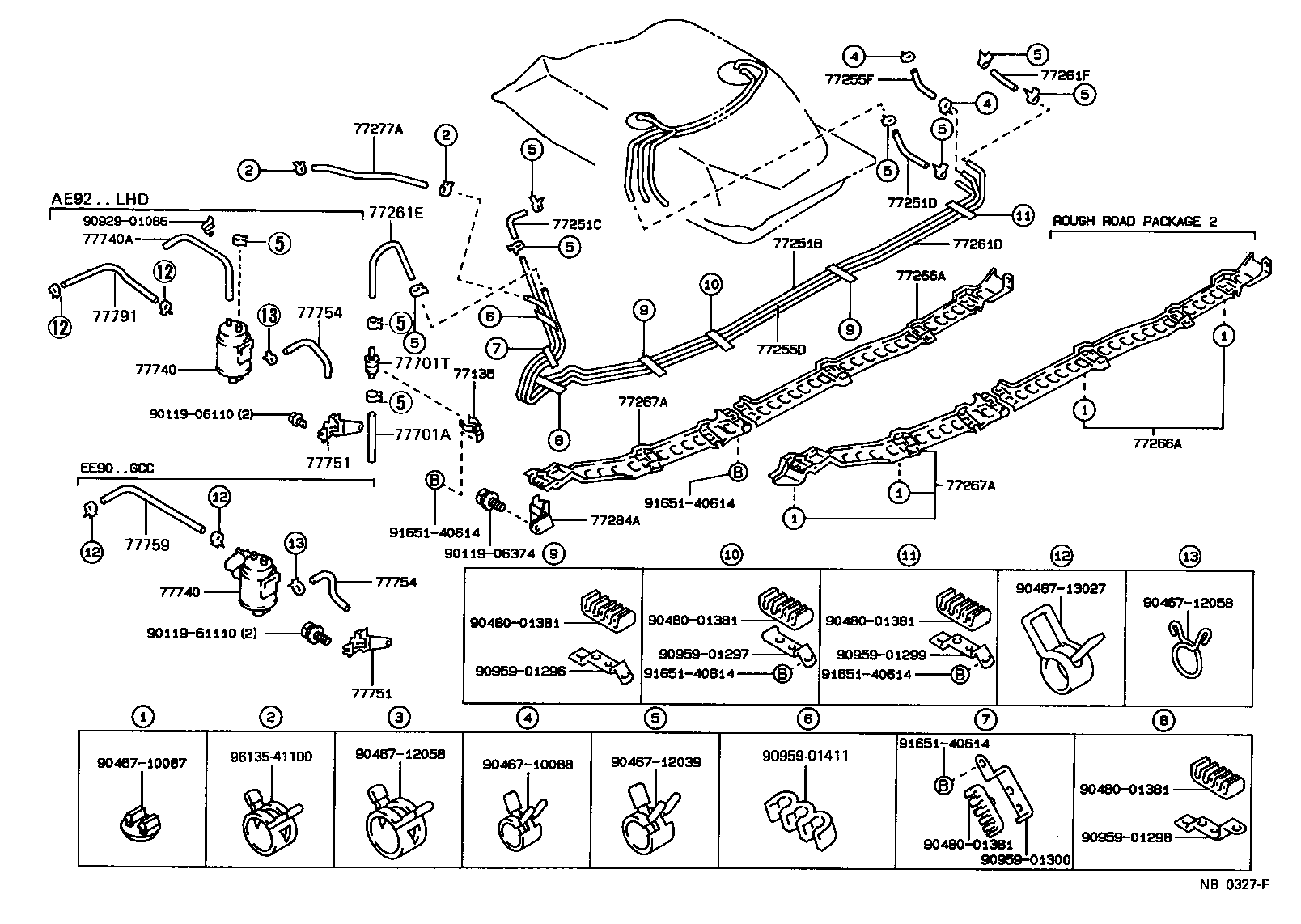

ILLUST NO. 3 OF 3(8705-8908)AE92,EE9#..GL,STD,XL

Click highlighted areas on diagram

diagram 77135 77251B 77251C 77251D 77255D 77255F 77261D 77261E 77261F 77266A 77266A 77267A 77267A 77277A 77284A 77701A 77701T 77740 77740 77740A 77751 77751 77754 77754 77759 77791 9011906110 9011906374 9011961110 9046710087 9046710088 9046712039 9046712058 9046712058 9046713027 9048001381 9048001381 9048001381 9048001381 9048001381 9092901086 9095901296 9095901297 9095901298 9095901299 9095901300 9095901411 9165140614 9165140614 9165140614 9165140614 9165140614 9613541100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-12380

EE90..LHD

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12150

EE90..LHD

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

AE92,EE9#..GL,SE,STD,XL

*H,L=200

 1
95333-06020

EE9#;AE92..LB..3FC;AE92..LHD..LB..5F;AE92..SED..(GL,SE,STD,XL)

*H,L=200

 1
95333-06020

EE90;AE92..RHD..(GL,XL)

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12260

CE90,EE90..LHD

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-12140

AE92..RHD;CE90,EE90

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE92..RHD;CE90,EE90

*H,L=200

 1
95333-06020

AE92,CE90,EE9#

*H,L=200

 1
95333-06020

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

 1
77266-12030

AE92,CE90,EE9#

 1
77266-12030

AE92..RHD;CE90,EE90

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12030

CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F

 1
77266-12030

AE92,CE90,EE9#

 1
77266-12030

AE92..RHD;CE90,EE90

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE92..RHD;CE90,EE90

 1
77267-12060

AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F

 1
77267-12060

AE9#,CE90,EE9#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12060

AE92..RHD;CE90,EE90

 1
77267-12060

AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F

 1
77267-12060

AE9#,CE90,EE9#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-11011

EE9#

*H,L=400

 1
23271-11011

EE9#..GCC,GEN

*H,L=400

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-12090

EE90..GCC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-11010

EE90..GCC

 1
Common parts
90119-06110
90119-06374
90119-61110
90467-10087
90467-10088
90467-12039
90467-12058
90467-13027
90480-01381
90929-01086
90959-01296
90959-01297
90959-01298
90959-01299
90959-01300
90959-01411
91651-40614
96135-41100
