EE90L-ALMDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )EE9# ; (8908- )AE92,CE90..LB,SED

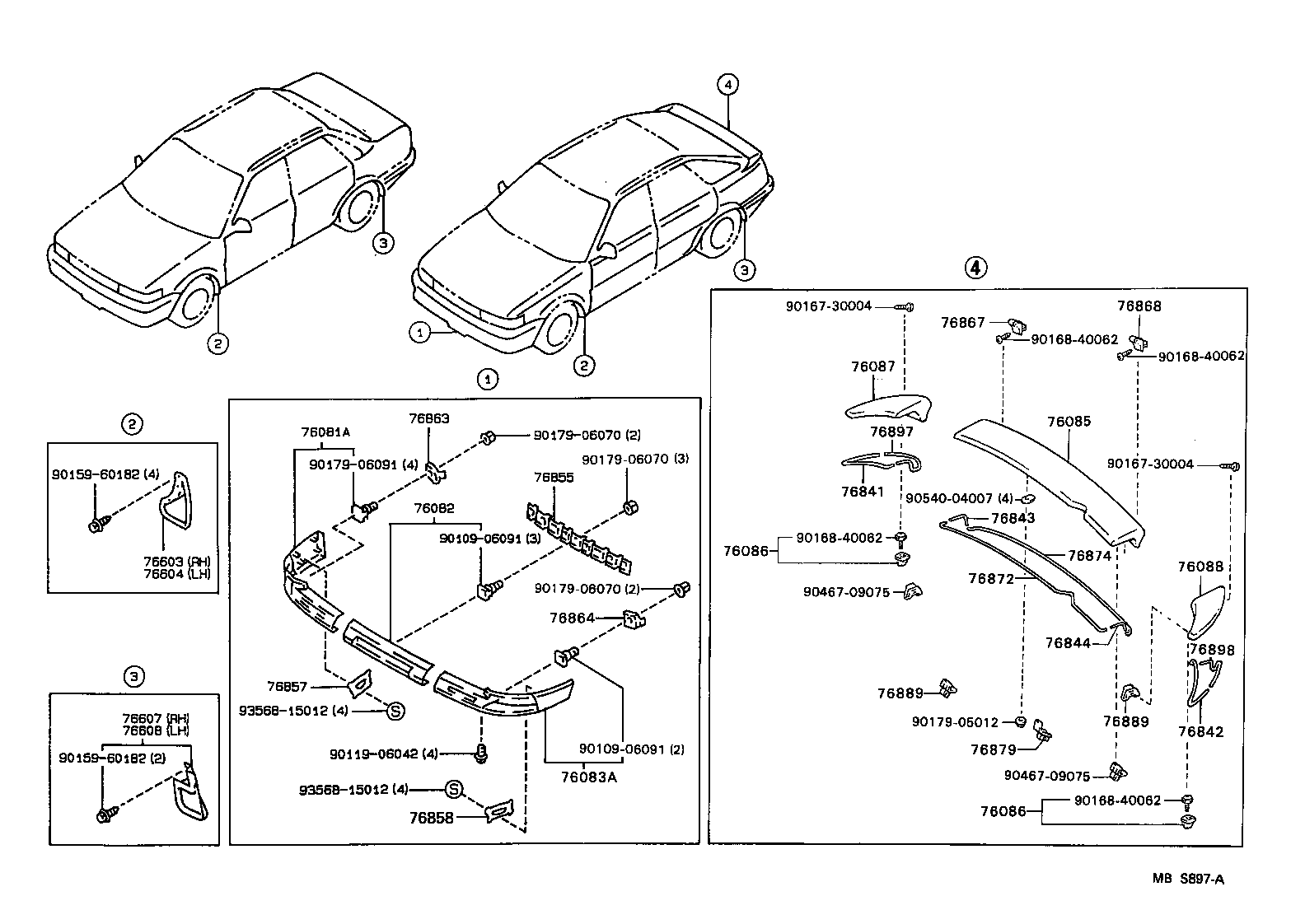

Click highlighted areas on diagram

diagram 76081A 76082 76083A 76085 76086 76086 76087 76088 76603 76604 76607 76608 76841 76842 76843 76844 76855 76857 76858 76863 76864 76867 76868 76872 76874 76879 76889 76889 76897 76898 9010906091 9010906091 9011906042 9015960182 9015960182 9016730004 9016730004 9016840062 9016840062 9016840062 9016840062 9017905012 9017906070 9017906070 9017906070 9017906091 9046709075 9046709075 9054004007 9356815012 9356815012
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SR5;AE92..4FC..(SE,XL);AE92,CE90,EE9#..3FC,4F,5F

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SR5;AE92..4FC..(SE,XL);AE92,CE90,EE9#..3FC,4F,5F

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19245

AE92..LB..XL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE92..RHD..(GL,GT,GTI,SE);AE95,CE90,EE90..(LB,SED)..(GCC,GEN)

 1
76625-19245

AE92..GL,GT,SE,STD;AE92,CE90..SED..XL..GEN;EE90..(LB,SED)..(GCC,GEN)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19255

AE92..LB..XL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE92..RHD..(GL,GT,GTI,SE);AE95,CE90,EE90..(LB,SED)..(GCC,GEN)

 1
76626-19255

AE92..GL,GT,SE,STD;AE92,CE90..SED..XL..GEN;EE90..(LB,SED)..(GCC,GEN)

 1
Common parts
90109-06091
90119-06042
90159-60182
90167-30004
90168-40062
90179-05012
90179-06070
90179-06091
90467-09075
90540-04007
93568-15012

(8705-8908)LB,SED ; (8708-8908)EE9#..WG

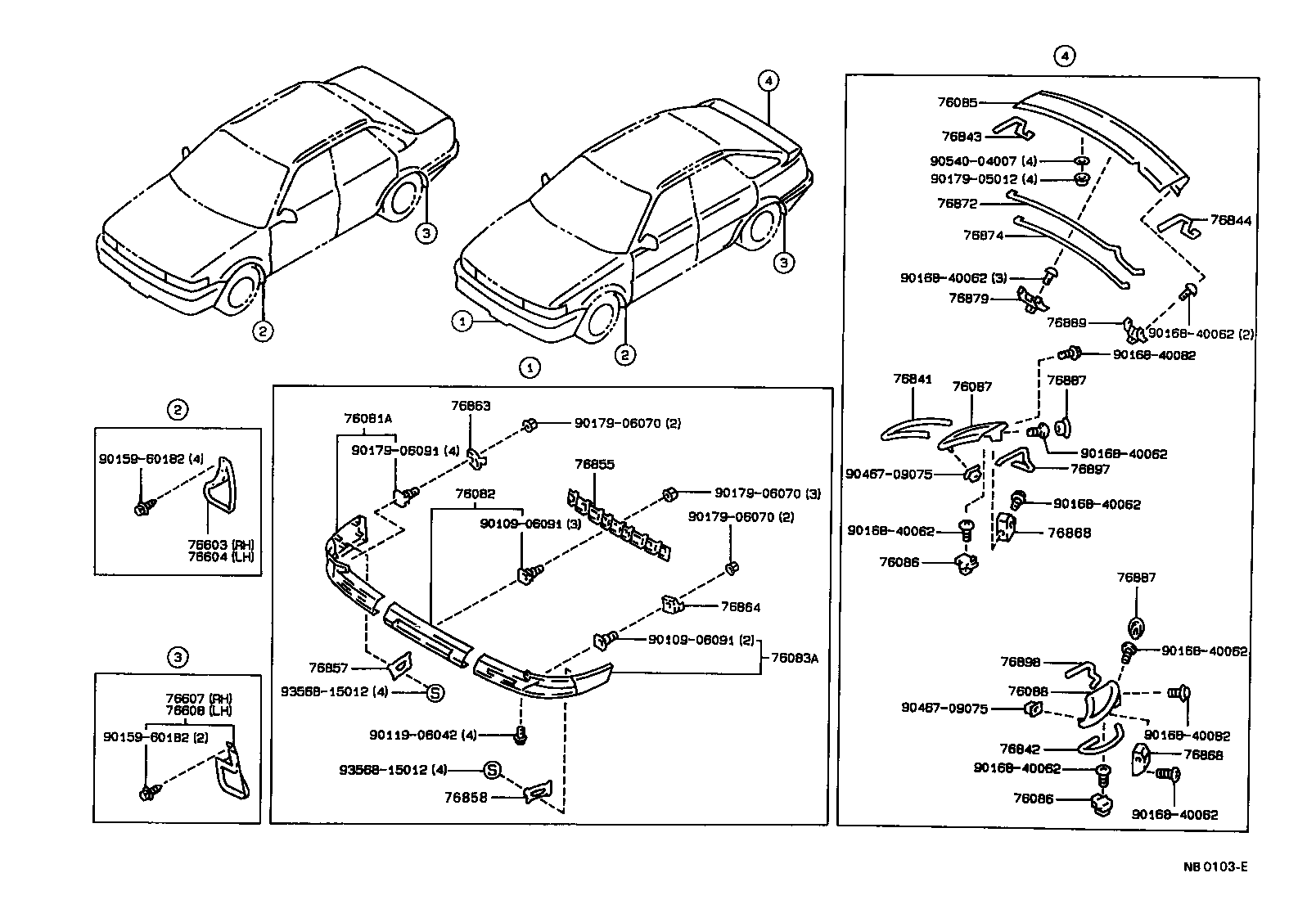

Click highlighted areas on diagram

diagram 76081A 76082 76083A 76085 76086 76086 76087 76088 76603 76604 76607 76608 76841 76842 76843 76844 76855 76857 76858 76863 76864 76868 76868 76872 76874 76879 76887 76887 76889 76897 76898 9010906091 9010906091 9011906042 9015960182 9015960182 9016840062 9016840062 9016840062 9016840062 9016840062 9016840062 9016840062 9016840062 9016840082 9016840082 9017905012 9017906070 9017906070 9017906070 9017906091 9046709075 9046709075 9054004007 9356815012 9356815012
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SR5;AE92,CE90,EE9#

 1
76621-12050

AE95..SR5;AE92..4FC..(SE,XL);AE92,CE90,EE9#..3FC,4F,5F

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SED;AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SR5;AE92,CE90,EE9#

 1
76622-12050

AE95..SR5;AE92..4FC..(SE,XL);AE92,CE90,EE9#..3FC,4F,5F

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19245

AE92..LB..XL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE92..RHD..(GL,GT,GTI,SE);AE95,CE90,EE90..(LB,SED)..(GCC,GEN)

 1
76625-19245

AE92..GL,GT,SE,STD;AE92,CE90..SED..XL..GEN;EE90..(LB,SED)..(GCC,GEN)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19255

AE92..LB..XL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE92..RHD..(GL,GT,GTI,SE);AE95,CE90,EE90..(LB,SED)..(GCC,GEN)

 1
76626-19255

AE92..GL,GT,SE,STD;AE92,CE90..SED..XL..GEN;EE90..(LB,SED)..(GCC,GEN)

 1
Common parts
90109-06091
90119-06042
90159-60182
90168-40062
90168-40082
90179-05012
90179-06070
90179-06091
90467-09075
90540-04007
93568-15012
