EE90L-ALMDS (1987)
Toyota Corolla Sed/Lb/Wg

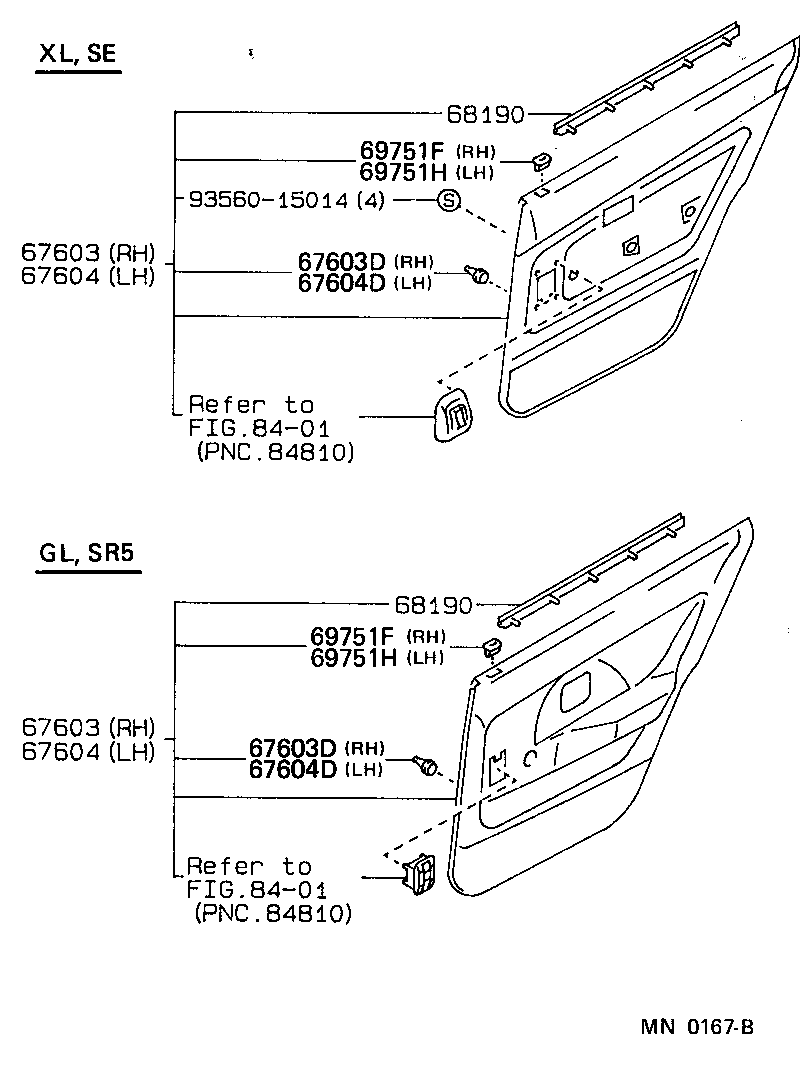

ILLUST NO. 2 OF 2(8908- )GL,SE,SR5,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A15004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A15003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A15005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A16003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A16004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A16005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A05006 |
EE90..LHD..LB DARK BLUE,TRIM4# |
1 | ||
| 67630-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A15004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A15003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A15005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A16003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A16004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A16005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A05006 |
EE90..LHD..LB DARK BLUE,TRIM4# |
1 | ||
| 67630-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A15003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A14005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A15004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A15005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A15003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A14005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A15004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A15005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12170 |
AE92,EE90..LB..XL |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12170 |
AE92,EE90..LB..XL |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

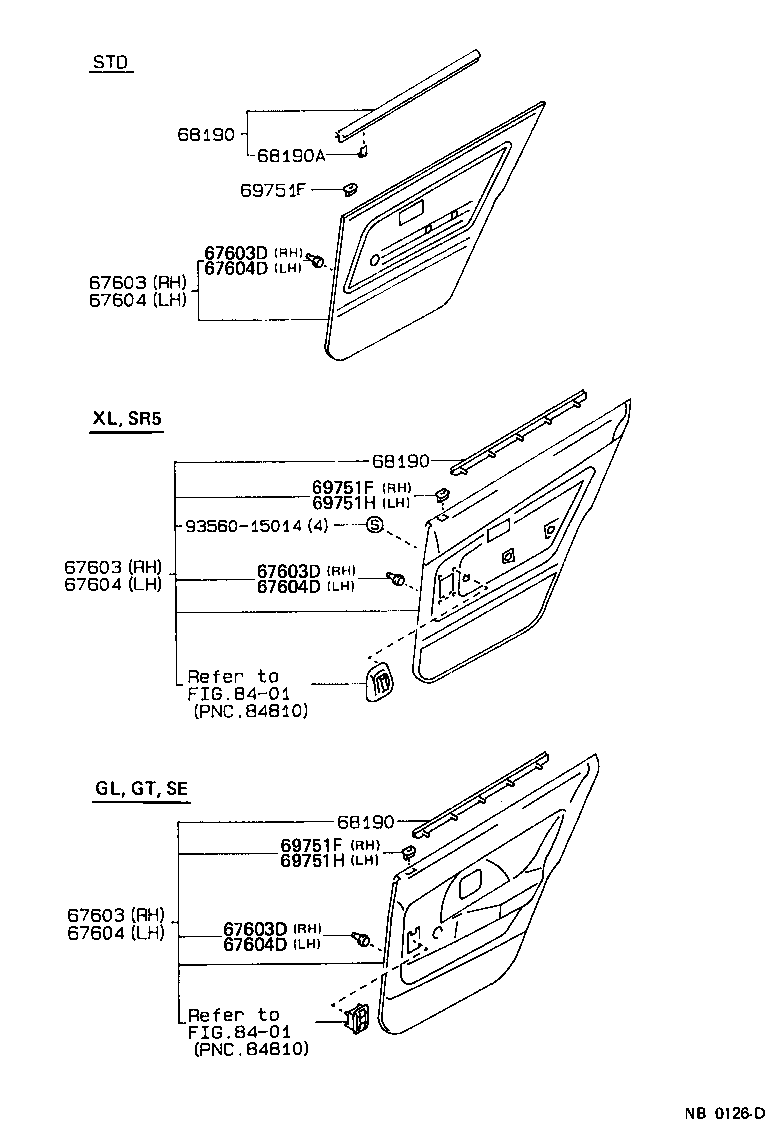

ILLUST NO. 2 OF 2(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A15004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A15003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A15005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A16003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A16004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A16005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A05006 |
EE90..LHD..LB DARK BLUE,TRIM4# |
1 | ||
| 67630-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A15004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A15003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A15005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A16003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A16004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A16005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A05006 |
EE90..LHD..LB DARK BLUE,TRIM4# |
1 | ||
| 67630-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A15004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A15003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A15005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A16003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A16004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67630-1A16005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67630-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67630-1A05006 |
EE90..LHD..LB DARK BLUE,TRIM4# |
1 | ||
| 67630-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67630-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67630-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A15003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A14005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A15004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A15005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A15003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A14005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A15004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A15005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1A05004 |
AE92,EE90..LHD..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A15003 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A14005 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A15004 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14004 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67640-1A14003 |
AE92,EE90..LHD..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A15005 |
AE92,EE90..LHD..LB..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67640-1A75006 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A74006 |
EE90..LHD..LB W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67640-1A05003 |
AE92,EE90..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A05004 |
EE90..LB..XL BLUE,TRIM8# |
1 | ||
| 67640-1A74003 |
EE90..LB..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A75004 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67640-1A75003 |
EE90..LHD..LB W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1A74004 |
EE90..LB..XL W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
8 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12170 |
AE92,EE90..LB..XL |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12170 |
AE92,EE90..LB..XL |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12170 |
AE92,EE90..LB..XL |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751-1203004 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203005 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE95..LHD..WG;EE90..STD..GCC;AE92,CE90,EE97..XL;AE95,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

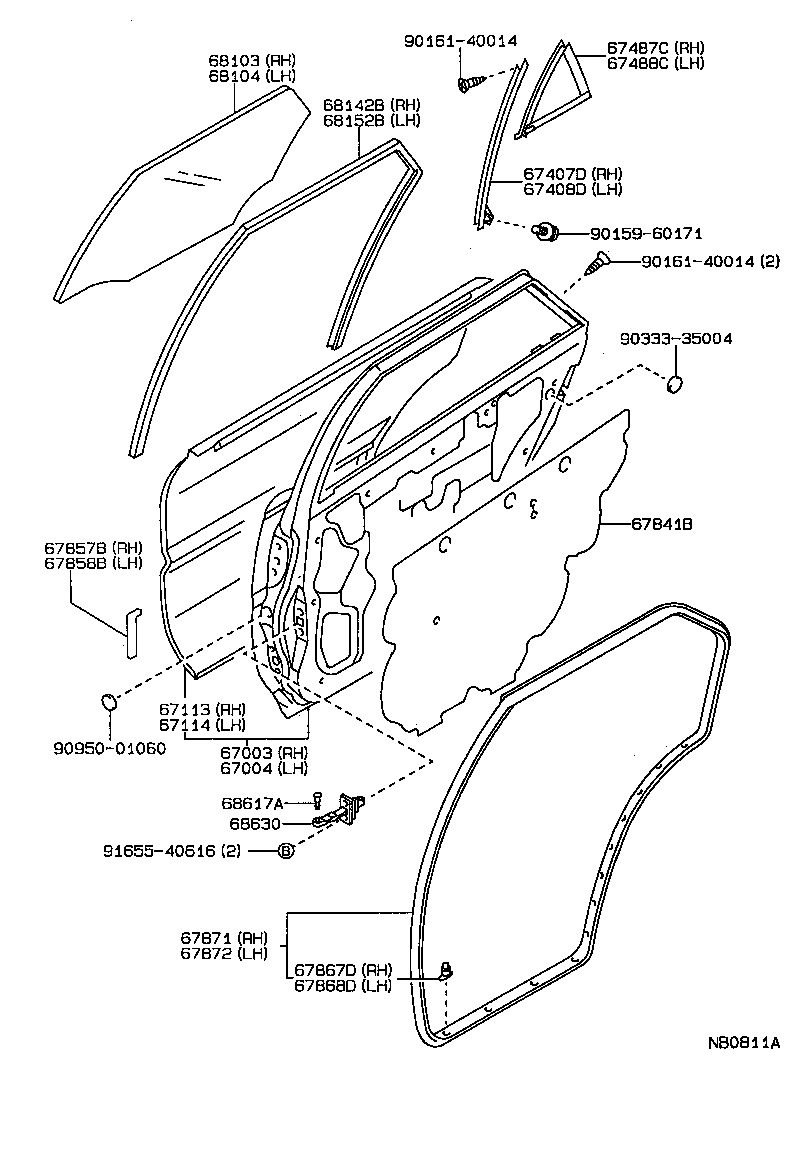

ILLUST NO. 1 OF 2(8705- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12550 |
AE92,EE90..LB |
1 | ||
| 67003-12551 |
AE92,EE90..LB |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12550 |
AE92,EE90..LB |
1 | ||
| 67004-12551 |
AE92,EE90..LB |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12170 |
AE92,EE90..LB |
1 | ||
| 67113-12171 |
AE95..WG;AE92,EE90..LB |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12170 |
AE92,EE90..LB |
1 | ||
| 67114-12171 |
AE95..WG;AE92,EE90..LB |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-12180 |
AE92,EE90..LB |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-12170 |
AE92,EE90..LB |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-12060 |
AE92,EE90..LB |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-12060 |
AE92,EE90..LB |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE90,EE9#..ARL,GEN |
2 | ||
| 67841-12220 |
AE9#,CE90,EE9#..ARL,GEN,SA |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90;EE90..LB,SED |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12301 |
AE92,EE90..LB |
1 | ||
| 67871-12300 |
AE92,EE90..LB |
2 | ||
| 67871-12300 |
AE92,EE90..LB |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12300 |
AE92,EE90..LB |
1 | ||
| 67872-12301 |
AE92,EE90..LB |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12220 |
AE92,EE90..LB..XL *TEM,T=3.5 |
1 | ||
| 68113-12230 |
AE92,EE90..LB..XL *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12220 |
AE92,EE90..LB..XL *TEM,T=3.5 |
1 | ||
| 68114-12230 |
AE92,EE90..LB..XL *TT,T=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12130 |
AE92,EE90..LB |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12050 |
AE92,EE90..LB |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE90,EE9# |
2 | ||
| 68617-12030 |
AE9#,CE90,EE9# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE90,EE9# |
2 | ||
| Common parts | ||||
| 90159-60171 | ||||
| 90161-40014 | ||||
| 90333-35004 | ||||
| 90950-01060 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
