EE90L-ALMDS (1987)
Toyota Corolla Sed/Lb/Wg

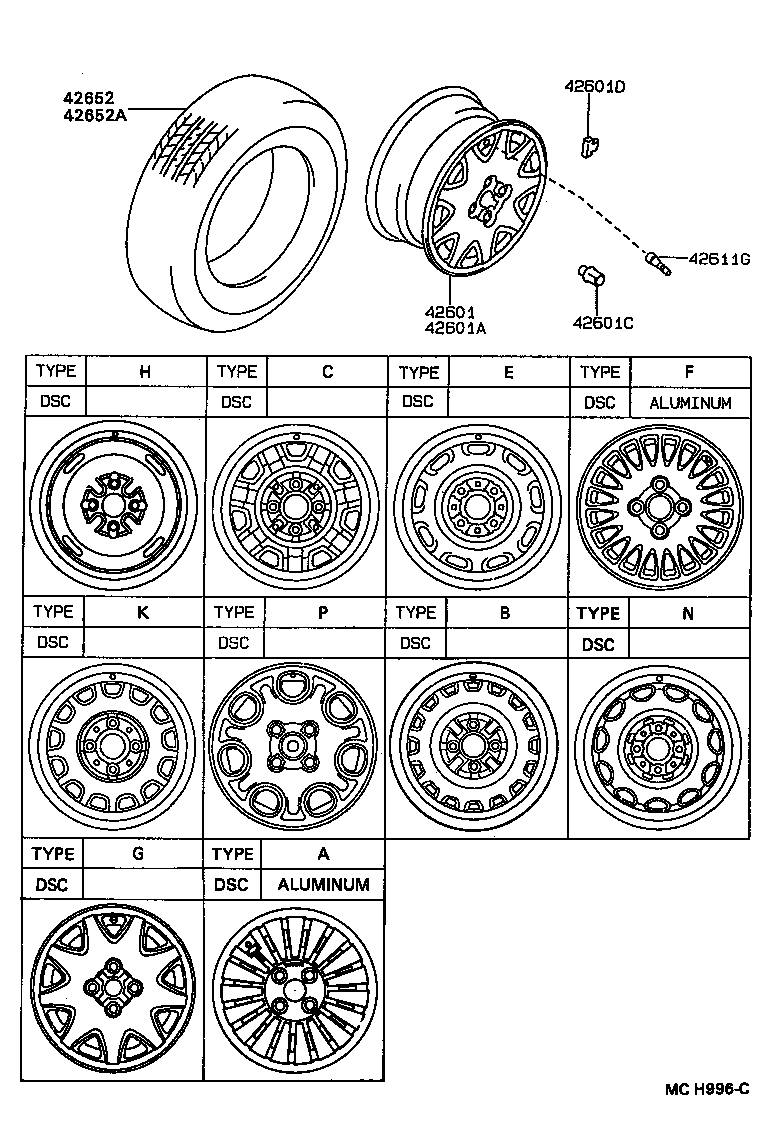

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1617001 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,SILVER,TYPE B |
4 | ||
| 42611-16170 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,TYPE B |
4 | ||
| 42611-2030003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-1617003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,SILVER,TYPE B |
4 | ||
| 42611-2041003 |
EE9#..GCC,GEN;AE9#,CE90..(LB,SED)..(GL,STD,XL)..GEN 13X5J,SILVER M,TYPE E |
4 | ||
| 42611-2030003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2041003 |
AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) 13X5J,SILVER M,TYPE E |
8 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2030003 |
EE90..(GL,XL)..GEN;AE92..(3FC,5F)..GL..GEN;AE92,CE90..LHD..XL..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2041003 |
AE92,EE9#..(GL,STD,XL)..GEN 13X5J,TYPE E,SILVER M |
8 | ||
| 42611-2041003 |
AE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN) 13X5J,SILVER M,TYPE E |
8 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;AE92..LHD..SED..GL;AE92..SED..XL..GEN;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;AE92..LHD..SED..GL;AE92..SED..XL..GEN;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42611-2041003 |
AE92,EE90..(GL,XL)..GEN 13X5J,SILVER M,TYPE E |
8 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-16170 |
AE92,EE90..GL,XL 13X5J,TYPE B |
1 | ||
| 42611-16170 |
AE92,EE90..GL,XL 13X5J,TYPE B |
1 | ||
| 42611-16170 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,TYPE B |
1 | ||
| 42611-1617001 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,SILVER,TYPE B |
1 | ||
| 42611-2030003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-1617003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,SILVER,TYPE B |
1 | ||
| 42611-2041003 |
EE9#..GCC,GEN;AE9#,CE90..(LB,SED)..(GL,STD,XL)..GEN 13X5J,SILVER M,TYPE E |
1 | ||
| 42611-2030003 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2030003 |
EE90..(GL,XL)..GEN;AE92..(3FC,5F)..GL..GEN;AE92,CE90..LHD..XL..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2030003 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 13X5J,TYPE C,DARK GRAY |
1 | ||
| 42611-2041003 |
AE92,EE9#..(GL,STD,XL)..GEN 13X5J,SILVER M,TYPE E |
2 | ||
| 42611-2041003 |
AE92,EE9#..(GL,STD,XL)..GEN 13X5J,SILVER M,TYPE E |
2 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;AE92..LHD..SED..GL;AE92..SED..XL..GEN;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42611-2041003 |
AE92,EE90..(GL,STD,XL)..GEN 13X5J,SILVER M,TYPE E |
2 | ||
| 42611-2030003 |
AE92..LB..ATM;AE92..LHD..LB..5F;AE92..LHD..SED..GL;AE92..SED..XL..GEN;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN 13X5J,DARK GRAY,TYPE C |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
EE90..(GL,XL)..GEN;AE92,CE90,EE97..(GL,SE,XL)..(GCC,GEN) CAP NUT(CHROME PLATED) |
16 | ||
| 90942-01021 |
AE92..ATM..XL;AE92..LB..ATM;AE92..3FC..SE;AE92..LHD..LB..5F;AE92..LHD..SED..GL;EE90..(GL,XL)..(GEN,SA);AE92,CE90,EE97..MTM..(SE,XL)..(GCC,GEN) CAP NUT(CHROME PLATED) |
16 | ||
| 90942-01007 |
AE95..SED;AE92,CE90,EE9#..GL,SE,STD,XL |
16 | ||
| 90942-01021 |
AE92..LB..ATM;AE92..LHD..LB..5F;AE92..LHD..SED..GL;EE90..(GL,XL)..GEN;AE92,CE90,EE97..(SE,XL)..(GCC,GEN) CAP NUT(CHROME PLATED) |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03147 |
AE9#,CE90,EE9# 15G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03151 |
AE9#,CE90,EE9# 35G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03149 |
AE9#,CE90,EE9# 25G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03150 |
AE9#,CE90,EE9# 30G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03146 |
AE9#,CE90,EE9# 10G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03153 |
AE9#,CE90,EE9# 45G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03155 |
AE9#,CE90,EE9# 55G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03152 |
AE9#,CE90,EE9# 40G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03148 |
AE9#,CE90,EE9# 20G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03157 |
AE9#,CE90,EE9# 65G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03158 |
AE9#,CE90,EE9# 70G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03159 |
AE9#,CE90,EE9# 75G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03154 |
AE9#,CE90,EE9# 50G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03156 |
AE9#,CE90,EE9# 60G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 90942-03160 |
AE9#,CE90,EE9# 80G,W(13INCHES ALUMINUM WHEEL) |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE9#,CE90,EE9# |
5 | ||
| 90942-05009 |
AE9#,CE90,EE9# |
5 | ||
| 90942-05009 |
AE92,CE90,EE9# |
5 | ||
| 90942-05009 |
AE9#,CE90,EE9# |
5 | ||
| 42652 - TIRE | ||||
| 42652-14140 |
EE97..RHD..XL;AE92,EE90..(GL,XL)..GEN 165SR13 |
4 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
4 | ||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
4 | ||
| 42652-14290 |
EE97..RHD..XL;AE92,EE90..(GL,XL)..GEN 165SR13 |
4 | ||
| 42652-16230 |
AE92,CE90,EE90..XL..GEN 175/70R13 82S |
4 | ||
| 42652-14140 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..(SED,WG)..(GL,XL)..GEN 165SR13 |
4 | ||
| 42652-14290 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..(SED,WG)..(GL,XL)..GEN 165SR13 |
4 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
4 | ||
| 42652-16230 |
AE92..SE..SA;AE92..(3FC,5F)..GL;EE90..(GL,XL)..GEN;AE92,CE90..LHD..XL..GEN 175/70R13 82S |
4 | ||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
4 | ||
| 42605-20100 |
AE92,CE90,EE9#..(GL,STD,XL)..GEN 165SR13,W(TUBE) |
4 | ||
| 42652-16230 |
EE90..LHD..LB;EE90..RHD..XL..GEN;AE92,CE90..XL..GEN;EE90..LHD..(3FC,4F)..XL..GEN 175/70R13 82S |
4 | ||
| 42605-10060 |
AE92,EE9#..(GL,STD,XL)..GEN 155SR13,W(TUBE) |
4 | ||
| 42652-14290 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 165SR13 |
4 | ||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
4 | ||
| 42652-16230 |
EE90..LHD..LB;EE90..RHD..XL..GEN;AE92,CE90..SED..XL..GEN;EE90..LHD..(3FC,4F)..XL..GEN 175/70R13 82S |
4 | ||
| 42652-14140 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 165SR13 |
4 | ||
| 42652-12220 |
EE9#..GEN,SA;AE92..(GL,STD,XL)..GEN 155SR13 |
4 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
1 | ||
| 42652-14140 |
EE97..RHD..XL;AE92,EE90..(GL,XL)..GEN 165SR13 |
1 | ||
| 42652-14290 |
EE97..RHD..XL;AE92,EE90..(GL,XL)..GEN 165SR13 |
1 | ||
| 42652-16230 |
AE92,CE90,EE90..XL..GEN 175/70R13 82S |
1 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
1 | ||
| 42652-16230 |
EE90..LHD..LB;EE90..RHD..XL..GEN;AE92,CE90..XL..GEN;EE90..LHD..(3FC,4F)..XL..GEN 175/70R13 82S |
1 | ||
| 42652-14290 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..(SED,WG)..(GL,XL)..GEN 165SR13 |
1 | ||
| 42652-14140 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..(SED,WG)..(GL,XL)..GEN 165SR13 |
1 | ||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
1 | ||
| 42605-10060 |
AE92,EE9#..(GL,STD,XL)..GEN 155SR13,W(TUBE) |
1 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
1 | ||
| 42605-20100 |
AE92,CE90,EE9#..(GL,STD,XL)..GEN 165SR13,W(TUBE) |
1 | ||
| 42652-16230 |
AE92..SE..SA;AE92..(3FC,5F)..GL;EE90..(GL,XL)..GEN;AE92,CE90..LHD..XL..GEN 175/70R13 82S |
1 | ||
| 42652-16230 |
EE90..LHD..LB;EE90..RHD..XL..GEN;AE92,CE90..SED..XL..GEN;EE90..LHD..(3FC,4F)..XL..GEN 175/70R13 82S |
1 | ||
| 42652-14140 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 165SR13 |
1 | ||
| 42652-14290 |
EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN 165SR13 |
1 | ||
| 42605-10060 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 155SR13,W(TUBE) |
1 | ||
| 42605-20100 |
AE92,EE90..(LB,SED)..(GL,XL)..GEN 165SR13,W(TUBE) |
1 | ||
| 42652-12220 |
EE9#..GEN,SA;AE92..(GL,STD,XL)..GEN 155SR13 |
1 | ||

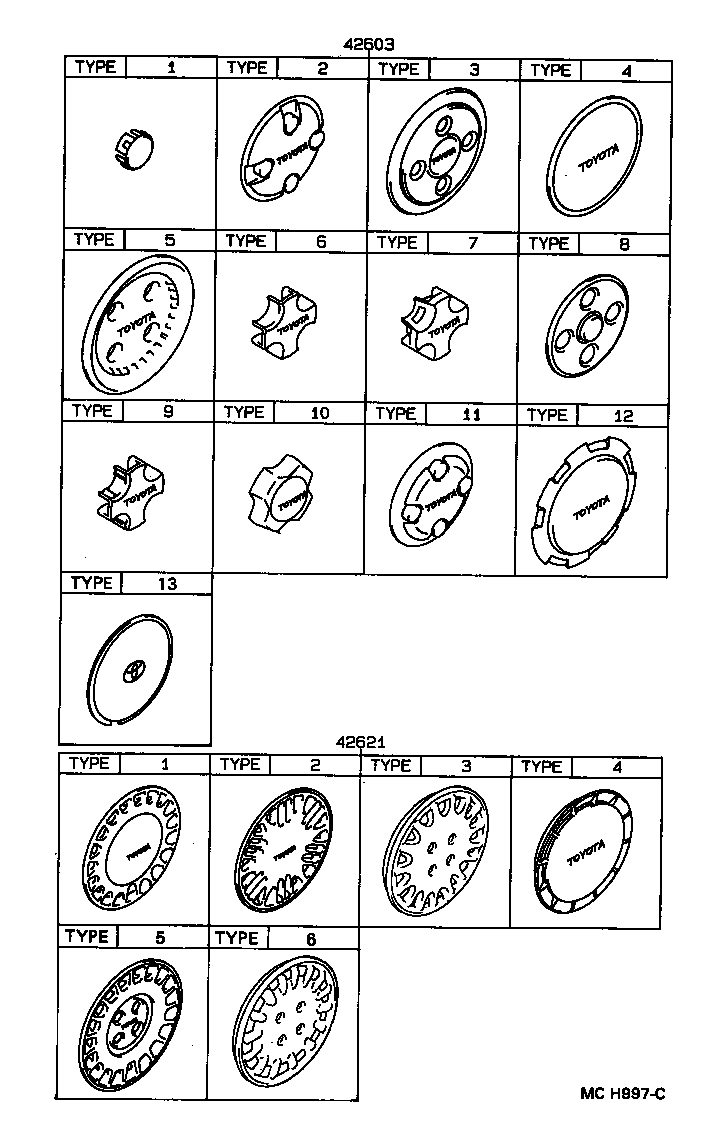

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12320 |
EE97..RHD..XL;AE92,CE90,EE90..(GL,XL)..GEN TYPE 11 |
4 | ||
| 42603-12380 |
EE90..XL..(GCC,GEN);AE92,CE90,EE97..XL..GEN TYPE 4 |
4 | ||
| 42603-12320 |
AE92,CE90,EE90..(GL,XL)..GEN TYPE 11 |
4 | ||
| 42603-12360 |
EE90..(STD,XL)..(GCC,GEN);AE92,CE90,EE97..(STD,XL)..GEN TYPE 2 |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-12100 |
AE92,CE90,EE9#..(GL,XL)..GEN TYPE 4 |
4 | ||
| 42602-12130 |
AE92..SE..GCC;AE95,CE90..SED;AE92,EE9#..(GL,XL)..GEN TYPE 1 |
4 | ||
| 42602-12100 |
EE97..RHD;AE92,CE90,EE90..(GL,XL)..GEN TYPE 4 |
4 | ||
| 42602-12130 |
AE92,CE90,EE9#..(GL,XL)..GEN TYPE 1 |
4 | ||
| 42602-1218003 |
EE90..LB..XL TYPE 3,SILVER M.,040 ,164 ,168 ,205 ,3E5 ,3H4 ,4K1 ,6K6 ,8E9 ,8G2 |
4 | ||
| 42602-1218003 |
EE90..LB..XL;AE92..LB..ATM;AE92..LHD..LB..5F TYPE 3,SILVER M.,040 ,164 ,168 ,183 ,205 ,3E5 ,3H4 ,6K6 ,8E9 ,8G2 |
4 | ||
| 42602-1214003 |
AE95,CE90..SED;AE92,EE9#..(GL,XL)..GEN TYPE 2,SILVER M |
4 | ||
| 42602-1214005 |
AE92,CE90,EE9#..(GL,XL)..GEN TYPE 2,BEIGE M |
4 | ||
| 42602-12100 |
EE97..RHD;AE92,CE90,EE90..(LB,SED)..(GL,XL)..GEN TYPE 4 |
4 | ||
| 42602-12100 |
AE92,CE90,EE90..(LB,SED)..(GL,XL)..GEN TYPE 4 |
4 | ||
| 42602-12130 |
EE90..(GL,XL)..GEN;AE92,CE90,EE97..(GL,SE,XL)..(GCC,GEN) TYPE 1 |
4 | ||
| 42602-1214003 |
AE92,CE90,EE90..(GL,XL)..GEN TYPE 2,SILVER M |
4 | ||
| 42602-1214005 |
AE92,CE90,EE90..(GL,XL)..GEN TYPE 2,BEIGE M |
4 | ||
