EE90L-ALHDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB

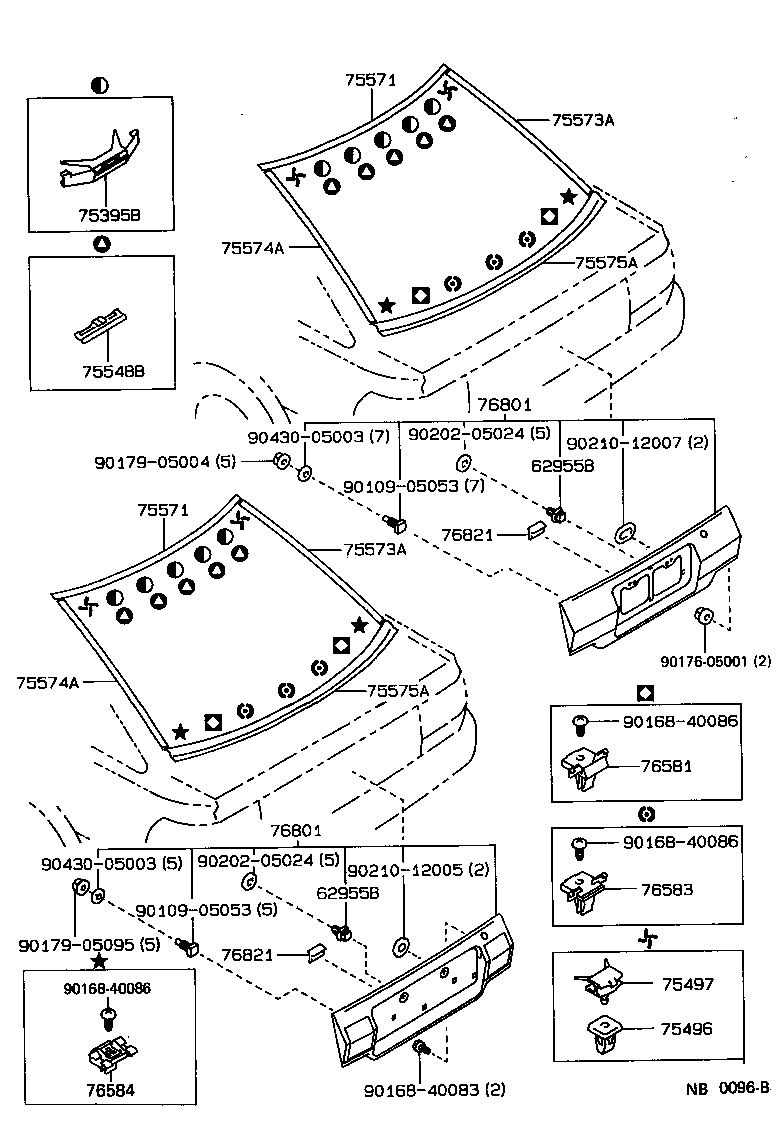

Click highlighted areas on diagram

diagram 62955B 62955B 75395B 75496 75497 75548B 75571 75571 75573A 75573A 75574A 75574A 75575A 75575A 76581 76583 76584 76801 76801 76821 76821 9010905053 9010905053 9016840083 9016840086 9016840086 9016840086 9017605001 9017905004 9017905095 9020205024 9020205024 9021012005 9021012007 9043005003 9043005003
Part # Description Qty Price
62955B - RETAINER, BACK DOOR GARNISH
62955-12010

AE92,EE90..LB

 5
62955B - RETAINER, BACK DOOR GARNISH
62955-12010

AE92,EE90..LB

 5
75395B - CLIP, BACK DOOR MOULDING, NO.1
75395-12080

AE92,EE90..LB

 5
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
76671-12010

AE92,EE90..LB..(GTI,XL)

 2
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75898-12040

AE92,EE90..LB

 2
75898-12030

AE92,EE90..LB

 2
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75549-20080

AE92,EE90..LB

 5
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12390

AE92,EE90..LB..(GTI,XL)

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12390

AE92,EE90..LB..(GTI,XL)

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-12250

AE92,EE90..LB

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-12250

AE92,EE90..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-12140

AE92,EE90..LB

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-12140

AE92,EE90..LB

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12250

AE92,EE90..LB..(GTI,XL)

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12250

AE92,EE90..LB..(GTI,XL)

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12020

AE92..GTI;EE90..LB..GL;AE92..LHD..LB;EE90..LB..3FC;EE90..LHD..LB..5F

 2
76581-12020

AE92,EE90..LB

 2
76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH
76583-12010

AE92..GTI;EE90..LB..GL;AE92..LHD..LB;EE90..LB..3FC;EE90..LHD..LB..5F

 3
76583-12010

AE92,EE90..LB

 3
76584 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH
76584-12020

AE92,EE90..LB

 2
76584-12020

AE92..GTI;EE90..LB..GL;AE92..LHD..LB;EE90..LB..3FC;EE90..LHD..LB..5F

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-12230

AE92,EE90..LB

 1
76801-12240

AE92,EE90..LB

FOR LARGE LICENCE PLATE

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-12230

AE92,EE90..LB

 1
76801-12240

AE92,EE90..LB

FOR LARGE LICENCE PLATE

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12040

AE92,EE90..LB

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12040

AE92,EE90..LB

 1
Common parts
90109-05053
90168-40083
90168-40086
90176-05001
90179-05004
90179-05095
90202-05024
90210-12005
90210-12007
90430-05003
