EE90L-ALHDS (1987)
Toyota Corolla Sed/Lb/Wg

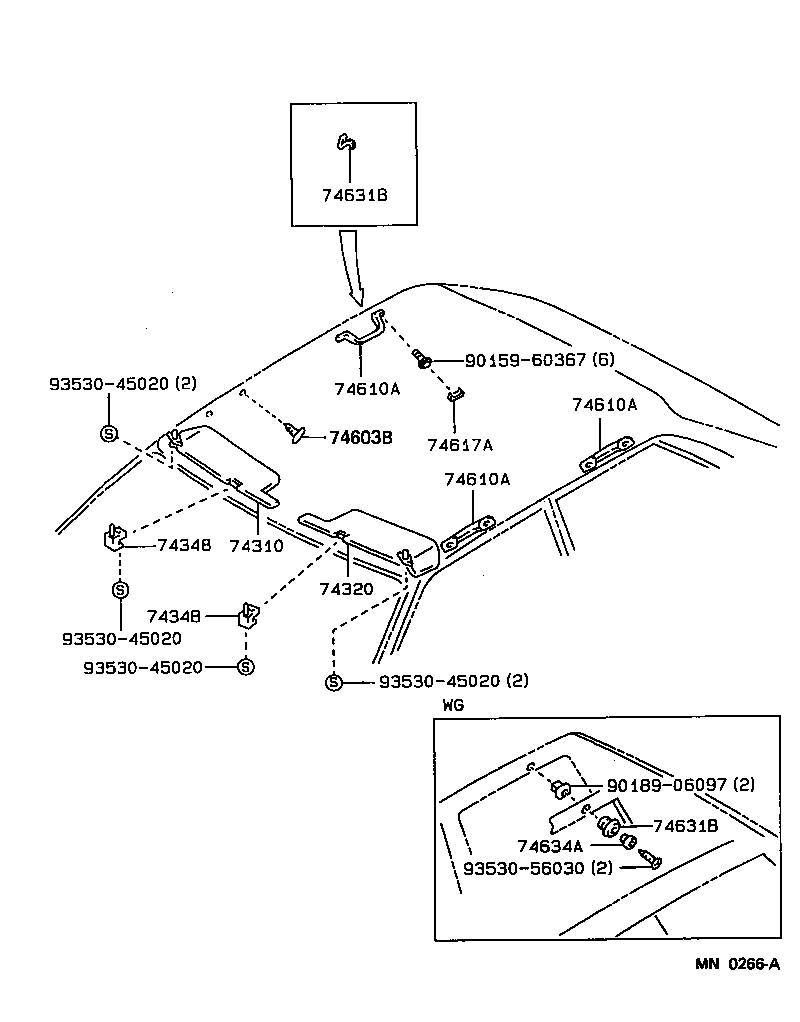

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1267003 |
AE92,EE90..LHD..LB..XL CKD COUNTRIES,LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1268003 |
AE92,EE90..LHD..LB..XL CKD C0UNTRIES & W(FABRIC TYPE & VANITY MIRROR,LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1268005 |
AE92,EE90..LHD..LB..XL CKD C0UNTRIES & W(FABRIC TYPE & VANITY MIRROR,LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1278005 |
AE92,EE90..LB..XL;AE92,EE90..RHD..GL..GEN LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1278004 |
AE92,EE90..LHD..LB..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1279005 |
AE9#,CE90,EE90..LHD..(LB,SED)..XL W(FABRIC TYPE,VANITY MIRROR),LIGHT BEIGE,TRIM4# |
1 | ||
| 74310-1279003 |
AE9#,CE90,EE90..LHD..(LB,SED)..(SE,XL) W(FABRIC TYPE,VANITY MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1279004 |
AE9#,CE90,EE90..LHD..(LB,SED)..(SE,XL) W(FABRIC TYPE,VANITY MIRROR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1278003 |
AE92..GT..SA;AE92,EE90..LB..XL;AE92,EE90..RHD..(GL,GTI)..GEN LIGHT GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1253005 |
AE92,EE90..LHD..GL;AE92,EE90..LHD..LB..XL CKD COUNTRIES,LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-1260004 |
AE92,CE90,EE90..LHD..XL W(FABRIC TYPE,VANITY MIRROR),LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1253003 |
AE92,EE90..LHD..GL;AE92,EE90..LHD..LB..XL CKD COUNTRIES,LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1260005 |
AE92,EE90..LB..XL;AE92,EE90..LHD..GL LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-1260004 |
AE92,EE90..LHD..GL;AE92,EE90..LHD..LB..XL LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1253005 |
AE92,EE90..LHD..LB..XL;AE92,EE90..LHD..SED..GL CKD COUNTRIES,LIGHT BEIGE,TRIM4# |
1 | ||
| 74320-1253003 |
AE92,EE90..LHD..LB..XL;AE92,EE90..LHD..SED..GL CKD COUNTRIES,LIGHT GRAY,TRIM1# |
1 | ||
| 74320-1260003 |
AE92,EE90..LB..XL;AE92,EE90..LHD..GL LIGHT GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL LIGHT BEIGE,TRIM4# |
2 | ||
| 74348-1202004 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL LIGHT BEIGE,TRIM4# |
2 | ||
| 74348-1202004 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-0604825 |
AE9#,CE90..GL,SE,SR5,XL;EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
2 | ||
| 90467-06048B1 |
AE92..SA;AE92..LB;AE95,CE90;EE90..LB..GL;EE90..LHD..GL;AE92..RHD..XL..GEN;EE90..(LB,SED)..XL;AE92..LHD..SED..(GL,XL) LIGHT GRAY,TRIM1# |
2 | ||
| 90467-0604833 |
EE90..(LB,SED)..(GL,XL);AE9#,CE90..GL,GT,GTI,SE,SR5,XL LIGHT GRAY,TRIM1# |
2 | ||
| 90467-0604834 |
AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 90467-06048J0 |
AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
2 | ||
| 90467-06048E0 |
AE9#,CE90..GL,SE,SR5,XL;EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE9#,CE90,EE9#..GL,SE,SR5,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601003 |
AE92..GT..GEN;AE9#,CE90,EE9#..GL,GTI,SE,SR5,XL LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE9#,CE90,EE9#..GL,SE,SR5,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601003 |
AE92..GT..GEN;AE9#,CE90,EE9#..GL,GTI,SE,SR5,XL LIGHT GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1202003 |
AE92,CE90,EE90..(LB,SED)..(GL,GTI,XL)..(GCC,GEN) W(SUN ROOF),LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1202005 |
AE92,CE90,EE90..(LB,SED)..(GL,XL)..(GCC,GEN) W(SUN ROOF),LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1601005 |
AE9#,CE90,EE9#..GL,SE,SR5,XL LIGHT BEIGE,TRIM4# |
3 | ||
| 74610-1202004 |
AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(SUN ROOF),LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601003 |
AE92..GT..GEN;AE9#,CE90,EE9#..GL,GTI,SE,SR5,XL LIGHT GRAY,TRIM1# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-1601020 |
AE9#,CE90,EE9#..GL,SE,SR5,XL LIGHT BEIGE,TRIM4# |
6 | ||
| 74617-1601024 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DEEP BLUE,TRIM8# |
6 | ||
| 74617-1601053 |
AE9#,CE90,EE9#..GL,GT,GTI,SE,SR5,XL LIGHT GRAY,TRIM1# |
6 | ||
| 74631B - HOOK, COAT | ||||
| 74631-1401055 |
AE9#,CE90,EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74631-1401010 |
AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74631-1401034 |
AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) DEEP BLUE,TRIM8# |
1 | ||
| 74631-2004015 |
AE9#,CE90..GL,SE,SR5,XL;EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74631-2004004 |
AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) BLUE,TRIM8# |
1 | ||
| 74631B - HOOK, COAT | ||||
| 74631-1401055 |
AE9#,CE90,EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74631-1401010 |
AE9#,CE90,EE90..(LB,SED)..(GL,GTI,XL) LIGHT GRAY,TRIM1# |
1 | ||
| 74631-1401034 |
AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) DEEP BLUE,TRIM8# |
1 | ||
| 74631-2004015 |
AE9#,CE90..GL,SE,SR5,XL;EE90..(LB,SED)..(GL,XL) LIGHT BEIGE,TRIM4# |
1 | ||
| 74631-2004004 |
AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL) BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-60367 | ||||
| 90189-06097 | ||||
| 93530-45020 | ||||
| 93530-56030 | ||||

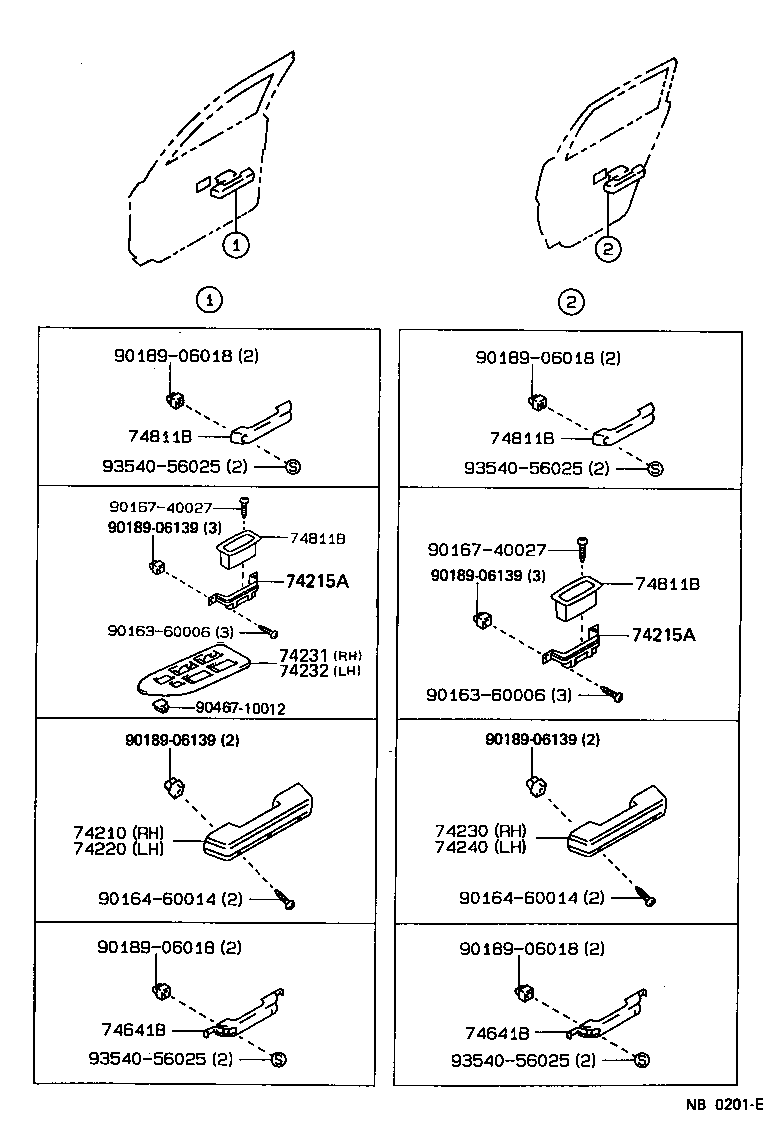

ILLUST NO. 1 OF 2(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1211003 |
AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) GRAY,TRIM1# |
1 | ||
| 74210-1211005 |
AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211005 |
EE90..STD..GCC;AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211024 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-1211003 |
AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) GRAY,TRIM1# |
1 | ||
| 74210-1211024 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-1211005 |
AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211005 |
EE90..STD..GCC;AE9#,CE90,EE9#..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-1211005 |
AE9#,CE90,EE90..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211024 |
AE95..WG..XL;EE90..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-1211003 |
AE9#,CE90,EE90..XL..(ARL,GCC,GEN) GRAY,TRIM1# |
1 | ||
| 74210-1211005 |
EE90..STD..GCC;AE9#,CE90,EE90..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-1211003 |
AE9#,CE90,EE90..XL..(ARL,GCC,GEN) GRAY,TRIM1# |
1 | ||
| 74210-1211005 |
AE9#,CE90,EE90..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 74210-1211024 |
AE95..WG..XL;EE90..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-1211005 |
EE90..STD..GCC;AE9#,CE90,EE90..XL..(ARL,GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90163-60006 | ||||
| 90164-60014 | ||||
| 90167-40027 | ||||
| 90189-06018 | ||||
| 90189-06139 | ||||
| 90467-10012 | ||||
| 93540-56025 | ||||
