EE90L-ALHDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB

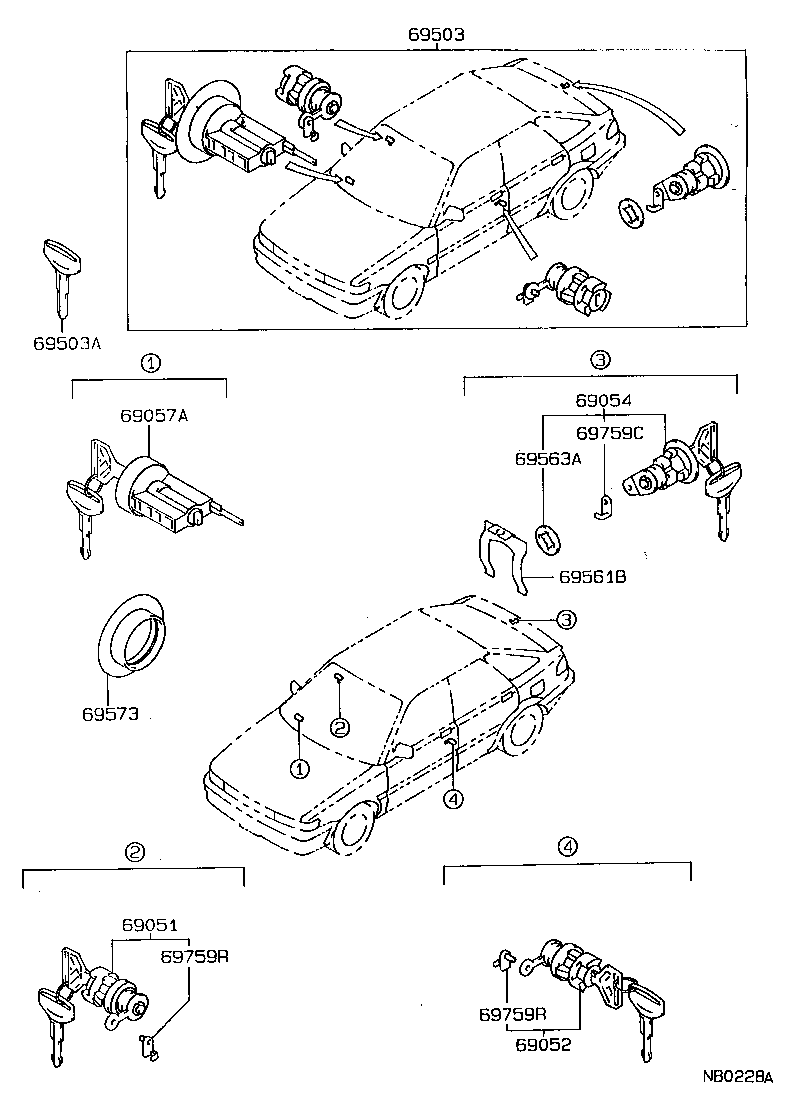

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69503 69503A 69561B 69563A 69573 69759C 69759R 69759R
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12200

AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12200

AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN)

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-12460

AE92,EE90..LB

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12090

AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN)

 1
69503 - CYLINDER SET, LOCK
69005-12810

AE92,EE90..LB

 1
69503A - KEY, BLANK
90999-00132

AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN)

MASTER KEY,W(*68)

 1
90999-00133

AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN)

MASTER KEY,W(*69)

 1
90999-00131

AE9#,CE90..ARL,GEN;EE90..(LB,SED)..(GCC,GEN)

MASTER KEY,W(*70)

 1
90999-00130

AE95,CE90;AE92,EE90..(LB,SED)..(GCC,GEN)

MASTER KEY

 1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69511-32010

AE95..WG;AE92,EE90..LB

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-32010

AE92,EE90..LB

 1
69573 - PAD, IGNITION SWITCH LOCK CYLINDER
69573-12010

AE92,CE90,EE90..LB,SED

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-20080

AE92,EE90..LB

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30040

AE95;AE92,CE90,EE90..LB,SED

RH

 1
69759-30050

AE95;AE92,CE90,EE90..LB,SED

LH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30040

AE95;AE92,CE90,EE90..LB,SED

RH

 1
69759-30050

AE95;AE92,CE90,EE90..LB,SED

LH

 1
