EE90L-AEMDSV (1987)
Toyota Corolla Sed/Lb/Wg

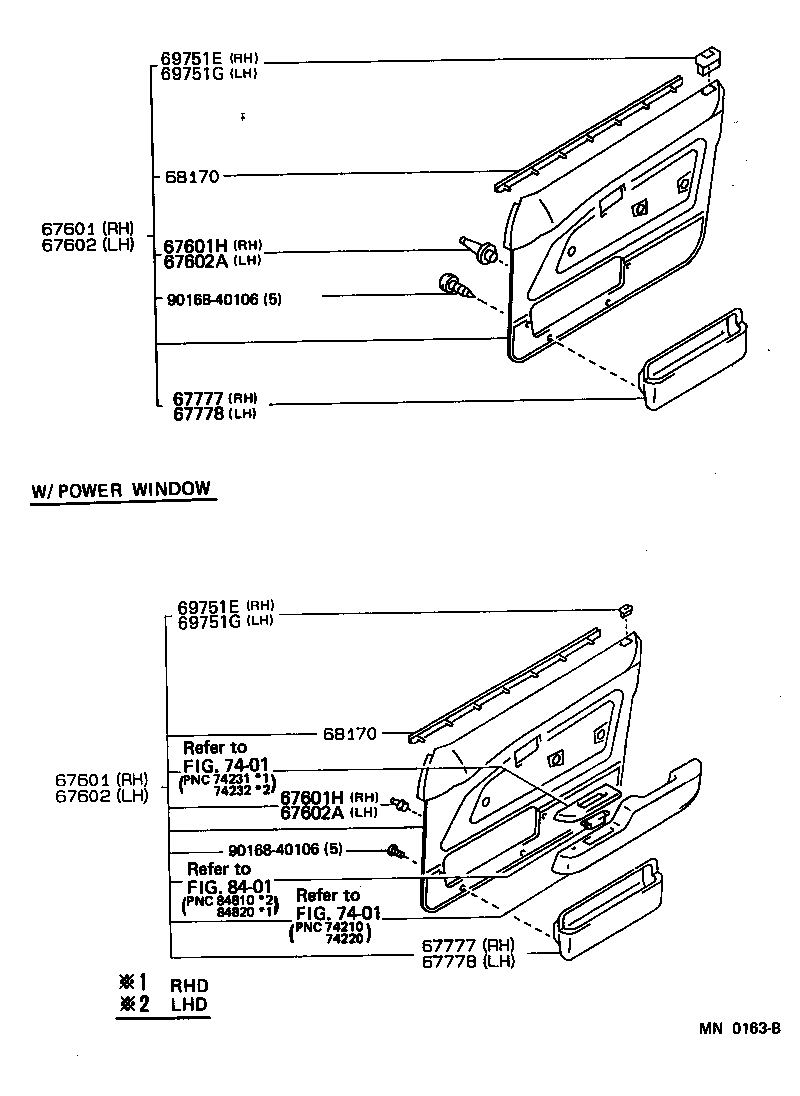

ILLUST NO. 2 OF 2(8908- )SE,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18003 |
AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18005 |
AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A47004 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67650-1A47003 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A47005 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18004 |
AE9#,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 67650-1A50005 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A50003 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A50004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67650-1A18005 |
EE90..STD..GCC;AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A34006 |
AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A44006 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A34006 |
AE9#,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A18003 |
EE90..LHD..XL;EE90..STD..GCC;AE9#,CE90,EE97..LHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
EE90..LHD..XL;EE90..STD..GCC;AE9#,CE90,EE97..LHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 67650-1A34003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A44003 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A34004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67650-1A44004 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67650-1A44006 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A18003 |
AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18005 |
AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A47004 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67650-1A47003 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A47005 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A18004 |
AE9#,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 67650-1A50005 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A50003 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A50004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67650-1A18005 |
EE90..STD..GCC;AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A34006 |
AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A44006 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A34006 |
AE9#,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67650-1A18003 |
EE90..LHD..XL;EE90..STD..GCC;AE9#,CE90,EE97..LHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A18004 |
EE90..LHD..XL;EE90..STD..GCC;AE9#,CE90,EE97..LHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 67650-1A34003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A44003 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A34004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67650-1A44004 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67650-1A44006 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E50005 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E77003 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E50004 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67620-1E77005 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E50003 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E77004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67620-1E45005 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..(SED,WG)..XL DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E48006 |
AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E51006 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E45003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E48003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E48004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1E45004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN BLUE,TRIM8# |
1 | ||
| 67620-1E51003 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E51004 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1E51006 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E48006 |
AE9#,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E50005 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E77003 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E50004 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67620-1E77005 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E50003 |
AE9#,CE90,EE9#..LHD..XL W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E77004 |
AE9#,CE90,EE97..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 67620-1E45005 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..(SED,WG)..XL DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E48006 |
AE9#,CE90,EE90..LHD..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E51006 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E45003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E48003 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E48004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1E45004 |
EE90..LHD..XL;AE9#,CE90,EE97..LHD..XL..GEN BLUE,TRIM8# |
1 | ||
| 67620-1E51003 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E51004 |
EE90..LHD..(LB,SED)..XL;AE9#,CE90,EE97..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 67620-1E51006 |
EE90..LHD..SED..XL;AE9#,CE90..LHD..XL..GEN W(*PW & *EL & FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67620-1E48006 |
AE9#,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE9#,CE90,EE9#..XL |
10 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1207005 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#,EE90..XL..(ARL,GCC,SA);AE9#,CE90,EE9#..LHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN BROWN,TRIM4# |
1 | ||
| 67777-1207004 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..(SE,XL) DARK BLUE,TRIM8# |
1 | ||
| 67777-1207006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1207005 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..XL SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207005 |
AE9#,EE90..XL..(ARL,GCC,SA);AE9#,CE90,EE9#..LHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN BROWN,TRIM4# |
1 | ||
| 67777-1207004 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD..(SE,XL) DARK BLUE,TRIM8# |
1 | ||
| 67777-1207006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12200 |
AE9#,CE90,EE9#..XL RH |
1 | ||
| 68172-12130 |
AE9#,CE90,EE9#..XL LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12200 |
AE9#,CE90,EE9#..XL RH |
1 | ||
| 68172-12130 |
AE9#,CE90,EE9#..XL LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
EE90..STD..GCC;AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203005 |
EE90..STD..GCC;AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE9#,CE90,EE9#..XL;AE92,EE90..(SE,STD)..GCC SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL BROWN,TRIM4# |
1 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
1 | ||
| 69751-12030E0 |
AE9#,CE90,EE90..LHD..XL BROWN,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
EE97..RHD..XL;AE92,CE90,EE90..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE92,CE90,EE90..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-2006003 |
AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006044 |
AE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203006 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-12030E0 |
AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90168-40106 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
