EE90L-AEMDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8705- )

Click highlighted areas on diagram

diagram 55905B 55905B 55906A 55907A 55908A 55909A 55910 55917A 55921A 55931 55931 55931 55931 55931A 5593312020 5593916010 55941A 8271114780 8302 8302 8401 8401 87284 9016750020 9048013020 9356614512 9356755016
Part # Description Qty Price
55905B - KNOB, HEATER CONTROL, NO.2
55905-12130

AE92,CE90,EE9#..GCC,GEN

 3
55905-12130

CE90,EE9#..GCC,GEN;AE92..(GL,GTI,XL)..GEN

 1
55905-12130

AE92,CE90,EE9#..GCC,GEN

 1
55905-12130

AE9#,CE90,EE9#

 4
55905-12130

AE9#,CE90,EE9#..GEN

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-12130

AE92,CE90,EE9#..GCC,GEN

 3
55905-12130

CE90,EE9#..GCC,GEN;AE92..(GL,GTI,XL)..GEN

 1
55905-12130

AE92,CE90,EE9#..GCC,GEN

 1
55905-12130

AE9#,CE90,EE9#

 4
55905-12130

AE9#,CE90,EE9#..GEN

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12290

AE9#,CE90,EE9#..LHD..(GL,STD,XL)

 1
55906-12290

AE9#,CE90,EE9#..LHD

 1
55906-12290

AE9#,CE90,EE9#..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12280

AE9#,CE90,EE9#..LHD

 1
55907-12280

AE9#,CE90,EE9#..LHD

 1
55907-12280

AE9#,CE90,EE9#..LHD

 1
55907-12280

AE9#,CE90,EE9#..LHD..(GL,STD,XL)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12190

AE9#,CE90,EE9#

 1
55908-12190

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 1
55908-12230

AE92,EE90..GCC,SA;AE9#,CE90,EE9#..LHD..GEN

 1
55908-12190

AE9#,CE90,EE9#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12170

AE9#,CE90,EE9#

 1
55909-12170

AE9#,CE90,EE9#

 1
55909-12190

AE92,EE90..GCC,SA;AE9#,CE90,EE9#..LHD..GEN

 1
55909-12170

AE9#,CE90,EE9#

 1
55909-12170

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12460

AE9#,CE90,EE9#..LHD

W(HEATER) OR W(*BV OR COOLER)

 1
55910-12490

AE9#,CE90,EE9#..LHD

W(*BV)

 1
55910-12490

AE9#,CE90,EE9#..LHD

W(*BV)

 1
55910-12460

AE9#,EE9#..LHD..GEN

W(*BV & COOLER)

 1
55910-12460

AE9#,EE9#..LHD..GEN

W(HEATER) OR W(*BV OR COOLER)

 1
55910-12460

AE92,EE9#..LHD..GEN

W(HEATER) OR W(*BV OR COOLER)

 1
55910-12460

AE9#,EE9#..LHD..GEN

W(HEATER) OR W(*BV OR COOLER)

 1
55910-12490

AE9#,CE90,EE9#..LHD..(GL,STD,XL)

W(*BV)

 1
55910-12461

AE9#,EE9#..LHD..GEN

W(HEATER) OR W(*BV OR COOLER)

 1
55910-12461

AE9#,CE90,EE9#..LHD..(GL,STD,XL)

 1
55910-12480

AE9#,EE9#..LHD..GEN

W(*BV & COOLER)

 1
55917A - LEVER, TEMPERATURE DAMPER CONTROL
55917-12100

AE92..(GL,GTI,XL)..GEN;AE95,CE90,EE9#..GCC,GEN

 1
55917-12100

AE9#,CE90,EE9#..GEN

 1
55917-12100

AE9#,CE90,EE9#..GCC,GEN

 1
55921A - RETAINER, HEATER CONTROL
55921-14110

EE9#..LHD..GEN

 1
55921-14110

AE9#,CE90,EE9#..GEN

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#..(GL,GT,STD,XL)..(GCC,GEN)

 2
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#..(GL,GT,STD,XL)..(GCC,GEN)

 2
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#..(GL,GT,STD,XL)..(GCC,GEN)

 2
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#..(GL,GT,STD,XL)..(GCC,GEN)

 2
55933-10010

AE9#,CE90,EE9#

 4
55933-10010

EE90;AE9#,CE90,EE97..ARL,GEN,SA

 4
55933-10010

AE9#,CE90,EE9#..GCC,GEN

 2
55933-10010

AE9#,CE90,EE9#

 4
55931A - SHAFT, HEATER CONTROL LEVER
55931-12020

AE92..(GL,GTI,XL)..GEN;AE95,CE90,EE9#..GCC,GEN

 1
55931-12020

AE9#,CE90,EE9#..GCC,GEN

 1
55931-12020

AE9#,CE90,EE9#..GEN

 1
55941A - GUIDE, HEATER CONTROL
55941-12020

AE9#,CE90,EE9#..GEN

 1
55941-12020

AE92..(GL,GTI,XL)..GEN;AE95,CE90,EE9#..GCC,GEN

 1
55941-12020

AE9#,CE90,EE9#..GCC,GEN

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-12120

EE9#..LHD..GEN;AE92..LHD..(GL,XL)

W(*BV)

 1
88032-12120

AE9#,CE90,EE9#..LHD

 1
Common parts
55933-12020
55939-16010
82711-14780
90167-50020
90480-13020
93566-14512
93567-55016
Linked diagrams
8302
8401

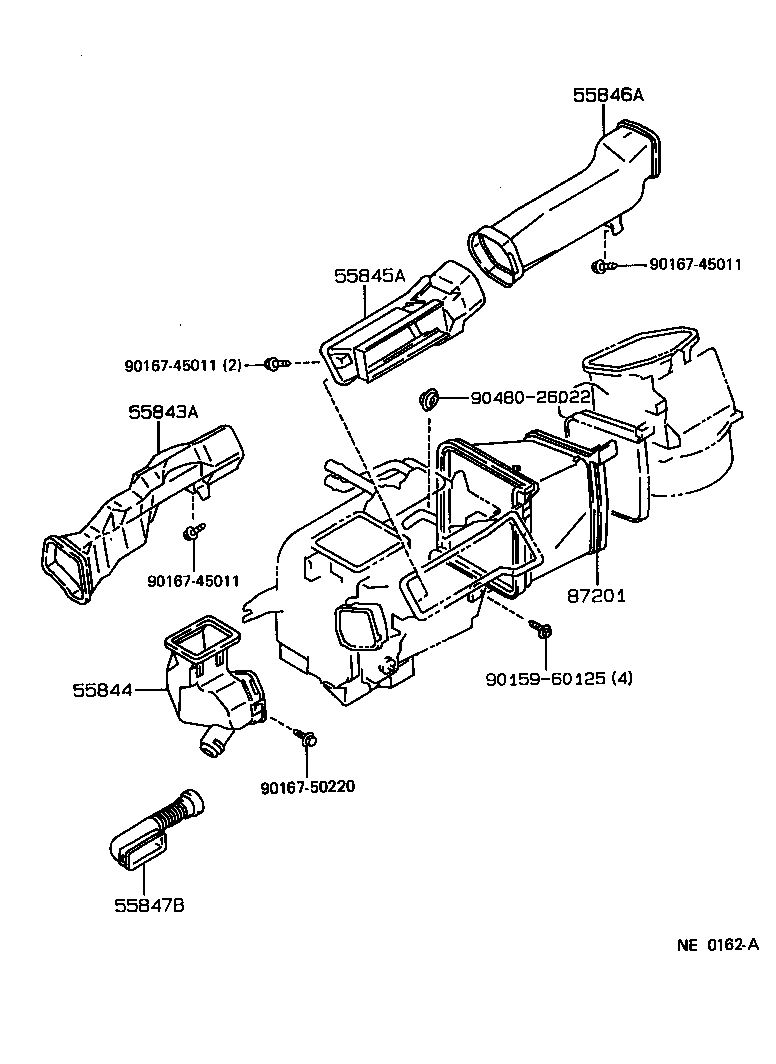

ILLUST NO. 2 OF 2(8705- )LHD

Click highlighted areas on diagram

diagram 55843A 55844 55845A 55846A 55847B 87201 9015960125 9016745011 9016745011 9016745011 9016750220 9048026022
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12180

AE9#,CE90,EE9#..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12220

AE9#,CE90,EE9#..LHD

 1
55844-12240

AE9#,CE90,EE9#..LHD

W(AIR CONDITIONER) OR W(COOLER)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12120

AE9#,CE90,EE9#..LHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-12100

AE9#,CE90,EE9#..LHD

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-12071

AE9#,CE90,EE9#..GCC,GEN

 1
55847-12070

AE9#,CE90,EE9#..GCC,GEN

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12140

AE9#,CE90,EE9#..LHD..GEN

 1
87201-12140

AE92,CE90,EE9#..LHD..GEN

 1
Common parts
90159-60125
90167-45011
90167-50220
90480-26022
