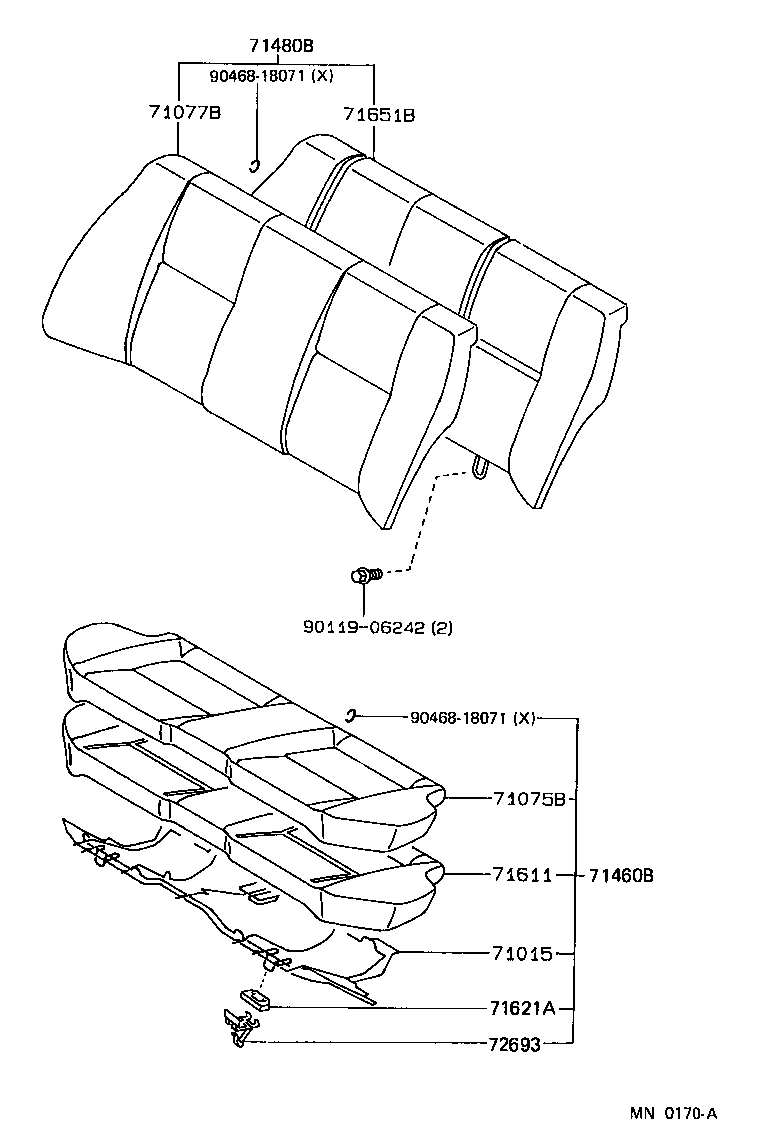

EE90L-AEMDS (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )SED..SE,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12260 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
1 | ||
| 71015-12260 |
EE90..XL..SA;AE92,CE90..SED;EE90..SED..(GCC,GEN) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1A89004 |
AE92,CE90,EE90..LHD..SED..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71065-1A89005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71065-1A89003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E06103 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1A89004 |
AE92,CE90,EE90..SED..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71075-1E06106 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71075-1E06104 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1H56005 |
EE90..STD..GEN;EE90..LHD..SED..XL..GEN;AE92,CE90..LHD..SED..(STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 71077-1H56004 |
AE92,CE90,EE90..LHD..SED..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71077-1H62003 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H56003 |
EE90..STD..GEN;EE90..LHD..SED..XL..GEN;AE92,CE90..LHD..SED..(STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H62004 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71077-1H62005 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71077-1H56004 |
AE92,CE90,EE90..SED..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71077-1H62106 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71077-1H62103 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H56003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H56004 |
AE92,CE90,EE90..LHD..SED..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71077-1H62104 |
AE92,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E03004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E03003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E03005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71460-1E09003 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E09005 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71460-1E09004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71460-1E03005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71460-1E03004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E03003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E09104 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71460-1E03004 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E09106 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71460-1E09103 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1H66004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1H66003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H66005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71480-1H72005 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71480-1H72003 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H72004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71480-1H66005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71480-1H66004 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1H66004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-1H66003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H72106 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71480-1H72103 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H72104 |
AE92,CE90,EE90..SED..XL..GEN ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12530 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 71611-12550 |
AE92..SE..GCC;AE92,CE90,EE90..SED..(STD,XL) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-12040 |
AE92..SE..GCC;AE92,CE90,EE90..SED..(STD,XL) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE92,CE90,EE90..SED |
2 | ||
| 72693-12050 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
2 | ||
| 72693-12050 |
AE92,CE90,EE90..SED |
2 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||
