Toyota Corolla sed/lb/wg EE90 ALTERNATOR

EE90L-AEKRSV (1987)

Toyota Corolla Sed/Lb/Wg

Production Aug 1987 - Aug 1990

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

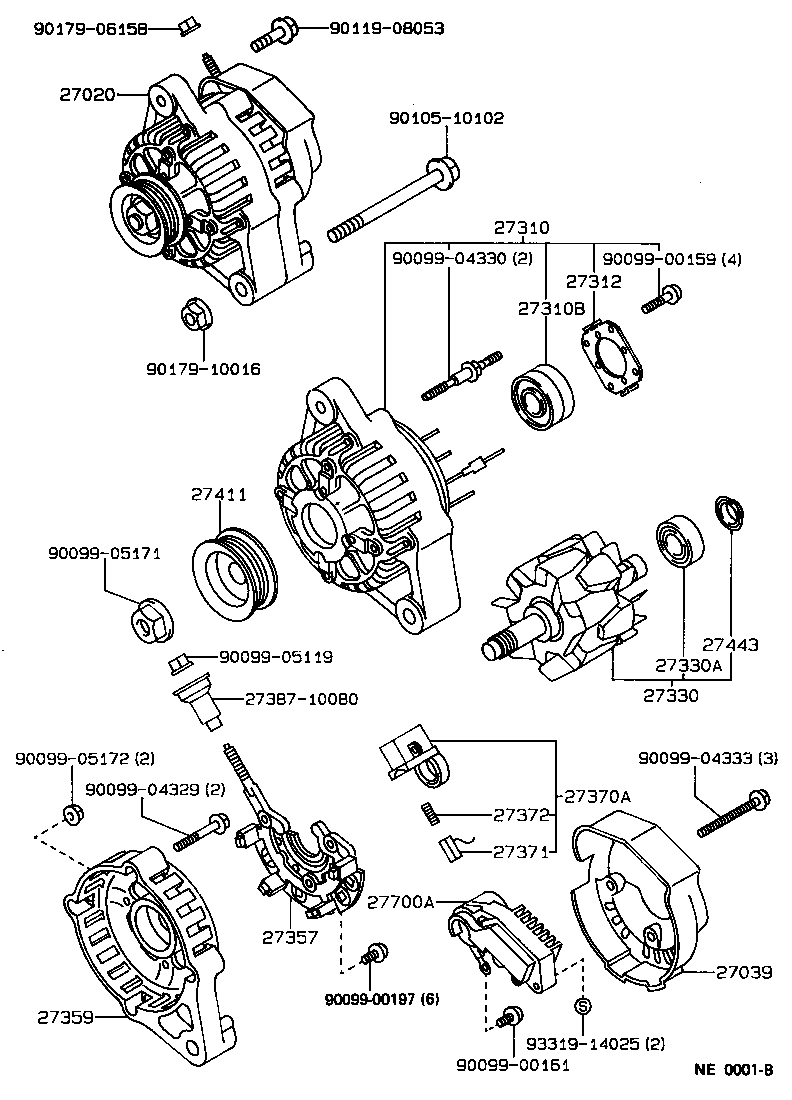

(8705-8809)2E ; (8809- )2E..GEN,SA

Click highlighted areas on diagram

12V 50A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-11050	2E..EE90..GCC 12V 55A	09/1988 - 08/1989	1
27060-10100	2E..EE9# 12V 50A	05/1987 - 09/1988	1
27039 - COVER, ALTERNATOR REAR END
27039-72150	2E..EE9#	05/1987 - 09/1988	1
27039-72110	2E..EE90..GCC	09/1988 - 08/1989	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090	2E..EE9#	05/1987 - 09/1988	1
27310-10021	2E..EE90..GCC	09/1988 - 08/1989	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10159	2E..EE90..GCC	09/1988 - 08/1989	1
90099-10170	2E..EE9#	05/1987 - 09/1988	1
27312 - PLATE, RETAINER
27312-72100	2E..EE90..GCC	09/1988 - 08/1989	1
27312-72120	2E..EE9#	05/1987 - 09/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150	2E..EE9#	05/1987 - 09/1988	1
27330-10021	2E..EE90..GCC	09/1988 - 08/1989	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4A#..AE9#;2E..EE90..GCC	09/1988 - 08/1989	1
90099-10154	2E..EE9#	05/1987 - 09/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63040	2E..EE90..GCC	09/1988 - 08/1989	1
27357-72150	2E..EE9#	05/1987 - 09/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150	2E..EE9#	05/1987 - 09/1988	1
27359-16081	2E..EE90..GCC	09/1988 - 08/1989	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	2E..EE9#	08/1988 - 09/1988	1
27370-16011	4AGE,2E..AE92,EE9#	08/1989 - 06/1990	1
27370-16011	2E..EE90..GCC	09/1988 - 08/1989	1
27370-16011	4AGE,2E..AE92,EE9#	05/1987 - 08/1988	1
27371 - BRUSH, ALTERNATOR
27371-63020	4AF#..AE9#;2E..EE90..GCC	09/1988 - 08/1989	2
27371-63020	4A#,2E..AE9#,EE9#	08/1989 - 06/1990	2
27371-63020	4AF#,2E..AE9#,EE9#	08/1988 - 09/1988	2
27371-63020	4A#,2E..AE9#,EE9#	05/1987 - 08/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	4A#,2E..AE9#,EE9#	05/1987 - 08/1989	2
27372-63020	4A#,2E..AE9#,EE9#..ARL,GCC,GEN	08/1989 - 06/1990	2
27411 - PULLEY, ALTERNATOR
27411-10051	2E..EE9#	05/1987 - 09/1988	1
27411-10070	2E..EE90..GCC	09/1988 - 08/1989	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4A#,2E..AE9#,EE9#	05/1987 - 06/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-10050	2E..EE9#	05/1987 - 04/1988	1
27700-10061	2E..EE90..GCC	09/1988 - 08/1989	1
27700-10080	2E..EE9#	04/1988 - 09/1988	1
Common parts
27387-10080
90099-00159
90099-00161
90099-00197
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025

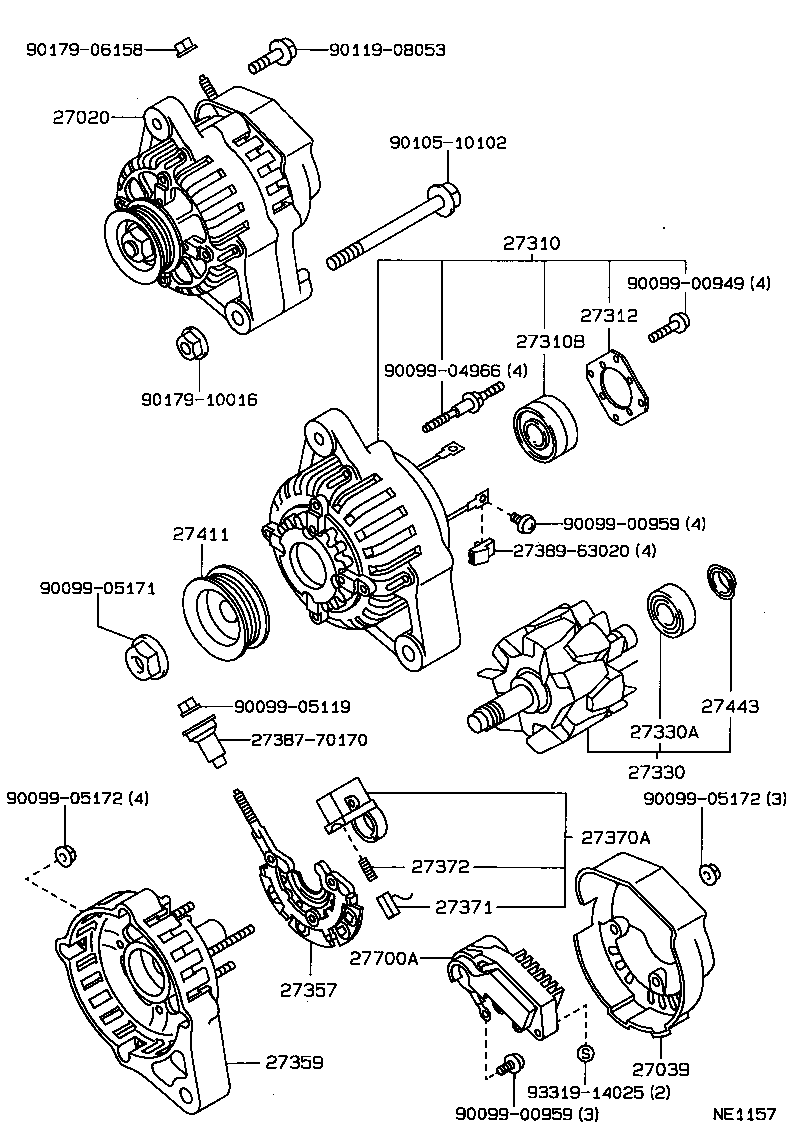

(8809- )2E..EE90..GCC

Click highlighted areas on diagram

12V 55A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-11050	2E..EE90..GCC 12V 55A	09/1988 - 08/1989	1
27060-10100	2E..EE9# 12V 50A	05/1987 - 09/1988	1
27039 - COVER, ALTERNATOR REAR END
27039-72150	2E..EE9#	05/1987 - 09/1988	1
27039-72110	2E..EE90..GCC	09/1988 - 08/1989	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090	2E..EE9#	05/1987 - 09/1988	1
27310-10021	2E..EE90..GCC	09/1988 - 08/1989	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10159	2E..EE90..GCC	09/1988 - 08/1989	1
90099-10170	2E..EE9#	05/1987 - 09/1988	1
27312 - PLATE, RETAINER
27312-72100	2E..EE90..GCC	09/1988 - 08/1989	1
27312-72120	2E..EE9#	05/1987 - 09/1988	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150	2E..EE9#	05/1987 - 09/1988	1
27330-10021	2E..EE90..GCC	09/1988 - 08/1989	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4A#..AE9#;2E..EE90..GCC	09/1988 - 08/1989	1
90099-10154	2E..EE9#	05/1987 - 09/1988	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63040	2E..EE90..GCC	09/1988 - 08/1989	1
27357-72150	2E..EE9#	05/1987 - 09/1988	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150	2E..EE9#	05/1987 - 09/1988	1
27359-16081	2E..EE90..GCC	09/1988 - 08/1989	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	2E..EE9#	08/1988 - 09/1988	1
27370-16011	4AGE,2E..AE92,EE9#	08/1989 - 06/1990	1
27370-16011	2E..EE90..GCC	09/1988 - 08/1989	1
27370-16011	4AGE,2E..AE92,EE9#	05/1987 - 08/1988	1
27371 - BRUSH, ALTERNATOR
27371-63020	4AF#..AE9#;2E..EE90..GCC	09/1988 - 08/1989	2
27371-63020	4A#,2E..AE9#,EE9#	08/1989 - 06/1990	2
27371-63020	4AF#,2E..AE9#,EE9#	08/1988 - 09/1988	2
27371-63020	4A#,2E..AE9#,EE9#	05/1987 - 08/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	4A#,2E..AE9#,EE9#	05/1987 - 08/1989	2
27372-63020	4A#,2E..AE9#,EE9#..ARL,GCC,GEN	08/1989 - 06/1990	2
27411 - PULLEY, ALTERNATOR
27411-10051	2E..EE9#	05/1987 - 09/1988	1
27411-10070	2E..EE90..GCC	09/1988 - 08/1989	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4A#,2E..AE9#,EE9#	05/1987 - 06/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-10050	2E..EE9#	05/1987 - 04/1988	1
27700-10061	2E..EE90..GCC	09/1988 - 08/1989	1
27700-10080	2E..EE9#	04/1988 - 09/1988	1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025

EE90L-AEKRSV (1987)

(8705-8809)2E ; (8809- )2E..GEN,SA

(8809- )2E..EE90..GCC
