EE90L-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg
ILLUST NO. 3 OF 3(8908- )AE92,EE9#..GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE9#..GEN,SA |
1 | ||
| 77135-20050 |
AE92,EE9#..GEN,SA |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12380 |
EE90..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12150 |
EE90..LHD |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE92,EE9#..GL,SE,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
EE9#;AE92..LB..3FC;AE92..LHD..LB..5F;AE92..SED..(GL,SE,STD,XL) *H,L=200 |
1 | ||
| 95333-06020 |
EE90;AE92..RHD..(GL,XL) *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE9#..GL,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE9#..GL,SE,STD,XL *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
EE90..GCC,GEN;AE92,EE97..GL,SE,STD,XL *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12260 |
CE90,EE90..LHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77259-12140 |
AE92..SED;AE92..LB..3FC;CE90,EE9#..GEN,SA;AE92..LHD..LB..5F |
1 | ||
| 77259-12140 |
AE92,CE90,EE9#..GEN |
1 | ||
| 77259-12130 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77259-12140 |
AE92..SED;AE92..LB..3FC;CE90,EE9#..GEN,SA;AE92..LHD..LB..5F |
1 | ||
| 77259-12140 |
AE92,CE90,EE9#..GEN |
1 | ||
| 77259-12130 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE92,CE90,EE9# *H,L=200 |
1 | ||
| 95333-06020 |
AE92..RHD;CE90,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,CE90,EE9# *H,L=200 |
1 | ||
| 95333-06020 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F |
1 | ||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77266-12040 |
CE90,EE97;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F |
1 | ||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77266-12040 |
CE90,EE97;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77267-12060 |
AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F |
1 | ||
| 77267-12070 |
AE95,CE90,EE97..GEN;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77267-12060 |
AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F |
1 | ||
| 77267-12070 |
AE95,CE90,EE97..GEN;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-11011 |
EE9# *H,L=400 |
1 | ||
| 23271-11011 |
EE9#..GCC,GEN *H,L=400 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,CE90,EE9#..GEN,SA |
1 | ||
| 77249-12050 |
AE92,CE90,EE9#..GEN,SA |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE9#,CE90,EE9#..GEN,SA |
1 | ||
| 90917-10069 |
AE9#,CE90,EE9#..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12080 |
EE90..LHD..SED..MTM..XL..GEN |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12080 |
EE90..LHD..SED..MTM..XL..GEN |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-11010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-11010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-11010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-11010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90162-30800 | ||||
| 90467-10087 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90480-01381 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91661-40612 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96135-41100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

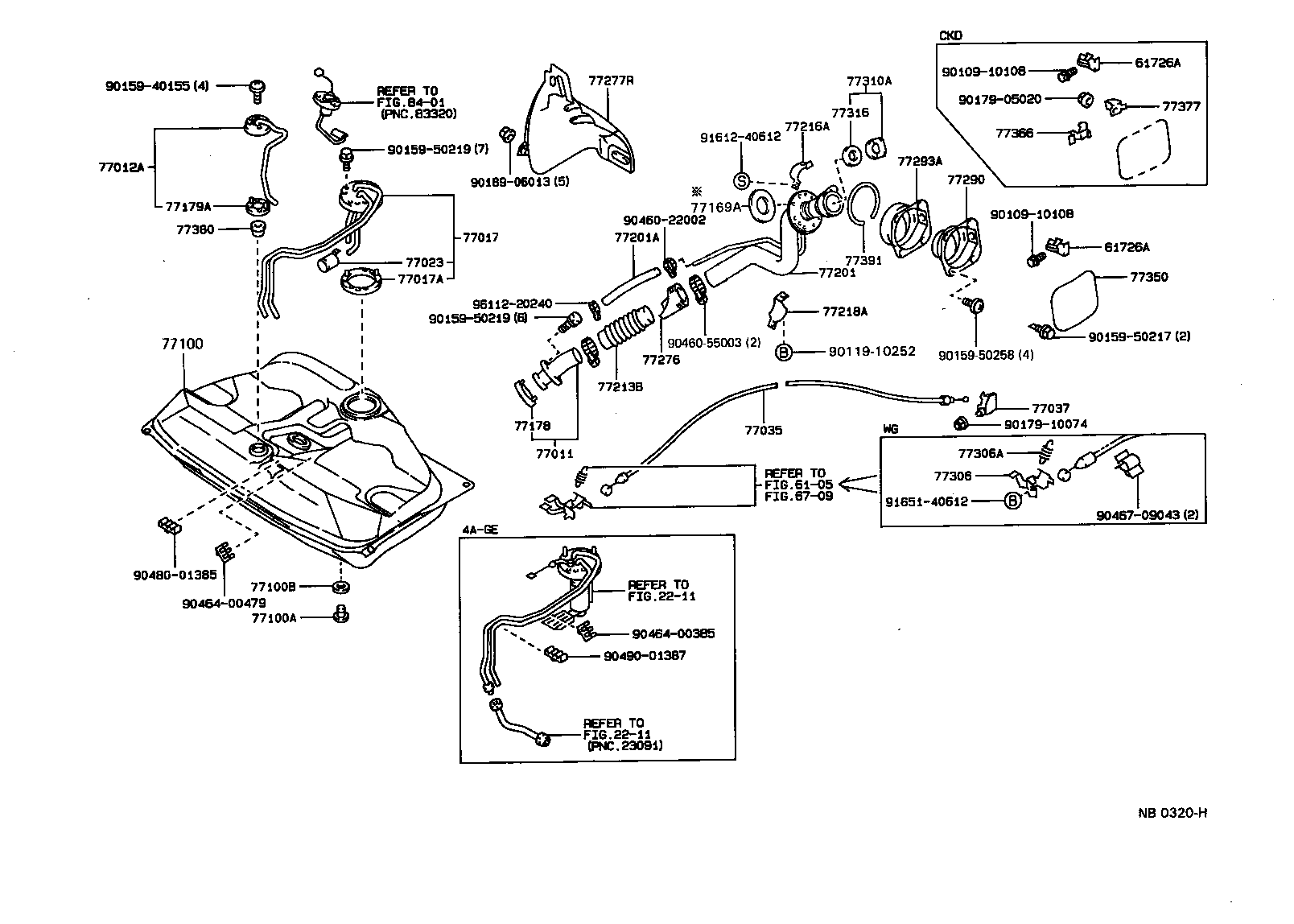

ILLUST NO. 1 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12060 |
AE92,EE90 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12010 |
AE92,CE90,EE90 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12330 |
EE9#..GCC,GEN |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) |
1 | ||
| 77023-14030 |
AE92,EE9#..GL,SE,STD,XL |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12260 |
AE9#,CE90..LHD..(GL,SE,XL);EE90..LHD..(LB,SED)..(GL,XL) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
EE90..(LB,SED)..(GL,XL);AE9#,CE90..GL,GT,GTI,SE,SR5,XL |
1 | ||
| 77037-12050 |
AE9#,CE90,EE9#..GL,GT,SE,SR5,XL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19595 |
EE97;AE92,EE90..(GL,SE,XL)..(GCC,GEN) |
1 | ||
| 77001-19575 |
AE92,EE9#..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE9#,CE90,EE9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE9#,CE90,EE9# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-12010 |
AE92,EE9# |
1 | ||
| 77178-20010 |
AE92,CE90,EE90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE9#,CE90,EE9# |
1 | ||
| 77179-16010 |
AE92,CE90,EE9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12330 |
AE92,CE90,EE90 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22024 |
AE92,CE90,EE90 L=385 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12140 |
AE92,CE90,EE90 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12040 |
AE92,CE90,EE90 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-12010 |
AE92,CE90,EE90 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12040 |
AE92,CE90,EE90 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12080 |
AE92,CE90,EE90..LB,SED |
1 | ||
| 77277-01020 |
AE92,CE90,EE90..(LB,SED)..(GCC,GEN) FOR USA |
1 | ||
| 77277-12081 |
AE92,CE90,EE90..LB,SED |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
AE95..SED;AE92,CE90,EE9# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
AE95..SED;AE92,CE90,EE9# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AE9#,EE9#..GCC,GEN,SA |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE9#,CE90,EE9#..GCC,GEN,SA |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12200 |
AE92..LHD..SED..GL;CE90,EE90..LHD..SED..(GL,XL)..GEN W(CKD COUNTRIES) |
1 | ||
| 77350-12200 |
AE92,CE90,EE90..LHD..SED..(GL,XL)..GEN W(CKD COUNTRIES) |
1 | ||
| 77350-12200 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN W(CKD COUNTRIES) OR PHIPPINES SPEC |
1 | ||
| 77350-12260 |
AE9#,CE90,EE90..SED..(GL,SE,XL)..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12010 |
AE92..LHD..SED..GL;CE90,EE90..LHD..SED..GEN |
1 | ||
| 77360-12010 |
AE92,CE90,EE90..LHD..SED..GEN |
1 | ||
| 77360-12010 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE92,CE90,EE90..LHD..SED..(GL,XL)..GEN |
1 | ||
| 77377-12040 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN |
1 | ||
| 77377-12040 |
AE92..LHD..SED..GL;CE90,EE90..LHD..SED..(GL,XL)..GEN |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE92,CE90,EE9# |
1 | ||
| 77380-14020 |
AE9#,CE90,EE9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9#,CE90,EE9# |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90464-00385 | ||||
| 90464-00479 | ||||
| 90467-09043 | ||||
| 90480-01385 | ||||
| 90490-01387 | ||||
| 91612-40612 | ||||
| 91651-40612 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(8705-8908)AE92,EE9#..GL,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20050 |
AE92,EE9#..GEN,SA |
1 | ||
| 77135-20050 |
AE92,EE9#..GEN,SA |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12380 |
EE90..LHD |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12150 |
EE90..LHD |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AE92,EE9#..GL,SE,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
EE9#;AE92..LB..3FC;AE92..LHD..LB..5F;AE92..SED..(GL,SE,STD,XL) *H,L=200 |
1 | ||
| 95333-06020 |
EE90;AE92..RHD..(GL,XL) *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE9#..GL,STD,XL *H,L=200 |
1 | ||
| 95333-06020 |
AE92,EE9#..GL,SE,STD,XL *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04015 |
EE90..GCC,GEN;AE92,EE97..GL,SE,STD,XL *H,L=150 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12260 |
CE90,EE90..LHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12140 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77259-12140 |
AE92..SED;AE92..LB..3FC;CE90,EE9#..GEN,SA;AE92..LHD..LB..5F |
1 | ||
| 77259-12140 |
AE92,CE90,EE9#..GEN |
1 | ||
| 77259-12130 |
AE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE92,CE90,EE9# *H,L=200 |
1 | ||
| 95333-06020 |
AE92..RHD;CE90,EE90 *H,L=200 |
1 | ||
| 95333-06020 |
AE92,CE90,EE9# *H,L=200 |
1 | ||
| 95333-06020 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F |
1 | ||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77266-12040 |
CE90,EE97;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
CE90,EE9#;AE92..SED;AE92..LB..3FC;AE92..LHD..LB..5F |
1 | ||
| 77266-12030 |
AE92,CE90,EE9# |
1 | ||
| 77266-12030 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77266-12040 |
CE90,EE97;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77267-12060 |
AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F |
1 | ||
| 77267-12070 |
AE95,CE90,EE97..GEN;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE92..RHD;CE90,EE90 |
1 | ||
| 77267-12060 |
AE92..SED;AE92..LB..3FC;AE95,CE90,EE9#;AE92..LHD..LB..5F |
1 | ||
| 77267-12070 |
AE95,CE90,EE97..GEN;AE92,EE90..(LB,SED)..(GL,STD,XL)..GEN ROUGH RODE PACKAGE 2 |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77267-12060 |
AE9#,CE90,EE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-11011 |
EE9# *H,L=400 |
1 | ||
| 23271-11011 |
EE9#..GCC,GEN *H,L=400 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 77249-12050 |
AE92,CE90,EE9#..GEN,SA |
1 | ||
| 77249-12050 |
AE92,CE90,EE9#..GEN,SA |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
AE9#,CE90,EE9#..GEN,SA |
1 | ||
| 90917-10069 |
AE9#,CE90,EE9#..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12510 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77753-12010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12090 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12080 |
EE90..LHD..SED..MTM..XL..GEN |
1 | ||
| 77791 - HOSE, OUTER VENT VALVE TO CARBURETOR | ||||
| 77791-11010 |
EE90..LHD..SED..MTM..XL..GEN PHILIPPINES SPEC |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-06374 | ||||
| 90119-61110 | ||||
| 90467-10087 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01381 | ||||
| 90929-01086 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01299 | ||||
| 90959-01300 | ||||
| 90959-01411 | ||||
| 91651-40614 | ||||
| 96135-41100 | ||||

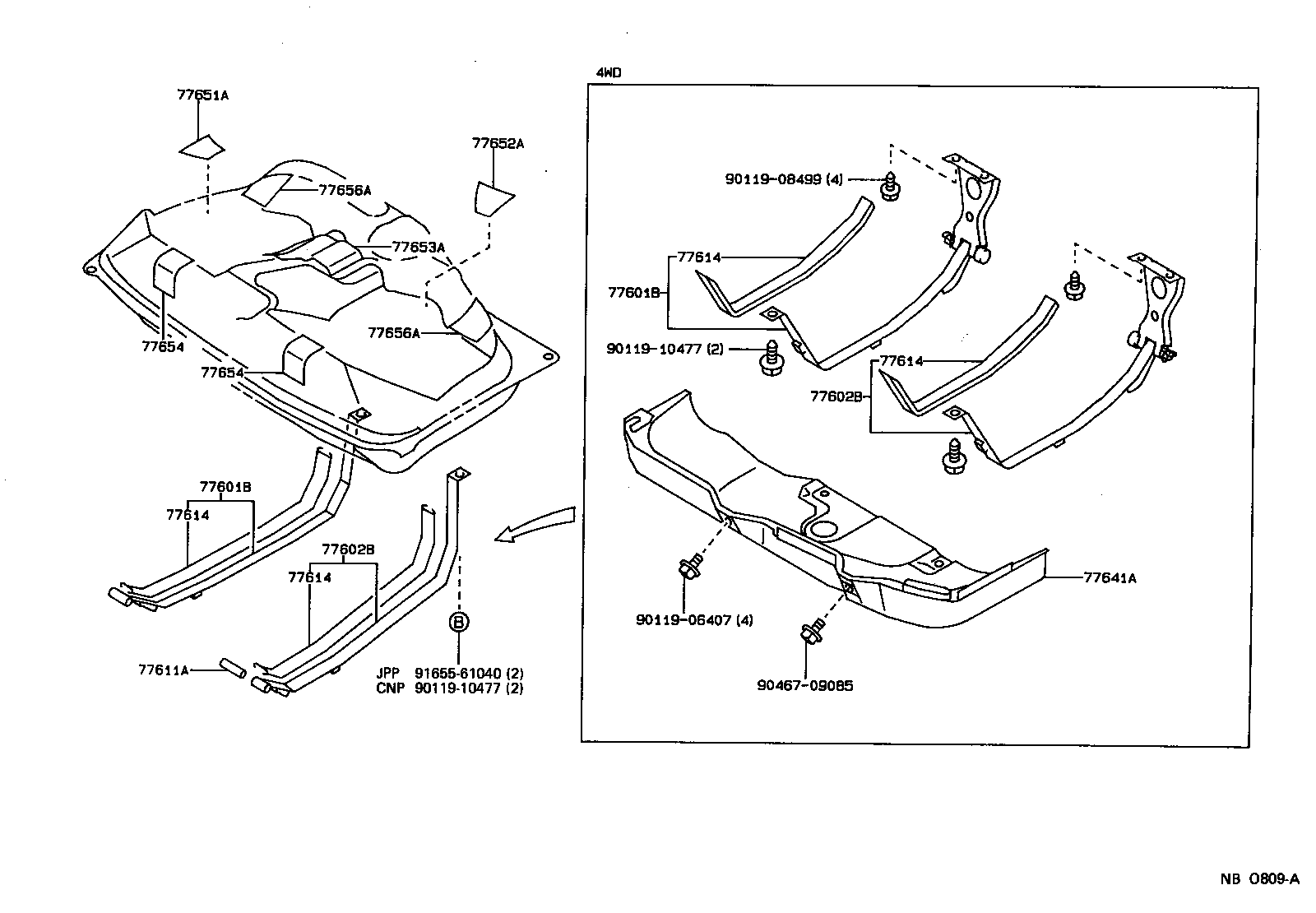

ILLUST NO. 2 OF 3(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12110 |
AE92,CE90,EE90..GCC,GEN |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12110 |
AE92,CE90,EE90..GCC,GEN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12060 |
AE92,CE90,EE90..GCC,GEN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12060 |
AE92,CE90,EE90..GCC,GEN |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
AE92,CE90,EE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE9# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-12010 |
AE92,CE90,EE9# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12090 |
AE92,CE90,EE9# |
1 | ||
| 77653-12070 |
AE92,CE90,EE90 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16050 |
AE92,CE90,EE90 |
2 | ||
| 77652-16060 |
AE92,CE90,EE9# |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16050 |
AE92,CE90,EE90 |
2 | ||
| 77652-16060 |
AE92,CE90,EE9# |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12060 |
AE92,CE90,EE9# |
2 | ||
| 77654-12030 |
AE92,CE90,EE90 |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12060 |
AE92,CE90,EE9# |
2 | ||
| 77654-12030 |
AE92,CE90,EE90 |
2 | ||
| Common parts | ||||
| 90119-06407 | ||||
| 90119-08499 | ||||
| 90119-10477 | ||||
| 90467-09085 | ||||
| 91655-61040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
