EE90L-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg

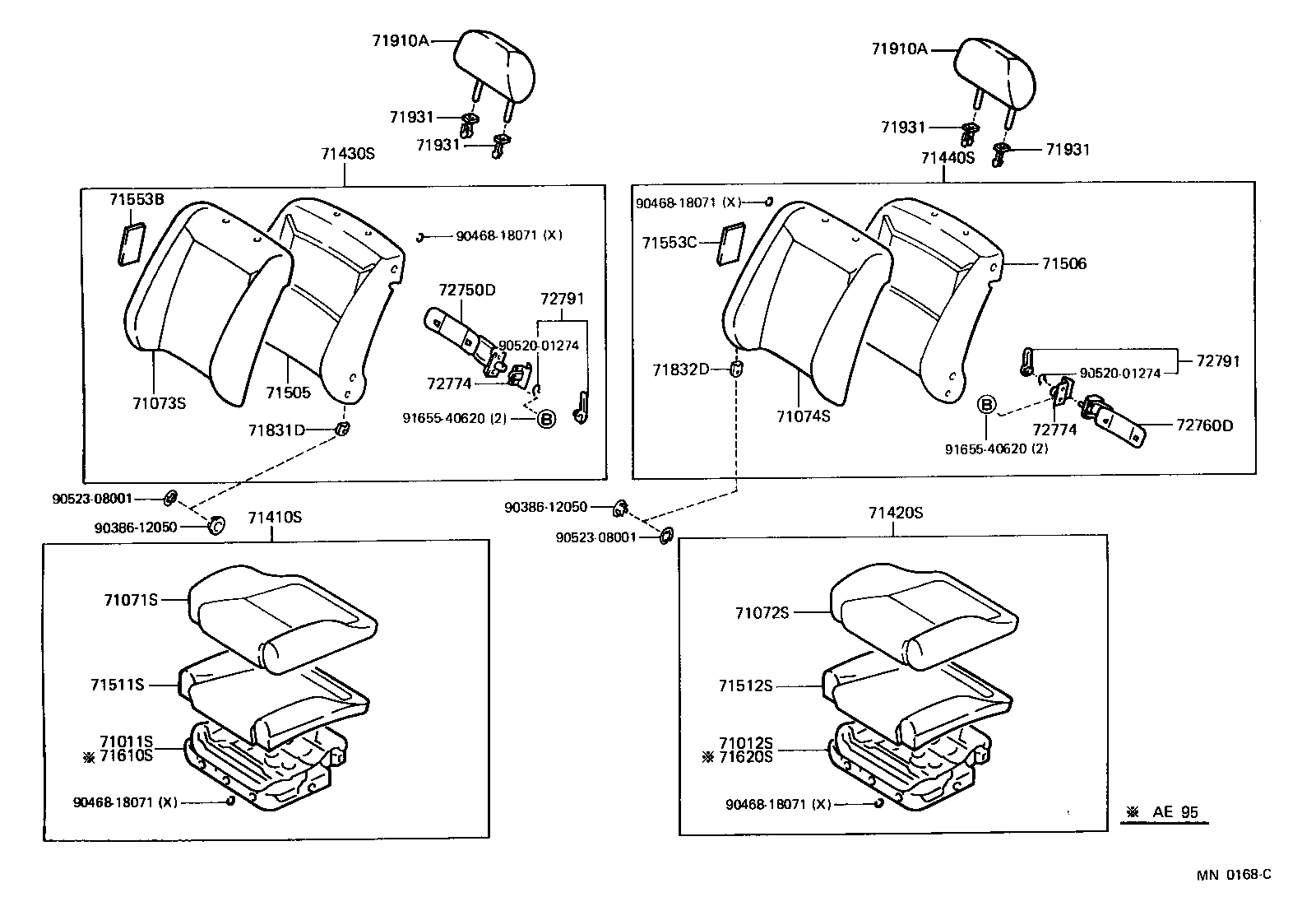

ILLUST NO. 1 OF 2(8705-8908)GL,SR5,STD,XL ; (8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12280 |
AE92,CE90,EE9# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12280 |
AE92,CE90,EE9# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H15005 |
AE92,CE90,EE9#..(STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71071-1H15004 |
AE92,CE90,EE9#..LHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28106 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71071-1H28005 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15003 |
AE92,CE90,EE9#..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15004 |
AE92,CE90,EE9#..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28106 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71071-1H28104 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H28005 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H28004 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71071-1H15005 |
AE92,CE90,EE9#..(STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H33004 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71071-1H15004 |
AE92,CE90,EE9#..LHD..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28003 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33106 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4# |
1 | ||
| 71071-1H33003 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H28106 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71071-1H33005 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71071-1H15003 |
AE92,CE90,EE9#..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H15004 |
AE92,CE90,EE9#..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28104 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H33103 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33104 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71071-1H28103 |
AE92,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H33106 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4# |
1 | ||
| 71071-1H28106 |
AE92,CE90,EE90..LHD..SED..XL..GEN W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H21005 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H36005 |
AE9#,CE90,EE9#..(STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H36004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71073-1H21004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28005 |
AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL..GEN W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71073-1H28106 |
AE9#,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71073-1H21004 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71073-1H36003 |
AE9#,CE90,EE9#..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H21003 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28103 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H28106 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71073-1H36004 |
AE9#,CE90,EE9#..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71073-1H28104 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E17005 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E17003 |
EE90..LHD..LB;EE90..(SED,WG)..(STD,XL)..GEN;AE9#,CE90,EE97..(STD,XL)..GEN W(*HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E17004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24003 |
AE95..LHD..WG;AE9#,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24004 |
AE9#,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & *HR),BLUE,TRIM8# |
1 | ||
| 71074-1E24005 |
AE95..LHD..WG;AE9#,CE90,EE90..SED..XL..GEN W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E32005 |
EE90..5F..XL..GEN;EE9#..(3FC,4F)..(STD,XL)..(GEN,SA);AE9#,CE90..(LB,SED)..(STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71074-1E32004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24106 |
AE9#,CE90,EE90..LHD..XL..GEN W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71074-1E32003 |
AE9#,CE90,EE9#..(STD,XL)..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24104 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E24103 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E17004 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71074-1E17003 |
AE9#,CE90,EE9#..(STD,XL)..GEN W(*HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1E24106 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71074-1E32004 |
AE9#,CE90,EE9#..(STD,XL)..GEN DARK BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50005 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50004 |
AE92,CE90,EE9#..LHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71410-1H66106 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71410-1H50003 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66103 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H50004 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H66106 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71410-1H66104 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,BLUE,TRIM8# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..SED..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50005 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H50004 |
AE92,CE90,EE9#..LHD..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74003 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66005 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H74005 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BEIGE,TRIM4# |
1 | ||
| 71410-1H74106 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4# |
1 | ||
| 71410-1H66106 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71410-1H66004 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71410-1H66003 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H50003 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H50004 |
AE92,CE90,EE9#..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74004 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BLUE,TRIM8# |
1 | ||
| 71410-1H66104 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74104 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),DARK BLUE,TRIM8# |
1 | ||
| 71410-1H74103 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H66103 |
AE92,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1H74106 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & 2 WAY VERTICAL SEAT),BROWN,TRIM4# |
1 | ||
| 71410-1H66106 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H61005 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H61003 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H52004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN ***,W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H52005 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H61004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BLUE,TRIM8# |
1 | ||
| 71430-1H61003 |
EE90..LB..XL;AE92,CE90..LHD..XL;EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H68004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61005 |
EE90..LB..XL;AE92,CE90..LHD..XL;EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H61106 |
AE9#,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71430-1H52003 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H68005 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71430-1H52004 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H61103 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61104 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8# |
1 | ||
| 71430-1H68003 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1H61106 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71430-1H68004 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H46004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN ***,W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H54005 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H46005 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H54003 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54004 |
AE92,CE90,EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BLUE,TRIM8# |
1 | ||
| 71440-1H54106 |
AE9#,CE90,EE90..LHD..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71440-1H60004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H54003 |
EE90..LB..XL;AE92,CE90..LHD..XL;EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H60005 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H54005 |
EE90..LB..XL;AE92,CE90..LHD..XL;EE90..LHD..SED..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BEIGE,TRIM4# |
1 | ||
| 71440-1H46003 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H60003 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54103 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1H54106 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),BROWN,TRIM4# |
1 | ||
| 71440-1H46004 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,W(*HR),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H54104 |
AE95,CE90..LHD;AE92,EE90..(LB,SED)..XL..GEN ***,W(FULL FABRIC SEAT & *HR),DARK BLUE,TRIM8# |
1 | ||
| 71440-1H60004 |
AE9#,CE90,EE9#..(STD,XL)..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12050 |
AE92..SE..GCC;AE9#,CE90,EE9#..STD,XL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12050 |
AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) |
1 | ||
| 71506-12040 |
AE92..SE..GCC;AE9#,CE90,EE9#..STD,XL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12610 |
AE92,EE90..(GL,SE)..(GEN,SA) |
1 | ||
| 71511-12590 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12590 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL |
1 | ||
| 71511-12610 |
AE92,EE90..(GL,SE)..(GEN,SA) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1276003 |
EE97..STD;AE92,CE90..SED..(STD,XL);EE90..RHD..(LB,SED)..(STD,XL);EE90..LHD..(SED,WG)..(STD,XL) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1276005 |
EE97..STD;AE92,CE90..SED..(STD,XL);EE90..RHD..(LB,SED)..(STD,XL);EE90..LHD..(SED,WG)..(STD,XL) DARK BEIGE,TRIM4# |
2 | ||
| 71910-1276004 |
AE92,CE90,EE90..LHD..(SED,WG)..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1276005 |
EE97..STD;EE90..WG..GCC;AE92,CE90,EE90..SED..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
2 | ||
| 71910-1276003 |
EE97..STD;EE90..WG..GCC;AE92,CE90,EE90..SED..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A11006 |
AE9#,CE90,EE90..LHD..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110E1 |
AE9#,CE90,EE90..LHD..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A11003 |
AE9#,CE90,EE9#..XL..GEN W(VINYL HEADREST),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279106 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(FABRIC HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110E1 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110J0 |
AE9#,CE90,EE9#..XL..GEN W(VINYL HEADREST),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A110B0 |
AE92..SED..XL..GEN;AE95,CE90,EE9#..XL..GEN W(VINYL HEADREST),SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1276003 |
EE97..STD;AE92,CE90..SED..(STD,XL);EE90..RHD..(LB,SED)..(STD,XL);EE90..LHD..(SED,WG)..(STD,XL) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1276005 |
EE97..STD;AE92,CE90..SED..(STD,XL);EE90..RHD..(LB,SED)..(STD,XL);EE90..LHD..(SED,WG)..(STD,XL) DARK BEIGE,TRIM4# |
2 | ||
| 71910-1276004 |
AE92,CE90,EE90..LHD..(SED,WG)..XL DARK BLUE,TRIM8# |
2 | ||
| 71910-1276005 |
EE97..STD;EE90..WG..GCC;AE92,CE90,EE90..SED..(STD,XL)..(GCC,GEN) DARK BEIGE,TRIM4# |
2 | ||
| 71910-1276003 |
EE97..STD;EE90..WG..GCC;AE92,CE90,EE90..SED..(STD,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A11006 |
AE9#,CE90,EE90..LHD..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110E1 |
AE9#,CE90,EE90..LHD..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A11003 |
AE9#,CE90,EE9#..XL..GEN W(VINYL HEADREST),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1279106 |
AE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL W(FABRIC HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110E1 |
AE9#,CE90,EE90..LHD..(SED,WG)..XL..GEN W(VINYL HEADREST),BROWN,TRIM4# |
2 | ||
| 71910-1A110J0 |
AE9#,CE90,EE9#..XL..GEN W(VINYL HEADREST),DARK BLUE,TRIM8# |
2 | ||
| 71910-1A110B0 |
AE92..SED..XL..GEN;AE95,CE90,EE9#..XL..GEN W(VINYL HEADREST),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W/O(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71930-1205003 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W(LOCK),BROWN,TRIM4# |
2 | ||
| 71930-1205004 |
AE95..ARL;AE9#,CE90,EE9#..LHD..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205005 |
AE95..SED;AE95..LHD..WG;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL;AE95,EE90..(SR5,XL)..(ARL,SA) W(LOCK),DARK BEIGE,TRIM4# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;AE9#,CE90,EE90..LHD..(GL,XL)..GEN W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201003 |
AE9#..LHD..WG;CE90,EE9#..GCC,GEN;AE95,EE90..(SR5,XL)..(ARL,SA);AE92..(LB,SED)..(GL,SE,STD,XL) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-1201004 |
AE95..LHD;AE95..ARL;AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1205016 |
EE90..XL..(GCC,SA);AE92..(GL,SE,XL)..SA;EE90..LHD..SED..(GL,XL)..GEN;AE9#,CE90..LHD..(SED,WG)..(GL,XL) W(LOCK),BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90386-12050 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
ILLUST NO. 2 OF 2(8705-8908)GL,SR5,STD,XL ; (8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71811-1218005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71811-1218003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1218006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1218004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71811-1218005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71811-1218003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71811-1218006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71812-1215005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71812-1215003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1215004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71812-1215005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71812-1215006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71812-1215003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71861-1208005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1208006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71861-1208003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1208004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71861-1208005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71861-1208006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71861-1208003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1208005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1208006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71862-1208004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71862-1208003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1208005 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 71862-1208006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 71862-1208004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 71862-1208003 |
AE92,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
CE90,EE9#;AE92..STD,XL;AE92..(GL,SE)..(GCC,GEN) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12310 |
CE90,EE9#;AE92..STD,XL;AE92..(GL,SE)..(GCC,GEN) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
AE92,CE90,EE9#..GL,SE,STD,XL |
1 | ||
| 72020-12340 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(2WAY VERTICAL SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12330 |
AE92,CE90,EE9#..GL,SE,STD,XL |
1 | ||
| 72020-12340 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(2WAY VERTICAL SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
CE90,EE9#;AE92..STD,XL;AE92..(GL,SE)..(GCC,GEN) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12460 |
CE90,EE9#;AE92..STD,XL;AE92..(GL,SE)..(GCC,GEN) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
EE90..XL..SA;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020E2 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1202005 |
EE90..XL..SA;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137-1202004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
2 | ||
| 72137-12020E0 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72137-12020E2 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
2 | ||
| 72137-12020J0 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72137-1202003 |
AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203005 |
EE90..XL..SA;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E2 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
2 | ||
| 72138-1203006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1203004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-12030J0 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
2 | ||
| 72138-1203005 |
EE90..XL..SA;EE90..GCC,GEN;AE92,CE90,EE97..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138-12030E0 |
AE92,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
2 | ||
| 72138-1203003 |
AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
2 | ||
| 72138-12030E2 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
2 | ||
| 72138-1203006 |
AE92,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12320 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(2WAY VERTICAL SEAT) |
1 | ||
| 72140-12310 |
AE92,CE90,EE9#..GL,SE,STD,XL |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12320 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) W(2WAY VERTICAL SEAT) |
1 | ||
| 72140-12310 |
AE92,CE90,EE9#..GL,SE,STD,XL |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12040 |
AE92..GT,GTI;EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-12030E0 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72457-12030J0 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM4#,8# |
1 | ||
| 72457-12030E2 |
AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) BROWN,TRIM4# |
1 | ||
| 72457-1203006 |
AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) BROWN,TRIM4# |
1 | ||
| 72457-1203004 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72457-1203005 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72457-1203003 |
EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209025 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209046 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
AE9#,CE90,EE9# GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209025 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72525-1209034 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72525-1209046 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
AE9#,CE90,EE9# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203046 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
AE9#,CE90,EE9# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203034 |
AE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 72526-1203025 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203046 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
AE9#,CE90,EE9# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
