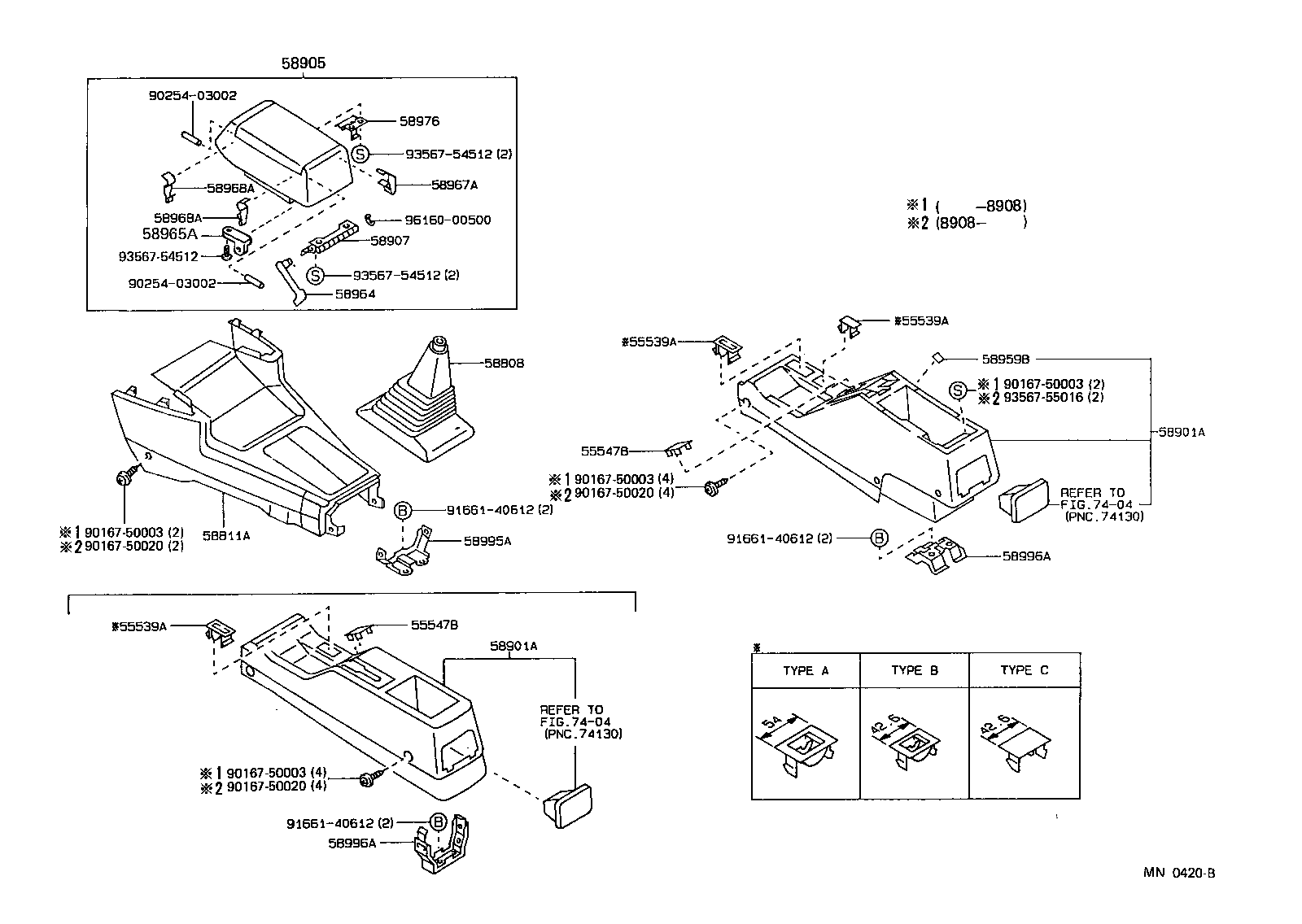

EE90L-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE A |
1 | ||
| 55539-2002005 |
AE9#,CE90,EE9#..SR5,STD,XL BEIGE,TRIM4# |
1 | ||
| 55539-20020J0 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-20020E0 |
AE9#,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 55539-2002034 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-2003005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE C |
1 | ||
| 55539-2002003 |
AE92..SE..GCC;AE9#,CE90,EE9#..SR5,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) GRAY,TRIM1#,TYPE C |
1 | ||
| 55539-1207003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) SHADOW GRAY,TRIM1#,TYPE A |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE A |
1 | ||
| 55539-2002005 |
AE9#,CE90,EE9#..SR5,STD,XL BEIGE,TRIM4# |
1 | ||
| 55539-20020J0 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-20020E0 |
AE9#,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 55539-2002034 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-2003005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE C |
1 | ||
| 55539-2002003 |
AE92..SE..GCC;AE9#,CE90,EE9#..SR5,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) GRAY,TRIM1#,TYPE C |
1 | ||
| 55539-1207003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) SHADOW GRAY,TRIM1#,TYPE A |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1207005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE A |
1 | ||
| 55539-2002005 |
AE9#,CE90,EE9#..SR5,STD,XL BEIGE,TRIM4# |
1 | ||
| 55539-20020J0 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-20020E0 |
AE9#,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 55539-2002034 |
AE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 55539-2003005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4#,TYPE C |
1 | ||
| 55539-2002003 |
AE92..SE..GCC;AE9#,CE90,EE9#..SR5,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55539-2003003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) GRAY,TRIM1#,TYPE C |
1 | ||
| 55539-1207003 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) SHADOW GRAY,TRIM1#,TYPE A |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002005 |
AE9#,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 55547-2002014 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55547-2002016 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 55547-2002003 |
AE9#,CE90,EE9#..GL,GT,GTI,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 55547B - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-2002005 |
AE9#,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 55547-2002014 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55547-2002016 |
AE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 55547-2002003 |
AE9#,CE90,EE9#..GL,GT,GTI,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1209006 |
AE92,EE90..MTM..(GL,STD,XL)..SA;AE92,CE90,EE90..LHD..MTM..(GL,XL) BROWN,TRIM4# |
1 | ||
| 58808-1209005 |
AE92,CE90,EE9#..MTM..(GL,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 58808-1209004 |
AE92,CE90,EE9#..LHD..MTM..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 58808-1209003 |
AE92,CE90,EE9#..MTM..(GL,SE,STD,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1239004 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 58811-1239003 |
AE92,CE90,EE9#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 58811-1239005 |
AE92,CE90,EE9#..LHD DARK BEIGE,TRIM4# |
1 | ||
| 58811-1239006 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
1 | ||
| 58811-12390J0 |
AE92,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 58811-1239003 |
EE97..LHD..STD;AE92,CE90,EE90..LHD..(LB,SED) SHADOW GRAY,TRIM1# |
1 | ||
| 58811-12390E0 |
AE92,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1214005 |
AE92,CE90,EE9#..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 58901-1214004 |
AE92,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 58901-1214006 |
AE92,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 58901-12140J0 |
AE92,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 58901-1215005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4# |
1 | ||
| 58901-12140E0 |
AE92,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 58901-1214003 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215003 |
AE92..GT..SA;AE92,EE90..(GL,GTI,SE)..(GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1214005 |
AE92,CE90,EE9#..STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 58901-1214004 |
AE92,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 58901-1214006 |
AE92,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 58901-12140J0 |
AE92,CE90,EE9#..LHD..XL DARK BLUE,TRIM8# |
1 | ||
| 58901-1215005 |
AE92,EE90..GL,SE DARK BEIGE,TRIM4# |
1 | ||
| 58901-12140E0 |
AE92,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA BROWN,TRIM4# |
1 | ||
| 58901-1214003 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 58901-1215003 |
AE92..GT..SA;AE92,EE90..(GL,GTI,SE)..(GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12060 |
AE92,CE90,EE9# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12030 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL |
1 | ||
| 58996-12050 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12030 |
AE92..SE..GCC;AE92,CE90,EE9#..STD,XL |
1 | ||
| 58996-12050 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90167-50020 | ||||
| 90254-03002 | ||||
| 91661-40612 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
