Toyota Corolla sed/lb/wg EE90 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
COROLLA SED/LB/WG
EE90L-AEKDS (1987)
5201 - FRONT BUMPER & BUMPER STAY

EE90L-AEKDS (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

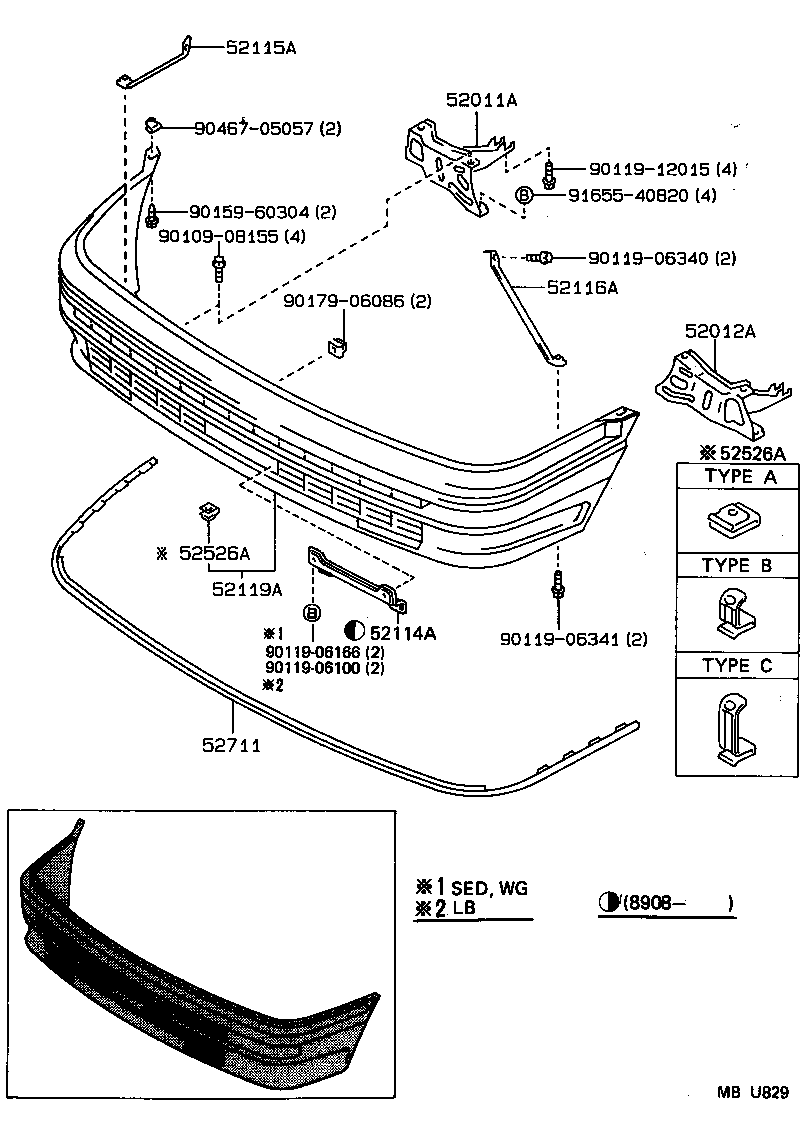

(8908- )

Click highlighted areas on diagram

TYPE E

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12360	AE92..GT..SA;AE92,CE90,EE9#..(SED,WG)..(GL,SE,STD,XL)..(GEN,SA)	08/1990 - 05/1992	1
52011-12360	AE92..GT..SA;AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL)	05/1987 - 08/1990	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12370	AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL)..(GCC,GEN)	05/1987 - 08/1990	1
52012-12370	AE92,CE90,EE9#..(SED,WG)..(GL,STD,XL)..GEN	08/1990 - 05/1992	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12260	AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN)	05/1987 - 08/1989	1
52115-12260	AE9#,CE90,EE9#..ARL,GCC,GEN	08/1989 - 05/1992	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200	AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN)	05/1987 - 08/1989	1
52116-12200	AE9#,CE90,EE9#..ARL,GCC,GEN	08/1989 - 05/1992	1
52119A - COVER, FRONT BUMPER
52119-1A350	EE90..WG..4F;AE95,CE90..SED;EE90..4F..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..GEN TYPE F,W/O(BUMPER MOULDING)	05/1987 - 05/1992	1
52119-1A190	EE90..SED..XL..GCC;AE92,EE90..SED..(GL,SE)..(GCC,GEN) TYPE F,W(BUMPER MOULDING)	05/1987 - 08/1990	1
52119-1A190	AE9#,CE90,EE90..SED..XL..GEN TYPE F,W(BUMPER MOULDING)	05/1987 - 05/1992	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	EE9#;AE9#,CE90..LB,SED TYPE B	05/1987 - 05/1988	2
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE C	05/1988 - 08/1990	1
52565-12040	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE A	05/1987 - 10/1989	4
52565-16020	AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN) TYPE A	10/1989 - 08/1990	4
52565-12110	AE9#,CE90,EE9# TYPE C	05/1987 - 05/1988	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE B	05/1988 - 08/1990	1
52565-16020	AE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GEN) TYPE A	08/1990 - 05/1992	4
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE C	08/1990 - 05/1992	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE B	08/1990 - 05/1992	1
52711 - MOULDING, FRONT BUMPER
52711-12120	AE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)	05/1987 - 08/1989	1
52711-12120	AE92,CE90,EE90..LHD..SED..XL;AE92,EE90..SED..(GL,SE)..(GCC,GEN)	08/1989 - 08/1990	1
52711-12120	AE92,EE90..SED..GL..GEN;AE92,CE90,EE90..LHD..SED..XL..GEN	08/1990 - 05/1992	1
Common parts
90109-08155
90119-06100
90119-06166
90119-06340
90119-06341
90119-12015
90159-60304
90179-06127
90467-05057
91655-40825

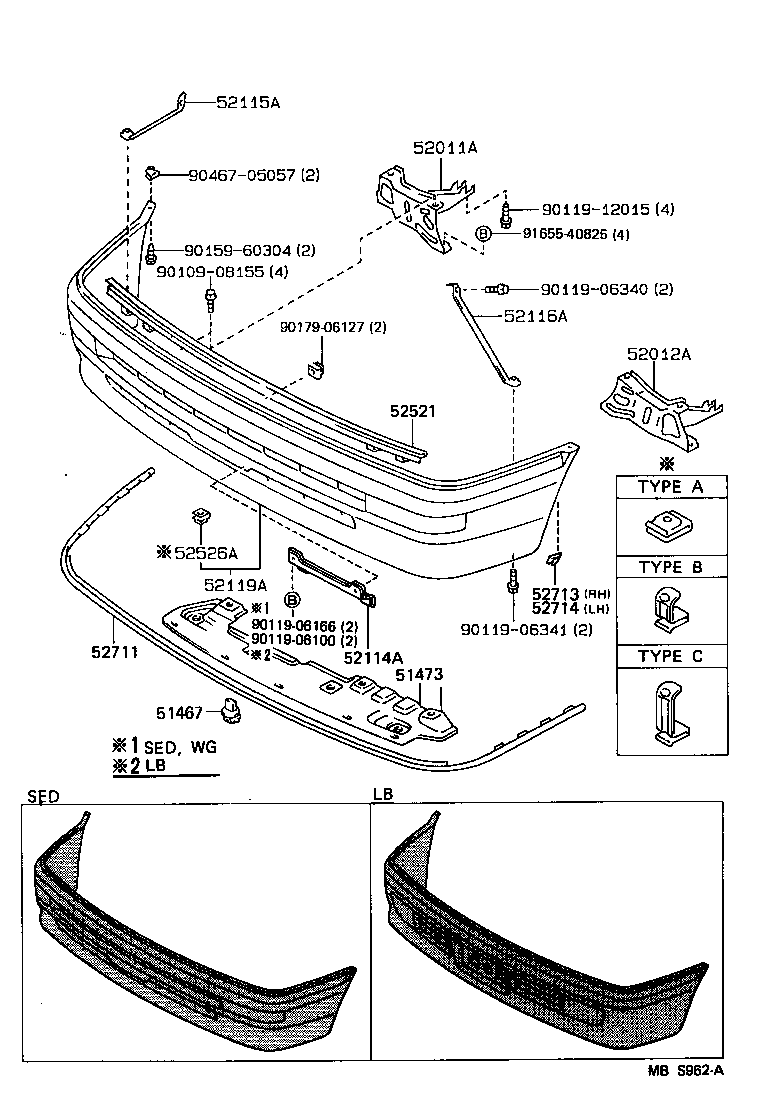

(8705-8908) ; (8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-12360	AE92..GT..SA;AE92,CE90,EE9#..(SED,WG)..(GL,SE,STD,XL)..(GEN,SA)	08/1990 - 05/1992	1
52011-12360	AE92..GT..SA;AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL)	05/1987 - 08/1990	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-12370	AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GL,SE,STD,XL)..(GCC,GEN)	05/1987 - 08/1990	1
52012-12370	AE92,CE90,EE9#..(SED,WG)..(GL,STD,XL)..GEN	08/1990 - 05/1992	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12260	AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN)	05/1987 - 08/1989	1
52115-12260	AE9#,CE90,EE9#..ARL,GCC,GEN	08/1989 - 05/1992	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12200	AE9#,CE90..SED..GEN;EE9#..(SED,WG)..(GCC,GEN)	05/1987 - 08/1989	1
52116-12200	AE9#,CE90,EE9#..ARL,GCC,GEN	08/1989 - 05/1992	1
52119A - COVER, FRONT BUMPER
52119-1A350	EE90..WG..4F;AE95,CE90..SED;EE90..4F..STD..GCC;AE92,EE9#..(SED,WG)..(STD,XL)..GEN TYPE F,W/O(BUMPER MOULDING)	05/1987 - 05/1992	1
52119-1A190	EE90..SED..XL..GCC;AE92,EE90..SED..(GL,SE)..(GCC,GEN) TYPE F,W(BUMPER MOULDING)	05/1987 - 08/1990	1
52119-1A190	AE9#,CE90,EE90..SED..XL..GEN TYPE F,W(BUMPER MOULDING)	05/1987 - 05/1992	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	EE9#;AE9#,CE90..LB,SED TYPE B	05/1987 - 05/1988	2
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE C	05/1988 - 08/1990	1
52565-12040	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE A	05/1987 - 10/1989	4
52565-16020	AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN) TYPE A	10/1989 - 08/1990	4
52565-12110	AE9#,CE90,EE9# TYPE C	05/1987 - 05/1988	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE B	05/1988 - 08/1990	1
52565-16020	AE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GEN) TYPE A	08/1990 - 05/1992	4
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE C	08/1990 - 05/1992	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE B	08/1990 - 05/1992	1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52565-12090	EE9#;AE9#,CE90..LB,SED TYPE B	05/1987 - 05/1988	2
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE C	05/1988 - 08/1990	1
52565-12040	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE A	05/1987 - 10/1989	4
52565-16020	AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN) TYPE A	10/1989 - 08/1990	4
52565-12110	AE9#,CE90,EE9# TYPE C	05/1987 - 05/1988	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL TYPE B	05/1988 - 08/1990	1
52565-16020	AE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GEN) TYPE A	08/1990 - 05/1992	4
52565-12110	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE C	08/1990 - 05/1992	1
52565-12090	AE92..GT..SA;AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GEN,SA) TYPE B	08/1990 - 05/1992	1
52711 - MOULDING, FRONT BUMPER
52711-12120	AE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)	05/1987 - 08/1989	1
52711-12120	AE92,CE90,EE90..LHD..SED..XL;AE92,EE90..SED..(GL,SE)..(GCC,GEN)	08/1989 - 08/1990	1
52711-12120	AE92,EE90..SED..GL..GEN;AE92,CE90,EE90..LHD..SED..XL..GEN	08/1990 - 05/1992	1
Common parts
90109-08155
90119-06100
90119-06166
90119-06340
90119-06341
90119-12015
90159-60304
90179-06086
90467-05057
91655-40820

EE90L-AEKDS (1987)

(8908- )

(8705-8908) ; (8908- )
