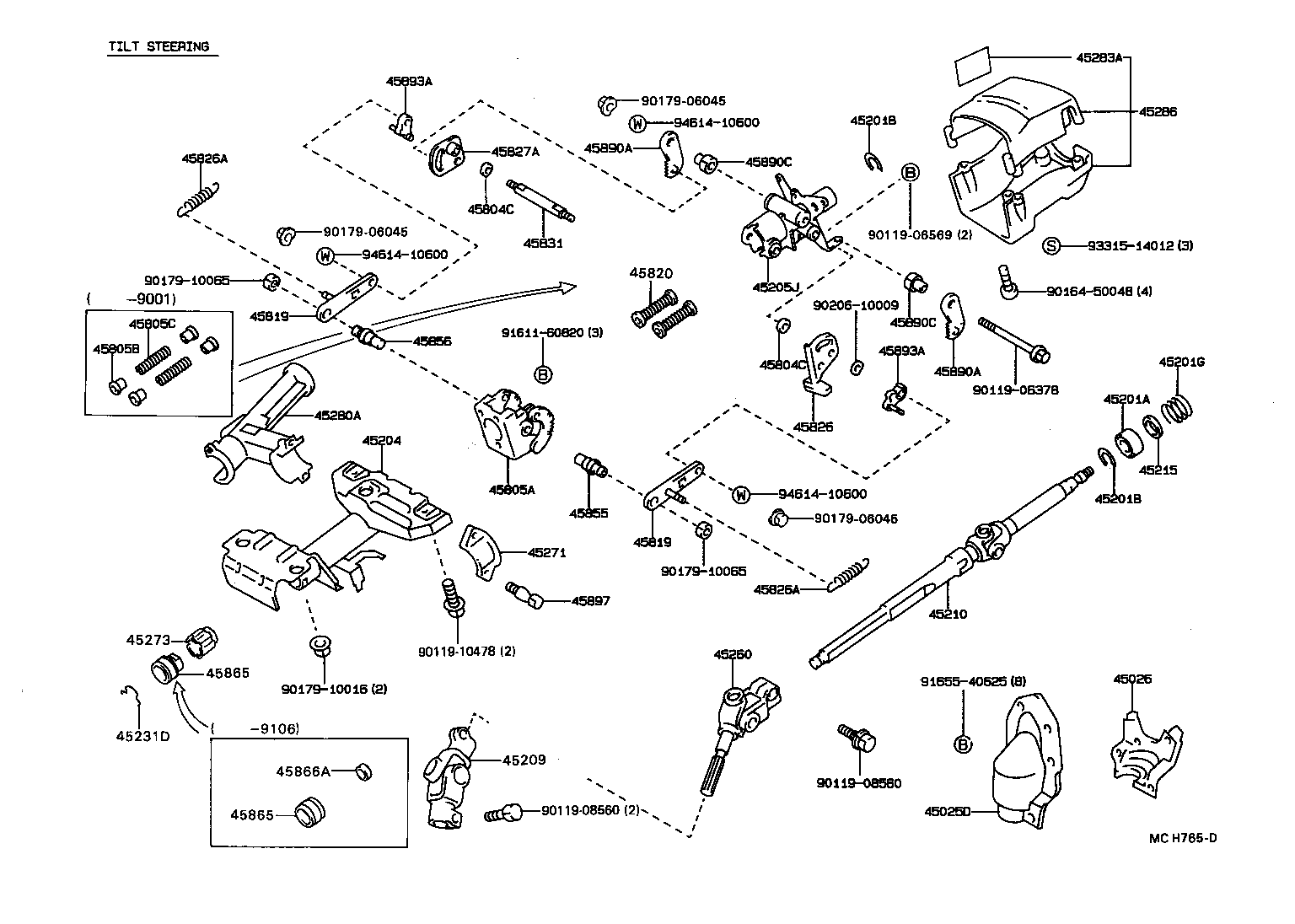

EE90L-AEKDS (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )EE9#..LHD..STD ; (8705- )EE9#..GL,XL..GCC,GEN ; (8705- )AE9#,CE90.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12190 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45025-12200 |
AE9#,CE90,EE9#..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE9#,CE90,EE9#..LHD W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18004 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 90363-18005 |
AE9#,CE90,EE9# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 90520-17196 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 90520-17196 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-12090 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45204-12090 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45204-12091 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45204-12092 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-12260 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45205-12261 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12050 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-32010 |
AE9#,CE90,EE9# |
1 | ||
| 45209-12050 |
AE9#..LHD;AE95..XL..ARL;EE90..LHD..SED..GEN;EE9#..LHD..(LB,WG)..XL W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-12050 |
AE92,CE90,EE9#..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45210-12340 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45210-12400 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-01005 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
1 | ||
| 90521-01005 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
1 | ||
| 90521-01005 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 90521-01005 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12190 |
AE9#,CE90,EE9#..LHD..(GL,SE,XL) W(TILT STEERING) |
1 | ||
| 45260-12210 |
AE9#,CE90,EE9#..LHD..(GL,SE,XL) W(TILT STEERING & POWER STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45271-12050 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45271-12060 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45273-16010 |
AE9#,CE90,EE9# |
1 | ||
| 45273-16010 |
AE9#,CE90,EE9# |
1 | ||
| 45273-22020 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12120 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280-12120 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280-12100 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45280-12100 |
AE92,CE90,EE9#..LHD..GEN;AE92,EE90..(3FC,4F,5F)..(GL,SE,STD,XL)..(GCC,SA) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294105 |
AE95..LHD..SED;AE92,CE90,EE9#..LHD BEIGE,TRIM4# |
1 | ||
| 45286-1294304 |
AE92,CE90,EE90..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294304 |
AE9#,CE90,EE9#..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294303 |
AE95,CE90,EE97..LHD;AE92,EE90..LHD..(GL,XL) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-1294104 |
AE9#,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 45286-1294105 |
AE9#,CE90,EE9#..LHD BEIGE,TRIM4# |
1 | ||
| 45286-1294106 |
AE9#,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
1 | ||
| 45286-1294306 |
AE9#,CE90,EE90..LHD..(GL,XL) W(TILT STEERING),BROWN,TRIM4# |
1 | ||
| 45286-1294305 |
AE9#,CE90,EE9#..LHD W(TILT STEERING),BEIGE,TRIM4# |
1 | ||
| 45286-1294103 |
AE9#,CE90,EE9#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10283 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-12010 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45805B - BUSH(FOR TILT STEERING SUPPORT) | ||||
| 90386-06031 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
4 | ||
| 90386-06031 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
4 | ||
| 45805C - SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) | ||||
| 90501-20072 |
EE90..LHD..STD;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
2 | ||
| 90501-20072 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
2 | ||
| 90501-20072 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45819-12010 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
2 | ||
| 45819-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
2 | ||
| 45819-12010 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45819-12010 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
2 | ||
| 45819-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
2 | ||
| 45819-12010 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
2 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45826-12021 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-12029 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45827-12011 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45827-12011 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12010 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-12010 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD OD=9.989-9.998 |
1 | ||
| 45855-12020 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD OD=9.998-10.007 |
1 | ||
| 45855-12020 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD OD=9.998-10.007 |
1 | ||
| 45855-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) OD=9.989-9.998 |
1 | ||
| 45855-12020 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN OD=9.998-10.007 |
1 | ||
| 45855-12010 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD OD=9.989-9.998 |
1 | ||
| 45855-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) OD=9.998-10.007 |
1 | ||
| 45855-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN OD=9.989-9.998 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-12010 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD OD=9.989-9.998 |
1 | ||
| 45856-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) OD=9.989-9.998 |
1 | ||
| 45856-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) OD=9.998-10.007 |
1 | ||
| 45856-12020 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD OD=9.998-10.007 |
1 | ||
| 45856-12020 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD OD=9.998-10.007 |
1 | ||
| 45856-12020 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN OD=9.998-10.007 |
1 | ||
| 45856-12010 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD OD=9.989-9.998 |
1 | ||
| 45856-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN OD=9.989-9.998 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45865-12050 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
1 | ||
| 45865-12050 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45865-12050 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45865-12050 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
1 | ||
| 45865-12050 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45865-12050 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
1 | ||
| 45866A - STOPPER, STEERING MAIN SHAFT BUSH | ||||
| 45866-12010 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) |
1 | ||
| 45866-12010 |
EE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN |
1 | ||
| 45866-12010 |
AE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD |
1 | ||
| 45866-12010 |
AE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12030 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45890-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12021 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12031 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-12030 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45890-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12021 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45890-12031 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 2 |
1 | ||
| 90389-07010 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 7 |
1 | ||
| 90389-07007 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 4 |
1 | ||
| 90389-07008 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK A |
1 | ||
| 90389-07009 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 6 |
1 | ||
| 90389-07006 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 3 |
1 | ||
| 90389-07011 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 8 |
1 | ||
| 90389-07004 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 0 |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-07005 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 2 |
1 | ||
| 90389-07010 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 7 |
1 | ||
| 90389-07007 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 4 |
1 | ||
| 90389-07008 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK A |
1 | ||
| 90389-07009 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 6 |
1 | ||
| 90389-07006 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 3 |
1 | ||
| 90389-07011 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 8 |
1 | ||
| 90389-07004 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK 0 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12070 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45893-12021 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK A,LH |
1 | ||
| 45893-12150 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK E,LH |
1 | ||
| 45893-12071 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK F OR 11,RH |
1 | ||
| 45893-12190 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK J OR 15,RH |
1 | ||
| 45893-12130 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK C,LH |
1 | ||
| 45893-12120 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK B,LH |
1 | ||
| 45893-12180 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK I OR 14,RH |
1 | ||
| 45893-12140 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK D,LH |
1 | ||
| 45893-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45893-12170 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK H OR 13,RH |
1 | ||
| 45893-12160 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK G OR 12,RH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-12070 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) RH |
1 | ||
| 45893-12021 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK A,LH |
1 | ||
| 45893-12150 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK E,LH |
1 | ||
| 45893-12071 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK F OR 11,RH |
1 | ||
| 45893-12190 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK J OR 15,RH |
1 | ||
| 45893-12130 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK C,LH |
1 | ||
| 45893-12120 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK B,LH |
1 | ||
| 45893-12180 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK I OR 14,RH |
1 | ||
| 45893-12140 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK D,LH |
1 | ||
| 45893-12020 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) LH |
1 | ||
| 45893-12170 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK H OR 13,RH |
1 | ||
| 45893-12160 |
EE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN) MARK G OR 12,RH |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE9#,CE90,EE9# |
2 | ||
| Common parts | ||||
| 90119-06378 | ||||
| 90119-06569 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90179-10065 | ||||
| 90206-10009 | ||||
| 91611-60820 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
| 94614-10600 | ||||
(8705- )GL,STD,XL..ARL,GCC,GEN ; (8808- )STD,XL..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12190 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45025-12200 |
AE9#,CE90,EE9#..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12040 |
AE9#,CE90,EE9#..LHD W(POWER STEERING) |
1 | ||
| 45026-12030 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 90520-17196 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17196 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN) T=1.20 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 90520-17196 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL T=1.35-1.45 |
2 | ||
| 90520-17042 |
AE9#,CE90,EE9# T=1.20 |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12050 |
AE95..XL..ARL;AE9#,CE90,EE9#..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-32010 |
AE9#,CE90,EE9# |
1 | ||
| 45209-12050 |
AE9#..LHD;AE95..XL..ARL;EE90..LHD..SED..GEN;EE9#..LHD..(LB,WG)..XL W(TILT STEERING & POWER STEERING) |
1 | ||
| 45209-12050 |
AE92,CE90,EE9#..LHD W(TILT STEERING & POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12400 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45210-12340 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45210-12400 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45271-12050 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45271-12060 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45273-16010 |
AE9#,CE90,EE9# |
1 | ||
| 45273-16010 |
AE9#,CE90,EE9# |
1 | ||
| 45273-22020 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12120 |
AE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280-12120 |
EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN) W(TILT STEERING) |
1 | ||
| 45280-12100 |
AE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL |
1 | ||
| 45280-12100 |
AE92,CE90,EE9#..LHD..GEN;AE92,EE90..(3FC,4F,5F)..(GL,SE,STD,XL)..(GCC,SA) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1294105 |
AE95..LHD..SED;AE92,CE90,EE9#..LHD BEIGE,TRIM4# |
1 | ||
| 45286-1294304 |
AE92,CE90,EE90..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294304 |
AE9#,CE90,EE9#..LHD..(GL,XL) W(TILT STEERING),DARK BLUE,TRIM8# |
1 | ||
| 45286-1294303 |
AE95,CE90,EE97..LHD;AE92,EE90..LHD..(GL,XL) W(TILT STEERING),SHADOW GRAY,TRIM1# |
1 | ||
| 45286-1294104 |
AE9#,CE90,EE9#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 45286-1294105 |
AE9#,CE90,EE9#..LHD BEIGE,TRIM4# |
1 | ||
| 45286-1294106 |
AE9#,CE90,EE90..LHD..(GL,XL) BROWN,TRIM4# |
1 | ||
| 45286-1294306 |
AE9#,CE90,EE90..LHD..(GL,XL) W(TILT STEERING),BROWN,TRIM4# |
1 | ||
| 45286-1294305 |
AE9#,CE90,EE9#..LHD W(TILT STEERING),BEIGE,TRIM4# |
1 | ||
| 45286-1294103 |
AE9#,CE90,EE9#..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12251 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45870-12250 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45870-12252 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE9#,CE90,EE9# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50048 | ||||
| 90179-10016 | ||||
| 91655-40625 | ||||
| 93315-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
