AE95R-CWPXKQ (1988)

Toyota Corolla Sed/Lb/Wg

Production Feb 1988 - Sep 1990
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

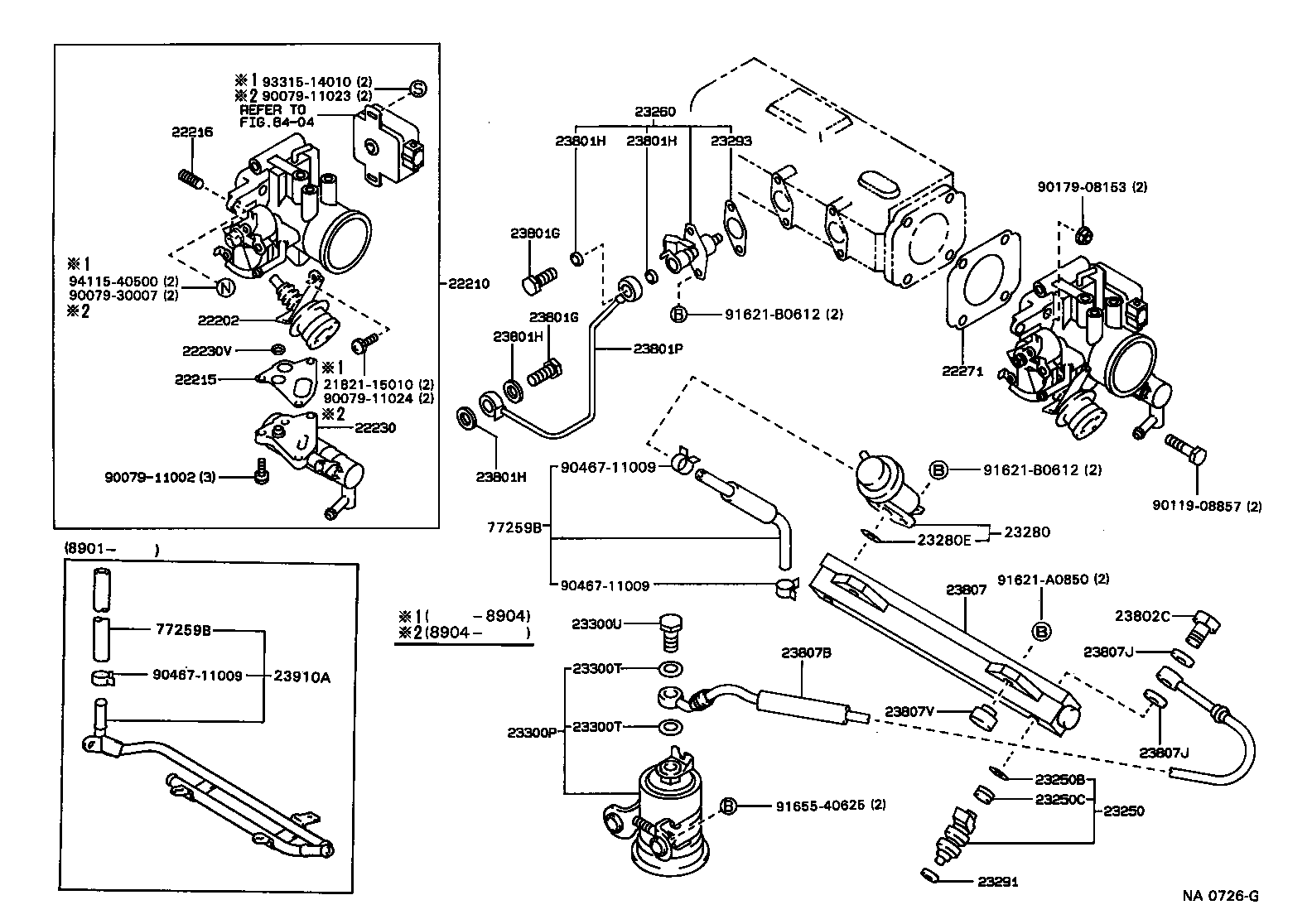

ILLUST NO. 1 OF 2(8802- )4AFE

Click highlighted areas on diagram

diagram 2182115010 22202 22210 22215 22216 22230 22230V 22271 23250 23250B 23250C 23260 23280 23280E 23291 23293 23300P 23300T 23300T 23300U 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23802C 23807 23807B 23807J 23807J 23807V 23910A 77259B 77259B 8404 9007911002 9007911023 9007911024 9007930007 9011908857 9017908153 9046711009 9046711009 9046711009 91621A0850 91621B0612 91621B0612 9165540625 9331514010 9411540500
Part # Description Qty Price
22202 - DASH POT SUB-ASSY
22202-15020

4AFE..AE95

 1
22210 - BODY ASSY, THROTTLE
22210-16300

4AFE..AE95..4FC

 1
22215 - GASKET, THROTTLE BODY COVER
22215-15011

4AFE..AE95

 1
22215-15010

4AFE..AE95

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

4AFE..AE95

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-16150

4AFE..AE95..4FC

 1
22230V - RING, O(FOR AUXILIARY AIR VALVE)
96711-19009

4AGE,4AFE..AE9#

 1
22271 - GASKET, THROTTLE BODY
22271-15010

4AFE..AE95

 1
22271-15011

4AFE..AE95

 1
23250 - INJECTOR ASSY, FUEL
23209-16100

4AFE..AE95

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4AGE,4AFE..AE9#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4AGE,4AFE..AE9#..ARL,GEN

 4
90480-13005

4AGE,4AFE..AE9#

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-19105

4AFE..AE95

 1
23260-19106

4AFE..AE95

 1
23260-19085

4AFE..AE95

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-16120

4AFE..AE95

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4AGE,4AFE..AE9#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4AGE,4AFE..AE9#

 4
23291-41010

4AFE..AE95

 4
23293 - GASKET, COLD START INJECTOR
23293-74010

4AFE..AE95

 1
23293-62020

4AFE..AE95

 1
23300P - FILTER, FUEL(FOR EFI)
23300-19195

4AFE..AE95

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AGE,4AFE..AE9#

 2
90430-12005

4AGE,4AFE..AE9#..ARL,GEN

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

4AGE,4AFE..AE9#

 2
90430-12005

4AGE,4AFE..AE9#..ARL,GEN

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4AGE,4AFE..AE9#..ARL,GEN

 1
90401-12097

4AGE,4AFE..AE9#

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AGE,4AFE..AE9#

 2
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08003

4AGE,4AFE..AE9#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,4AFE..AE9#

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,4AFE..AE9#

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,4AFE..AE9#

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

4AGE,4AFE..AE9#

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-15050

4AFE..AE95

 1
23801-16030

4AFE..AE95

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12097

4AFE..AE95

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-16070

4AFE..AE95

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-16080

4AFE..AE95

 1
23271-15200

4AFE..AE95

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90201-12109

4AGE,4AFE..AE9#..SED,WG

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90201-12109

4AGE,4AFE..AE9#..SED,WG

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08021

4AFE..AE95

 2
23910A - TUBE SUB-ASSY, FUEL
23901-16100

4AFE..AE95

 1
77259B - HOSE, FUEL
77259-12110

AE95..ARL

 1
95333-06020

AE95..ARL

 1
77259B - HOSE, FUEL
77259-12110

AE95..ARL

 1
95333-06020

AE95..ARL

 1
Common parts
21821-15010
90079-11002
90079-11023
90079-11024
90079-30007
90119-08857
90179-08153
90467-11009
91621-A0850
91621-B0612
91655-40625
93315-14010
94115-40500
Linked diagrams
8404
