AE95R-CWMDU (1988)
Toyota Corolla Sed/Lb/Wg

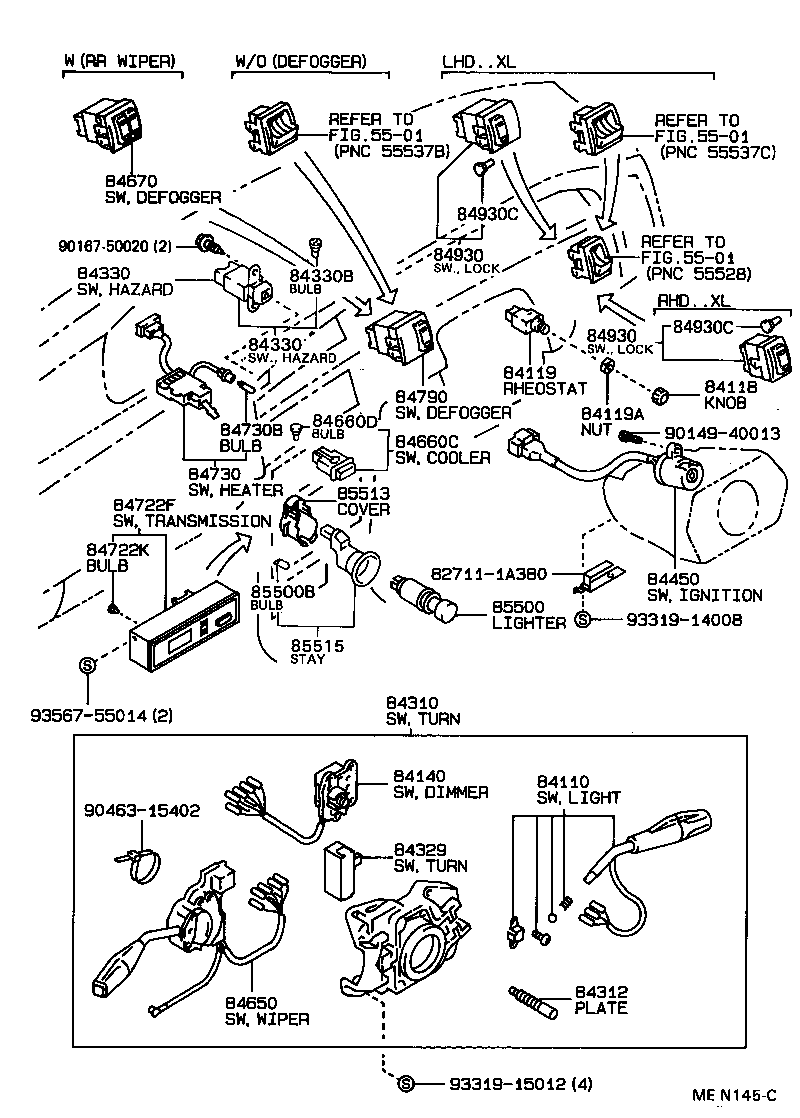

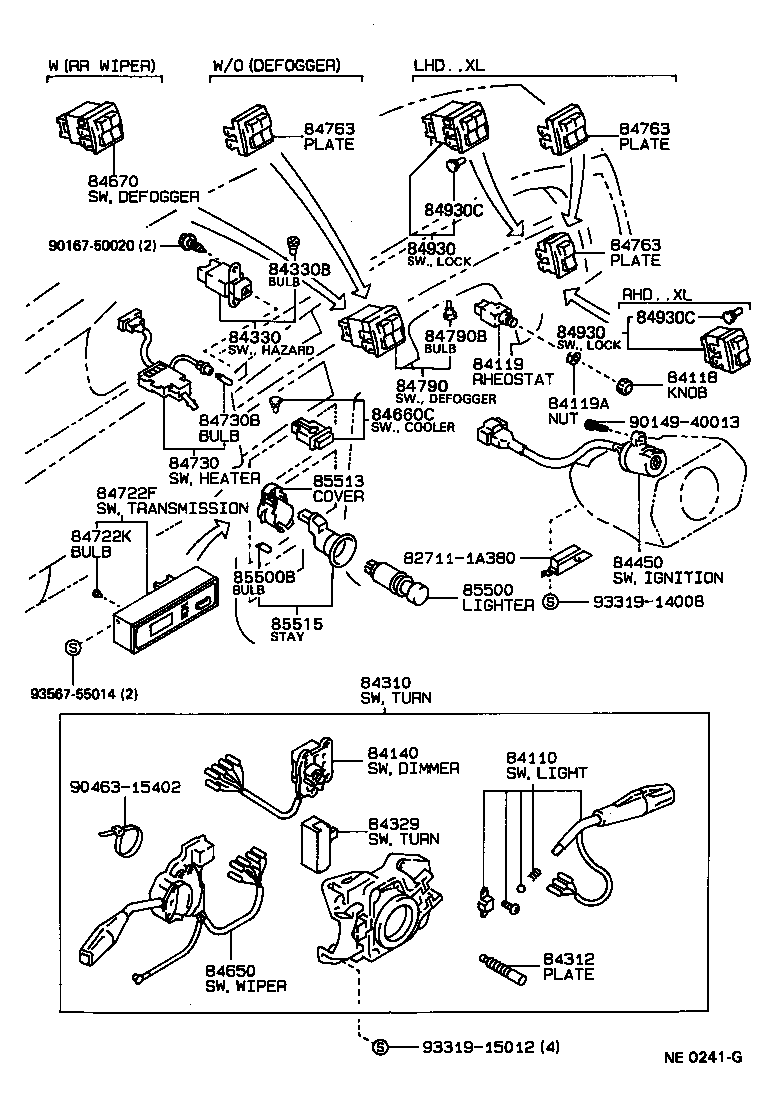

ILLUST NO. 2 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
AE9#,EE9#..RHD TOKAIRIKA |
1 | ||
| 84112-80007 |
AE9#,EE9#..RHD MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,EE9#..RHD MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,EE9#..RHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A140 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW) |
1 | ||
| 84310-12830 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A140 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW) |
1 | ||
| 84310-1A140 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW) |
1 | ||
| 84310-12800 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE9# MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE90,EE9# TOKAIRIKA |
1 | ||
| 84312-12040 |
AE92..SA;AE92..LB;EE90..LB..GL;EE90..LHD..GL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE95,CE90,EE9#..SR5,STD,XL TOKAIRIKA |
1 | ||
| 84312-12050 |
AE92..SA;AE92..LB;EE90..LB..GL;EE90..LHD..GL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE95,CE90,EE9#..SR5,STD,XL MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE92..SA;EE90..RHD..(STD,XL);AE92,EE90..RHD..LB..(GL,GTI);AE9#,EE97..RHD..(SR5,STD,XL)..(ARL,GEN) |
1 | ||
| 84329-12010 |
AE9#,EE9#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE9#,EE9#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE9#,EE9#..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10190 |
AE9#,EE9#..RHD 12V 0.87W |
1 | ||
| 84999-10210 |
AE9#,EE9#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE90,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12760 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12450 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12750 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12750 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12760 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12460 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-12750 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12760 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12440 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) TOKAIRIKA |
1 | ||
| 84652-12430 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE9#,EE9#..RHD |
1 | ||
| 84660-12120 |
AE9#..RHD..(GL,XL)..GEN |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE9#,EE9#..RHD W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-12240 |
AE9#,EE9#..RHD..GEN |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE9#,CE90,EE9# 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1223004 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223005 |
AE9#,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 84790-12230J0 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE9#..XL..GEN 12V 1.12W |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE9#..XL..GEN 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE90,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE90,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE90,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE90,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

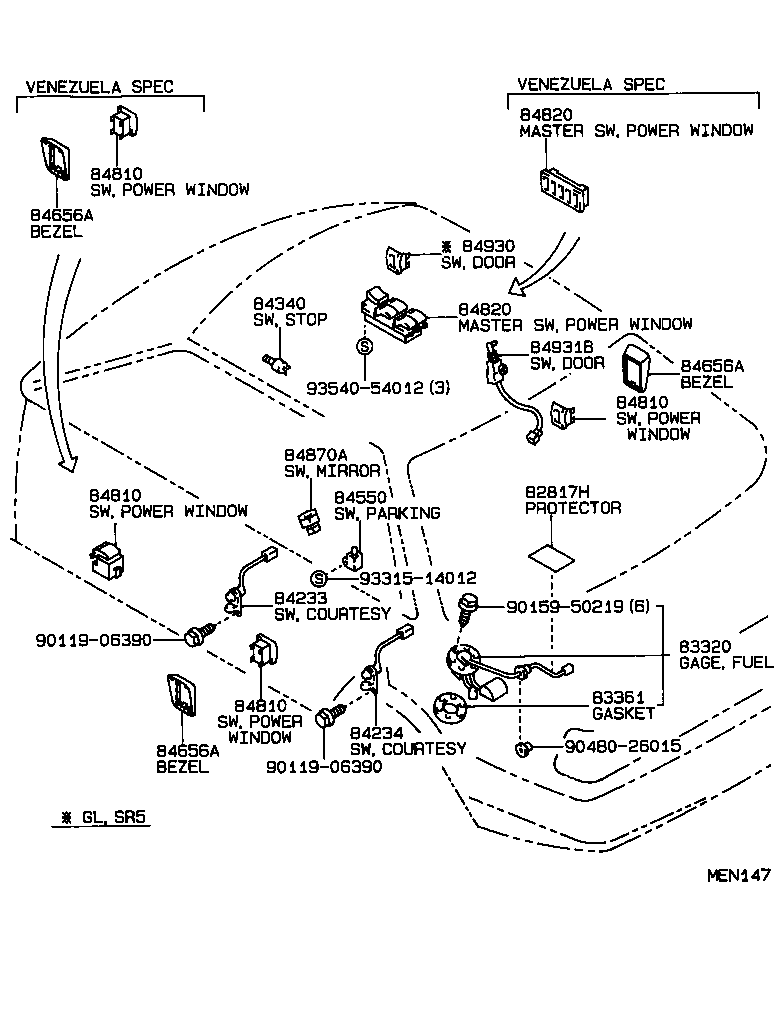

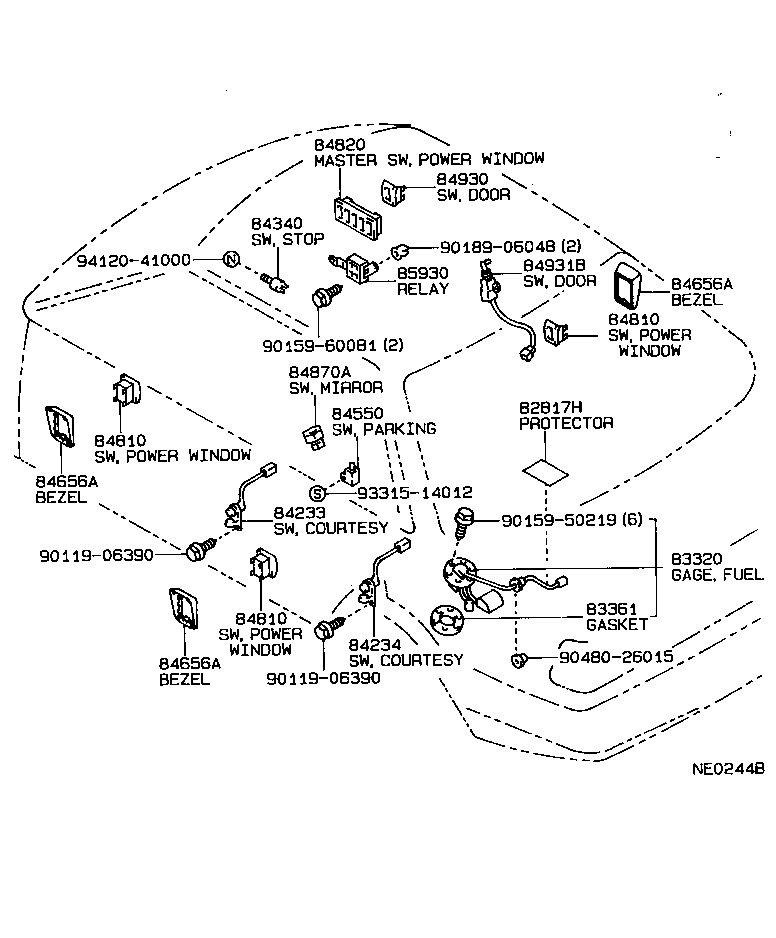

ILLUST NO. 4 OF 5(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12840 |
AE95..WG |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9#..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9#..ARL,GCC,GEN |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE90,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE90,EE9# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12220 |
AE9#..RHD..XL..GEN;AE92..RHD..(GL,GT,SE);EE90..RHD..(GL,XL)..GEN |
1 | ||
| 84801-1201004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12220 |
AE9#..RHD..XL..GEN;AE92..RHD..(GL,GT,SE);EE90..RHD..(GL,XL)..GEN |
1 | ||
| 84801-1201004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19015 |
EE97..LHD..XL;EE90..(GL,XL)..GEN;AE9#,CE90..XL..GEN;AE92..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 84931-20071 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;AE9#,CE90,EE97..XL..GEN |
1 | ||
| 84931-19015 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;AE9#,CE90,EE97..XL..GEN |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
ILLUST NO. 2 OF 5(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80005 |
AE9#,EE9#..RHD TOKAIRIKA |
1 | ||
| 84112-80007 |
AE9#,EE9#..RHD MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
EE90..STD..GCC;AE92..GL,GT,GTI,SE;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..(SR5,XL)..(ARL,GEN) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,EE9#..RHD MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,EE9#..RHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A140 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW) |
1 | ||
| 84310-12830 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER) |
1 | ||
| 84310-1A140 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW) |
1 | ||
| 84310-1A140 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW) |
1 | ||
| 84310-12800 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE9#,CE90,EE9# MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE90,EE9# TOKAIRIKA |
1 | ||
| 84312-12040 |
AE92..SA;AE92..LB;EE90..LB..GL;EE90..LHD..GL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE95,CE90,EE9#..SR5,STD,XL TOKAIRIKA |
1 | ||
| 84312-12050 |
AE92..SA;AE92..LB;EE90..LB..GL;EE90..LHD..GL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE95,CE90,EE9#..SR5,STD,XL MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE92..SA;EE90..RHD..(STD,XL);AE92,EE90..RHD..LB..(GL,GTI);AE9#,EE97..RHD..(SR5,STD,XL)..(ARL,GEN) |
1 | ||
| 84329-12010 |
AE9#,EE9#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12250 |
AE9#,EE9#..RHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10190 |
AE9#,EE9#..RHD 12V 0.87W |
1 | ||
| 84999-10210 |
AE9#,EE9#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE90,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12760 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12450 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER),MATSUSHITA |
1 | ||
| 84652-12750 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12750 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12760 |
EE97..RHD..STD;AE95..RHD..WG..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12460 |
EE90..RHD..XL;AE9#,EE97..RHD..(STD,XL) W(INTERMITTENT WIPER),TOKAIRIKA |
1 | ||
| 84652-12750 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),MATSUSHITA |
1 | ||
| 84652-12760 |
EE9#..RHD..(LB,WG)..(GL,STD);AE9#..RHD..(LB,WG)..(GL,XL)..GEN W(*RW),TOKAIRIKA |
1 | ||
| 84652-12440 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) TOKAIRIKA |
1 | ||
| 84652-12430 |
AE9#,EE9#..RHD..(STD,XL)..(GEN,SA) MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20090 |
AE9#,EE9#..RHD |
1 | ||
| 84660-12120 |
AE9#..RHD..(GL,XL)..GEN |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE9#,EE9#..RHD W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-12230 |
AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(AIR CONDITIONER) |
1 | ||
| 84732-12240 |
AE9#,EE9#..RHD..GEN |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE9#,CE90,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206004 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206003 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207004 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-12070J0 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1207005 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-12060J0 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206004 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206003 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207004 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-12070J0 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1207005 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-12060J0 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1206004 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206003 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207004 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1206005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-12070J0 |
AE95..WG..GEN;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) 2 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84763-1207005 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
EE90..3FC,4F;EE90..5F..(GCC,GEN);AE9#,CE90,EE97..(GL,STD,XL)..GEN 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-12060J0 |
AE95..RHD..WG 1 HOLE,DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1223004 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223005 |
AE9#,CE90,EE9#..GL,SE,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 84790-12230J0 |
AE95..WG..XL;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 84790-1223003 |
AE9#,CE90,EE9#..GL,SE,STD,XL SHADOW GRAY,TRIM1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE9#..GL,GT,GTI,SE,STD,XL 12V 1.12W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE9#..XL..GEN 12V 1.12W |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10170 |
AE9#,CE90,EE9#..XL..GEN 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE90,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE90,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12010 |
AE9#,CE90,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE90,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
ILLUST NO. 4 OF 5(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12840 |
AE95..WG |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE92..GT..SA;AE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9#..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE90,EE9#..ARL,GCC,GEN |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE90,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE90,EE9# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-1201004 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-12010J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL DARK BLUE,TRIM8# |
3 | ||
| 84656-1201005 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN DARK BEIGE,TRIM4# |
3 | ||
| 84656-1201003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-1201003 |
EE90..SED..XL..GCC;AE9#,CE90,EE9#..XL..GEN SHADOW GRAY,TRIM1# |
3 | ||
| 84656-12010J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8# |
2 | ||
| 84656-1201003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..WG..GEN;EE97..LHD..XL;AE9#,CE90,EE90..LHD..(LB,SED)..XL VENEZUELA SPEC,DARK BLUE,DARK BLUE,TRIM8# |
3 | ||
| 84810-1206003 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12060J0 |
EE97..LHD..XL;EE90..(LB,SED)..XL..(GCC,GEN);AE9#,CE90..(SE,XL)..(GCC,GEN) DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
EE97..LHD..XL;AE92..LHD..SED..GL;AE9#..RHD..(GL,GT,SE,SR5);AE9#,CE90..(SE,XL)..(GCC,GEN);EE90..(LB,SED)..(GL,XL)..(GCC,GEN) FR |
1 | ||
| 84810-1206003 |
EE97..LHD..XL;AE95,CE90..GEN;AE92,EE90..(LB,SED)..(SE,XL)..(GCC,GEN) SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12220 |
AE9#..RHD..XL..GEN;AE92..RHD..(GL,GT,SE);EE90..RHD..(GL,XL)..GEN |
1 | ||
| 84801-1201004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1203003 |
AE9#,EE9#..RHD..XL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1203004 |
AE95..RHD..WG..GEN DARK BLUE,TRIM8# |
1 | ||
| 84930-1203005 |
AE9#,EE9#..RHD..XL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19015 |
EE97..LHD..XL;EE90..(GL,XL)..GEN;AE9#,CE90..XL..GEN;AE92..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 84931-20071 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;AE9#,CE90,EE97..XL..GEN |
1 | ||
| 84931-19015 |
AE92..GL,GT,GTI,SE;EE90..(GL,XL)..GEN;AE9#,CE90,EE97..XL..GEN |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-12071 |
AE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE9#..RHD..(GL,GT,GTI,SE,SR5) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90480-26015 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
