AE95R-CWMDU (1988)

Toyota Corolla Sed/Lb/Wg

Production Feb 1988 - Sep 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB ; (8802-9008)AE95..WG

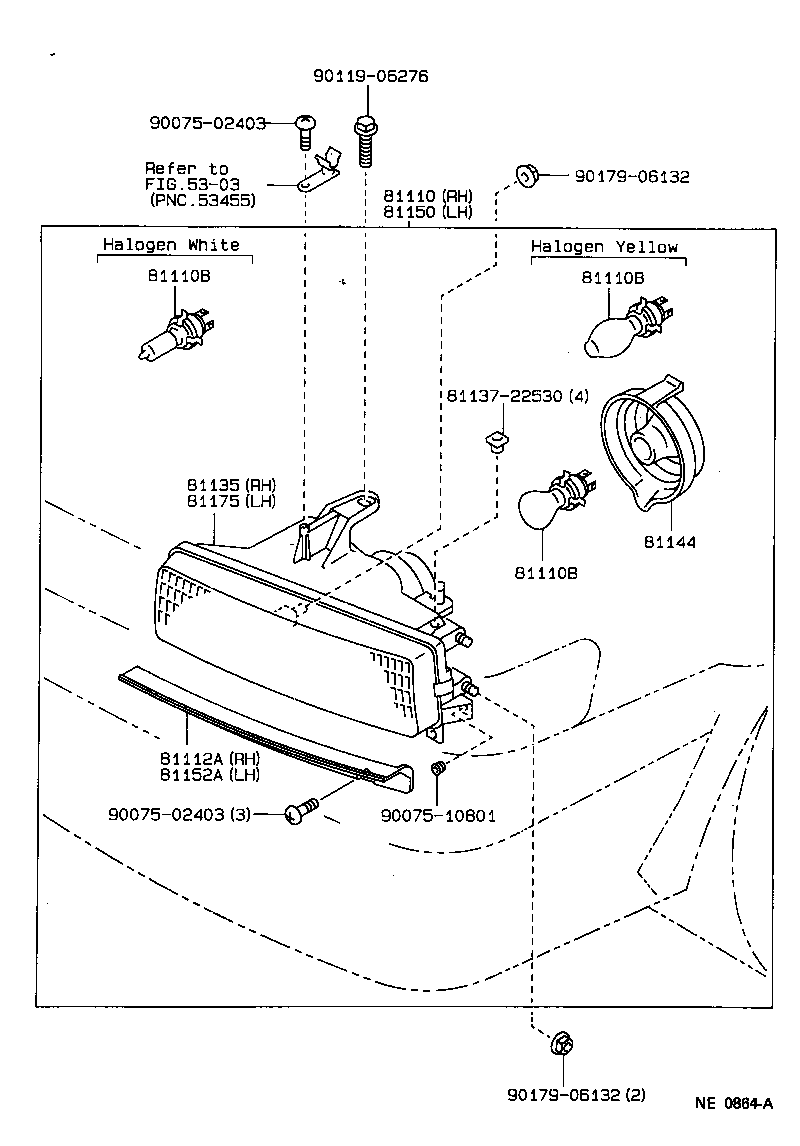

Click highlighted areas on diagram

diagram 5303 81110 81110B 81110B 81110B 81112A 81135 8113722530 81144 81150 81152A 81175 9007502403 9007502403 9007510801 9011906276 9017906132 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-1A870

AE95..RHD..WG..GEN

HALOGEN WHITE

 1
81110-1A860

AE95..RHD..WG..GEN

 1
81110-1A870

AE95..RHD..GEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 45/40W,WHITE

 2
90981-13015

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 60/55W,*HAL *WH

 2
90981-13016

AE95..RHD..WG..GEN

12V 60/55W,*HAL *YE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 45/40W,WHITE

 2
90981-13015

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 60/55W,*HAL *WH

 2
90981-13016

AE95..RHD..WG..GEN

12V 60/55W,*HAL *YE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 45/40W,WHITE

 2
90981-13015

EE90..5F..XL..(GCC,GEN);EE90..(3FC,4F)..(STD,XL);AE9#,CE90,EE97..(STD,XL)..GEN

12V 60/55W,*HAL *WH

 2
90981-13016

AE95..RHD..WG..GEN

12V 60/55W,*HAL *YE

 2
81112A - RIM, HEADLAMP, RH
81116-1A850

AE95..WG

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-1A710

EE90..RHD..LB..XL;AE95..RHD..WG..GEN

HALOGEN WHITE

 1
81130-1A700

EE90..RHD..LB..XL;AE95..RHD..WG..GEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AE9#,CE90,EE9#

 2
81150 - HEADLAMP ASSY, LH
81160-1A860

AE95..RHD..WG..GEN

 1
81160-1A870

AE95..RHD..WG..GEN

HALOGEN WHITE

 1
81160-1A870

AE95..RHD..GEN

 1
81152A - RIM, HEADLAMP, LH
81156-1A850

AE95..WG

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A700

EE90..RHD..LB..XL;AE95..RHD..WG..GEN

 1
81170-1A710

EE90..RHD..LB..XL;AE95..RHD..WG..GEN

HALOGEN WHITE

 1
Common parts
81137-22530
90075-02403
90075-10801
90119-06276
90179-06132
Linked diagrams
5303
