AE95L-CWMDU (1988)

Toyota Corolla Sed/Lb/Wg

Production Feb 1988 - Sep 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8802-9008)AE95..WG

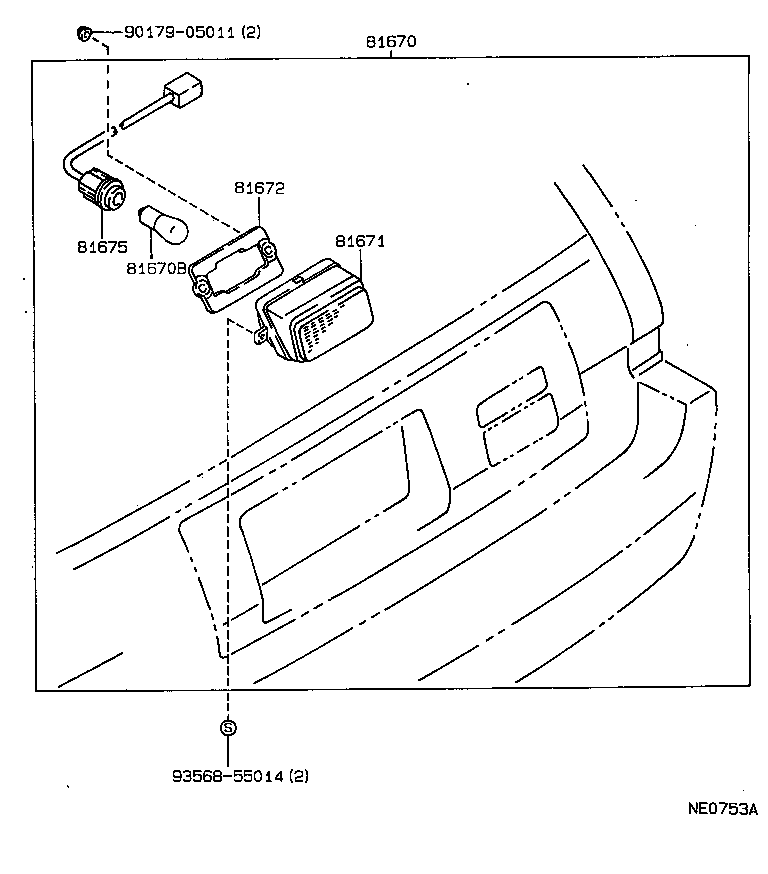

Click highlighted areas on diagram

diagram 81670 81670B 81671 81672 81675 9017905011 9356855014
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-12010

AE95..WG

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

AE95..WG

12V 21W

 1
81671 - LENS, BACK-UP LAMP, RH
81671-12010

AE95..WG

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-12010

AE95..WG

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-12010

AE95..WG

 1
Common parts
90179-05011
93568-55014
