AE95L-CWMDU (1988)

Toyota Corolla Sed/Lb/Wg

Production Feb 1988 - Sep 1990
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

Click highlighted areas on diagram

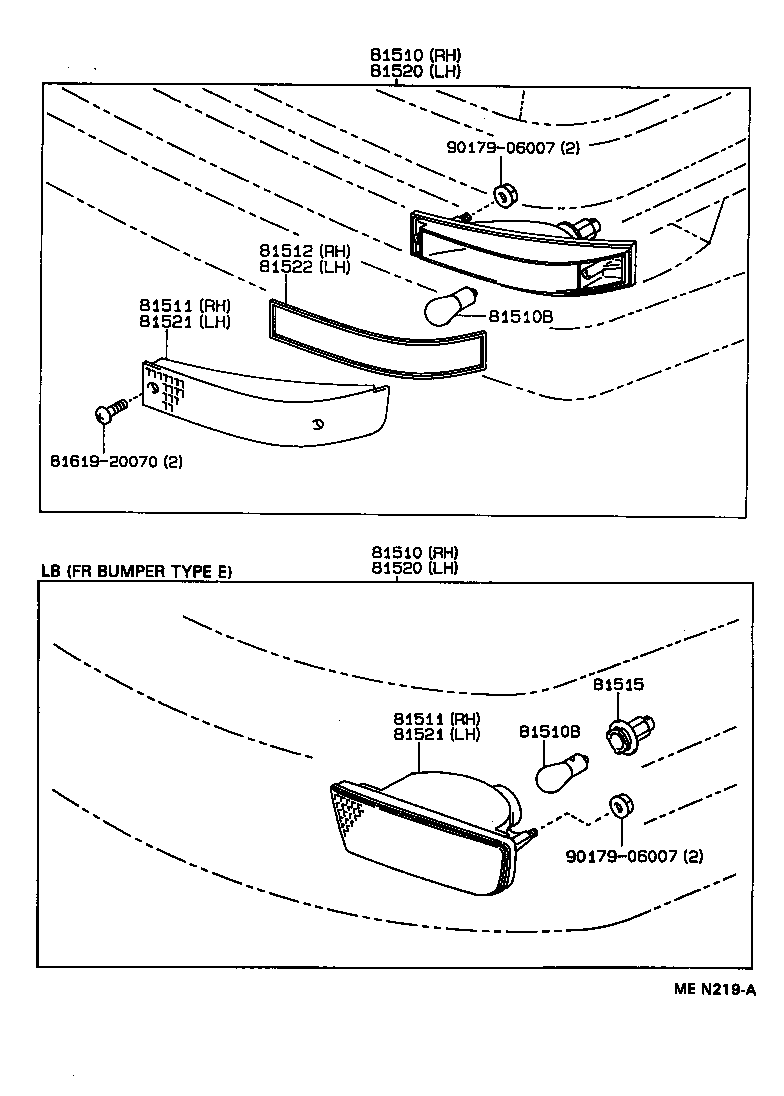

diagram 81510 81510 81510B 81510B 81511 81511 81512 81515 81520 81520 81521 81521 81522 8161920070 9017906007 9017906007
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80054

AE9#,CE90,EE9#

IKI

 1
81510-80053

AE9#,CE90,EE9#

KOITO

 1
81510-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80054

AE9#,CE90,EE9#

IKI

 1
81510-80053

AE9#,CE90,EE9#

KOITO

 1
81510-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE90,EE9#

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE90,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE9#,CE90,EE9#

IKI

 1
81511-12560

AE9#,CE90,EE9#

KOITO

 1
81511-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE9#,CE90,EE9#

IKI

 1
81511-12560

AE9#,CE90,EE9#

KOITO

 1
81511-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81520-80053

AE9#,CE90,EE9#

KOITO

 1
81520-80054

AE9#,CE90,EE9#

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81520-80053

AE9#,CE90,EE9#

KOITO

 1
81520-80054

AE9#,CE90,EE9#

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE90,EE9#

KOITO

 1
81521-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81521-12590

AE9#,CE90,EE9#

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE90,EE9#

KOITO

 1
81521-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81521-12590

AE9#,CE90,EE9#

IKI

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
Common parts
81619-20070
90179-06007

(8908- )SED,WG

Click highlighted areas on diagram

W(FRONT BUMPER TYPE E)

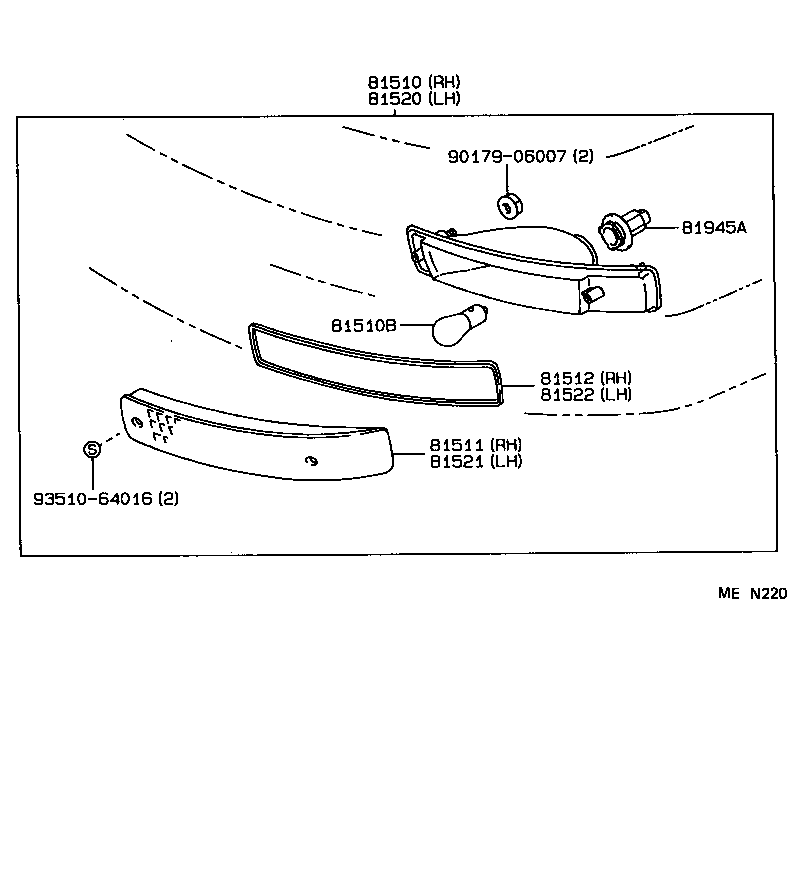

diagram 81510 81510B 81511 81512 81520 81521 81522 81945A 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80054

AE9#,CE90,EE9#

IKI

 1
81510-80053

AE9#,CE90,EE9#

KOITO

 1
81510-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE90,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE9#,CE90,EE9#

IKI

 1
81511-12560

AE9#,CE90,EE9#

KOITO

 1
81511-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81520-80053

AE9#,CE90,EE9#

KOITO

 1
81520-80054

AE9#,CE90,EE9#

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE90,EE9#

KOITO

 1
81521-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81521-12590

AE9#,CE90,EE9#

IKI

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81945A - SOCKET, BULB
81945-12010

AE9#,CE90,EE9#

 2
Common parts
90179-06007
93510-64016

(8705-8908)

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81511 81511 81512 81512 81520 81520 81521 81521 81522 81522 8161920070 81945A 9017906007 9017906007 9351064016
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80054

AE9#,CE90,EE9#

IKI

 1
81510-80053

AE9#,CE90,EE9#

KOITO

 1
81510-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80054

AE9#,CE90,EE9#

IKI

 1
81510-80053

AE9#,CE90,EE9#

KOITO

 1
81510-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE90,EE9#

12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE9#,CE90,EE9#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE9#,CE90,EE9#

IKI

 1
81511-12560

AE9#,CE90,EE9#

KOITO

 1
81511-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12590

AE9#,CE90,EE9#

IKI

 1
81511-12560

AE9#,CE90,EE9#

KOITO

 1
81511-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81520-80053

AE9#,CE90,EE9#

KOITO

 1
81520-80054

AE9#,CE90,EE9#

IKI

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80053

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81520-80053

AE9#,CE90,EE9#

KOITO

 1
81520-80054

AE9#,CE90,EE9#

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE90,EE9#

KOITO

 1
81521-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81521-12590

AE9#,CE90,EE9#

IKI

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12560

AE9#,CE90,EE9#

KOITO

 1
81521-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81521-12590

AE9#,CE90,EE9#

IKI

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-12560

AE9#,CE90,EE9#

KOITO

 1
81512-12590

AE9#,CE90,EE9#

IKI

 1
81512-12560

AE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)

 1
81945A - SOCKET, BULB
81945-12010

AE9#,CE90,EE9#

 2
Common parts
81619-20070
90179-06007
93510-64016
