AE95L-AEMDU (1987)

Toyota Corolla Sed/Lb/Wg

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8710- )AE95

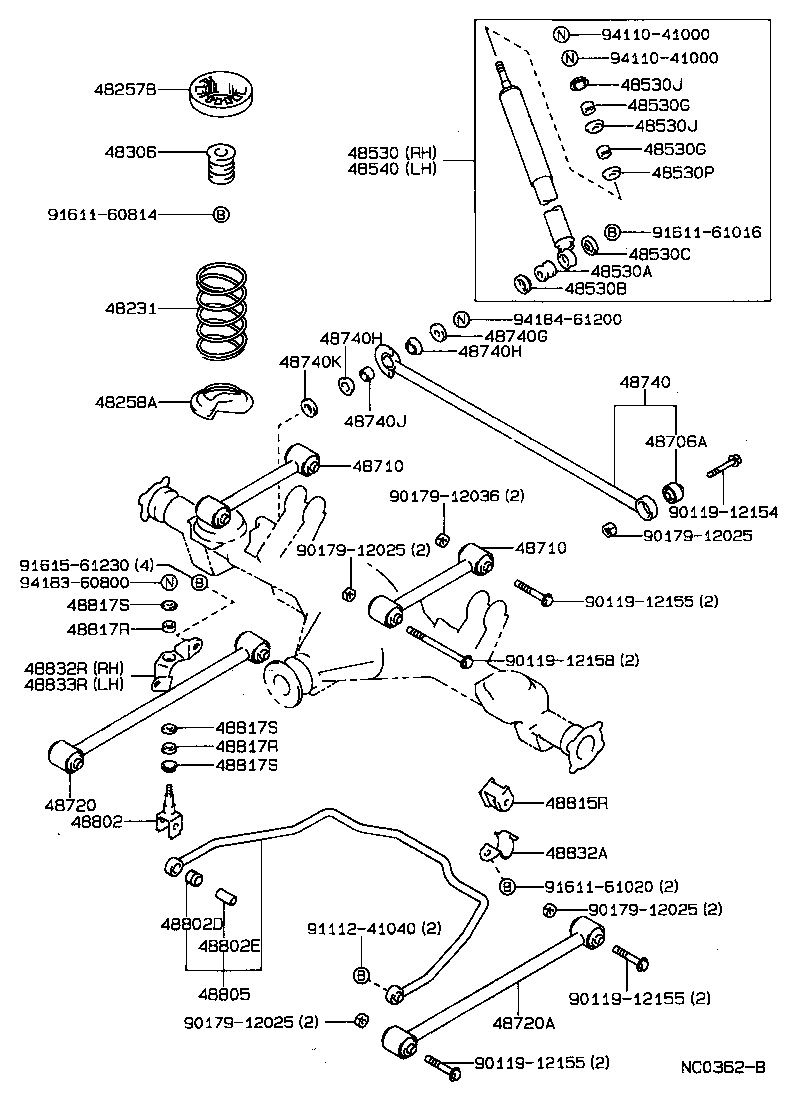

Click highlighted areas on diagram

diagram 48231 48257B 48258A 48306 48530 48530A 48530B 48530C 48530G 48530G 48530J 48530J 48530P 48540 48706A 48710 48710 48720 48720A 48740 48740G 48740H 48740H 48740J 48740K 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48817S 48832A 48832R 48833R 9011912154 9011912155 9011912155 9011912155 9011912158 9017912025 9017912025 9017912025 9017912025 9017912036 9111241040 9161160814 9161161016 9161161020 9161561230 9411041000 9411041000 9418360800 9418461200
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-1A580

AE95..SED

ROUGH ROAD PACKAGE

 2
48231-1A310

AE95..SED

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80090

AE95..GEN

ROUGH ROAD PACKAGE

 1
48531-80080

AE95..SED

MARK 12390 OR 12400

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80080

AE95..SED

MARK 12390 OR 12400

 1
48531-80090

AE95..GEN

ROUGH ROAD PACKAGE

 1
48710 - ARM ASSY, UPPER CONTROL
48710-12140

AE95

 4
48710 - ARM ASSY, UPPER CONTROL
48710-12140

AE95

 4
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90385-20001

AE95

 2
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90385-20001

AE95

 2
48805 - BAR SUB-ASSY, REAR STABILIZER
48805-12070

AE95..SED

ROUGH ROAD PACKAGE

 1
48805-12050

AE95..SED

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-30070

AE95..SED

ROUGH ROAD PACKAGE

 2
48815-14050

AE95..SED

 2
Common parts
90119-12154
90119-12155
90119-12158
90179-12025
90179-12036
91112-41040
91611-60814
91611-61016
91611-61020
91615-61230
94110-41000
94183-60800
94184-61200
