AE92R-ALHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE9#..GL,SE,SR5,STD,XL

Click highlighted areas on diagram

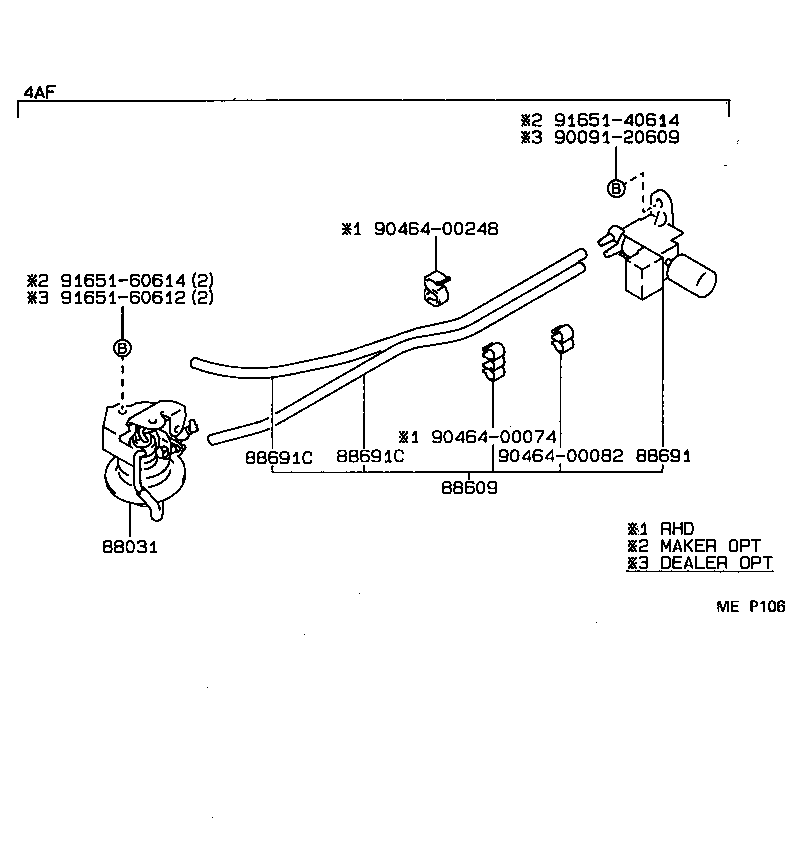

diagram 88031 88609 88691 88691C 88691C 9009120609 9046400074 9046400082 9046400248 9165140614 9165160612 9165160614
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12140

AE9#..(GL,SE,STD,XL)..(GCC,GEN,SA)

 1
88609 - DEVICE SUB-ASSY, IDLE UP
88609-12440

AE9#..RHD..(GL,SE,XL)..(GEN,SA)

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-20040

AE9#,EE9#..RHD..(GL,SR5,STD,XL)..(ARL,GEN)

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92004

AE9#..RHD..(GL,XL)..GEN

L=950

 1
90999-92004

AE9#..RHD..(GL,XL)..GEN

L=950

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92004

AE9#..RHD..(GL,XL)..GEN

L=950

 1
90999-92004

AE9#..RHD..(GL,XL)..GEN

L=950

 1
Common parts
90091-20609
90464-00074
90464-00082
90464-00248
91651-40614
91651-60612
91651-60614
