AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )

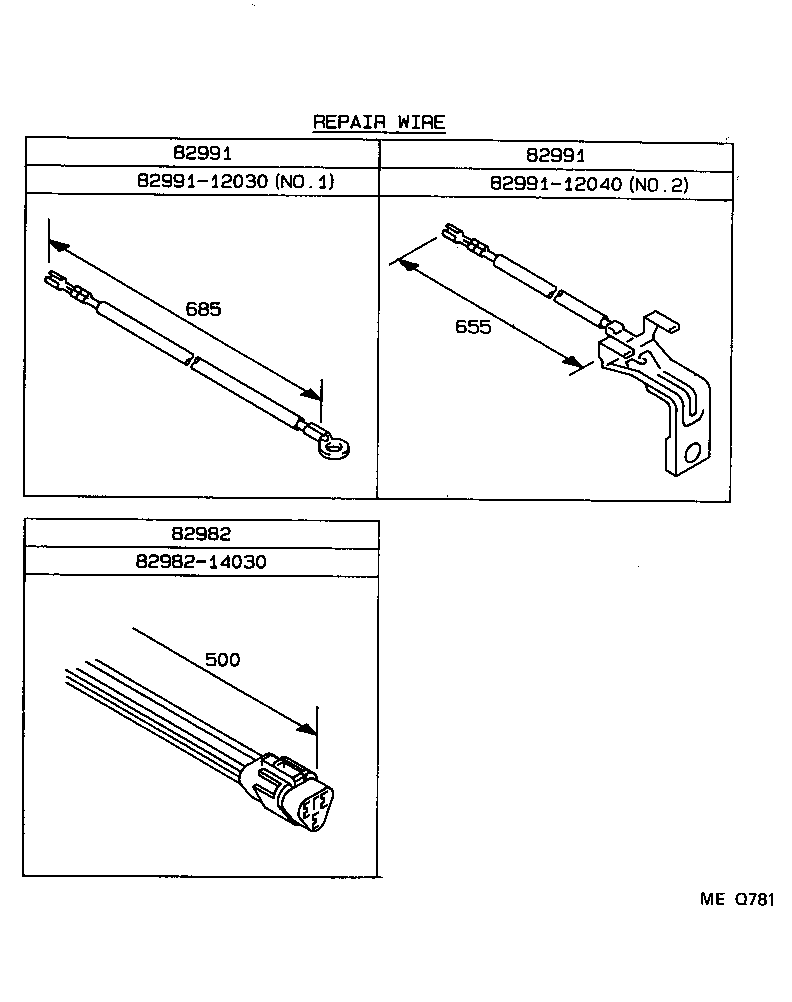

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82982-14030 | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12300 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A330 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A510 | ||||
| 82711-1A540 | ||||
| 82711-1A630 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-30130 | ||||
| 82711-95718 | ||||

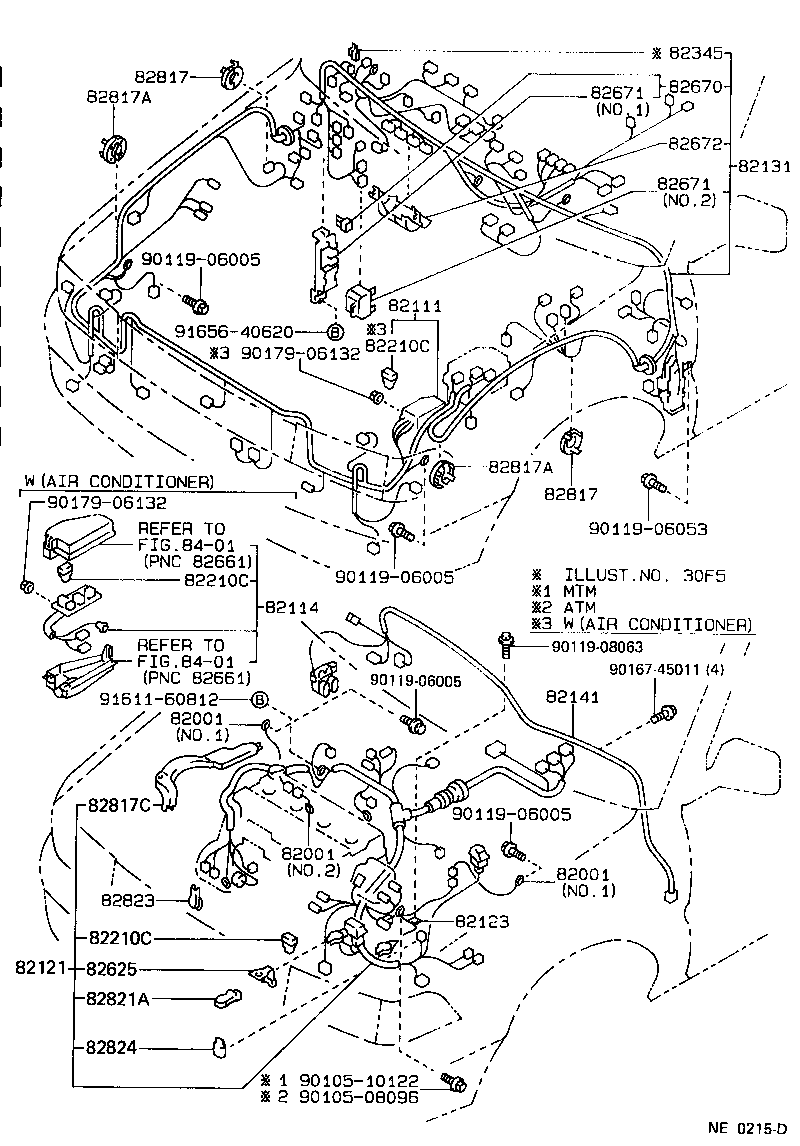

ILLUST NO. 1 OF 5(8705- )AE9#..GL,SE,STD,XL..GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE92..GL,STD,XL NO.2 |
1 | ||
| 90980-07206 |
AE92..RHD NO.1 |
1 | ||
| 90980-07206 |
AE9#..GEN,SA;AE92..SE..GCC NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE92..GL,STD,XL NO.2 |
1 | ||
| 90980-07206 |
AE92..RHD NO.1 |
1 | ||
| 90980-07206 |
AE9#..GEN,SA;AE92..SE..GCC NO.1 |
2 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07236 |
AE92..GL,STD,XL NO.2 |
1 | ||
| 90980-07206 |
AE92..RHD NO.1 |
1 | ||
| 90980-07206 |
AE9#..GEN,SA;AE92..SE..GCC NO.1 |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A310 |
AE9#,EE9#..RHD..(ARL,GEN) |
1 | ||
| 82111-1A320 |
AE9#,EE9#..RHD..GEN W(*AIC) |
1 | ||
| 82111-1A320 |
AE9#,EE9#..RHD W(*AIC) |
1 | ||
| 82111-1A320 |
AE92,EE9#..RHD W(*AIC) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE9#,CE90,EE9# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1A570 |
AE92..RHD..3FC |
1 | ||
| 82121-1A571 |
AE92..RHD..3FC..GEN |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12140 |
AE92,EE90..3FC..(GCC,GEN) |
1 | ||
| 82123-12150 |
AE92,EE90..3FC..(GCC,GEN) BATTERY=32C24L OR 34B19L |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1E020 |
AE92,EE90..RHD..(GL,STD,XL) |
1 | ||
| 82131-1E021 |
AE92,EE90..RHD..(GL,STD,XL)..GEN |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12010 |
AE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE9#..RHD..(GL,GT,GTI,SE,SR5) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE90,EE9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE90,EE9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE9#,CE90,EE9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 60A,TERM.:FEMALE,YEL |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..GL..GEN;AE95,CE90,EE9#;AE92..GT,GTI,STD,XL NO.1 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12010 |
AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12090 |
EE97..LHD;AE9#,CE90,EE90 |
1 | ||
| 82670-12120 |
EE90..RHD..GEN;AE92..RHD..GL..GEN NEW ZEALAND SPEC |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
EE97..LHD;AE9#,CE90,EE90 NO.1 |
1 | ||
| 82671-12070 |
EE97..LHD;AE9#,CE90,EE90 NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12030 |
EE97..LHD;AE9#,CE90,EE90 NO.1 |
1 | ||
| 82671-12070 |
EE97..LHD;AE9#,CE90,EE90 NO.2 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12080 |
EE90..RHD..GEN;AE92..RHD..(GL,GTI,SE);AE9#,EE97..RHD..(SR5,STD,XL)..(ARL,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE9# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE9#,CE90,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE9# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE9#,CE90,EE9# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12190 |
AE9#,EE9#..GCC,GEN,SA |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE9#,EE9# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
AE9#,CE90,EE9# |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08063 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91611-60812 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

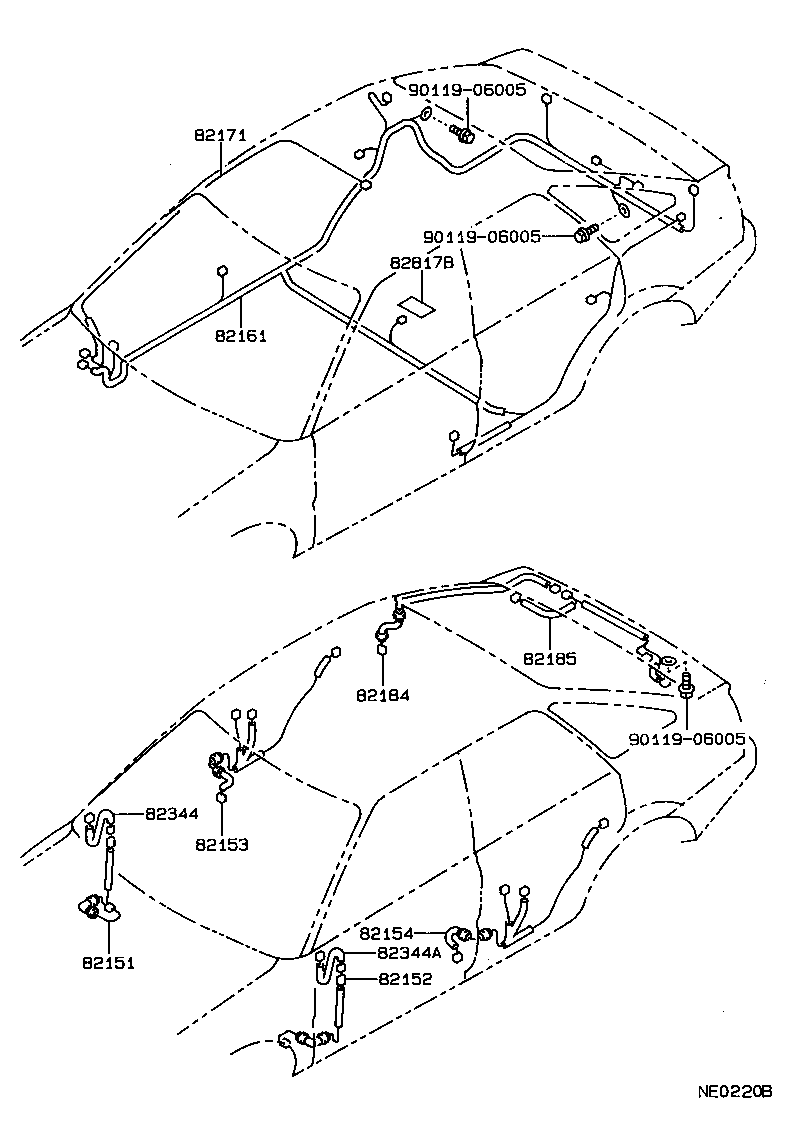

ILLUST NO. 2 OF 5(8705- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12280 |
AE9#,EE90..RHD..(GL,GT,GTI,SE,SR5) W(*EL) |
1 | ||
| 82151-12300 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL) |
1 | ||
| 82151-12260 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) W(*RCM) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12200 |
AE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..RHD..(GL,GT,GTI,SE) W(*EL) |
1 | ||
| 82152-12210 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL) |
1 | ||
| 82152-12400 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) W(*RCM) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12070 |
EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#..GL,GT,GTI,SE,SR5;AE9#,CE90,EE97..XL..GEN W(*EL) |
1 | ||
| 82153-12080 |
EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#..GL,GT,GTI,SE,SR5;AE9#,CE90,EE97..XL..GEN W(*PW & *EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12060 |
EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#..GL,GT,GTI,SE,SR5;AE9#,CE90,EE97..XL..GEN W(*EL) |
1 | ||
| 82154-12070 |
EE90..(GL,XL)..GEN;EE90..SED..XL..GCC;AE9#..GL,GT,GTI,SE,SR5;AE9#,CE90,EE97..XL..GEN W(*PW & *EL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1A270 |
AE92,EE90..RHD..LB W(*EL) |
1 | ||
| 82161-1A260 |
AE92,EE90..RHD..LB |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12190 |
AE92,EE90..RHD..LB W(SUN ROOF) |
1 | ||
| 82171-12180 |
AE92,EE90..RHD..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12200 |
AE92,EE90..LB..(GL,XL) W(*RWD) |
1 | ||
| 82184-12210 |
AE92,EE90..LB..(GL,XL) W(*RW) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12280 |
AE92,EE90..LB..(GL,XL) W(*RWD & *RW) |
1 | ||
| 82185-12250 |
AE92,EE90..LB..(GL,XL) W(*RWD) |
1 | ||
| 82185-12260 |
AE92,EE90..LB..(GL,XL) W(*RW) |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-12010 |
AE9#,EE90..GL,GT,GTI,SE,SR5 |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-12010 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE92,CE90,EE9# 200 X 90 |
1 | ||
| 82817-12140 |
AE92,CE90,EE90..LB,SED 200 X 250 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 4 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-17010 | ||||
| 82982-22050 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82985-12010 | ||||

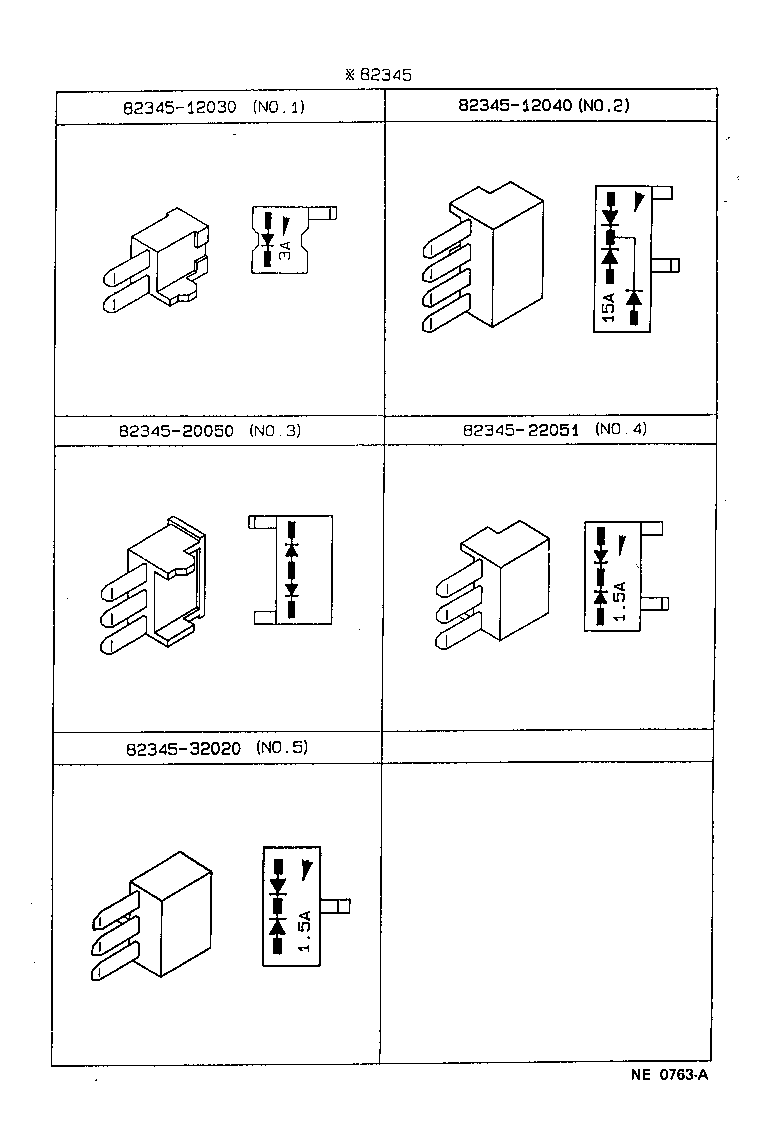

ILLUST NO. 3 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
AE92..GL..GEN;AE95,CE90,EE9#;AE92..GT,GTI,STD,XL NO.1 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12040 | ||||
| 82345-20050 | ||||
| 82345-22051 | ||||
| 82345-32020 | ||||
ILLUST NO. 5 OF 5(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16470 | ||||
| 82711-1A620 | ||||
| 82711-22270 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
