AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )ARL,GCC,GEN

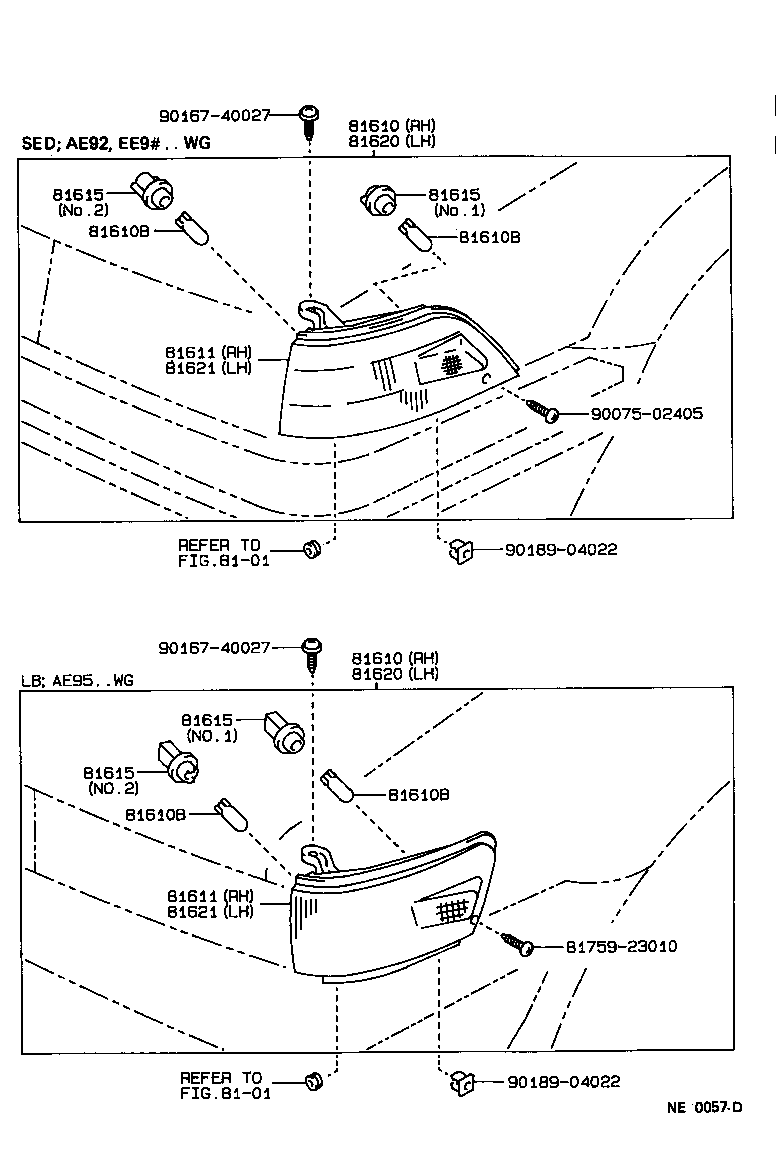

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12420 |
AE92,EE90..LB |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12420 |
AE92,EE90..LB |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE9#..ARL,GCC,GEN 12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE9#..ARL,GCC,GEN 12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE9#..ARL,GCC,GEN 12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AE9#,CE90,EE9#..ARL,GCC,GEN 12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-12420 |
AE92,EE90..LB |
1 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-12420 |
AE92,EE90..LB |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 90075-99006 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.2 |
2 | ||
| 90075-99007 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.1 |
2 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 90075-99006 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.2 |
2 | ||
| 90075-99007 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.1 |
2 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 90075-99006 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.2 |
2 | ||
| 90075-99007 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.1 |
2 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 90075-99006 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.2 |
2 | ||
| 90075-99007 |
AE9#,CE90,EE9#..ARL,GCC,GEN NO.1 |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12420 |
AE92,EE90..LB |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12420 |
AE92,EE90..LB |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-12420 |
AE92,EE90..LB |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-12420 |
AE92,EE90..LB |
1 | ||
| Common parts | ||||
| 81759-23010 | ||||
| 90075-02405 | ||||
| 90167-40027 | ||||
| 90189-04022 | ||||
| Linked diagrams | ||||
| 8101 | ||||
