AE92R-ALHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB,SED

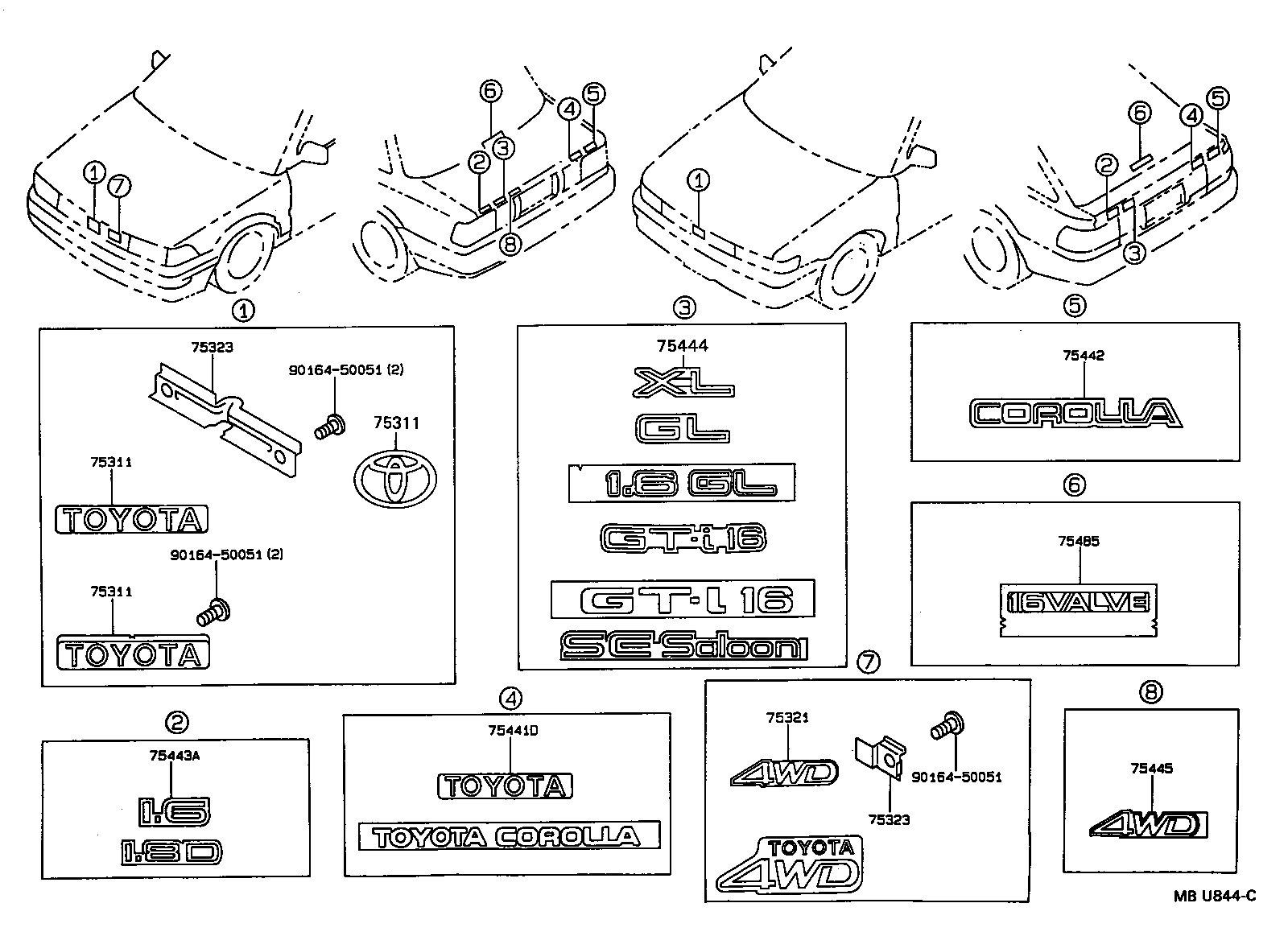

Click highlighted areas on diagram

diagram 75311 75311 75311 75321 75323 75323 75441D 75442 75443A 75444 75445 75485 9016450051 9016450051 9016450051
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A500

AE92,EE90..LB

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A500

AE92,EE90..LB

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-1A500

AE92,EE90..LB

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-1248013

AE92,EE90..LB..GL

TOYOTA COROLLA,W(REAR AIR SPOILER),W L GRAY M & SILVER,040 ,204 ,26E ,3E5 ,8E3

 1
75441-1248003

AE92,EE90..LB..GL

TOYOTA COROLLA,W(REAR AIR SPOILER),SILVER & LIGHT GRAY,168 ,4H6 ,6J7

 1
75441-12460

AE92,EE90..LB

TOYOTA

 1
75441-1248013

AE92,EE90..LB..GL

TOYOTA COROLLA,W(REAR AIR SPOILER),W L GRAY M & SILVER,040 ,204 ,26E ,3E5 ,8B5 ,8E3

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-12880

AE92,EE90..LB

COROLLA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-1A220

AE92..LB..(GL,XL)

1.6

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-1250013

AE92..LB..GL

1.6GL,W(REAR AIR SPOILER),W L GRAY M & SILVER,040 ,204 ,26E ,3E5 ,8E3

 1
75444-1250003

AE92..LB..GL

1.6GL,W(REAR AIR SPOILER),SILVER & LIGHT GRAY,168 ,4H6 ,6J7

 1
75444-1250013

AE92..LB..GL

1.6GL,W(REAR AIR SPOILER),W L GRAY M & SILVER,040 ,204 ,26E ,3E5 ,8B5 ,8E3

 1
75444-12400

AE92,EE90..LB..GL

GL

 1
75485 - PLATE, BACK WINDOW NAME
75485-12090

AE92..LB..(GL,XL)

16 VALVE

 1
Common parts
90164-50051
