AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )LB

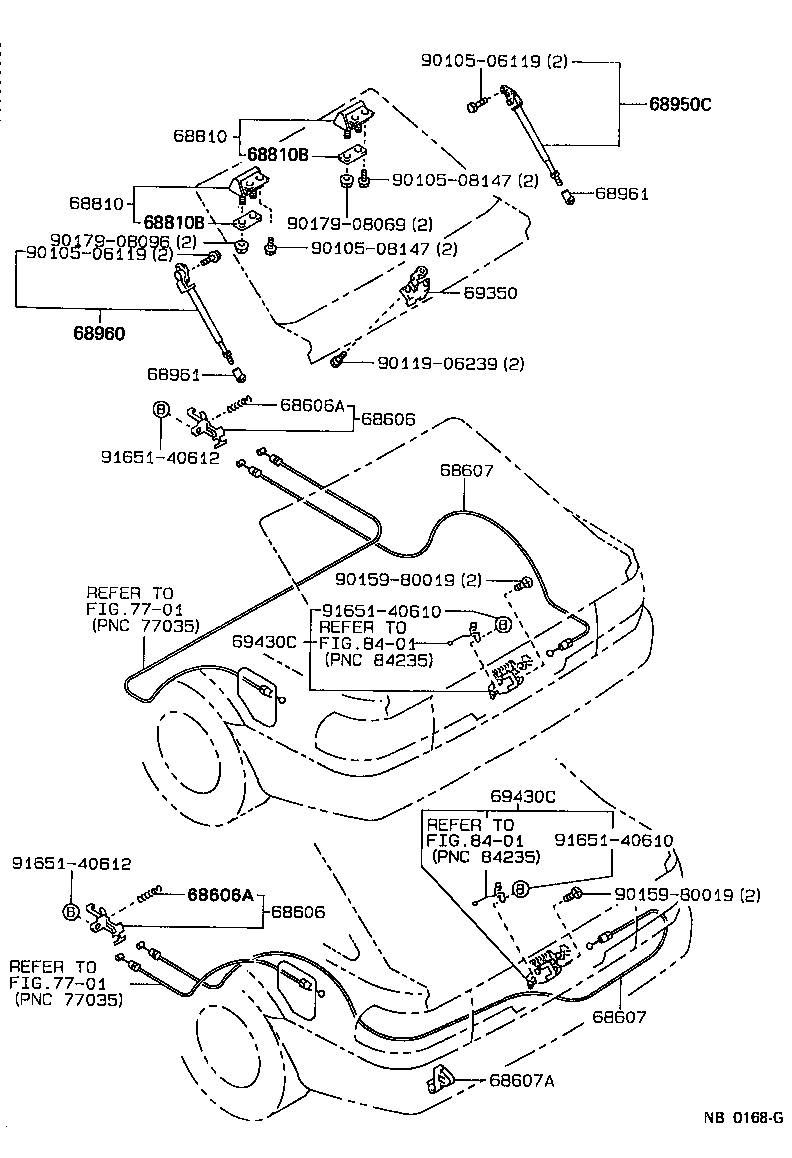

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12060 |
AE92,EE90..RHD..LB |
1 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12060 |
AE92,EE90..RHD..LB |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE92,EE90..LB |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE92,EE90..LB |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-12450 |
AE92,EE90..RHD..LB |
1 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-12450 |
AE92,EE90..RHD..LB |
1 | ||
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68801-12030 |
AE92,EE90..LB |
2 | ||
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68801-12030 |
AE92,EE90..LB |
2 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 68838-14021 |
AE92,EE90..LB |
2 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 68838-14021 |
AE92,EE90..LB |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19595 |
AE92,EE90..LB..GL W(REAR AIR SPOILER) |
1 | ||
| 68950-19595 |
AE92,EE90..LB..GL W(REAR AIR SPOILER & *RW) |
1 | ||
| 68950-19575 |
AE92,EE90..LB..(GL,XL) |
1 | ||
| 68950-19585 |
AE92,EE90..LB..(GL,XL) W(*RW) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-19285 |
AE92,EE90..LB..GL W(REAR AIR SPOILER & *RW) |
1 | ||
| 68960-19275 |
AE92,EE90..LB..(GL,XL) W(*RW) |
1 | ||
| 68960-19285 |
AE92,EE90..LB..GL W(REAR AIR SPOILER) |
1 | ||
| 68960-19265 |
AE92,EE90..LB..(GL,XL) |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12040 |
AE92,EE90..LB |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12040 |
AE92,EE90..LB |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12110 |
AE92,EE90..LB |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12180 |
AE92,EE90..LB |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12180 |
AE92,EE90..LB |
1 | ||
| Common parts | ||||
| 90105-06119 | ||||
| 90105-08147 | ||||
| 90119-06239 | ||||
| 90159-80019 | ||||
| 90179-08069 | ||||
| 90179-08096 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
