AE92R-ALHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB

Click highlighted areas on diagram

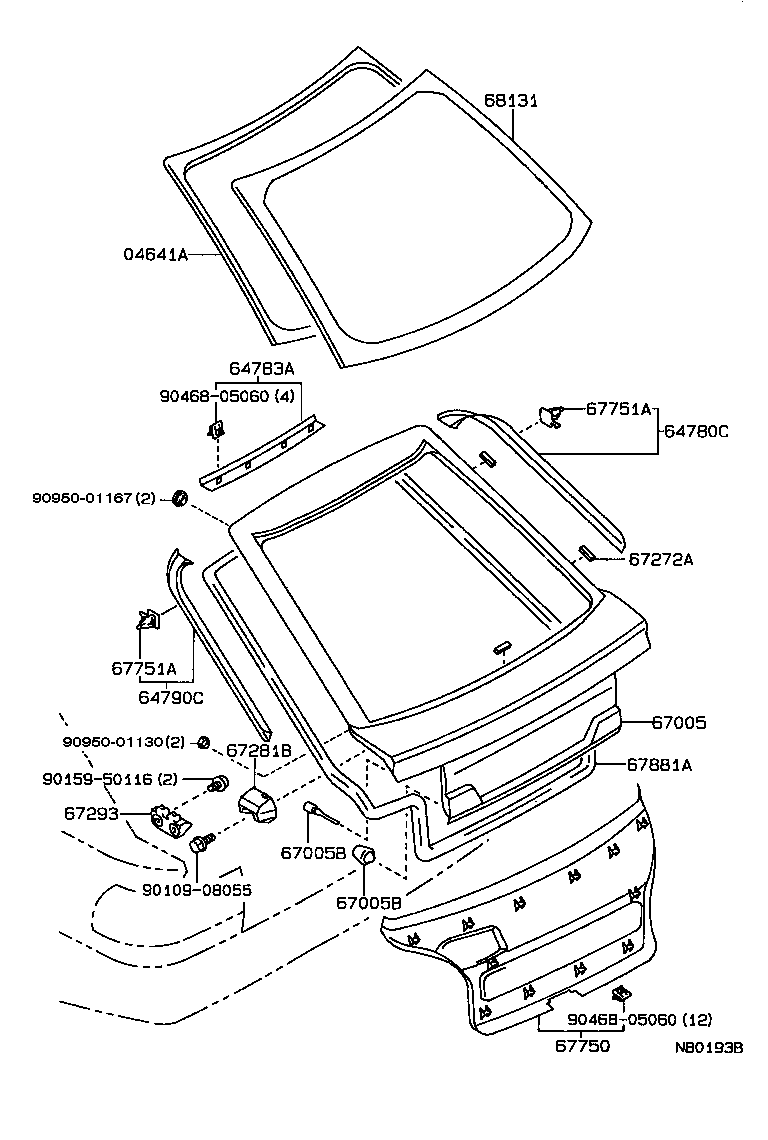

diagram 04641A 64780C 64783A 64790C 67005 67005B 67005B 67272A 67281B 67293 67750 67751A 67751A 67881A 68131 9010908055 9015950116 9046805060 9046805060 9095001130 9095001167
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-12010

AE9#,CE90,EE9#

 1
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-1203002

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#

 1
64780-1203003

AE92,EE90..LB

SHADOW GRAY,TRIM1#

 1
64780-1203005

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#

 1
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-1201003

AE92,EE90..LB

SHADOW GRAY,TRIM1#

 1
64783-1201005

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#

 1
64783-1201002

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#

 1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-1201002

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#

 1
64790-1201003

AE92,EE90..LB

SHADOW GRAY,TRIM1#

 1
64790-1201005

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1A260

AE92,EE90..LB..(GL,XL)

W(*RW & REAR FOG LAMP)

 1
67005-1A270

AE92,EE90..LB..(GL,XL)

 1
67005-1A280

AE92,EE90..LB..(GL,XL)

W(*RW)

 1
67005-1A250

AE92,EE90..LB..(GL,XL)

W(REAR FOG LAMP)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-20002

AE92,EE90..LB

LWR

 2
90541-09041

AE92,EE90..LB

UPR

 2
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-20002

AE92,EE90..LB

LWR

 2
90541-09041

AE92,EE90..LB

UPR

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12010

AE92,EE90..LB

 5
67272-12010

AE92..RHD..LB..GL

 5
67281B - STOPPER, BACK DOOR, LOWER
67281-12040

AE92,EE90..LB

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-12030

AE92,EE90..LB

 2
67750 - BOARD ASSY, BACK DOOR TRIM
67750-1202005

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#

 1
67750-1203005

AE92..RHD..LB..GL;EE90..RHD..LB..5F..XL

NEW ZEALAND SPEC,DARK BEIGE,TRIM4#

 1
67750-1203002

AE92..RHD..LB..GL;EE90..RHD..LB..5F..XL

NEW ZEALAND SPEC,MAROON,TRIM3#

 1
67750-1202002

AE92,EE90..RHD..LB..GL

MAROON,TRIM3#

 1
67750-1202003

AE92,EE90..LB

SHADOW GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10084

AE92,EE90..LB

 8
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10084

AE92,EE90..LB

 8
67881A - WEATHERSTRIP, BACK DOOR
67881-12180

AE92,EE90..LB

 1
68131 - GLASS, BACK DOOR
68131-12510

AE92,EE90..RHD..LB..(GL,XL)

*TEM,T=4.0

 1
68131-12520

AE92,EE90..RHD..LB..GL

*EHT,T=4.0

 1
68131-12460

AE92,EE90..LB..GL

*TT,T=4.0

 1
68131-12470

AE92,EE90..LB..GL

*EHTT,T=4.0

 1
Common parts
90109-08055
90159-50116
90468-05060
90950-01130
90950-01167
