AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg

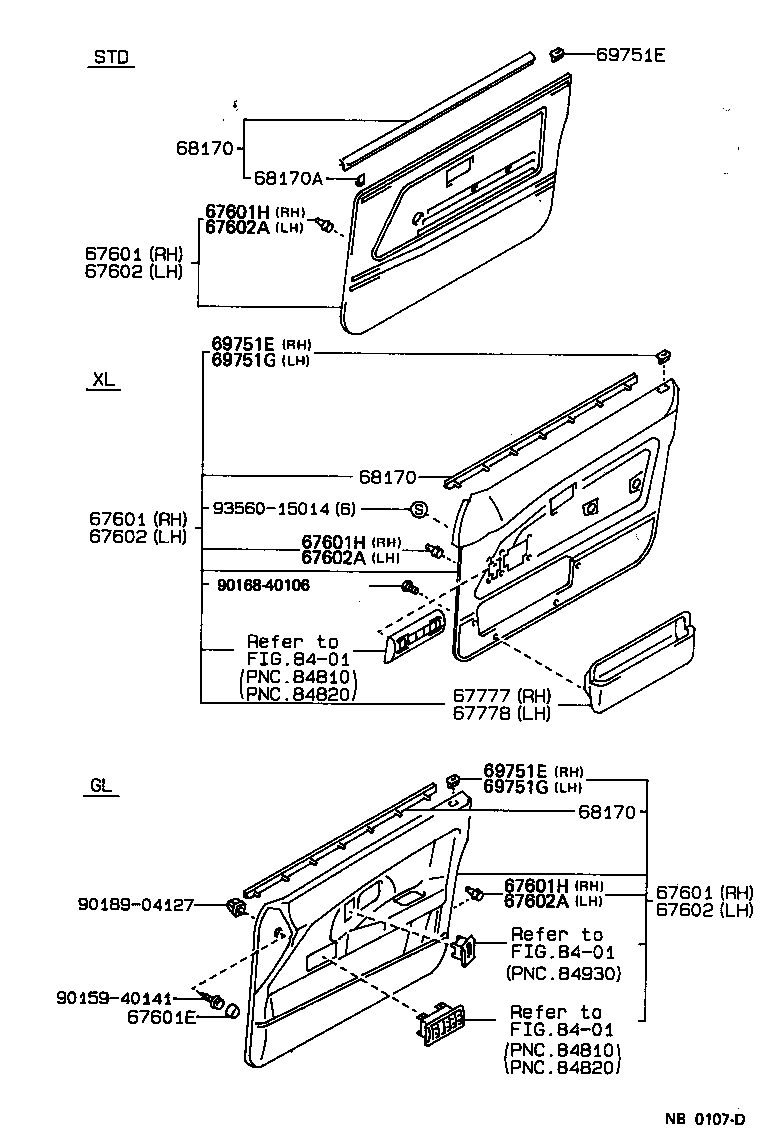

ILLUST NO. 2 OF 2(8705-8908)GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A01003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67650-1A01002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67650-1A01005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A07003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56005 |
AE92,EE90..RHD..GL..GEN W(*EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56002 |
AE92,EE90..RHD..GL..GEN W(*EL),MAROON,TRIM3# |
1 | ||
| 67650-1A56003 |
AE92,EE90..RHD..GL..GEN W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A01003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67650-1A01002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67650-1A01005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A07003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56005 |
AE92,EE90..RHD..GL..GEN W(*EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56002 |
AE92,EE90..RHD..GL..GEN W(*EL),MAROON,TRIM3# |
1 | ||
| 67650-1A56003 |
AE92,EE90..RHD..GL..GEN W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A01003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67650-1A01002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67650-1A01005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A07003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A07005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56005 |
AE92,EE90..RHD..GL..GEN W(*EL),DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A56002 |
AE92,EE90..RHD..GL..GEN W(*EL),MAROON,TRIM3# |
1 | ||
| 67650-1A56003 |
AE92,EE90..RHD..GL..GEN W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000202 |
AE92,EE90..RHD..GL MAROON,TRIM3# |
2 | ||
| 90339-1000213 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
2 | ||
| 90339-1000205 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
2 | ||
| 90339-10002E1 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
2 | ||
| 90339-10002D1 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),WHITE |
3 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),RED |
5 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),WHITE |
3 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),RED |
5 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),WHITE |
3 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*EL),RED |
5 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E30002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67620-1E30005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E30003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E58002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67620-1E58005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E58003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E30002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67620-1E30005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E30003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E58002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67620-1E58005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E58003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E30002 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),MAROON,TRIM3# |
1 | ||
| 67620-1E30005 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E30003 |
AE92,EE90..RHD..GL..GEN W(*PW & *EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E58002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 67620-1E58005 |
AE92,EE90..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67620-1E58003 |
AE92,EE90..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),RED |
7 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),RED |
1 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),WHITE |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),RED |
7 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),RED |
1 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),WHITE |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),RED |
7 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GTI) W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
8 | ||
| 67771-12040 |
AE92,EE90..GL,GTI |
8 | ||
| 67771-12050 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),RED |
1 | ||
| 67771-89104 |
AE92,EE90..RHD..(GL,GT,GTI,SE) W(*PW & *EL),WHITE |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12180 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) RH |
1 | ||
| 68172-12110 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12180 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) RH |
1 | ||
| 68172-12110 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12180 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) RH |
1 | ||
| 68172-12110 |
AE92,EE90..(GL,GT,GTI,SE)..(GEN,SA) LH |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201002 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-32010D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040D0 |
AE92,EE90..RHD..GL..GEN MAROON,TRIM3# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40106 | ||||
| 90189-04127 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

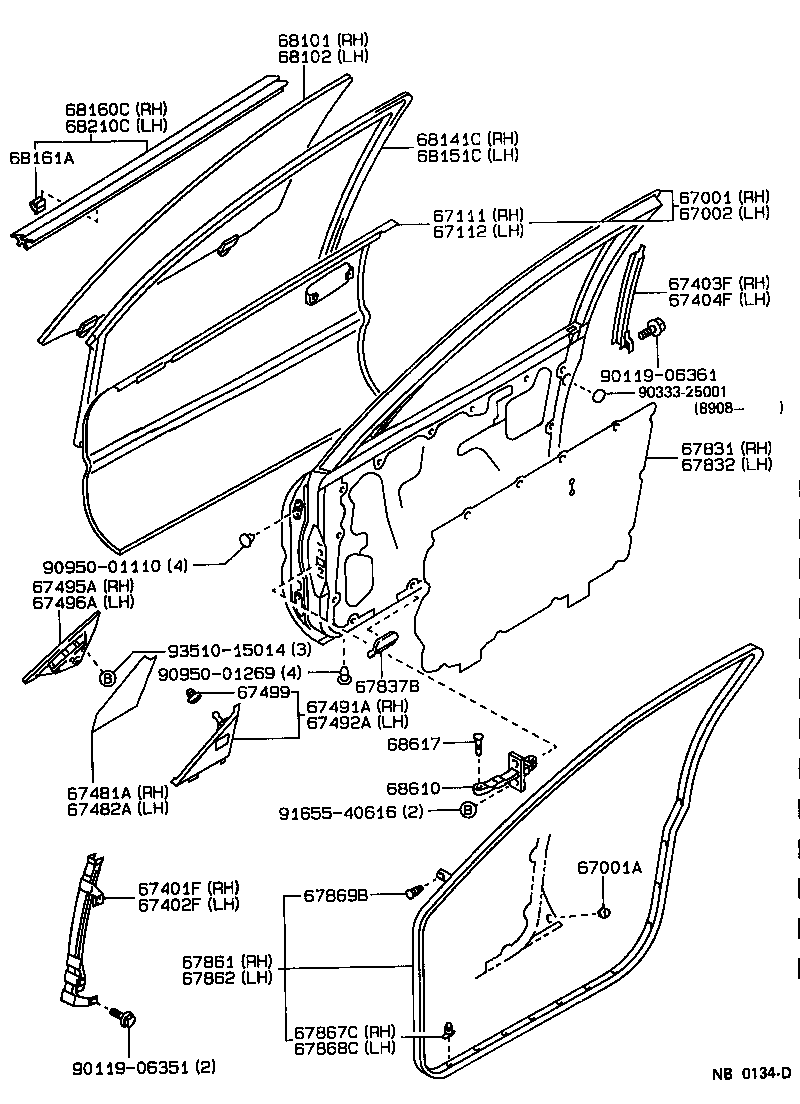

ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A240 |
AE92,EE90..LB;AE95..WG..GEN |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09035 |
AE92..SE..GCC;EE90..SED..5F..GCC;EE90..(3FC,4F)..GCC;AE9#,CE90,EE9#..ARL,GEN,SA |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A220 |
AE92,EE90..LB;AE95..WG..GEN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12460 |
AE95..WG;AE92,EE90..LB |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12450 |
AE95..WG;AE92,EE90..LB |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12290 |
AE9#,CE90,EE9# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12310 |
AE9#,CE90,EE9# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12100 |
AE9#,CE90,EE9# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12100 |
AE9#,CE90,EE9# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12170 |
AE95..SR5;AE95..WG..GEN;AE92,EE90..LB |
1 | ||
| 67491-12180 |
AE92,EE90..RHD..LB;AE95..RHD..WG..GEN W(MANUAL REMOTO CONTROL MIRROR) |
1 | ||
| 67491-12170 |
AE92,EE90..RHD..LB..(GL,GTI) W(CKD COUNTRIES & DOOR MIRROR) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12170 |
AE92,EE90..RHD..LB..(GL,GTI) NEW ZEALAND SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR) |
1 | ||
| 67492-12180 |
AE92,EE90..RHD..LB;AE95..RHD..WG..GEN W(MANUAL REMOTO CONTROL MIRROR) |
1 | ||
| 67492-12170 |
AE95..SR5;AE95..WG..GEN;AE92,EE90..LB |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12130 |
AE92,EE90..LB;AE95..WG..GEN |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12130 |
AE92,EE90..LB;AE95..WG..GEN |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AE92,CE90,EE9# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12390 |
AE9#,CE90..XL..GEN;AE92..GL,GT,GTI,SE;EE90..(LB,SED)..(GL,XL)..GEN W(*PW) |
1 | ||
| 67831-12360 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12220 |
AE9#,CE90..XL..GEN;AE92..GL,GT,GTI,SE;EE90..(LB,SED)..(GL,XL)..GEN W(*PW) |
1 | ||
| 67831-12360 |
AE9#,CE90,EE9#..ARL,GEN,SA |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12670 |
AE92,EE90..LB |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12590 |
AE92,EE90..LB |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE90,EE9# |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90,EE9# |
16 | ||
| 67868-12030 |
AE92,CE90,EE9# |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE9#,CE90,EE9# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12560 |
AE92,EE90..RHD..LB..(GL,GTI) *TEM,T=3.5 |
1 | ||
| 68101-12570 |
AE95..WG;AE92,EE90..LB..(GL,GTI) *TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12560 |
AE92,EE90..RHD..LB..(GL,GTI) *TEM,T=3.5 |
1 | ||
| 68102-12570 |
AE95..WG;AE92,EE90..LB..(GL,GTI) *TT,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12350 |
EE90..LB;AE9#..LB,WG |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12070 |
EE90..LB;AE9#..LB,WG |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12050 |
AE9#,CE90,EE9# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE90,EE9# |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06361 | ||||
| 90333-25001 | ||||
| 90950-01110 | ||||
| 90950-01269 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
