AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )LB

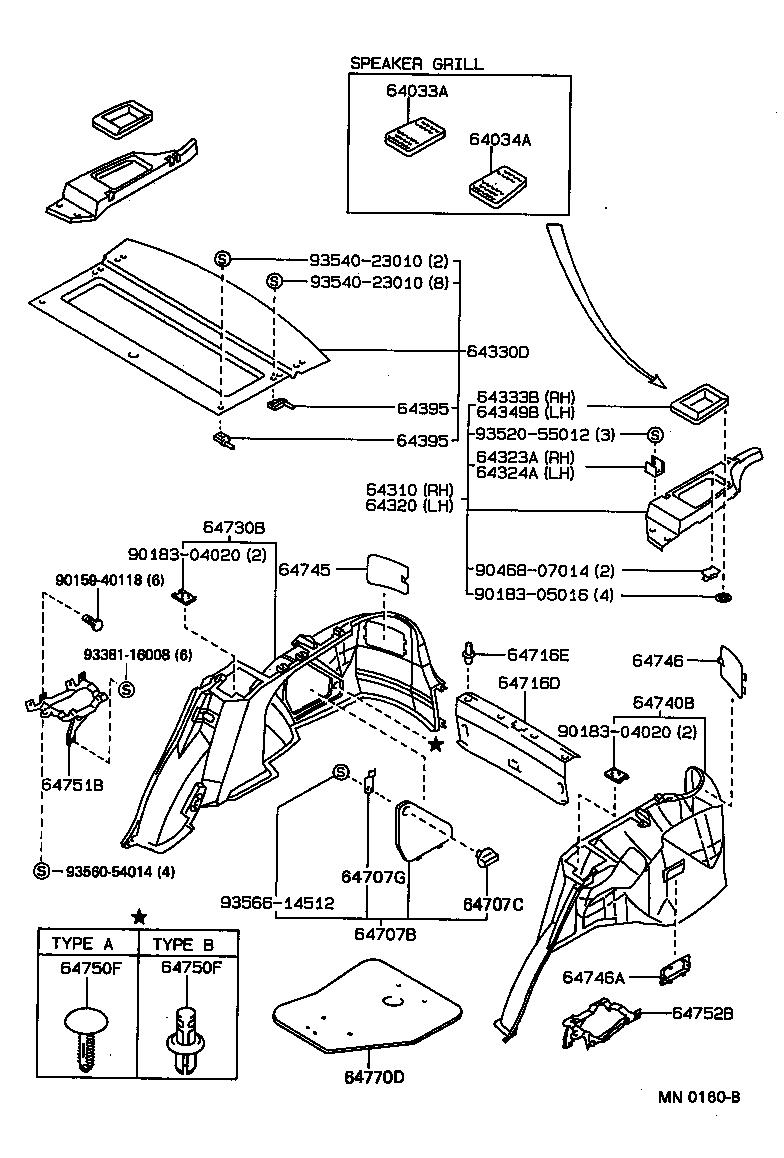

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-1207002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64033-1207005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64033-1207003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-1201003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64034-1201005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64034-1201002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64310 - BRACKET, PACKAGE TRAY TRIM, RH | ||||
| 64301-1218002 |
AE92,EE90..RHD..LB..(GL,XL) W(REAR SPEAKERS),MAROON,TRIM3# |
1 | ||
| 64301-1214005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64301-1218005 |
AE92,EE90..LB..(GL,XL) W(REAR SPEAKERS),DARK BEIGE,TRIM4# |
1 | ||
| 64301-1218003 |
AE92,EE90..LB W(REAR SPEAKERS),SHADOW GRAY,TRIM1# |
1 | ||
| 64301-1218005 |
EE90..LB;AE92..LB..XL;AE92..RHD..LB..GL W(REAR SPEAKERS),DARK BEIGE,TRIM4# |
1 | ||
| 64301-1214003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64301-1214002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64320 - BRACKET, PACKAGE TRAY TRIM, LH | ||||
| 64302-1214002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64302-1217005 |
AE92,EE90..LB..(GL,XL) W(REAR SPEAKERS),DARK BEIGE,TRIM4# |
1 | ||
| 64302-1214003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64302-1217002 |
AE92,EE90..RHD..LB..(GL,XL) W(REAR SPEAKERS),MAROON,TRIM3# |
1 | ||
| 64302-1214005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64302-1217005 |
EE90..LB;AE92..LB..XL;AE92..RHD..LB..GL W(REAR SPEAKERS),DARK BEIGE,TRIM4# |
1 | ||
| 64302-1217003 |
AE92,EE90..LB W(REAR SPEAKERS),SHADOW GRAY,TRIM1# |
1 | ||
| 64323A - CLAMP, PACKAGE TRAY TRIM, RH | ||||
| 64323-12020 |
AE92,EE90..LB |
3 | ||
| 64324A - CLAMP, PACKAGE TRAY TRIM, LH | ||||
| 64324-12010 |
AE92,EE90..LB |
3 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-1A02005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64330-1A02003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64330-1A02002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64330-1A02002 |
EE90..RHD..LB..3FC;AE92,EE90..RHD..LB..GL MAROON,TRIM3# |
1 | ||
| 64330-1A02005 |
EE90..LB..GL;EE90..LB..3FC;AE92..LB..(GL,XL);EE90..LHD..LB..5F DARK BEIGE,TRIM4# |
1 | ||
| 64330-1A26002 |
AE92..RHD..LB..GL;EE90..RHD..LB..5F..XL NEW ZEALAND SPEC,MAROON,TRIM3# |
1 | ||
| 64330-1A26003 |
AE92..RHD..LB..GL;EE90..RHD..LB..5F..XL NEW ZEALAND SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 64330-1A26005 |
AE92..RHD..LB..GL;EE90..RHD..LB..5F..XL NEW ZEALAND SPEC,DARK BEIGE,TRIM4# |
1 | ||
| 64333B - COVER, PACKAGE TRAY TRIM SIDE, RH | ||||
| 64333-1206002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64333-1206005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64333-1206003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64349B - COVER, PACKAGE TRAY TRIM SIDE, LH | ||||
| 64349-1202002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64349-1202003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64349-1202005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64395 - PIN, PACKAGE TRAY TRIM HINGE | ||||
| 64395-12060 |
AE92,EE90..LB CENTER-RH & REAR-LH |
2 | ||
| 64395-12050 |
AE92,EE90..LB FRONT |
2 | ||
| 64395-12070 |
AE92,EE90..LB CENTER-LH & REAR-RH |
2 | ||
| 64395 - PIN, PACKAGE TRAY TRIM HINGE | ||||
| 64395-12060 |
AE92,EE90..LB CENTER-RH & REAR-LH |
2 | ||
| 64395-12050 |
AE92,EE90..LB FRONT |
2 | ||
| 64395-12070 |
AE92,EE90..LB CENTER-LH & REAR-RH |
2 | ||
| 64707B - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-1204002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64707-1204005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64707-1204003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64982-1602023 |
AE92,EE90..LB,WG GRAY,TRIM1# |
1 | ||
| 64982-1602025 |
AE9#,EE90..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64982-1602030 |
AE95..ARL;AE92,EE90..LB,WG SHADOW GRAY,TRIM1# |
1 | ||
| 64982-1602032 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64707G - STOPPER, JACK COVER | ||||
| 64981-16021 |
AE95..WG;AE92,EE90..LB |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-1212003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64716-1212002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64716-1212005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0707302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
6 | ||
| 90467-0707305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
6 | ||
| 90467-0707303 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
6 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64731-1221002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64731-1221005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64731-1221003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64740B - BOARD, DECK TRIM SIDE, LH | ||||
| 64732-1224005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64732-1224002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64732-1224003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-1207002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64745-1207005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64745-1207003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64745-1207003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 64745-1207005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 64745-1207002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-0604912 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
10 | ||
| 90467-0604915 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
10 | ||
| 90467-0604903 |
AE92,EE90..LB GRAY,TRIM1#,TYPE A |
10 | ||
| 90467-0707305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE B |
5 | ||
| 90467-0707302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE B |
5 | ||
| 90467-06049E0 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
10 | ||
| 90467-0604901 |
AE92,EE90..RHD..LB..(GL,XL) BLACK,TRIM1#,3#,4#,TYPE A |
10 | ||
| 90467-06049D0 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
10 | ||
| 90467-0707303 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE B |
5 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-0604912 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
10 | ||
| 90467-0604915 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
10 | ||
| 90467-0604903 |
AE92,EE90..LB GRAY,TRIM1#,TYPE A |
10 | ||
| 90467-0707305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE B |
5 | ||
| 90467-0707302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE B |
5 | ||
| 90467-06049E0 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
10 | ||
| 90467-0604901 |
AE92,EE90..RHD..LB..(GL,XL) BLACK,TRIM1#,3#,4#,TYPE A |
10 | ||
| 90467-06049D0 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
10 | ||
| 90467-0707303 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE B |
5 | ||
| 64751B - BRACKET, SPEAKER SET, NO.1 RH | ||||
| 64751-12010 |
AE92,EE90..LB |
1 | ||
| 64752B - BRACKET, SPEAKER SET, NO.1 LH | ||||
| 64752-12010 |
AE92,EE90..LB |
1 | ||
| 64770D - COVER ASSY, SPARE WHEEL | ||||
| 64770-12110 |
AE92,EE90..LB |
1 | ||
| Common parts | ||||
| 90159-40118 | ||||
| 90183-04020 | ||||
| 90183-05016 | ||||
| 90468-07014 | ||||
| 93381-16008 | ||||
| 93520-55012 | ||||
| 93540-23010 | ||||
| 93560-54014 | ||||
| 93566-14512 | ||||
