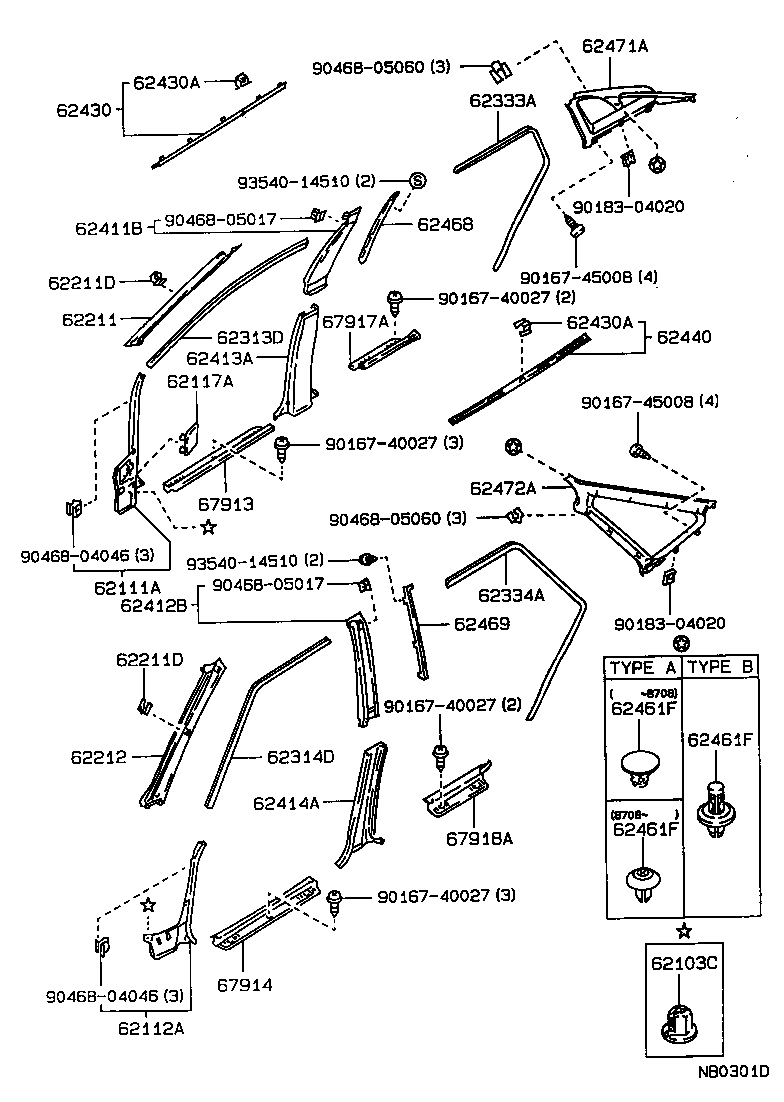

AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0505001 |
AE9#,CE90,EE9# BLACK,BLACK,TRIM1#,3#,4#,8# |
2 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-1214005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62101-1214002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62101-1214003 |
AE9#,EE9#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-1214002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62102-1214005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62102-1214003 |
AE9#,EE9#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-1209005 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62117-1209002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62117-1209003 |
AE9#,EE9#..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1221002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62211-1221005 |
EE90..LB;AE9#..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62211-1221003 |
AE95..WG;AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90468-05060 |
AE9#,CE90,EE9# |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90468-05060 |
AE9#,CE90,EE9# |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1221002 |
AE92,EE90..RHD..LB..GL MAROON,TRIM3# |
1 | ||
| 62212-1221005 |
EE90..LB;AE9#..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62212-1221003 |
AE95..WG;AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1214002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62313-1214003 |
AE95..WG;AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62313-1214005 |
EE90..LB;AE9#..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1214002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62313-1214003 |
AE95..WG;AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62313-1214005 |
EE90..LB;AE9#..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-1208002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62333-1208005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62333-1208003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-1208002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62333-1208005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62333-1208003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-1242002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62411-1242005 |
AE9#,CE90,EE9#..(GL,STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 62411-1238005 |
EE90..(LB,SED)..GEN;AE9#,CE90..(GL,STD,XL)..GEN W(FRONT SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62411-1238002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN W(FRONT SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62411-1238003 |
AE95,CE90..GEN;AE92,EE90..(LB,SED)..GEN W(FRONT SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 62411-1242003 |
AE9#,CE90,EE9#..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-1238002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN W(FRONT SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62412-1238005 |
AE9#,CE90,EE90..(LB,SED)..(GL,STD,XL)..GEN W(FRONT SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62412-1242002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62412-1238003 |
AE9#,CE90,EE90..(LB,SED)..GEN W(FRONT SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 62412-1242005 |
AE9#,CE90,EE9#..(GL,STD,XL)..GEN DARK BEIGE,TRIM4# |
1 | ||
| 62412-1242003 |
AE9#,CE90,EE9#..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-1217002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62413-1217005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 62413-1217003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-1217002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62414-1217005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 62414-1217003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62431-1210005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62431-1210002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62431-1210003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90468-05017 |
AE9#,CE90,EE90..LB,SED |
10 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90468-05017 |
AE9#,CE90,EE90..LB,SED |
10 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62432-1208005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62432-1208002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62432-1208003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62461F - CLIP (FOR ROOF SIDE TRIM GARNISH) | ||||
| 90467-0501702 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0501705 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0501703 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707102 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE B |
8 | ||
| 90467-0506302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0506303 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707105 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE B |
8 | ||
| 90467-0506305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0707103 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE B |
8 | ||
| 62461F - CLIP (FOR ROOF SIDE TRIM GARNISH) | ||||
| 90467-0501702 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0501705 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0501703 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707102 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE B |
8 | ||
| 90467-0506302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0506303 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707105 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE B |
8 | ||
| 90467-0506305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0707103 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE B |
8 | ||
| 62461F - CLIP (FOR ROOF SIDE TRIM GARNISH) | ||||
| 90467-0501702 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0501705 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0501703 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707102 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE B |
8 | ||
| 90467-0506302 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3#,TYPE A |
2 | ||
| 90467-0506303 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE A |
2 | ||
| 90467-0707105 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE B |
8 | ||
| 90467-0506305 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4#,TYPE A |
2 | ||
| 90467-0707103 |
AE92,EE90..LB SHADOW GRAY,TRIM1#,TYPE B |
8 | ||
| 62468 - GARNISH, CENTER PILLAR, REAR RH | ||||
| 62468-1202002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62468-1202003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 62468-1202005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 62469 - GARNISH, CENTER PILLAR, REAR LH | ||||
| 62469-1202002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 62469-1202005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 62469-1202003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-1241002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62471-1242005 |
AE92,EE90..LB..(GL,XL) W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62471-1246002 |
AE92,EE90..RHD..LB..(GL,XL) W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62471-1241005 |
AE92,EE90..LB..(GL,XL) DARK BEIGE,TRIM4# |
1 | ||
| 62471-1245002 |
AE92,EE90..RHD..LB..(GL,XL) W(SUN ROOF),MAROON,TRIM3# |
1 | ||
| 62471-1242002 |
AE92,EE90..RHD..LB..(GL,XL) W(3POINT TYPE REAR SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62471-1246005 |
AE92,EE90..LB..(GL,XL) W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62471-1245005 |
AE92,EE90..LB..(GL,XL) W(SUN ROOF),DARK BEIGE,TRIM4# |
1 | ||
| 62471-1242003 |
AE92,EE90..LB W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 62471-1245003 |
AE92,EE90..LB W(SUN ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 62471-1241003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62471-1246003 |
AE92,EE90..LB W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-1241002 |
AE92,EE90..RHD..LB..(GL,XL) MAROON,TRIM3# |
1 | ||
| 62472-1241005 |
AE92,EE90..RHD..LB..GL DARK BEIGE,TRIM4# |
1 | ||
| 62472-1244002 |
AE92,EE90..RHD..LB..(GL,XL) W(SUN ROOF),MAROON,TRIM3# |
1 | ||
| 62472-1242002 |
AE92,EE90..RHD..LB..(GL,XL) W(3POINT TYPE REAR SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62472-1244005 |
AE92,EE90..LB..(GL,XL) W(SUN ROOF),DARK BEIGE,TRIM4# |
1 | ||
| 62472-1242005 |
AE92,EE90..LB..(GL,XL) W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62472-1245005 |
AE92,EE90..LB..(GL,XL) W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4# |
1 | ||
| 62472-1245002 |
AE92,EE90..RHD..LB..(GL,XL) W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),MAROON,TRIM3# |
1 | ||
| 62472-1241003 |
AE92,EE90..LB SHADOW GRAY,TRIM1# |
1 | ||
| 62472-1242003 |
AE92,EE90..LB W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 62472-1244003 |
AE92,EE90..LB W(SUN ROOF),SHADOW GRAY,TRIM1# |
1 | ||
| 62472-1245003 |
AE92,EE90..LB W(SUN ROOF & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-1216005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 67913-1216002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 67913-1216003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67913-1216002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 67913-1216005 |
AE9#,CE90,EE9#..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 67913-1216003 |
AE9#,CE90,EE9# SHADOW GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-1206005 |
AE9#,CE90,EE90..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 67917-1206002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 67917-1206003 |
AE9#,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-1205002 |
AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN MAROON,TRIM3# |
1 | ||
| 67918-1205005 |
AE9#,CE90,EE90..GL,SE,SR5,STD,XL DARK BEIGE,TRIM4# |
1 | ||
| 67918-1205003 |
AE9#,CE90,EE90 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-40027 | ||||
| 90167-45008 | ||||
| 90183-04020 | ||||
| 90468-04046 | ||||
| 90468-05017 | ||||
| 90468-05060 | ||||
| 93540-14510 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
