AE92R-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )LB

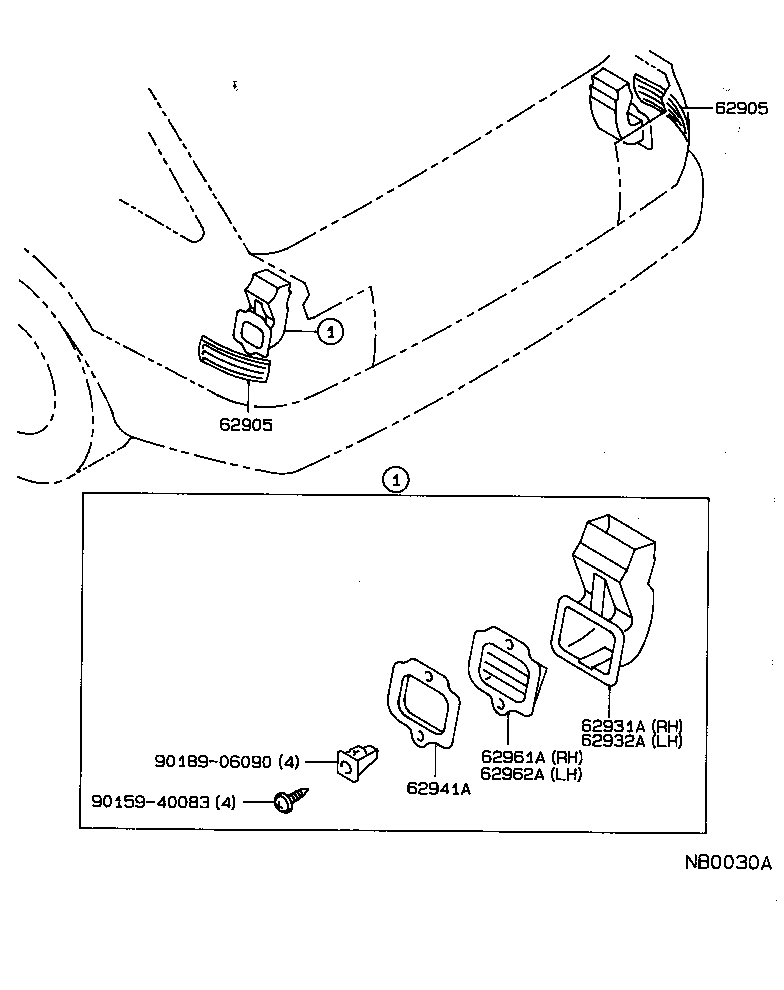

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62951-12440 |
AE92,EE90..LB RH |
1 | ||
| 62952-12360 |
AE92,EE90..LB LH |
1 | ||
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62951-12440 |
AE92,EE90..LB RH |
1 | ||
| 62952-12360 |
AE92,EE90..LB LH |
1 | ||
| 62931A - DUCT, QUARTER VENT, RH | ||||
| 62932-12210 |
AE92,EE90..LB |
1 | ||
| 62932A - DUCT, QUARTER VENT, LH | ||||
| 62932-12210 |
AE92,EE90..LB |
1 | ||
| 62941A - RETAINER, QUARTER VENT DUCT | ||||
| 62942-12080 |
AE92,EE90..LB |
2 | ||
| 62961A - GRILLE, ROOM VENT, RH | ||||
| 62961-12020 |
AE92,EE90..LB INTERIOR DUST PROTECTING |
1 | ||
| 62961-12010 |
AE92,EE90..LB |
1 | ||
| 62962A - GRILLE, ROOM VENT, LH | ||||
| 62961-12010 |
AE92,EE90..LB |
1 | ||
| 62961-12020 |
AE92,EE90..LB INTERIOR DUST PROTECTING |
1 | ||
| Common parts | ||||
| 90159-40083 | ||||
| 90189-06090 | ||||
