AE92R-ALHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )LB

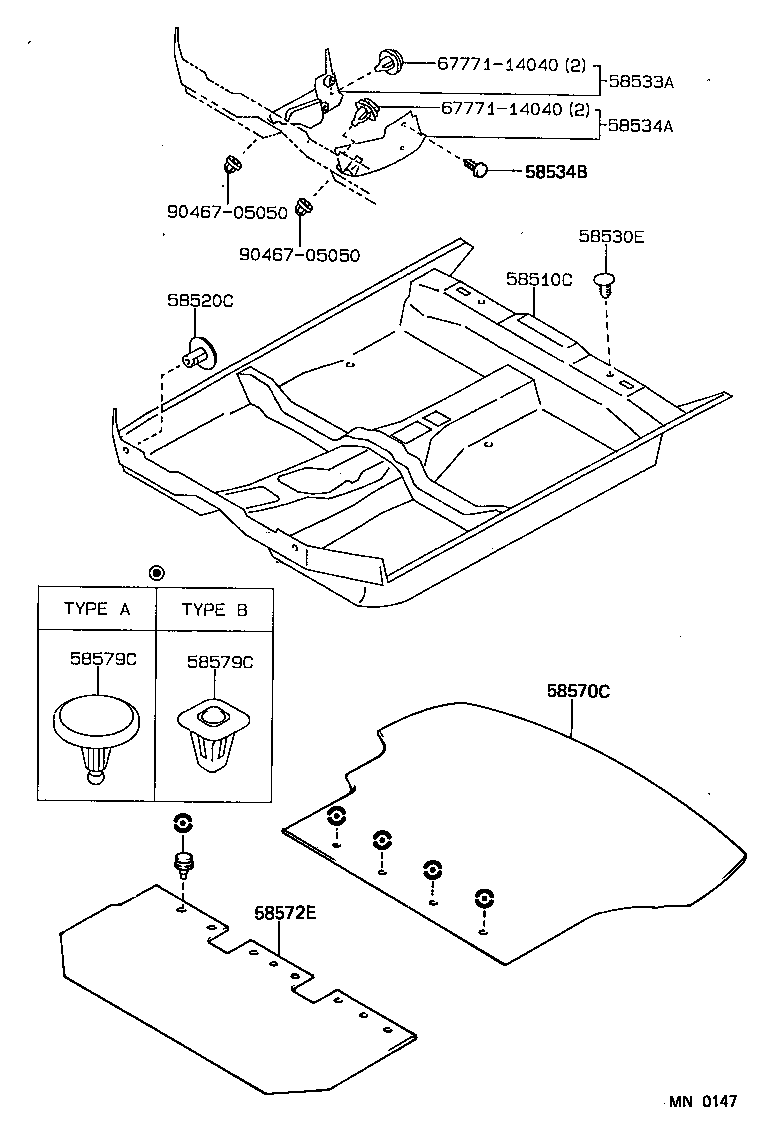

Click highlighted areas on diagram

diagram 58510C 58520C 58530E 58533A 58534A 58534B 58570C 58572E 58579C 58579C 6777114040 6777114040 9046705050 9046705050
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A01005

AE92,EE90..RHD..GL..GEN

DARK BEIGE,TRIM4#

 1
58510-1A01002

AE92,EE90..RHD..GL..GEN

MAROON,TRIM3#

 1
58510-1A26003

AE92,EE90..RHD..GL

W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#

 1
58510-1A26002

AE92,EE90..RHD..GL..GEN

W(FRONT SEAT BELT),MAROON,TRIM3#

 1
58510-1A26005

AE92,EE90..RHD..GL..GEN

W(FRONT SEAT BELT),DARK BEIGE,TRIM4#

 1
58510-1A26003

AE92,EE90..RHD..(GL,GTI)..GEN

W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#

 1
58510-1A01003

AE92,EE90..RHD..(GL,GT,GTI)..GEN

SHADOW GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906801

AE92,EE90..RHD..(LB,SED)..(GL,XL)

BLACK,TRIM1#,3#,4#

 2
90467-0906801

AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN

BLACK,TRIM1#,3#,4#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-0604912

AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN

MAROON,TRIM3#

 2
90467-0604912

AE92,EE90..RHD..GL

MAROON,TRIM3#

 2
90467-0604901

AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN

BLACK,TRIM1#,3#,4#

 2
90467-0604903

AE9#,CE90,EE90

GRAY,TRIM1#

 2
90467-0604915

AE9#,CE90,EE90..GL,SE,SR5,STD,XL

DARK BEIGE,TRIM4#

 2
90467-06049D0

AE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN

MAROON,TRIM3#

 2
90467-06049E0

AE9#,CE90,EE90..GL,SE,SR5,STD,XL

DARK BEIGE,TRIM4#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12020

AE92,EE9#..RHD

 1
58534A - MAT, TRANSMISSION COVER
58534-12010

AE9#,EE9#..RHD

 1
58570C - CARPET ASSY, REAR FLOOR
58571-1206005

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#

 1
58571-1206002

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#

 1
58571-1206003

AE92,EE90..LB..(GL,XL)

SHADOW GRAY,TRIM1#

 1
58572E - MAT, REAR FLOOR, FRONT
58572-12040

AE92,EE90..LB,WG

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-0707903

AE92..LB;EE90..LB..GL;EE90..LHD..LB

SHADOW GRAY,TRIM1#,TYPE A

 4
90467-0708402

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#,TYPE A

 4
90467-0707902

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#,TYPE A

 4
90467-0707905

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#,TYPE A

 4
90467-10023

AE92,EE90..LB

TYPE B

 4
90467-0708405

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#,TYPE A

 4
58579C - CLIP, REAR FLOOR CARPET SET
90467-0707903

AE92..LB;EE90..LB..GL;EE90..LHD..LB

SHADOW GRAY,TRIM1#,TYPE A

 4
90467-0708402

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#,TYPE A

 4
90467-0707902

AE92,EE90..RHD..LB..(GL,XL)

MAROON,TRIM3#,TYPE A

 4
90467-0707905

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#,TYPE A

 4
90467-10023

AE92,EE90..LB

TYPE B

 4
90467-0708405

AE92,EE90..LB..(GL,XL)

DARK BEIGE,TRIM4#,TYPE A

 4
Common parts
67771-14040
90467-05050
