AE92R-AEMVFN (1988)
Toyota Corolla Sed/Lb/Wg
Production
Aug 1988
-
Aug 1993
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )4AGE

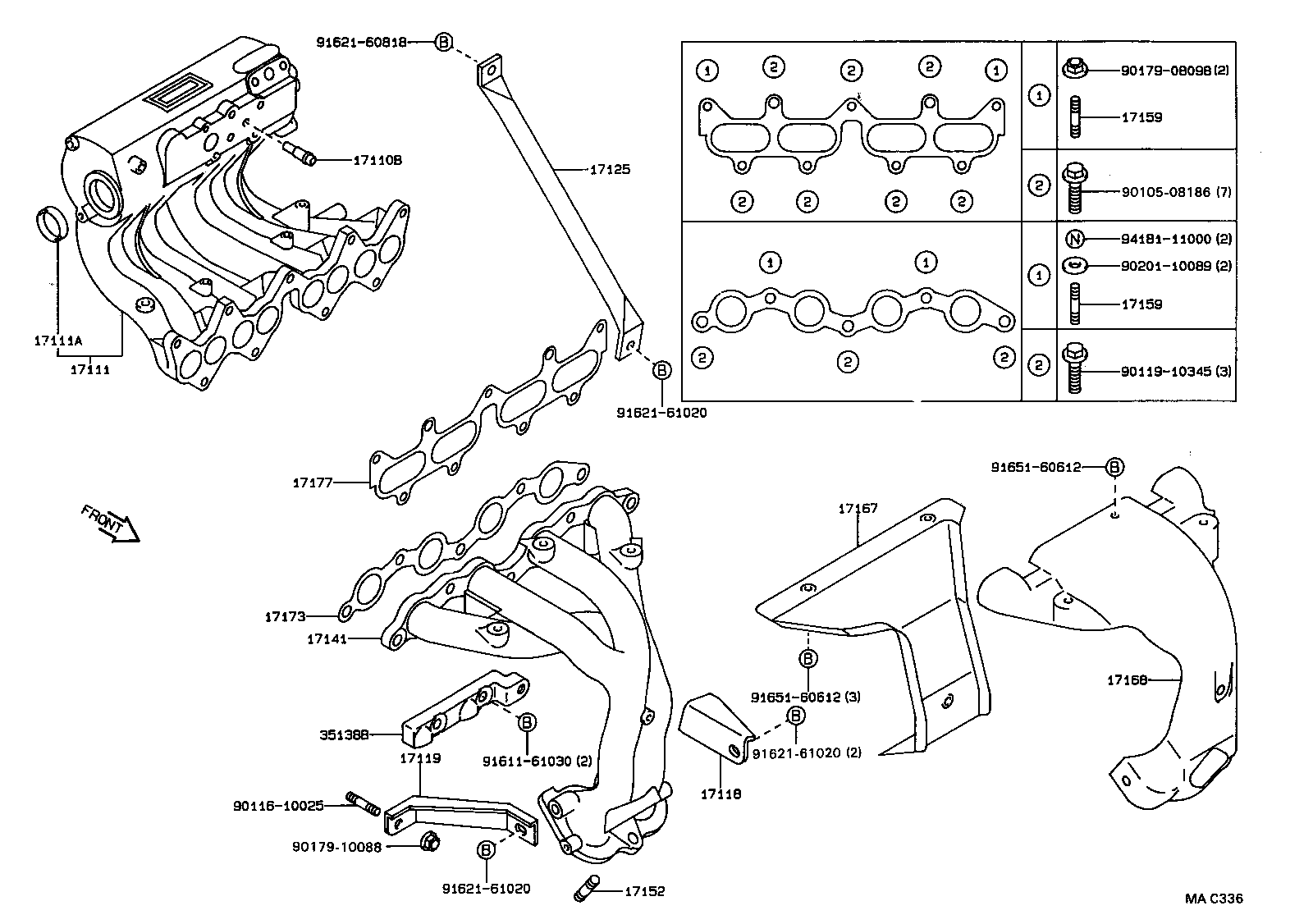

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90405-10009 |
4AGE..AE92 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16130 |
4AGE..AE92 |
1 | ||
| 17101-16210 |
4AGE..AE92 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 96411-43500 |
4AGE..AE92 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17139-16040 |
4AGE..AE92 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-16040 |
4AGE..AE92 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-16031 |
4AGE..AE92 |
1 | ||
| 17125-16050 |
4AGE..AE92 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16180 |
4AGE..AE92 |
1 | ||
| 17141-16260 |
4AGE..AE92 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
4AGE..AE92 |
3 | ||
| 90116-10146 |
4AF,4AGE..AE9# |
3 | ||
| 90116-10146 |
4AF,4AGE..AE9# |
3 | ||
| 90116-10146 |
4A#..AE92 |
3 | ||
| 90116-10146 |
4AF,4AGE..AE92 |
3 | ||
| 90126-10003 |
4AGE..AE92 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08218 |
4AGE..AE92 INTAKE MANIFOLD |
2 | ||
| 90116-10037 |
4AGE..AE92..SA;4AGE..AE92..GTI EXHAUST MANIFOLD |
2 | ||
| 90116-08317 |
4AGE..AE92..SA INTAKE MANIFOLD |
2 | ||
| 90116-10037 |
4AGE..AE92 EXHAUST MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08218 |
4AGE..AE92 INTAKE MANIFOLD |
2 | ||
| 90116-10037 |
4AGE..AE92..SA;4AGE..AE92..GTI EXHAUST MANIFOLD |
2 | ||
| 90116-08317 |
4AGE..AE92..SA INTAKE MANIFOLD |
2 | ||
| 90116-10037 |
4AGE..AE92 EXHAUST MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-16050 |
4AGE..AE92 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16060 |
4AGE..AE92 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-16010 |
4AGE..AE92 |
1 | ||
| 17173-16011 |
4AGE..AE92 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-16012 |
4AGE..AE92 |
1 | ||
| 35138B - ADAPTER, STIFFENER PLATE | ||||
| 35138-12020 |
AE92..GT,GTI |
1 | ||
| Common parts | ||||
| 90105-08186 | ||||
| 90116-10025 | ||||
| 90119-10345 | ||||
| 90179-08098 | ||||
| 90179-10088 | ||||
| 90201-10089 | ||||
| 91611-61030 | ||||
| 91621-60818 | ||||
| 91621-61020 | ||||
| 91651-60612 | ||||
| 94181-11000 | ||||
