AE92R-AEMDUN (1988)

Toyota Corolla Sed/Lb/Wg

Production Aug 1988 - Aug 1993
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )4AF,1C,2E..AE92,CE90,EE9#

Click highlighted areas on diagram

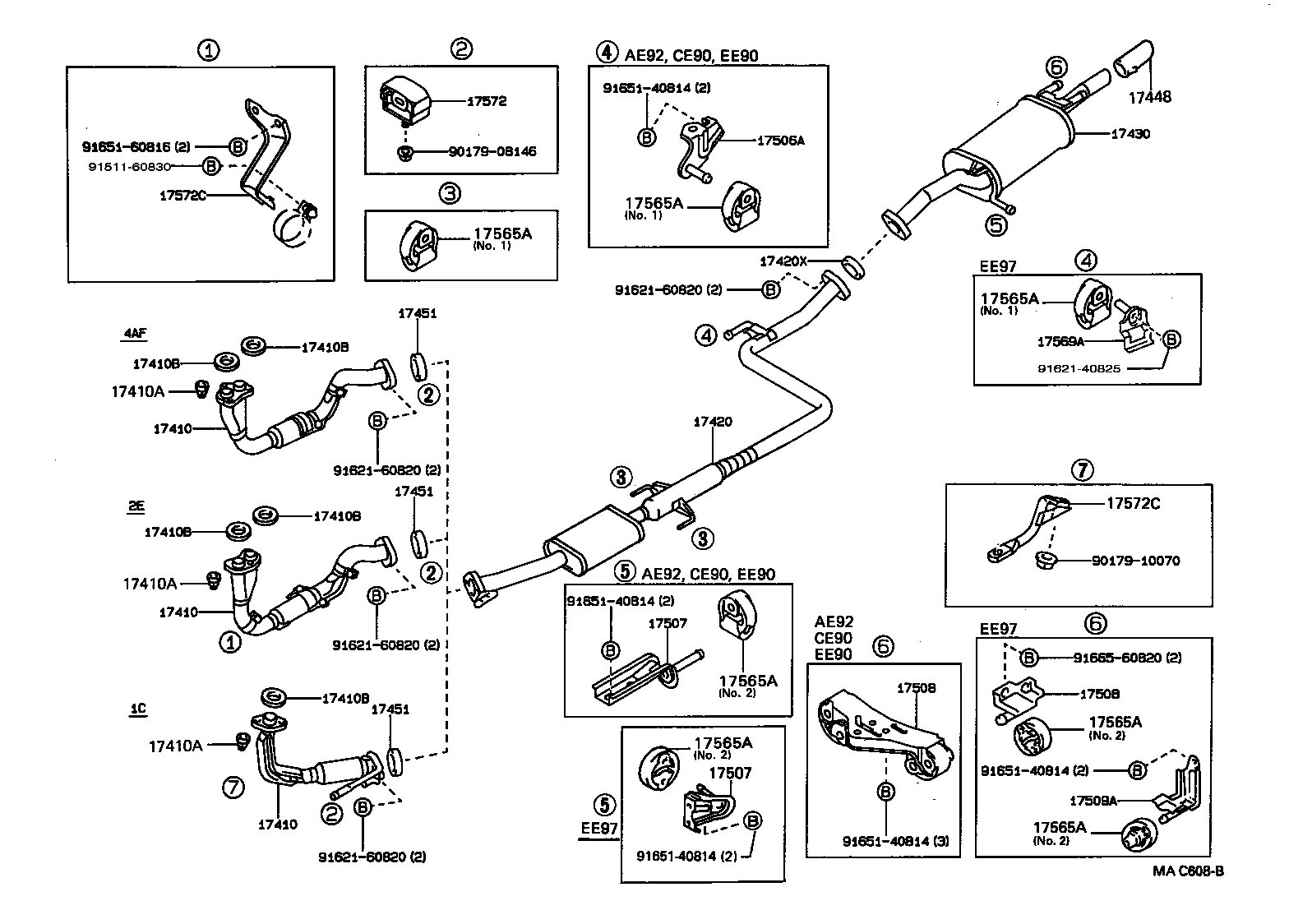

diagram 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17410B 17420 17420X 17430 17448 17451 17451 17451 17506A 17507 17507 17508 17508 17509A 17565A 17565A 17565A 17565A 17565A 17565A 17565A 17569A 17572 17572C 17572C 9017908146 9017910070 9151160830 9162140825 9162160820 9162160820 9162160820 9162160820 9165140814 9165140814 9165140814 9165140814 9165140814 9165160816 9166560820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-16420

4AF..AE92

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-16420

4AF..AE92

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-16420

4AF..AE92

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF,4AGE,2E..AE92,EE9#

 3
90179-10070

4AF,4AGE,2E..AE9#,EE9#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF,4AGE,2E..AE92,EE9#

 3
90179-10070

4AF,4AGE,2E..AE9#,EE9#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF,4AGE,2E..AE92,EE9#

 3
90179-10070

4AF,4AGE,2E..AE9#,EE9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

4AF..AE9#

 2
90917-06001

4AF..AE92

 2
90917-06038

4AF..AE92

 2
90917-06064

4AF..AE92

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

4AF..AE9#

 2
90917-06001

4AF..AE92

 2
90917-06038

4AF..AE92

 2
90917-06064

4AF..AE92

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

4AF..AE9#

 2
90917-06001

4AF..AE92

 2
90917-06038

4AF..AE92

 2
90917-06064

4AF..AE92

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

4AF..AE9#

 2
90917-06001

4AF..AE92

 2
90917-06038

4AF..AE92

 2
90917-06064

4AF..AE92

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

4AF..AE9#

 2
90917-06001

4AF..AE92

 2
90917-06038

4AF..AE92

 2
90917-06064

4AF..AE92

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16150

4AF..AE92

 1
17420-16150

4AF..AE92..SA

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AF#,1C..AE9#,CE90

 1
90917-06039

4AF#,1C..AE9#,CE90

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-16430

4AF..AE92

 1
17430-16430

4AF..AE92..SA

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,1C,2E..AE9#,CE90,EE9#

 1
90917-06039

4AF,1C,2E..AE9#,CE90,EE9#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,1C,2E..AE9#,CE90,EE9#

 1
90917-06039

4AF,1C,2E..AE9#,CE90,EE9#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,1C,2E..AE9#,CE90,EE9#

 1
90917-06039

4AF,1C,2E..AE9#,CE90,EE9#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15050

4AF,4AGE,1C,2E..AE92,CE90,EE90

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15030

4AF,4AGE,1C,2E..AE92,CE90,EE90

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15030

4AF,4AGE,1C,2E..AE92,CE90,EE90

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15030

4AF,4AGE,1C,2E..AE92,CE90,EE90

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15030

4AF,4AGE,1C,2E..AE92,CE90,EE90

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

4AF,1C,2E..AE92,CE90,EE90

NO.1

 3
17565-15070

4AF,1C,2E..AE92,CE90,EE9#

NO.1

 3
17565-15050

4AF,1C,2E..AE92,CE90,EE90

NO.2

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-15050

4A#,1C,2E..AE9#,CE90,EE9#

 1
Common parts
90179-08146
90179-10070
91511-60830
91621-40825
91621-60820
91651-40814
91651-60816
91665-60820

(8705-8908)4AF,4AGE,1C,2E..AE92,CE90,EE9#

Click highlighted areas on diagram

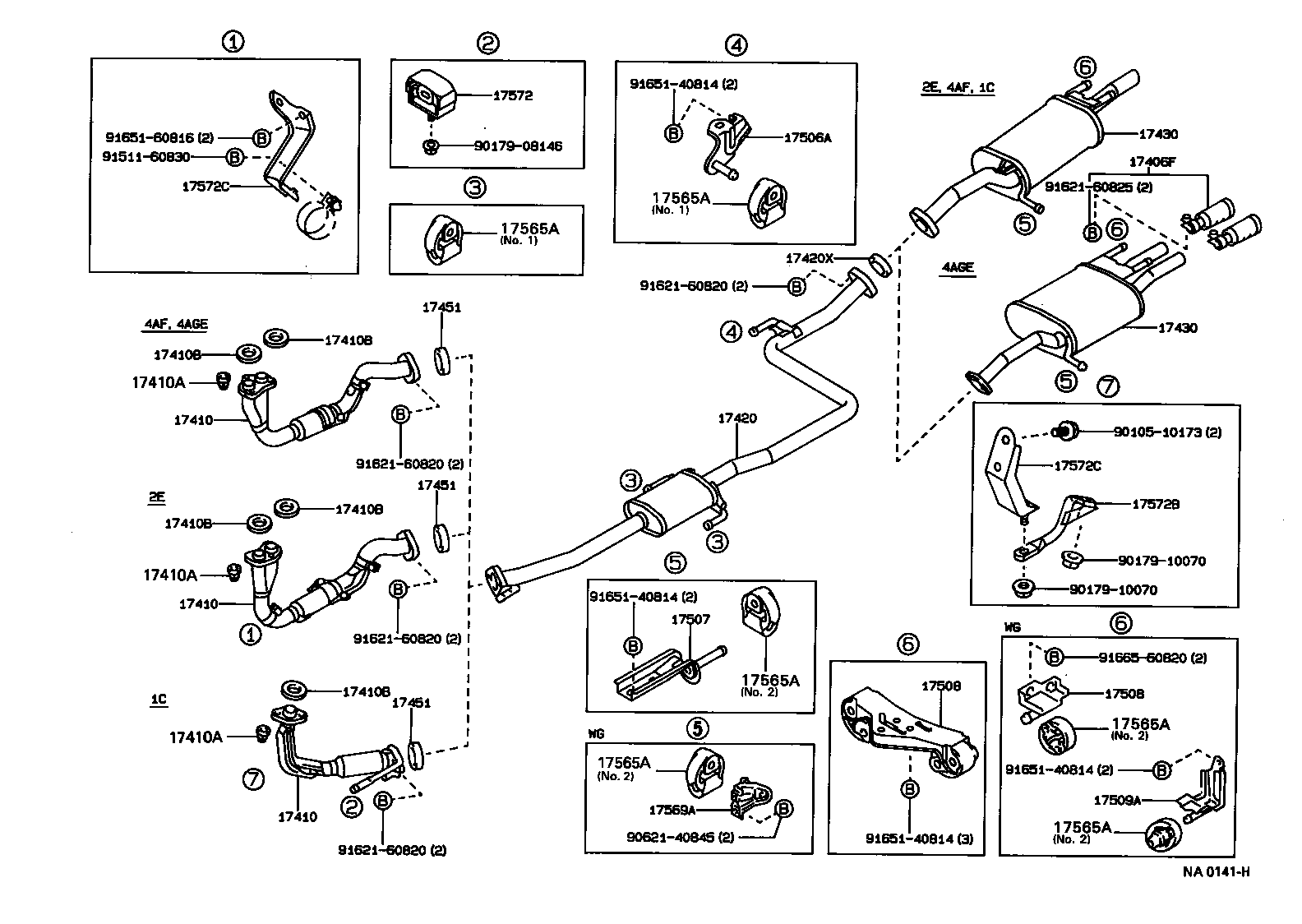

diagram 17406F 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17410B 17420 17420X 17430 17430 17451 17451 17451 17506A 17507 17508 17508 17509A 17565A 17565A 17565A 17565A 17565A 17565A 17569A 17572 17572B 17572C 17572C 9010510173 9017908146 9017910070 9017910070 9062140845 9151160830 9162160820 9162160820 9162160820 9162160820 9162160825 9165140814 9165140814 9165140814 9165140814 9165160816 9166560820
