AE92R-AEHNU (1987)
Toyota Corolla Sed/Lb/Wg

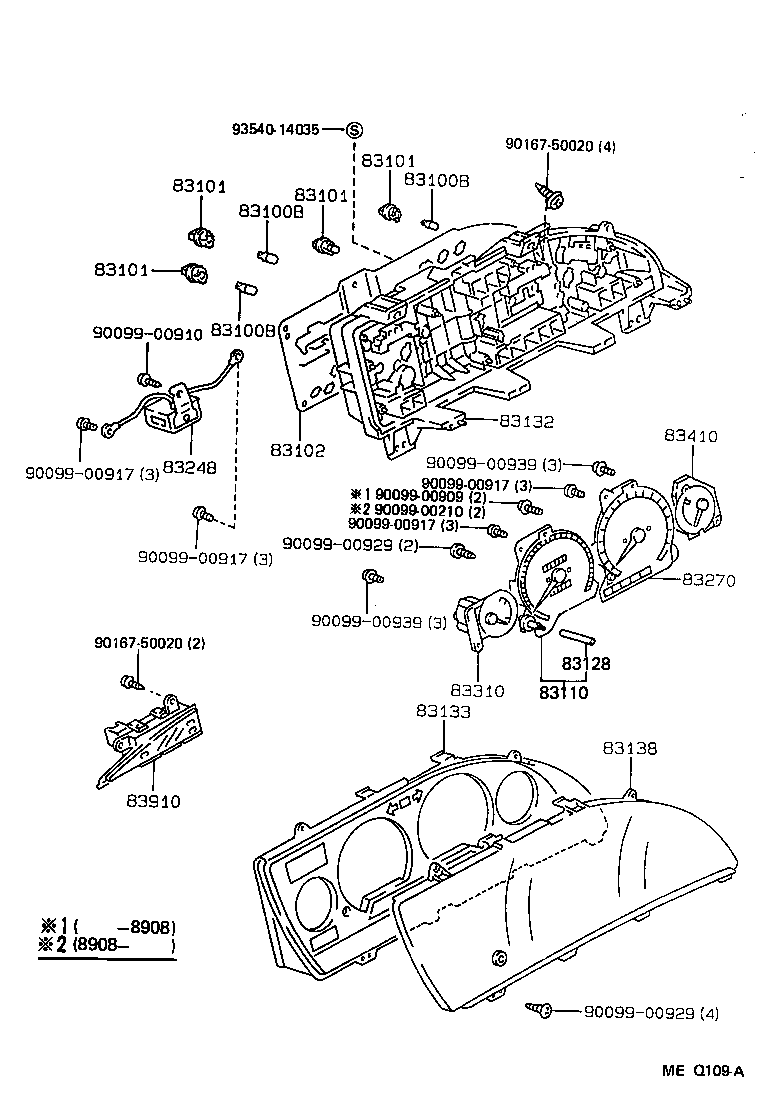

ILLUST NO. 1 OF 2(8705- )GL,SE,SR5,XL
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
EE90..XL..SA;AE92..3FC..SA;AE95,EE90..GL,SR5;AE92..RHD..3FC..GL;AE92..RHD..(4FC,5F)..(GL,SE,XL) 12V 1.4W,W(SOCKET) |
1 | ||
| 90981-11018 |
AE92..RHD..GL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(SR5,XL)..(ARL,SA) 12V 3.4W |
1 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE92..RHD..3FC..GL 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
EE90..XL..SA;AE92..3FC..SA;AE95,EE90..GL,SR5;AE92..RHD..3FC..GL;AE92..RHD..(4FC,5F)..(GL,SE,XL) 12V 1.4W,W(SOCKET) |
1 | ||
| 90981-11018 |
AE92..RHD..GL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(SR5,XL)..(ARL,SA) 12V 3.4W |
1 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE92..RHD..3FC..GL 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 12V 1.2W W/O SOCKET |
8 | ||
| 83101-20080 |
EE90..XL..SA;AE92..3FC..SA;AE95,EE90..GL,SR5;AE92..RHD..3FC..GL;AE92..RHD..(4FC,5F)..(GL,SE,XL) 12V 1.4W,W(SOCKET) |
1 | ||
| 90981-11018 |
AE92..RHD..GL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(SR5,XL)..(ARL,SA) 12V 3.4W |
1 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE92..RHD..3FC..GL 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE92..RHD..GL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE92..RHD..3FC..GL 14V 1.4W BULB |
7 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE92,EE90..(GL,SE,XL)..SA;AE9#,EE90..(GL,SR5)..(ARL,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE92..RHD..GL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE92..RHD..3FC..GL 14V 1.4W BULB |
7 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE92,EE90..(GL,SE,XL)..SA;AE9#,EE90..(GL,SR5)..(ARL,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE92..RHD..GL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE92..RHD..3FC..GL 14V 1.4W BULB |
7 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE92,EE90..(GL,SE,XL)..SA;AE9#,EE90..(GL,SR5)..(ARL,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE90..(3FC,5F)..(GL,SR5) 14V 1.4W BULB |
8 | ||
| 83101-14040 |
AE92..RHD..GL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE92..RHD..3FC..GL 14V 1.4W BULB |
7 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE92,EE90..(GL,SE,XL)..SA;AE9#,EE90..(GL,SR5)..(ARL,GEN) 12V 3.4W BULB |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E580 |
AE92..3FC..SA;AE92..RHD..3FC..GL;AE92..RHD..(4FC,5F)..(GL,SE,XL) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E320 |
AE92..RHD..GL..GEN MILE/KM |
1 | ||
| 83110-1E330 |
AE92..3FC..SA;AE92..RHD..3FC..GL;AE92..RHD..(4FC,5F)..(GL,SE,XL) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A250 |
AE92,EE90..(GL,SE,XL)..SA;AE9#,EE90..RHD..(GL,SR5)..(ARL,GEN) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1A890 |
AE92..RHD..3FC..GL MILE/KM |
1 | ||
| 83133-1A890 |
AE92..RHD..GL..GEN MILE/KM |
1 | ||
| 83133-1A870 |
AE92..RHD..GL..GEN;AE92..(GL,SE,XL)..SA |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A010 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E030 |
AE95..SR5;AE9#..RHD..(GL,SE,XL)..(GEN,SA) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A230 |
EE90..XL..SA;AE92..3FC..SA;AE92..RHD..3FC..GL;AE95,EE90..RHD..(GL,SR5);AE92..RHD..(4FC,5F)..(GL,SE,XL) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A650 |
AE95..SR5;AE9#,EE9#..RHD..(GL,SE,XL)..(GEN,SA) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12400 |
AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||

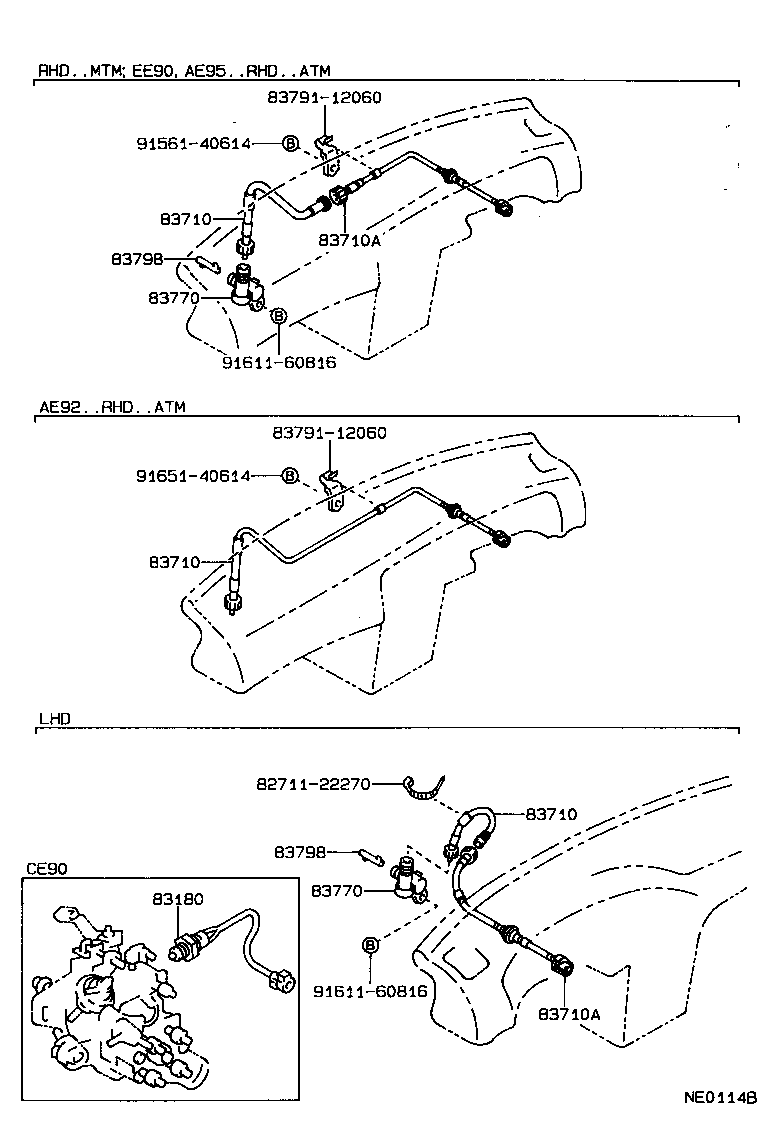

ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12410 |
AE92..RHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12410 |
AE92..RHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12410 |
AE92..RHD..3FC |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
