Toyota Corolla sed/lb/wg AE92 REAR COMBINATION LAMP

Part #	Description	Period	Qty

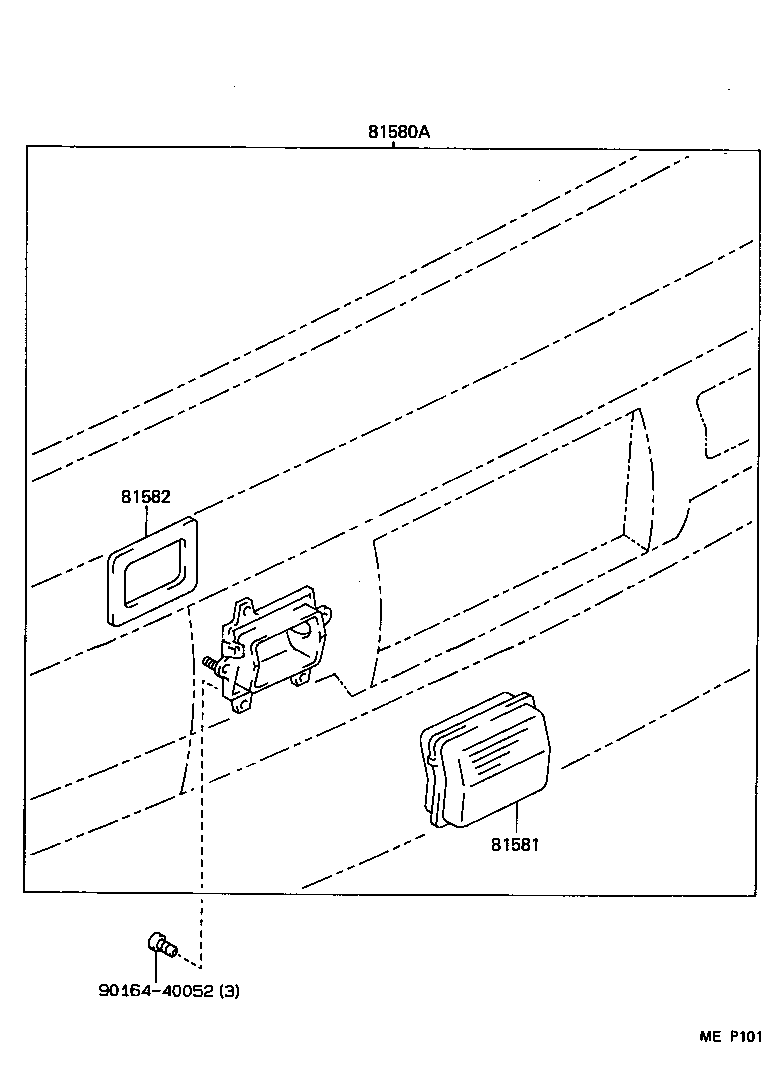

81580A - LAMP ASSY, REAR
81210-12050	AE92,EE90..LB RH	05/1987 - 05/1992	1
81220-12030	AE92,EE90..LB LH	05/1987 - 05/1992	1
81581 - LENS, REAR LAMP
81211-12050	AE92,EE90..LB W(BACK DOOR GARNISH),RH	05/1987 - 08/1989	1
81221-12030	AE92,EE90..LB LH	08/1989 - 05/1992	1
81221-12030	AE92,EE90..LB W(BACK DOOR GARNISH),LH	05/1987 - 08/1989	1
81211-12050	AE92,EE90..LB RH	08/1989 - 05/1992	1
81582 - GASKET, REAR LAMP
81212-12040	AE92,EE90..LB	05/1987 - 05/1992	2
Common parts
90164-40052

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-1A410	AE92,EE90..LB	05/1987 - 12/1990	1
81550-1A411	AE92,EE90..LB	12/1990 - 05/1992	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	AE92,EE90..LB 12V 21/5W,STOP & TAIL	05/1987 - 08/1989	2
99132-11210	EE9#;AE9#,CE90..LB,SED 12V 21W,TURN OR BACK	05/1987 - 08/1989	4
99132-11210	AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) 12V 21W,12V 21W,TURN OR BACK	08/1989 - 08/1990	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	AE92,EE90..LB 12V 21/5W,STOP & TAIL	05/1987 - 08/1989	2
99132-11210	EE9#;AE9#,CE90..LB,SED 12V 21W,TURN OR BACK	05/1987 - 08/1989	4
99132-11210	AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) 12V 21W,12V 21W,TURN OR BACK	08/1989 - 08/1990	4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210	AE92,EE90..LB 12V 21/5W,STOP & TAIL	05/1987 - 08/1989	2
99132-11210	EE9#;AE9#,CE90..LB,SED 12V 21W,TURN OR BACK	05/1987 - 08/1989	4
99132-11210	AE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) 12V 21W,12V 21W,TURN OR BACK	08/1989 - 08/1990	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-1A410	AE92,EE90..LB	05/1987 - 05/1992	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-1A411	AE92,EE90..LB	12/1990 - 05/1992	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-1A410	AE92,EE90..LB	05/1987 - 05/1992	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-1A371	AE92,EE90..LB	12/1990 - 05/1992	1
81560-1A370	AE92,EE90..LB	05/1987 - 12/1990	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-1A370	AE92,EE90..LB	05/1987 - 05/1992	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-1A411	AE92,EE90..LB	12/1990 - 05/1992	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-1A370	AE92,EE90..LB	05/1987 - 05/1992	1
Common parts
90179-05048
Linked diagrams
6102

AE92L-ALMNU (1987)

ILLUST NO. 2 OF 2(8708- )LB

ILLUST NO. 1 OF 2(8705- )LB
