AE92L-ALHNU (1987)
Toyota Corolla Sed/Lb/Wg
Production
May 1987
-
May 1992
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8705- )4A#

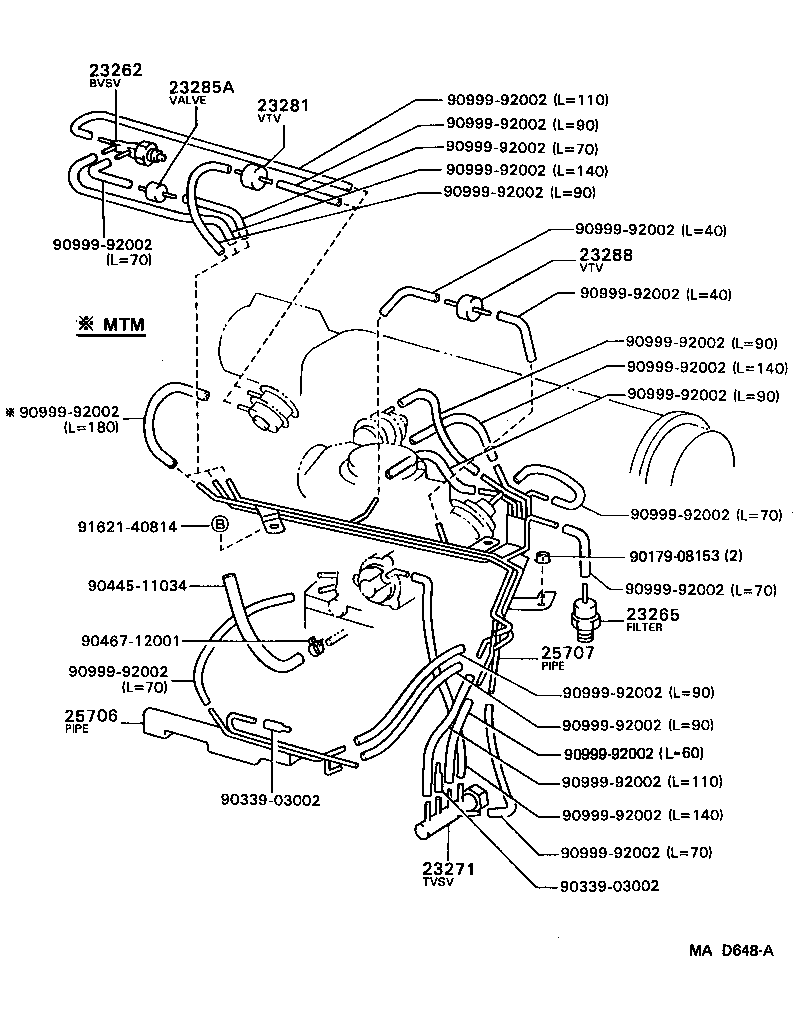

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8705-8910)4AF ; (8910- )4AF..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9#..ARL,GCC,GEN |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE9#..GEN,SA |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16060 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE92..GEN |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90339-05018 | ||||
| 90445-11034 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
(8908- )4AF

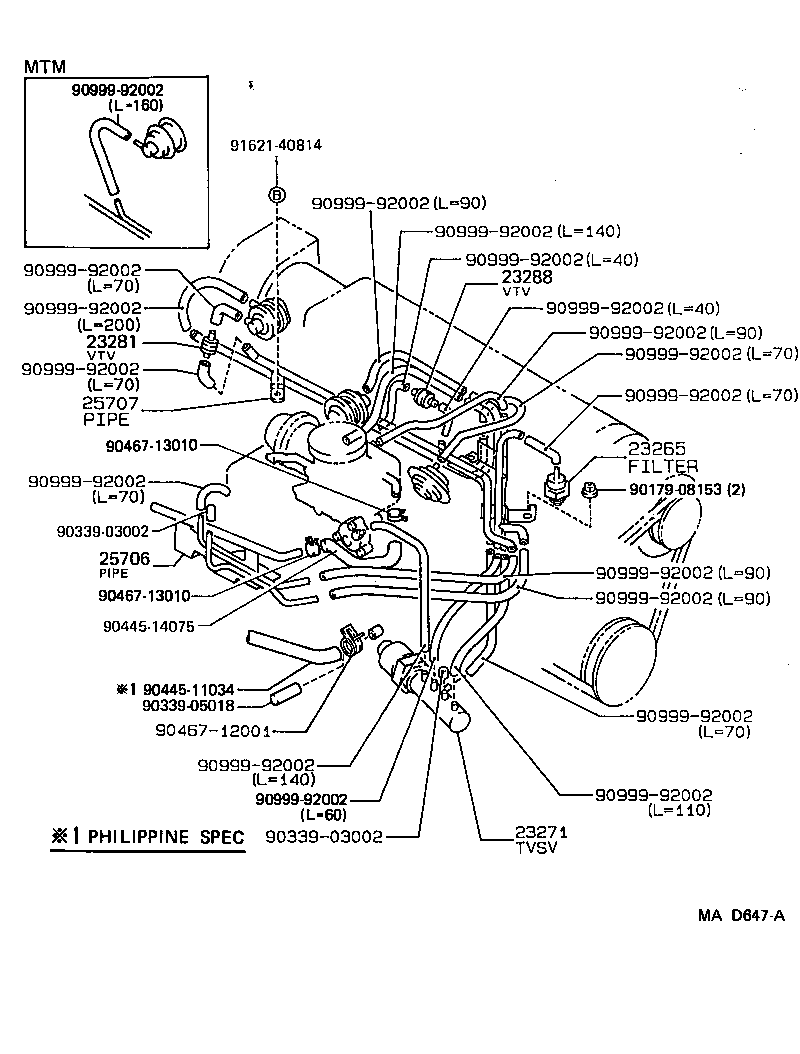

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9#..ARL,GCC,GEN |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE9#..GEN,SA |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16060 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE92..GEN |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90339-05018 | ||||
| 90445-11034 | ||||
| 90445-14075 | ||||
| 90467-12001 | ||||
| 90467-13010 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
(8908- )4AF

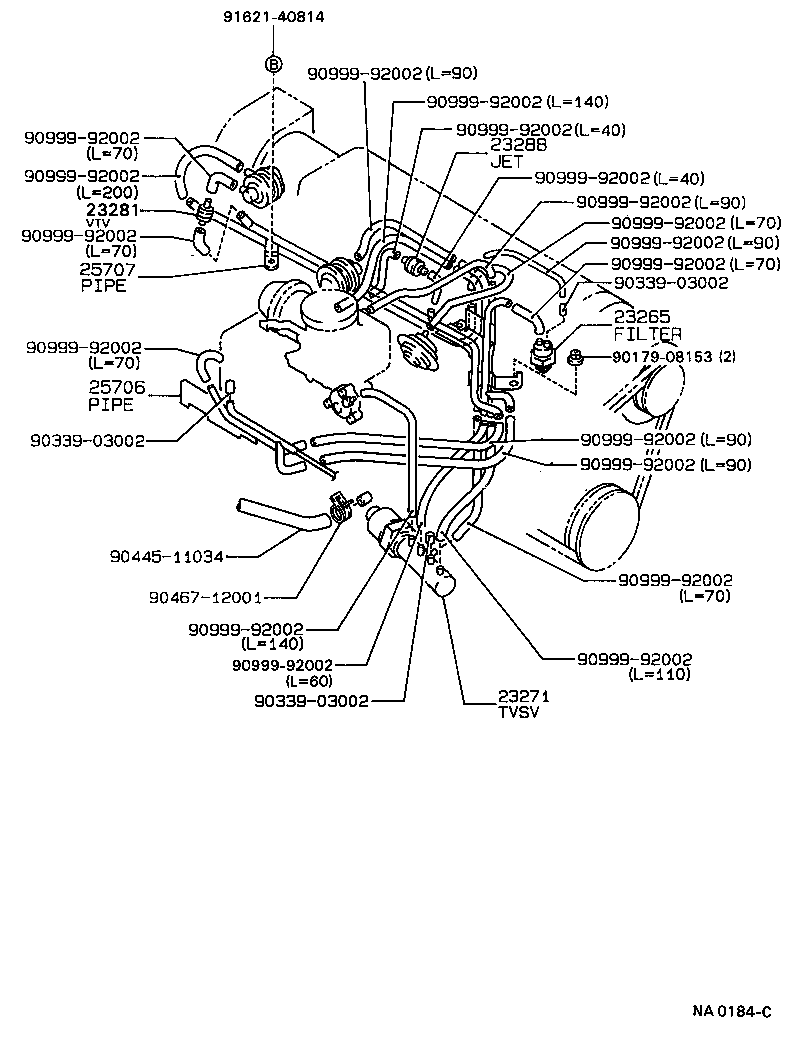

Click highlighted areas on diagram
SINGAPORE SPEC OR NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9#..ARL,GCC,GEN |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE9#..GEN,SA |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16060 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE92..GEN |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90445-11034 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
(8705-8908)4AF
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
4AF#..AE9#..ARL,GCC,GEN |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
4AF..AE9# |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16210 |
4AF..AE9#..GEN,SA |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-16060 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE9#..GEN |
1 | ||
| 25707-16061 |
4AF..AE92..GEN |
1 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 90339-03002 | ||||
| 90445-11034 | ||||
| 90467-12001 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
