AE92L-AEMRU (1987)
Toyota Corolla Sed/Lb/Wg

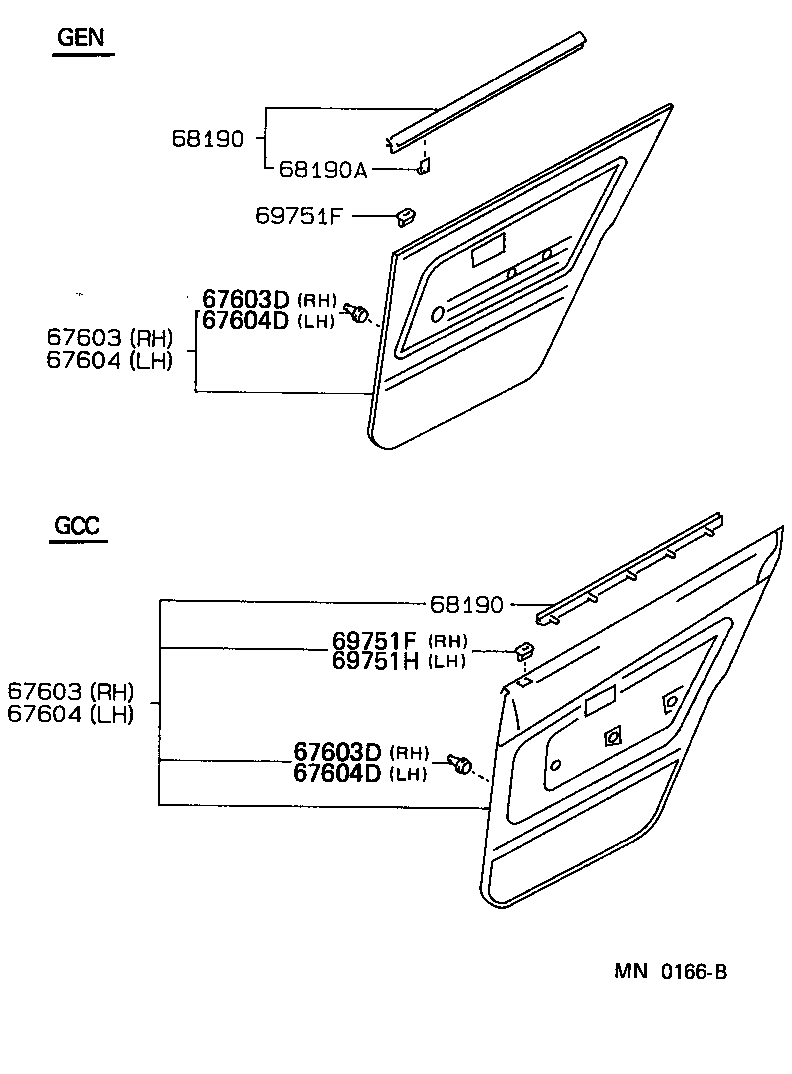

ILLUST NO. 2 OF 2(8908- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE92,EE9#..STD..(GCC,GEN) |
10 | ||
| 68211-10030 |
AE92,EE9#..STD |
10 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
ILLUST NO. 2 OF 2(8908- )GL,SE,SR5,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8705-8908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67630-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67630-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1280003 |
AE92,EE90..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..(GCC,GEN) DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280005 |
AE92,EE90..STD..GEN DARK BEIGE,TRIM4# |
1 | ||
| 67640-1280003 |
AE92,EE90..STD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286003 |
AE92..STD VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-1286004 |
AE92..STD VENEZUELA SPEC,DARK BLUE,TRIM8# |
1 | ||
| 67640-1280004 |
AE92,EE90..STD..GEN DARK BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),RED |
6 | ||
| 67771-12040 |
AE92,EE90..STD |
11 | ||
| 67771-89104 |
AE92,EE90..GL,GT,GTI,SE W(*PW & *EL),WHITE |
1 | ||
| 67771-12050 |
AE92,EE90..GL,GT,GTI,SE |
7 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-12110 |
AE92,EE9#..STD..(GCC,GEN) RH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD LH |
1 | ||
| 68240-12060 |
AE92,EE9#..STD..(GCC,GEN) LH |
1 | ||
| 68190-12110 |
AE92,EE9#..STD RH |
1 | ||
| 68173-12140 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
2 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
AE92,EE9#..STD..(GCC,GEN) |
10 | ||
| 68211-10030 |
AE92,EE9#..STD |
10 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-2003125 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-2003103 |
AE92,EE9#..STD GRAY,TRIM1# |
2 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1202005 |
AE92,EE9#..STD DARK BEIGE,TRIM4# |
2 | ||
| 69751-1202003 |
AE92,EE9#..STD SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1202003 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) SHADOW GRAY,TRIM1# |
2 | ||
| 69751-1202004 |
AE92,EE97..STD;EE90..4F..STD..(GCC,GEN) BARK BLUE,TRIM8# |
2 | ||
| 69751-1203003 |
EE90..STD..GCC;AE9#,CE90,EE9#..(SE,XL)..(ARL,GCC,GEN) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201005 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-3201013 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..GL,GT,GTI,SE,SR5 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12040E0 |
AE9#,EE90..GL,SE,SR5 DARK BEIGE,TRIM4# |
1 | ||
| 69751-1204003 |
AE9#,EE90..(GL,GT,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AE92..GT..SA;AE9#,EE90..(GL,SE,SR5)..(ARL,GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8705- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12500 |
AE9#,CE90,EE90..SED..GEN |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12500 |
AE9#,CE90,EE90..SED..GEN |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12140 |
AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN) |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12140 |
AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN) |
1 | ||
| 67383 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH | ||||
| 67383-12030 |
AE9#,CE90,EE9#..SED,WG |
1 | ||
| 67384 - BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH | ||||
| 67384-12030 |
AE9#,CE90,EE9#..SED,WG |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12140 |
AE9#,CE90,EE90..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12140 |
AE9#,CE90,EE90..SED |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-12220 |
AE9#,CE90,EE9#..ARL,GEN |
2 | ||
| 67841-12220 |
AE9#,CE90,EE9#..ARL,GEN,SA |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE92,CE90,EE90..SED..(GCC,GEN) ORANGE |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE90;EE90..LB,SED |
17 | ||
| 67868-12050 |
AE95;AE92,CE90,EE90..LB,SED |
17 | ||
| 67868-12050 |
AE92,CE90,EE90..SED..(GCC,GEN) ORANGE |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12290 |
AE9#,CE90,EE90..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12290 |
AE9#,CE90,EE90..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-12190 |
AE92,EE90..STD *TT,T=3.5 |
1 | ||
| 68113-12150 |
AE92,EE90..LHD..SED..(3FC,5F)..(GL,STD) *TEM,T=3.5 |
1 | ||
| 68113-12190 |
AE92,CE90,EE90..SED..(STD,XL)..GEN *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-12190 |
AE92,EE90..STD *TT,T=3.5 |
1 | ||
| 68114-12180 |
AE92,EE90..LHD..SED..(3FC,5F)..(GL,STD) *TEM,T=3.5 |
1 | ||
| 68114-12190 |
AE92,CE90,EE90..SED..(STD,XL)..GEN *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-12380 |
AE92,EE90..LHD..SED..(3FC,5F)..(GL,STD) *TEM,T=3.5 |
1 | ||
| 68123-12390 |
AE92,CE90,EE90..SED..(STD,XL)..GEN *TT,T=3.5 |
1 | ||
| 68123-12390 |
AE92,EE90..STD *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-12390 |
AE92,EE90..STD *TT,T=3.5 |
1 | ||
| 68124-12380 |
AE92,EE90..LHD..SED..(3FC,5F)..(GL,STD) *TEM,T=3.5 |
1 | ||
| 68124-12390 |
AE92,CE90,EE90..SED..(STD,XL)..GEN *TT,T=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12090 |
AE9#,CE90,EE90..SED |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12010 |
AE9#,CE90,EE90..SED |
2 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12160 |
EE97;EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA) |
12 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-12080 |
EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA) |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12200 |
EE90..STD..GCC;AE92,CE90,EE90..SED..(GL,GT,SE,XL) |
1 | ||
| 68188-12200 |
AE9#,CE90,EE90..SED..(GL,GT,SE,XL) |
1 | ||
| 68188-12180 |
AE92,EE90..STD..(GCC,GEN) |
1 | ||
| 68188-12180 |
AE92,EE90..STD |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12190 |
AE9#,CE90,EE90..SED..(GL,GT,SE,XL) |
1 | ||
| 68189-12180 |
AE92,EE90..STD |
1 | ||
| 68189-12180 |
AE92,EE90..STD..(GCC,GEN) |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-12050 |
EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE90,EE9# |
2 | ||
| 68617-12030 |
AE9#,CE90,EE9# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12040 |
AE9#,CE90,EE9# |
2 | ||
| Common parts | ||||
| 90119-06381 | ||||
| 90151-50013 | ||||
| 90333-35004 | ||||
| 90950-01060 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
