AE92L-AEMDU (1987)
Toyota Corolla Sed/Lb/Wg

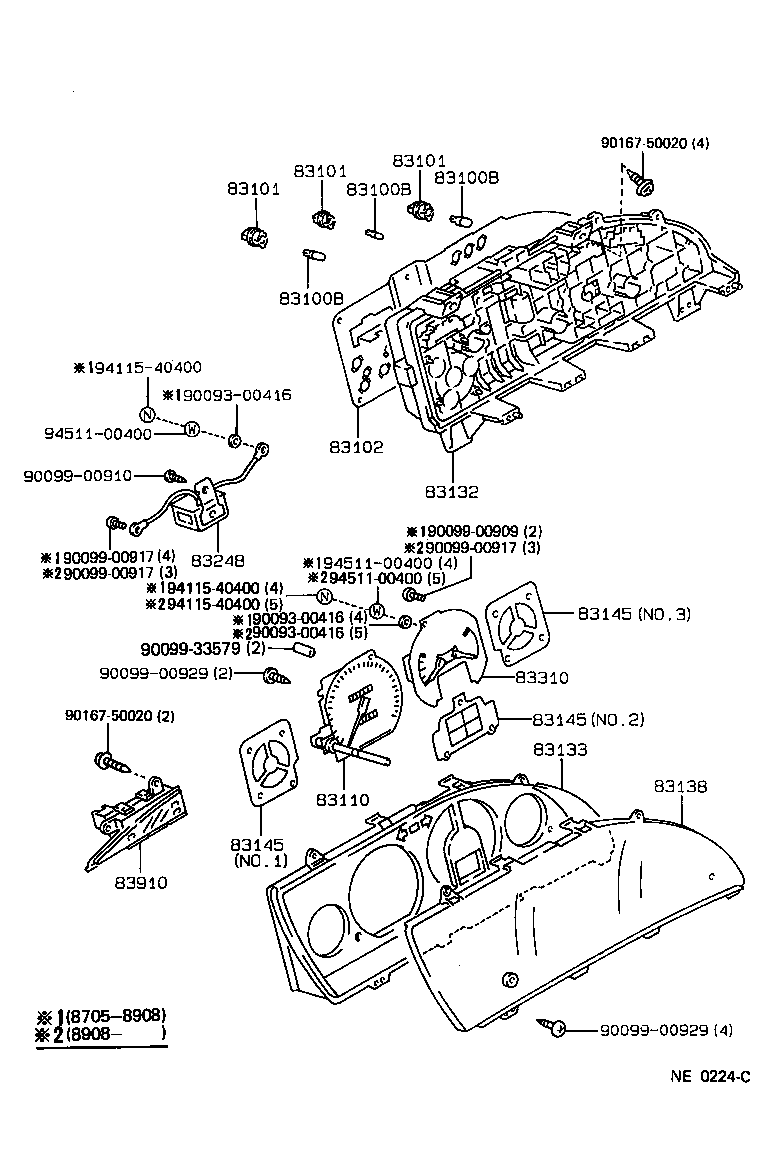

ILLUST NO. 1 OF 2(8705- )GL,SE,SR5,XL
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E420 |
AE9#,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E680 |
AE9#,EE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83247-1E420 |
AE92,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E420 |
EE90..LHD..GEN;AE92,EE97..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E660 |
AE9#,CE90,EE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83247-1E380 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E350 |
AE9#..LHD..(STD,XL) MILE/KM |
1 | ||
| 83110-1E360 |
AE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83110-1E340 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83110-1E370 |
AE9#..LHD..XL MILE/KM & W(TACHOMETER) |
1 | ||
| 83110-1E361 |
AE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83110-1E351 |
AE9#..LHD..(STD,XL)..GEN MILE/KM |
1 | ||
| 83110-1E341 |
AE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE9#,CE90,EE9#..LHD..(SE,XL) INDONESIA SPEC |
1 | ||
| 83132-1A230 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1E150 |
AE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E050 |
AE9#..LHD..XL |
1 | ||
| 83242-1E051 |
AE9#..LHD..XL..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A310 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83243-1A250 |
AE9#,CE90,EE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83243-1A350 |
AE9#,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83243-1A670 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83243-1A510 |
AE92..LHD..(STD,XL) MIDDLE EAST SPEC |
1 | ||
| 83243-1A490 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83243-1A511 |
EE90..LHD..GEN;AE92,EE97..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83243-1A631 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A670 |
AE9#,EE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83244-1A690 |
AE9#,EE9#..LHD..XL..GEN MIDDLE EAST SPEC & W(TACHOMETER) |
1 | ||
| 83244-1A671 |
AE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83244-1A691 |
AE9#..LHD..XL..GEN MIDDLE EAST SPEC & W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE9#,CE90,EE9#..LHD |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||
| 93540-14035 | ||||
ILLUST NO. 2 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
CE90,EE90;AE92..4FC,5F;AE92..LHD..3FC;AE95,EE97..4F,4FC |
2 | ||
| 83710-12460 |
AE92..5F;CE90,EE9#;AE92..LHD..3FC |
1 | ||
| 83710-12570 |
AE92..5F;CE90,EE90;AE92..LHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
CE90,EE90;AE92..4FC,5F;AE92..LHD..3FC;AE95,EE97..4F,4FC |
2 | ||
| 83710-12460 |
AE92..5F;CE90,EE9#;AE92..LHD..3FC |
1 | ||
| 83710-12570 |
AE92..5F;CE90,EE90;AE92..LHD..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
CE90,EE90;AE92..4FC,5F;AE92..LHD..3FC;AE95,EE97..4F,4FC |
2 | ||
| 83710-12460 |
AE92..5F;CE90,EE9#;AE92..LHD..3FC |
1 | ||
| 83710-12570 |
AE92..5F;CE90,EE90;AE92..LHD..3FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12450 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 83710-12451 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12450 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 83710-12451 |
AE9#,CE90,EE9#..LHD |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
ILLUST NO. 1 OF 2(8705- )STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W |
6 | ||
| 90981-11018 |
AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
8 | ||
| 83109-12030 |
AE95..SR5;AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 12V 3.4W,BLUE CAP |
3 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..XL..GEN 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W |
1 | ||
| 90981-11018 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 12V 1.2W W/O SOCKET |
3 | ||
| 99132-12034 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE9#,EE9#..XL..GEN 14V 1.4W BULB |
8 | ||
| 83101-14030 |
AE9#..LHD..(STD,XL);EE9#..RHD..(STD,XL)..GEN 12V 3.4W BULB |
9 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..XL..GEN 14V 1.4W BULB |
7 | ||
| 83101-14040 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) 14V 1.4W BULB |
3 | ||
| 83101-14030 |
EE9#..RHD..(STD,XL)..GEN;AE9#..(STD,XL)..(ARL,GEN) 12V 3.4W BULB |
9 | ||
| 83101-14030 |
AE9#,CE90,EE9#..(SE,XL)..(GCC,GEN) 12V 3.4W BULB |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E420 |
AE9#,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E680 |
AE9#,EE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83247-1E420 |
AE92,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E420 |
EE90..LHD..GEN;AE92,EE97..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83247-1E660 |
AE9#,CE90,EE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83247-1E380 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E350 |
AE9#..LHD..(STD,XL) MILE/KM |
1 | ||
| 83110-1E360 |
AE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83110-1E340 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83110-1E370 |
AE9#..LHD..XL MILE/KM & W(TACHOMETER) |
1 | ||
| 83110-1E361 |
AE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83110-1E351 |
AE9#..LHD..(STD,XL)..GEN MILE/KM |
1 | ||
| 83110-1E341 |
AE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE9#,CE90,EE9#..LHD..(SE,XL) INDONESIA SPEC |
1 | ||
| 83132-1A230 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1E150 |
AE9#..LHD..XL..GEN W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE9#,CE90,EE9#..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E650 |
AE9#,CE90,EE9#..LHD..(STD,XL)..GEN NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(STD,XL) MILE/KM,NO.2 |
1 | ||
| 83145-1E650 |
AE9#..LHD..(STD,XL) MILE/KM,NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(SE,STD,XL) NO.1 |
1 | ||
| 83145-1E750 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E650 |
AE9#,CE90,EE9#..LHD..(STD,XL)..GEN NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(STD,XL) MILE/KM,NO.2 |
1 | ||
| 83145-1E650 |
AE9#..LHD..(STD,XL) MILE/KM,NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(SE,STD,XL) NO.1 |
1 | ||
| 83145-1E750 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-1E650 |
AE9#,CE90,EE9#..LHD..(STD,XL)..GEN NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(STD,XL) MILE/KM,NO.2 |
1 | ||
| 83145-1E650 |
AE9#..LHD..(STD,XL) MILE/KM,NO.3 |
1 | ||
| 83145-1E770 |
AE9#..LHD..(SE,STD,XL) NO.1 |
1 | ||
| 83145-1E750 |
AE9#,CE90,EE9#..LHD..(SE,STD,XL) NO.2 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1A310 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83243-1A250 |
AE9#,CE90,EE9#..LHD..XL W(TACHOMETER) |
1 | ||
| 83243-1A350 |
AE9#,EE9#..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83243-1A670 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83243-1A510 |
AE92..LHD..(STD,XL) MIDDLE EAST SPEC |
1 | ||
| 83243-1A490 |
AE9#..LHD..(STD,XL) |
1 | ||
| 83243-1A511 |
EE90..LHD..GEN;AE92,EE97..LHD..(STD,XL)..GEN MIDDLE EAST SPEC |
1 | ||
| 83243-1A631 |
AE9#,EE9#..LHD..(STD,XL)..GEN |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE9#,CE90,EE9#..LHD |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-33579 | ||||
| 90167-50020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
