Toyota Corolla sed/lb/wg AE92 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COROLLA SED/LB/WG
AE92L-AEHNU (1987)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE92L-AEHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992

Engine 4AF

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

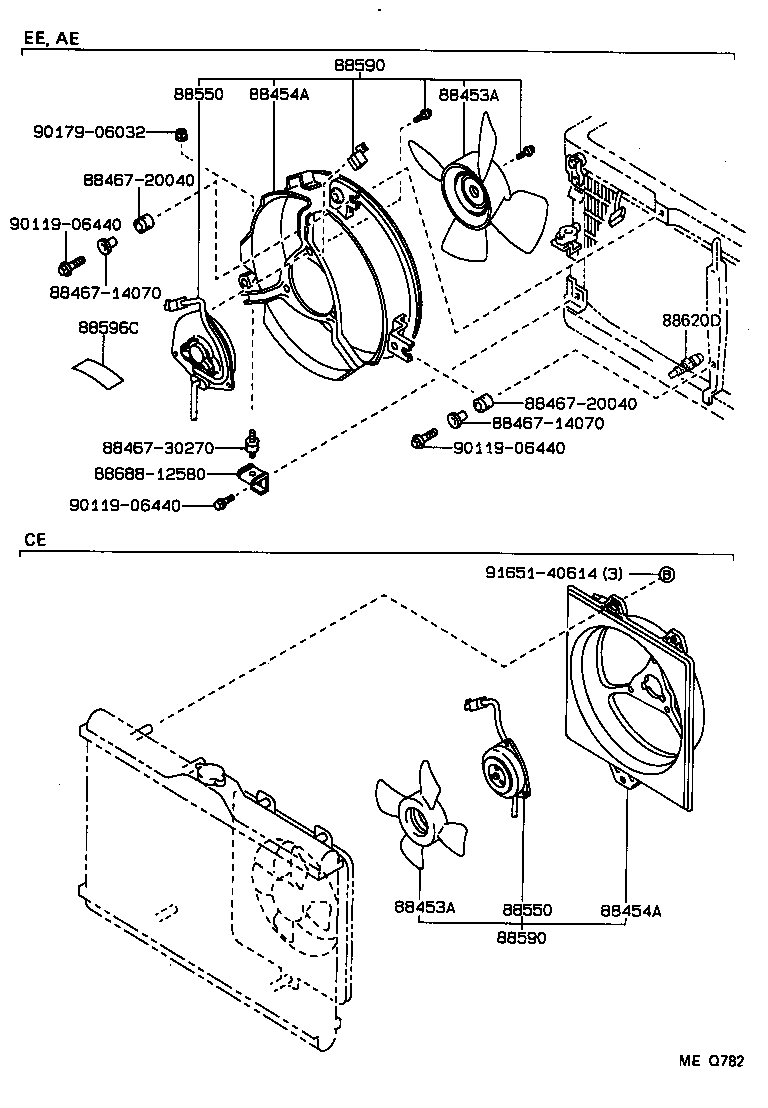

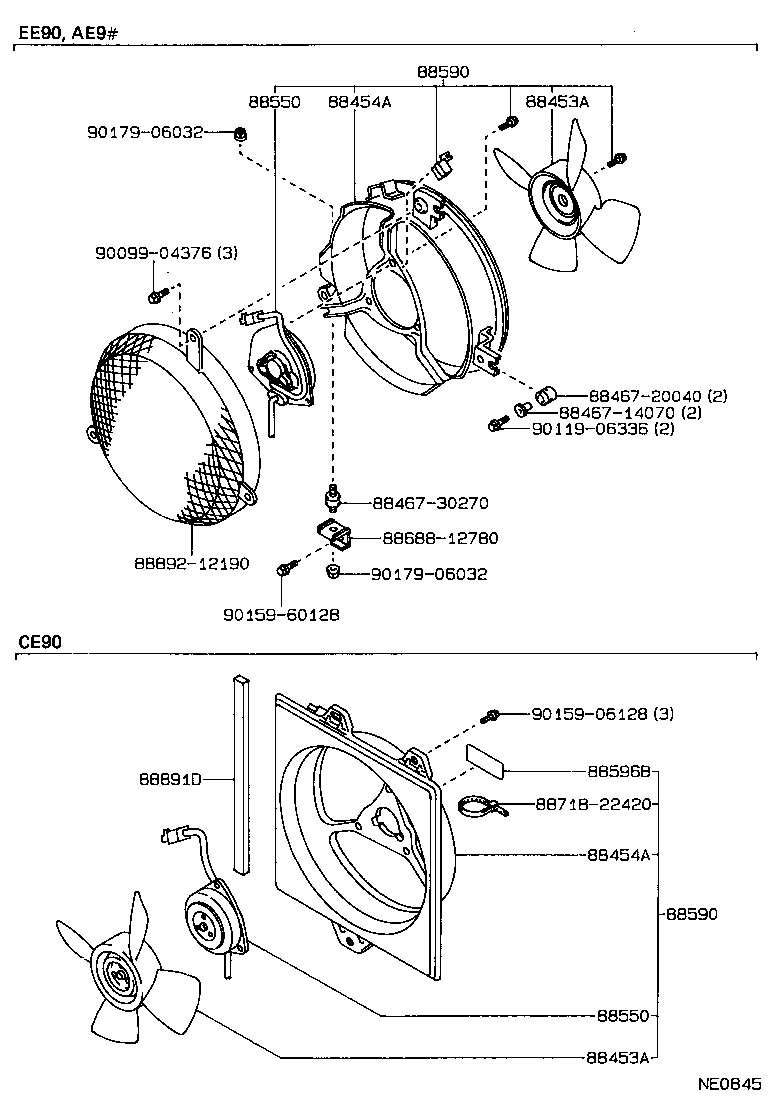

ILLUST NO. 2 OF 3(8705- )

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-12050	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE9#,EE9#	05/1987 - 09/1990	1
88453A - FAN, COOLING
88453-12050	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE9#,EE9#	05/1987 - 09/1990	1
88454A - SHROUD, FAN
88454-12100	AE9#,EE9#	05/1987 - 09/1990	1
88454-12100	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88454A - SHROUD, FAN
88454-12100	AE9#,EE9#	05/1987 - 09/1990	1
88454-12100	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE9#,EE9#	05/1987 - 09/1990	1
88550-12120	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE9#,EE9#	05/1987 - 09/1990	1
88550-12120	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590 - BLOWER ASSY, W/SHROUD
88590-12150	AE92,EE9#..GEN MAKER OPTION	06/1991 - 05/1992	1
88590-12170	AE9#,EE9#..(GL,STD,XL)..GEN	08/1989 - 09/1990	1
88590-12170	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590-12150	AE9#,EE9#..GEN MAKER OPTION	08/1989 - 09/1990	1
88590-12170	AE9#,EE9#	05/1987 - 08/1989	1
88590-12170	AE92,EE9#..(GL,STD,XL)..GEN	06/1991 - 05/1992	1
88590 - BLOWER ASSY, W/SHROUD
88590-12150	AE92,EE9#..GEN MAKER OPTION	06/1991 - 05/1992	1
88590-12170	AE9#,EE9#..(GL,STD,XL)..GEN	08/1989 - 09/1990	1
88590-12170	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590-12150	AE9#,EE9#..GEN MAKER OPTION	08/1989 - 09/1990	1
88590-12170	AE9#,EE9#	05/1987 - 08/1989	1
88590-12170	AE92,EE9#..(GL,STD,XL)..GEN	06/1991 - 05/1992	1
88596C - PLATE, CAUTION, NO.2
88723-12020	AE9#,EE9#..GCC,GEN,SA	08/1987 - 07/1989	1
88723-12030	AE9#,CE90,EE9#..GCC,GEN,SA	08/1989 - 09/1990	1
88723-12030	EE9#..RHD;EE90..3FC..GCC;AE9#,CE90..GEN,SA	07/1989 - 08/1989	1
Common parts
88467-14070
88467-20040
88467-30270
88688-12580
90119-06440
90179-06032
91651-40614

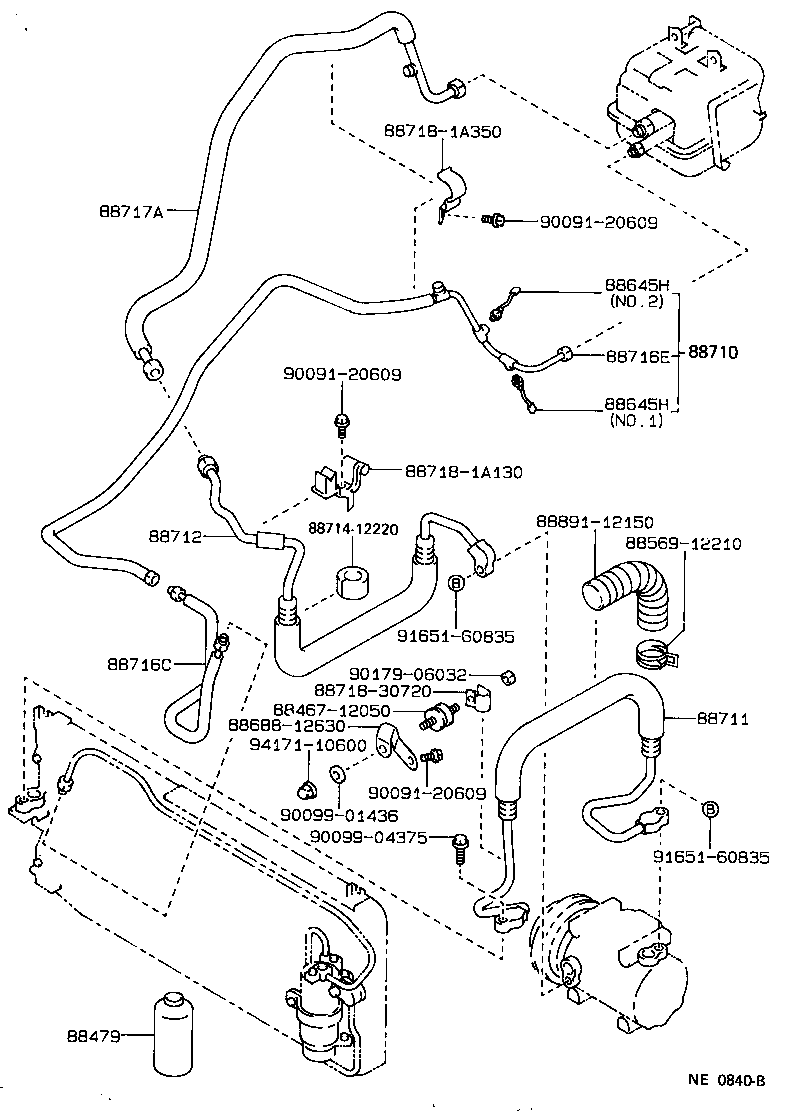

ILLUST NO. 1 OF 3(8705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12370	AE9#,CE90,EE9#	05/1987 - 09/1990	1
88460-12370	AE92,CE90,EE9#..GEN,SA	09/1990 - 06/1991	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-12041	EE9#..RHD;AE92..GL,STD,XL	01/1988 - 02/1988	1
88463-12041	AE9#,CE90,EE9#..GCC,GEN,SA	11/1988 - 08/1989	1
88463-12040	AE9#,CE90,EE9#	05/1987 - 01/1988	1
88463-12041	AE9#,EE9#..(GL,STD,XL)..GEN	03/1988 - 11/1988	1
88463-12041	EE9#..RHD;AE9#..(GL,STD,XL)..GEN	02/1988 - 03/1988	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12080	AE9#,CE90,EE9#	05/1987 - 01/1988	2
88467-12081	AE9#,CE90,EE9#..GCC,GEN,SA	11/1988 - 08/1989	2
88467-12081	EE9#..RHD;AE92..GL,STD,XL	01/1988 - 02/1988	2
88467-12081	EE9#..RHD;AE9#..(GL,STD,XL)..GEN	02/1988 - 03/1988	2
88467-12081	AE9#,EE9#..(GL,STD,XL)..GEN	03/1988 - 11/1988	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE9#,CE90,EE9#..GCC,GEN,SA NO.1	05/1987 - 08/1989	2
88467-20040	AE9#,EE9#..ARL,GCC,GEN NO.2	05/1987 - 08/1989	4
88467-14070	AE9#,EE9#..ARL,GCC,GEN NO.1	05/1987 - 08/1989	4
88467-20040	AE9#,CE90,EE9#..GCC,GEN,SA NO.2	05/1987 - 08/1989	2
88467-14070	AE9#,EE9#..ARL,GEN NO.1	08/1989 - 05/1992	4
88467-20040	AE9#,EE9#..ARL,GEN NO.2	08/1989 - 05/1992	4
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14070	AE9#,CE90,EE9#..GCC,GEN,SA NO.1	05/1987 - 08/1989	2
88467-20040	AE9#,EE9#..ARL,GCC,GEN NO.2	05/1987 - 08/1989	4
88467-14070	AE9#,EE9#..ARL,GCC,GEN NO.1	05/1987 - 08/1989	4
88467-20040	AE9#,CE90,EE9#..GCC,GEN,SA NO.2	05/1987 - 08/1989	2
88467-14070	AE9#,EE9#..ARL,GEN NO.1	08/1989 - 05/1992	4
88467-20040	AE9#,EE9#..ARL,GEN NO.2	08/1989 - 05/1992	4
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040	AE9#,CE90,EE9#..GCC,GEN L=187	12/1988 - 08/1989	1
88471-16040	AE92,CE90,EE9#..GEN,SA	09/1990 - 06/1991	1
88471-12020	AE9#,EE9#..(GL,STD,XL)..GEN L=167	12/1988 - 08/1989	1
88471-16040	AE9#,CE90,EE9# L=187	08/1989 - 09/1990	1
88471-12020	AE9#,CE90,EE9# L=167	05/1987 - 12/1988	1
88470C - BOLT, FUSE
88475-12020	AE9#,CE90,EE9#	05/1987 - 09/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12040	AE9#,CE90,EE9#	05/1987 - 11/1988	1
88473-12040	AE9#,EE9#..(GL,STD,XL)..GEN	11/1988 - 08/1989	1
88473-12070	AE9#,CE90,EE9#..GCC,GEN	11/1988 - 08/1989	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12240	AE9#,CE90,EE9#	05/1987 - 12/1988	1
88726-12240	AE9#,EE9#..(GL,STD,XL)..GEN DEALER OPTION	12/1988 - 08/1989	1
88726-12340	AE9#,CE90,EE9#..GCC,GEN	12/1988 - 08/1989	1
88726-12340	AE92,CE90,EE9#..GEN,SA	09/1990 - 06/1991	1
88726-12340	AE9#,CE90,EE9#	08/1989 - 09/1990	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-12251	AE9#,CE90,EE9#..LHD	01/1988 - 09/1990	1
88726-12251	AE92,EE9#..LHD..GEN	12/1987 - 01/1988	1
88726-12251	AE92,CE90,EE9#..LHD..GEN	09/1990 - 06/1991	1
88726-12250	AE92,CE90,EE9#..LHD	05/1987 - 09/1987	1
88726-12251	AE9#,CE90,EE9#..LHD	09/1987 - 12/1987	1
Common parts
88578-12120
88688-12590
88688-12600
88688-12680
88688-12770
88718-1A170
90091-20609
90091-20613
90091-20621
90091-20809
90119-06033
90119-06336
90119-06440
90159-60128
90179-06032
93385-56025

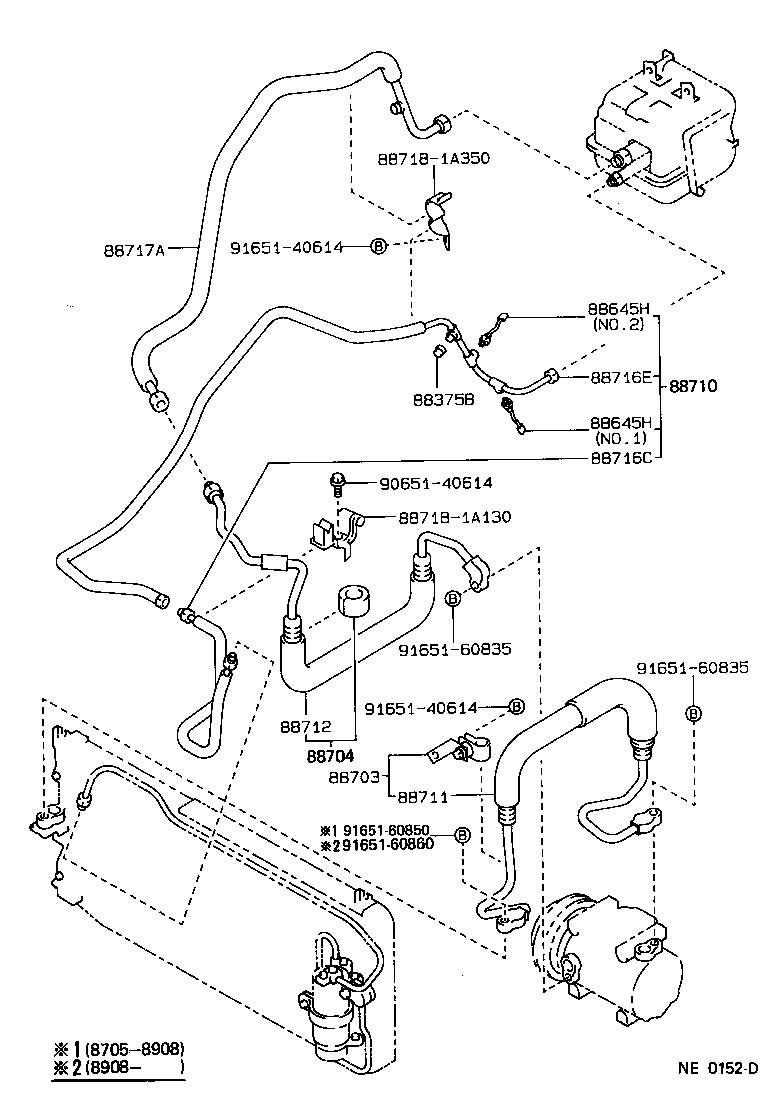

ILLUST NO. 3 OF 3(8705- )AE9#..LHD..GL,STD,XL

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
88375B - CAP, SERVICE VALVE, NO.1
88375-20010	AE92,CE90,EE9#	06/1991 - 11/1991	1
88375-20010	AE92,EE90..GCC,SA;AE92,CE90,EE9#..LHD..GEN	09/1990 - 06/1991	1
88375-20010	AE9#,CE90,EE9#..GCC,GEN,SA	08/1989 - 09/1990	1
88375-20010	AE9#,CE90,EE9#..LHD	08/1988 - 08/1989	1
88375-20010	AE9#,CE90,EE9#..GCC,GEN	05/1987 - 08/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE9#,CE90,EE9# NO.2	08/1987 - 12/1987	1
88645-12040	AE92,CE90..LHD NO.1	05/1987 - 08/1987	1
88645-32020	AE92,CE90;EE90..RHD NO.2	05/1987 - 08/1987	1
88645-12040	AE9#,CE90,EE9#..LHD NO.1	08/1987 - 12/1987	1
88645-12030	AE9#,CE90,EE9#..GCC,GEN NO.2	05/1987 - 12/1988	1
88645-12040	AE9#,EE9#..LHD..GEN NO.1	02/1988 - 08/1989	1
88645-10020	AE9#,CE90,EE9#..GCC,GEN NO.1	05/1987 - 08/1989	1
88645-32020	AE92,EE9#..(GL,STD,XL)..GEN NO.2	12/1987 - 02/1988	1
88645-16050	AE9#,CE90,EE9#..GCC,GEN NO.2	12/1988 - 08/1989	1
88645-12040	AE92,EE9#..LHD..GEN NO.1	12/1987 - 02/1988	1
88645-32020	AE9#,EE9#..(GL,STD,XL)..GEN NO.2	02/1988 - 08/1989	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE9#,CE90,EE9# NO.2	08/1987 - 12/1987	1
88645-12040	AE92,CE90..LHD NO.1	05/1987 - 08/1987	1
88645-32020	AE92,CE90;EE90..RHD NO.2	05/1987 - 08/1987	1
88645-12040	AE9#,CE90,EE9#..LHD NO.1	08/1987 - 12/1987	1
88645-12030	AE9#,CE90,EE9#..GCC,GEN NO.2	05/1987 - 12/1988	1
88645-12040	AE9#,EE9#..LHD..GEN NO.1	02/1988 - 08/1989	1
88645-10020	AE9#,CE90,EE9#..GCC,GEN NO.1	05/1987 - 08/1989	1
88645-32020	AE92,EE9#..(GL,STD,XL)..GEN NO.2	12/1987 - 02/1988	1
88645-16050	AE9#,CE90,EE9#..GCC,GEN NO.2	12/1988 - 08/1989	1
88645-12040	AE92,EE9#..LHD..GEN NO.1	12/1987 - 02/1988	1
88645-32020	AE9#,EE9#..(GL,STD,XL)..GEN NO.2	02/1988 - 08/1989	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12070	AE9#..LHD	05/1987 - 10/1988	1
88703-12070	AE95..LHD;AE92..LB..XL;AE92..LHD..SED..GL	10/1988 - 05/1992	1
88704 - HOSE SUB-ASSY, SUCTION
88704-12071	AE9#..LHD	10/1987 - 10/1988	1
88704-12070	AE92..LHD	05/1987 - 10/1987	1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12070	AE92,CE90,EE9#..LHD	05/1987 - 09/1987	1
88706-12031	AE9#,CE90,EE9#..LHD MAKER OPTION	09/1987 - 02/1988	1
88706-12070	AE92,EE9#..LHD..GEN	12/1987 - 02/1988	1
88706-12070	AE9#,CE90,EE9#..LHD DEALER OPTION	09/1987 - 12/1987	1
88706-12070	AE9#,EE9#..LHD..GEN	02/1988 - 08/1989	1
88706-12032	AE9#,CE90,EE9#..LHD MAKER OPTION	02/1988 - 08/1989	1
88706-12071	AE9#,EE9#..LHD..GEN	08/1989 - 05/1992	1
88706-12032	AE9#,CE90,EE9#..LHD..GEN MAKER OPTION	08/1989 - 05/1992	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12460	AE9#..LHD..GEN	05/1987 - 05/1992	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12650	AE92..LHD	05/1987 - 10/1987	1
88712-12651	AE9#..LHD	10/1987 - 10/1988	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-12290	AE92,CE90,EE9#..LHD	05/1987 - 09/1987	1
88726-12291	AE9#,CE90,EE9#..LHD	09/1987 - 12/1987	1
88726-12291	AE92,EE9#..LHD..GEN	12/1987 - 01/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12270	AE9#,CE90..LHD	08/1987 - 02/1988	1
88726-12271	AE9#,CE90..LHD;EE90..3FC..GCC	10/1988 - 08/1989	1
88726-12270	AE92,CE90,EE90..LHD	05/1987 - 08/1987	1
88726-12271	AE9#,CE90..LHD	02/1988 - 10/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12410	AE9#..LHD	05/1987 - 12/1987	1
88717-12410	AE9#..LHD	02/1988 - 08/1989	1
88717-12410	AE92..LHD	12/1987 - 02/1988	1
Common parts
88718-1A130
88718-1A350
90651-40614
91651-40614
91651-60835
91651-60850
91651-60860

ILLUST NO. 3 OF 3(8705- )AE9#..LHD..GL,STD,XL

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	AE9#,CE90,EE9#..ARL,GEN 250G	08/1989 - 05/1992	2
90986-02001	AE92..LHD..XL;AE92..RHD..3FC..XL..GEN;AE95,CE90,EE9#..ARL,GCC,GEN;AE92..(3FC,5F)..(GL,GTI,STD)..GEN 400G	05/1987 - 10/1989	2
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE9#,CE90,EE9# NO.2	08/1987 - 12/1987	1
88645-12040	AE92,CE90..LHD NO.1	05/1987 - 08/1987	1
88645-32020	AE92,CE90;EE90..RHD NO.2	05/1987 - 08/1987	1
88645-12040	AE9#,CE90,EE9#..LHD NO.1	08/1987 - 12/1987	1
88645-12030	AE9#,CE90,EE9#..GCC,GEN NO.2	05/1987 - 12/1988	1
88645-12040	AE9#,EE9#..LHD..GEN NO.1	02/1988 - 08/1989	1
88645-10020	AE9#,CE90,EE9#..GCC,GEN NO.1	05/1987 - 08/1989	1
88645-32020	AE92,EE9#..(GL,STD,XL)..GEN NO.2	12/1987 - 02/1988	1
88645-16050	AE9#,CE90,EE9#..GCC,GEN NO.2	12/1988 - 08/1989	1
88645-12040	AE92,EE9#..LHD..GEN NO.1	12/1987 - 02/1988	1
88645-32020	AE9#,EE9#..(GL,STD,XL)..GEN NO.2	02/1988 - 08/1989	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	AE9#,CE90,EE9# NO.2	08/1987 - 12/1987	1
88645-12040	AE92,CE90..LHD NO.1	05/1987 - 08/1987	1
88645-32020	AE92,CE90;EE90..RHD NO.2	05/1987 - 08/1987	1
88645-12040	AE9#,CE90,EE9#..LHD NO.1	08/1987 - 12/1987	1
88645-12030	AE9#,CE90,EE9#..GCC,GEN NO.2	05/1987 - 12/1988	1
88645-12040	AE9#,EE9#..LHD..GEN NO.1	02/1988 - 08/1989	1
88645-10020	AE9#,CE90,EE9#..GCC,GEN NO.1	05/1987 - 08/1989	1
88645-32020	AE92,EE9#..(GL,STD,XL)..GEN NO.2	12/1987 - 02/1988	1
88645-16050	AE9#,CE90,EE9#..GCC,GEN NO.2	12/1988 - 08/1989	1
88645-12040	AE92,EE9#..LHD..GEN NO.1	12/1987 - 02/1988	1
88645-32020	AE9#,EE9#..(GL,STD,XL)..GEN NO.2	02/1988 - 08/1989	1
88710 - TUBE ASSY, AIR CONDITIONER
88706-12070	AE92,CE90,EE9#..LHD	05/1987 - 09/1987	1
88706-12031	AE9#,CE90,EE9#..LHD MAKER OPTION	09/1987 - 02/1988	1
88706-12070	AE92,EE9#..LHD..GEN	12/1987 - 02/1988	1
88706-12070	AE9#,CE90,EE9#..LHD DEALER OPTION	09/1987 - 12/1987	1
88706-12070	AE9#,EE9#..LHD..GEN	02/1988 - 08/1989	1
88706-12032	AE9#,CE90,EE9#..LHD MAKER OPTION	02/1988 - 08/1989	1
88706-12071	AE9#,EE9#..LHD..GEN	08/1989 - 05/1992	1
88706-12032	AE9#,CE90,EE9#..LHD..GEN MAKER OPTION	08/1989 - 05/1992	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12460	AE9#..LHD..GEN	05/1987 - 05/1992	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12650	AE92..LHD	05/1987 - 10/1987	1
88712-12651	AE9#..LHD	10/1987 - 10/1988	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-12290	AE92,CE90,EE9#..LHD	05/1987 - 09/1987	1
88726-12291	AE9#,CE90,EE9#..LHD	09/1987 - 12/1987	1
88726-12291	AE92,EE9#..LHD..GEN	12/1987 - 01/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-12270	AE9#,CE90..LHD	08/1987 - 02/1988	1
88726-12271	AE9#,CE90..LHD;EE90..3FC..GCC	10/1988 - 08/1989	1
88726-12270	AE92,CE90,EE90..LHD	05/1987 - 08/1987	1
88726-12271	AE9#,CE90..LHD	02/1988 - 10/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12410	AE9#..LHD	05/1987 - 12/1987	1
88717-12410	AE9#..LHD	02/1988 - 08/1989	1
88717-12410	AE92..LHD	12/1987 - 02/1988	1
Common parts
88467-12050
88569-12210
88688-12630
88714-12220
88718-1A130
88718-1A350
88718-30720
88891-12150
90091-20609
90099-01436
90099-04375
90179-06032
91651-60835
94171-10600

ILLUST NO. 2 OF 3(8705- )

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-12050	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE9#,EE9#	05/1987 - 09/1990	1
88453A - FAN, COOLING
88453-12050	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88453-12050	AE9#,EE9#	05/1987 - 09/1990	1
88454A - SHROUD, FAN
88454-12100	AE9#,EE9#	05/1987 - 09/1990	1
88454-12100	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88454A - SHROUD, FAN
88454-12100	AE9#,EE9#	05/1987 - 09/1990	1
88454-12100	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE9#,EE9#	05/1987 - 09/1990	1
88550-12120	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	AE9#,EE9#	05/1987 - 09/1990	1
88550-12120	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590 - BLOWER ASSY, W/SHROUD
88590-12150	AE92,EE9#..GEN MAKER OPTION	06/1991 - 05/1992	1
88590-12170	AE9#,EE9#..(GL,STD,XL)..GEN	08/1989 - 09/1990	1
88590-12170	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590-12150	AE9#,EE9#..GEN MAKER OPTION	08/1989 - 09/1990	1
88590-12170	AE9#,EE9#	05/1987 - 08/1989	1
88590-12170	AE92,EE9#..(GL,STD,XL)..GEN	06/1991 - 05/1992	1
88590 - BLOWER ASSY, W/SHROUD
88590-12150	AE92,EE9#..GEN MAKER OPTION	06/1991 - 05/1992	1
88590-12170	AE9#,EE9#..(GL,STD,XL)..GEN	08/1989 - 09/1990	1
88590-12170	AE92,EE9#..GEN,SA	09/1990 - 06/1991	1
88590-12150	AE9#,EE9#..GEN MAKER OPTION	08/1989 - 09/1990	1
88590-12170	AE9#,EE9#	05/1987 - 08/1989	1
88590-12170	AE92,EE9#..(GL,STD,XL)..GEN	06/1991 - 05/1992	1
Common parts
88467-14070
88467-20040
88467-30270
88688-12780
88718-22420
88892-12190
90099-04376
90119-06336
90159-06128
90159-60128
90179-06032

AE92L-AEHNU (1987)

ILLUST NO. 2 OF 3(8705- )

ILLUST NO. 1 OF 3(8705- )

ILLUST NO. 3 OF 3(8705- )AE9#..LHD..GL,STD,XL

ILLUST NO. 3 OF 3(8705- )AE9#..LHD..GL,STD,XL

ILLUST NO. 2 OF 3(8705- )

Part Price Details
