AE92L-AEHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )SED

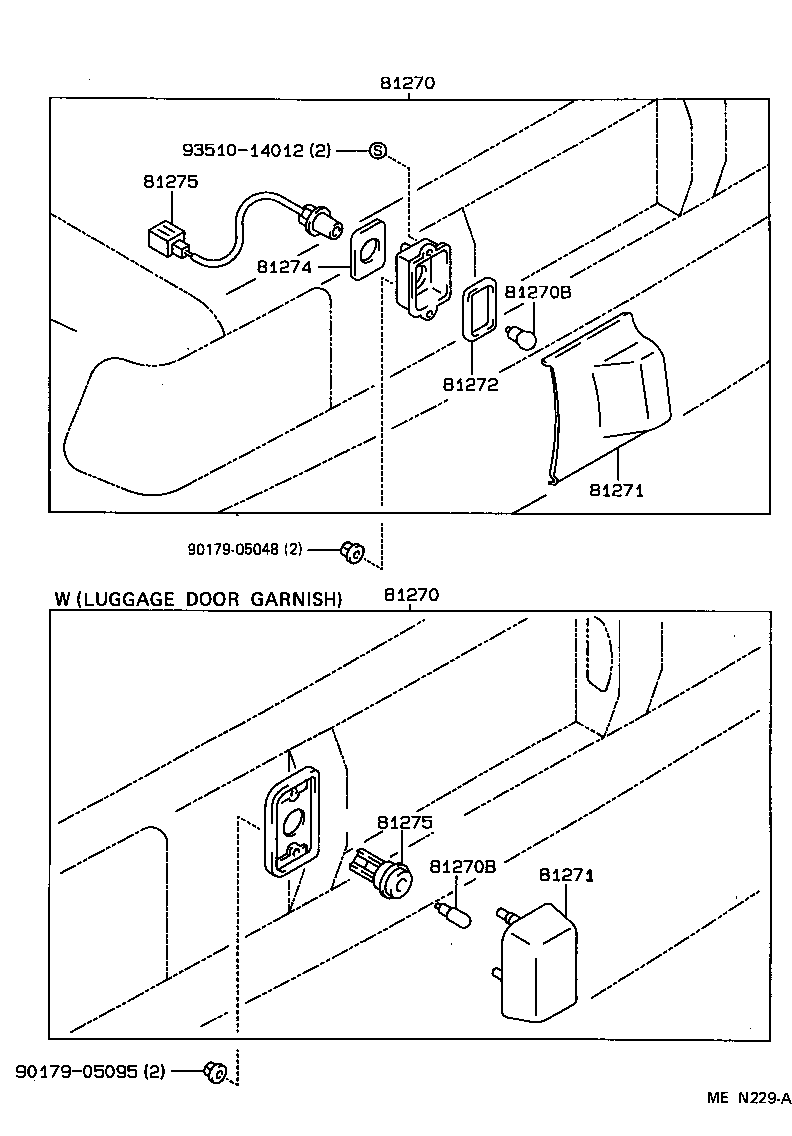

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81274 81275 81275 9017905048 9017905095 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81690-12100

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

LH

 1
81270-12350

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

RH

 1
81270 - LAMP ASSY, LICENSE PLATE
81690-12100

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

LH

 1
81270-12350

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

RH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81691-12100

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

LH

 1
81271-12350

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

RH

 1
81271 - LENS, LICENSE PLATE LAMP
81691-12100

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

LH

 1
81271-12350

AE92..GT..SA;AE9#,CE90,EE90..SED..(GL,SE,STD,XL)

RH

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-12350

AE92,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN)

 1
81272-12350

AE9#,CE90,EE90..SED

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-12300

AE92,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN)

 1
81274-12300

AE9#,CE90,EE90..SED

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE9#,CE90,EE90..SED

 2
81275-12240

AE92,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN)

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-12240

AE9#,CE90,EE90..SED

 2
81275-12240

AE92,CE90,EE90..SED..(GL,SE,STD,XL)..(GCC,GEN)

 1
Common parts
90179-05048
90179-05095
93510-14012
