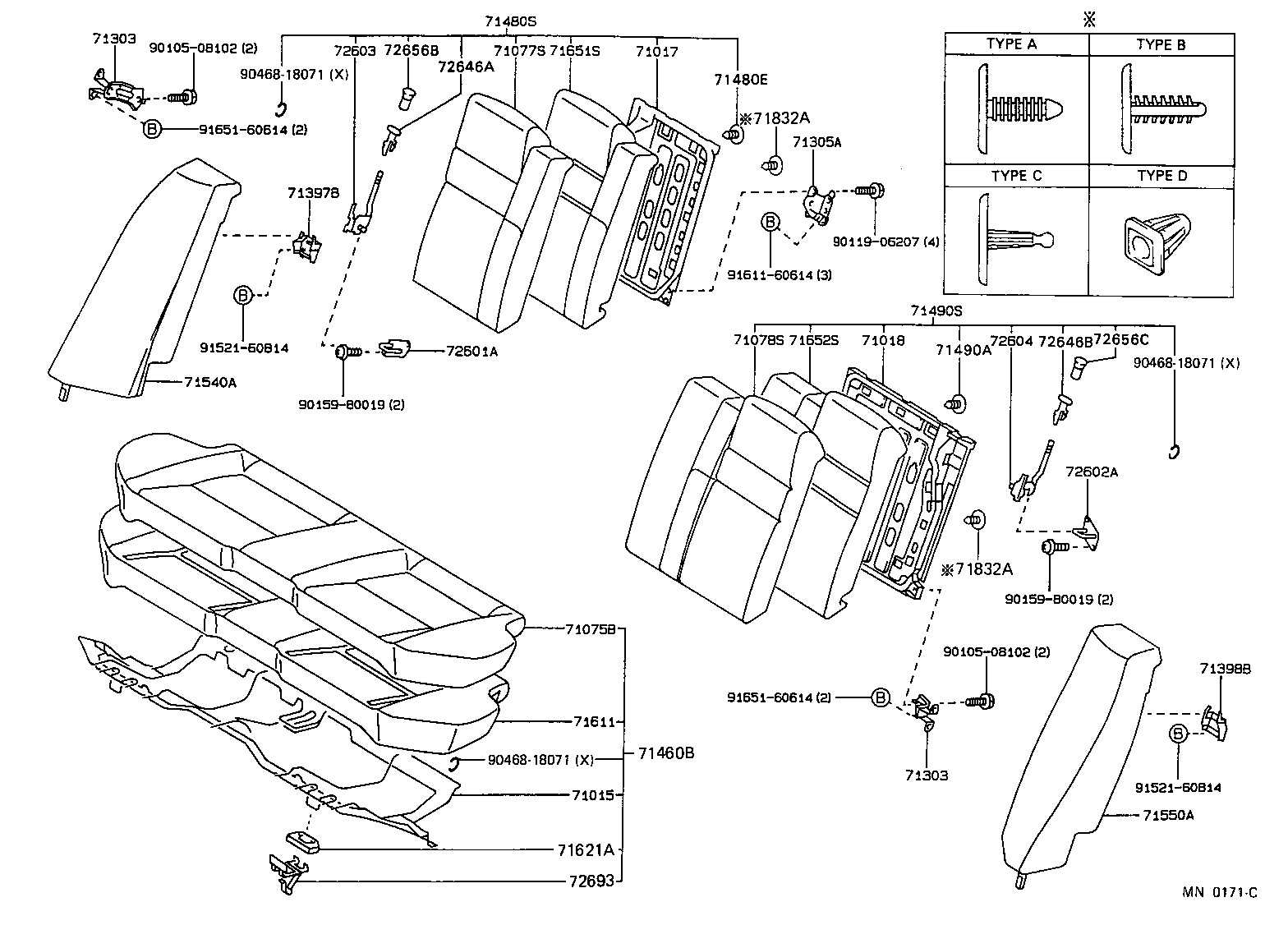

AE92L-AEHNU (1987)
Toyota Corolla Sed/Lb/Wg
(8705- )SED..SE,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12260 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
1 | ||
| 71015-12260 |
EE90..XL..SA;AE92,CE90..SED;EE90..SED..(GCC,GEN) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E01003 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E01005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71075-1E01004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71075-1E01103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E01104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71075-1E01106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E04004 |
AE92,EE90..LHD..SED..GL ***,BLUE,TRIM8# |
1 | ||
| 71460-1E04005 |
AE92,EE90..SED..GL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71460-1E04003 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E04104 |
AE92,EE90..SED..GL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E04106 |
AE92,EE90..LHD..SED..GL ***,BROWN,TRIM4# |
1 | ||
| 71460-1E04103 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12530 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE92,CE90,EE90..SED |
2 | ||
| 72693-12050 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
2 | ||
| 72693-12050 |
AE92,CE90,EE90..SED |
2 | ||
| Common parts | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||
(8705- )SED..GL,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12260 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
1 | ||
| 71015-12260 |
EE90..XL..SA;AE92,CE90..SED;EE90..SED..(GCC,GEN) |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12260 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12050 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E01003 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E01005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71075-1E01004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71075-1E01103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E01104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71075-1E01106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1H57005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71077-1H57004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71077-1H57003 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H57104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71077-1H57106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71077-1H57103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A33005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71078-1A33003 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1A33004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71078-1A33104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71078-1A33103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1A33106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE92,EE90..GL,GTI;AE92,EE90..(LB,WG)..XL |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE92,EE90..GL,GTI;AE92,EE90..(LB,WG)..XL |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12060 |
AE92,EE90..GL,GTI;AE92,EE90..(LB,WG)..XL |
1 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71397-12020 |
AE92,EE90..SED..GL |
1 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-12020 |
AE92,EE90..SED..GL |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1E04004 |
AE92,EE90..LHD..SED..GL ***,BLUE,TRIM8# |
1 | ||
| 71460-1E04005 |
AE92,EE90..SED..GL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71460-1E04003 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1E04104 |
AE92,EE90..SED..GL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71460-1E04106 |
AE92,EE90..LHD..SED..GL ***,BROWN,TRIM4# |
1 | ||
| 71460-1E04103 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-0704913 |
AE92..LHD..SED..3FC..GL GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0603733 |
AE92,EE90..LHD..SED..GL GRAY,TRIM1#,4#,8#,TYPE A |
4 | ||
| 90467-0603725 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4#,TYPE A |
4 | ||
| 90467-07049B0 |
AE92..LHD..SED..3FC..GL LIGHT GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0603724 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8#,TYPE A |
4 | ||
| 90467-0704903 |
AE92..WG..GEN;AE92,EE90..SED..(GL,GT)..GEN GRAY,TRIM1#,TYPE B |
4 | ||
| 90467-0704926 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE B |
4 | ||
| 90467-0603726 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE A |
4 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1H67004 |
AE92,EE90..LHD..SED..GL ***,BLUE,TRIM8# |
1 | ||
| 71480-1H67005 |
AE92,EE90..SED..GL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71480-1H67003 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H67106 |
AE92,EE90..LHD..SED..GL ***,BROWN,TRIM4# |
1 | ||
| 71480-1H67103 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1H67104 |
AE92,EE90..SED..GL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1A40004 |
AE92,EE90..LHD..SED..GL ***,BLUE,TRIM8# |
1 | ||
| 71490-1A40005 |
AE92,EE90..SED..GL..GEN ***,DARK BEIGE,TRIM4# |
1 | ||
| 71490-1A40003 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-1A40104 |
AE92,EE90..SED..GL..GEN ***,DARK BLUE,TRIM8# |
1 | ||
| 71490-1A40106 |
AE92,EE90..LHD..SED..GL ***,BROWN,TRIM4# |
1 | ||
| 71490-1A40103 |
AE92,EE90..SED..GL..GEN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-1211104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71540-1211005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71540-1211004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71540-1211003 |
AE92,EE90..SED..GL..GEN SHADW GRAY,TRIM1# |
1 | ||
| 71540-1211103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71540-1211106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-1211005 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4# |
1 | ||
| 71550-1211106 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4# |
1 | ||
| 71550-1211103 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71550-1211003 |
AE92,EE90..SED..GL..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 71550-1211004 |
AE92,EE90..LHD..SED..GL BLUE,TRIM8# |
1 | ||
| 71550-1211104 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12530 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12570 |
AE92,EE90..SED..GL |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12400 |
AE92,EE90..SED..GL |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0603733 |
AE92,EE90..LHD..SED..GL GRAY,TRIM1#,4#,8#,TYPE A |
4 | ||
| 90467-0704913 |
AE92..LHD..SED..3FC..GL GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-10023 |
AE92,EE90..SED..GL TYPE D |
4 | ||
| 90467-07049B0 |
AE92..LHD..SED..3FC..GL LIGHT GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-0707913 |
AE92,EE90..LHD..SED..GL GARY,TRIM1#,4#,8#,TYPE C |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0603725 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4#,TYPE A |
4 | ||
| 90467-0603726 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE A |
4 | ||
| 90467-0704926 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE B |
4 | ||
| 90467-0603724 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8#,TYPE A |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0704903 |
AE92,EE90..SED..(GL,GT)..GEN GRAY,TRIM1#,TYPE B |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0603733 |
AE92,EE90..LHD..SED..GL GRAY,TRIM1#,4#,8#,TYPE A |
4 | ||
| 90467-0704913 |
AE92..LHD..SED..3FC..GL GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-10023 |
AE92,EE90..SED..GL TYPE D |
4 | ||
| 90467-07049B0 |
AE92..LHD..SED..3FC..GL LIGHT GRAY,TRIM1#,4#,8#,TYPE B |
4 | ||
| 90467-0707913 |
AE92,EE90..LHD..SED..GL GARY,TRIM1#,4#,8#,TYPE C |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0603725 |
AE92,EE90..SED..GL..GEN DARK BEIGE,TRIM4#,TYPE A |
4 | ||
| 90467-0603726 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE A |
4 | ||
| 90467-0704926 |
AE92,EE90..LHD..SED..GL BROWN,TRIM4#,TYPE B |
4 | ||
| 90467-0603724 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8#,TYPE A |
4 | ||
| 90467-0603713 |
AE92,EE90..SED..GL..GEN GRAY,TRIM1#,TYPE A |
4 | ||
| 90467-0704903 |
AE92,EE90..SED..(GL,GT)..GEN GRAY,TRIM1#,TYPE B |
4 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12090 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-12040 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12130 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12120 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204004 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 72646-1204005 |
AE92,EE90..SED..(GL,SE) DARK BEIGE,TRIM4# |
1 | ||
| 72646-1204003 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-1204004 |
AE92,EE90..LHD..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204004 |
AE92,EE90..LHD..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 72646-1204003 |
AE92,EE90..SED..(GL,GT,SE)..(GEN,SA) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-1204005 |
AE92,EE90..SED..(GL,SE) DARK BEIGE,TRIM4# |
1 | ||
| 72646-1204004 |
AE92,EE90..SED..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001055 |
AE92..(GL,SE)..SA;AE92,EE90..LHD..SED..GL;AE9#,EE90..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72656-2001059 |
AE92,EE90..LHD..GL;EE90..LHD..(LB,WG);AE9#..(LB,WG)..(SR5,XL) DARK BLUE,TRIM8# |
1 | ||
| 72656-2001023 |
AE9#,EE90..LB,WG;AE92..(GL,GT)..SA;AE92,EE90..LHD..SED..GL GRAY,TRIM1# |
1 | ||
| 72656-2001055 |
AE92,EE90..GL,SE;AE9#,EE90..(LB,WG)..(SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72656-2001023 |
AE92,EE90..GL,GT,GTI,SE;AE9#,EE90..(LB,WG)..(SR5,XL) GRAY,TRIM1# |
1 | ||
| 72656-2001048 |
AE92..(GL,SE)..SA;AE92,EE90..LHD..GL;AE95,EE90..LHD..(LB,WG) BROWN,TRIM4# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001023 |
AE92,EE90..GL,GT,GTI,SE;AE9#,EE90..(LB,WG)..(SR5,XL) GRAY,TRIM1# |
1 | ||
| 72656-2001059 |
AE92,EE90..LHD..GL;EE90..LHD..(LB,WG);AE9#..(LB,WG)..(SR5,XL) DARK BLUE,TRIM8# |
1 | ||
| 72656-2001055 |
AE92,EE90..GL,SE;AE9#,EE90..(LB,WG)..(SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72656-2001023 |
AE9#,EE90..LB,WG;AE92..(GL,GT)..SA;AE92,EE90..LHD..SED..GL GRAY,TRIM1# |
1 | ||
| 72656-2001048 |
AE92..(GL,SE)..SA;AE92,EE90..LHD..GL;AE95,EE90..LHD..(LB,WG) BROWN,TRIM4# |
1 | ||
| 72656-2001055 |
AE92..(GL,SE)..SA;AE92,EE90..LHD..SED..GL;AE9#,EE90..(LB,WG)..(GL,SR5,XL) DARK BEIGE,TRIM4# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE92,CE90,EE90..SED |
2 | ||
| 72693-12050 |
EE90..XL..SA;EE90..SED..(GCC,GEN);AE92,CE90..SED..(3FC,5F) |
2 | ||
| 72693-12050 |
AE92,CE90,EE90..SED |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90159-80019 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
