AE92L-AEHNU (1987)

Toyota Corolla Sed/Lb/Wg

Production May 1987 - May 1992
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )SED

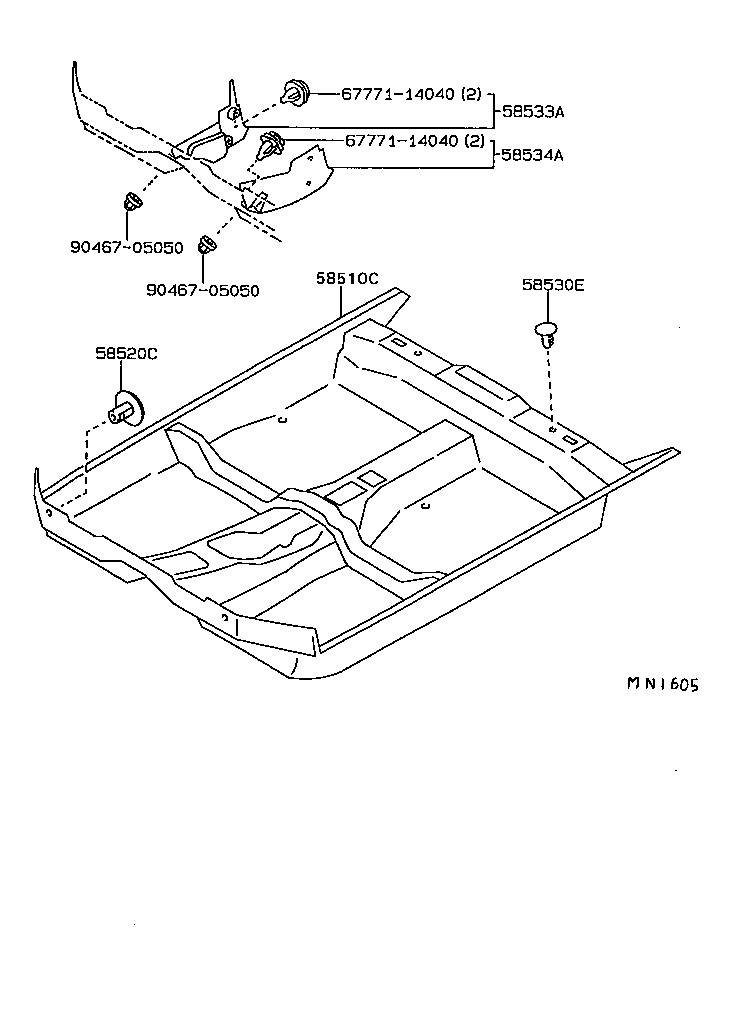

Click highlighted areas on diagram

diagram 58510C 58520C 58530E 58533A 58534A 6777114040 6777114040 9046705050 9046705050
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1A03003

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#

 1
58510-1A03005

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),DARK BEIGE,TRIM4#

 1
58510-1A03004

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),DARK BLUE,TRIM8#

 1
58510-1A16005

AE92,EE90..LHD..GL

DARK BEIGE,TRIM4#

 1
58510-1A03006

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
58510-1A16006

AE92,EE90..LHD..GL

BROWN,TRIM4#

 1
58510-1A16003

AE92,EE90..LHD..GL

SHADOW GRAY,TRIM1#

 1
58510-1A16004

AE92,EE90..LHD..GL

DARK BLUE,TRIM8#

 1
58510-1A03004

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),DARK BLUE,TRIM8#

 1
58510-1A03003

AE92,EE90..LHD..GL

W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#

 1
58510-1A16006

AE92,EE90..LHD..SED..GL

BROWN,TRIM4#

 1
58510-1A03006

AE92,EE90..LHD..SED..GL

W(FRONT SEAT BELT),BROWN,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906801

AE92..LHD..LB..5F;AE92..LHD..3FC..GL;AE92,CE90,EE90..LHD..(LB,SED)..XL

BLACK,TRIM1#,4#,8#

 2
90467-0906801

AE95..WG;AE92..LHD..LB..5F;AE92..LHD..3FC..GL;AE9#,CE90,EE90..LHD..(LB,SED)..XL

BLACK,TRIM1#,4#,8#

 2
90467-0906811

EE97;AE9#,EE90..RHD..(LB,WG);AE92,EE90..(SE,STD)..(GCC,GEN)

BLACK,TRIM1#,8#

 2
90467-0906811

AE9#,CE90,EE90..LHD..(GL,XL)

BLACK,TRIM1#,4#,8#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-0604924

AE95..WG;EE90..XL..GCC;AE95..LHD..SED;AE92,EE90..LHD..GL

DARK BLUE,TRIM8#

 2
90467-0604901

AE95..WG;AE9#,CE90,EE90..LHD..(LB,SED)..(GL,XL)

BLACK,TRIM1#,4#,8#

 2
90467-0604903

AE9#,CE90,EE90

GRAY,TRIM1#

 2
90467-0604915

AE9#,CE90,EE90..GL,SE,SR5,STD,XL

DARK BEIGE,TRIM4#

 2
90467-0604916

AE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA

BROWN,TRIM4#

 2
90467-06049E0

AE9#,CE90,EE90..GL,SE,SR5,STD,XL

DARK BEIGE,TRIM4#

 2
90467-06049J1

AE95..WG;EE90..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL)

DARK BLUE,TRIM8#

 2
90467-06049E4

AE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA

BROWN,TRIM4#

 2
90467-0604901

AE92,EE90..LHD..(SE,STD);AE9#,EE90..RHD..(GL,SR5,STD,XL)..(ARL,GEN)

BLACK,TRIM1#,8#

 2
90467-0604901

AE9#,CE90,EE90..LHD..(GL,XL)

BLACK,TRIM1#,4#,8#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12010

AE92,CE90,EE9#..LHD

 1
58534A - MAT, TRANSMISSION COVER
58534-12020

AE9#,CE90,EE9#..LHD

 1
Common parts
67771-14040
90467-05050
