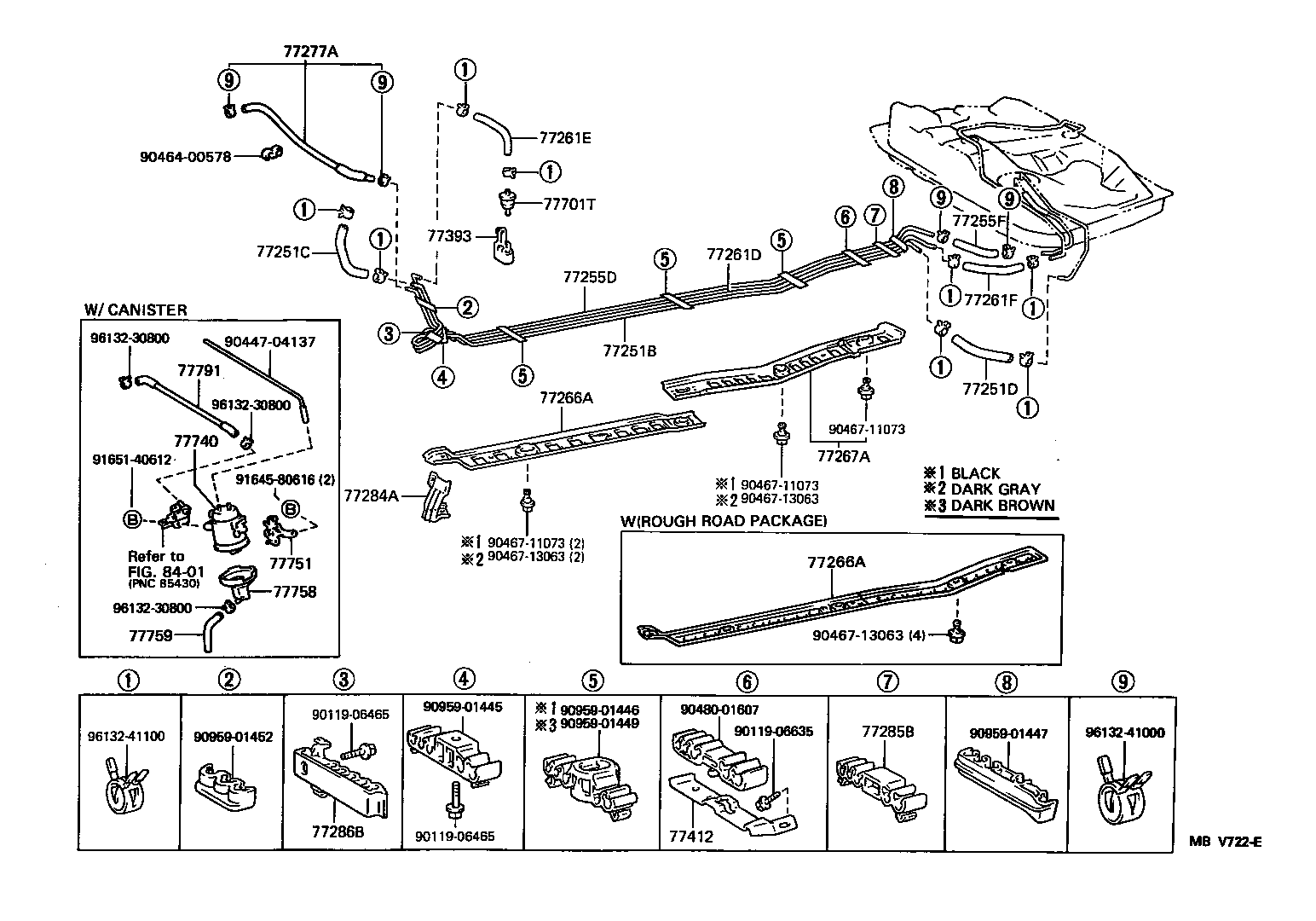

Toyota Corolla sed/cp/wg EE108 FUEL TANK & TUBE

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12590	EE108	09/1991 - 01/1994	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-12100	AE101,EE100,105,108..RHD..(GL,L,STD,XL)	08/1991 - 04/1997	1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020	AE101,EE100,105,108..GL,L,STD,XL *H,L=130	08/1991 - 01/1993	1
77255D - TUBE, FUEL RETURN
77255-12530	EE108	09/1991 - 01/1994	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04020	AE101,EE100,105,108..GL,L,STD,XL *H,L=130	08/1991 - 01/1993	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12310	EE108	09/1991 - 01/1994	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020	AE10#,CE100,EE10# *H,L=150	12/1992 - 01/1993	1
95333-06020	AE10#,CE100,EE10# *H,L=120	08/1991 - 12/1992	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12080	AE10#,CE100,EE10#	08/1991 - 09/1994	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-12080	AE10#,CE100,EE10#	08/1991 - 09/1994	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-12100	AE10#,CE100,EE10#	08/1991 - 09/1994	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-11010	EE100,105,108 L=400	08/1991 - 04/1997	1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-12030	AE10#,CE100,EE10#	08/1991 - 09/1994	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-12030	AE101,EE100,105,108..GL,L,STD,XL	08/1991 - 04/1997	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-12030	AE101,EE100,105,108..GL,L,STD,XL	08/1991 - 04/1997	1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-12020	AE10#,CE100,EE10#	08/1991 - 02/1994	1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-12110	EE108	09/1991 - 05/1992	1
Common parts
90119-06465
90119-06635
90447-04137
90464-00578
90467-11073
90467-13063
90480-01607
90959-01445
90959-01446
90959-01447
90959-01449
90959-01452
91645-80616
91651-40612
96132-30800
96132-41000
96132-41100
Linked diagrams
8401

EE108G-AWMDS (1991)

ILLUST NO. 2 OF 2(9108-9401)EE108 ; (9108- )AE101,EE100,105..RHD..GL,STD,XL
