Toyota Corolla sed/cp/wg EE105 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
GR
COROLLA SED/CP/WG
EE105L-AWMDS (1992)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

EE105L-AWMDS (1992)

Toyota Corolla Sed/Cp/Wg

Production May 1992 - Oct 1999

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

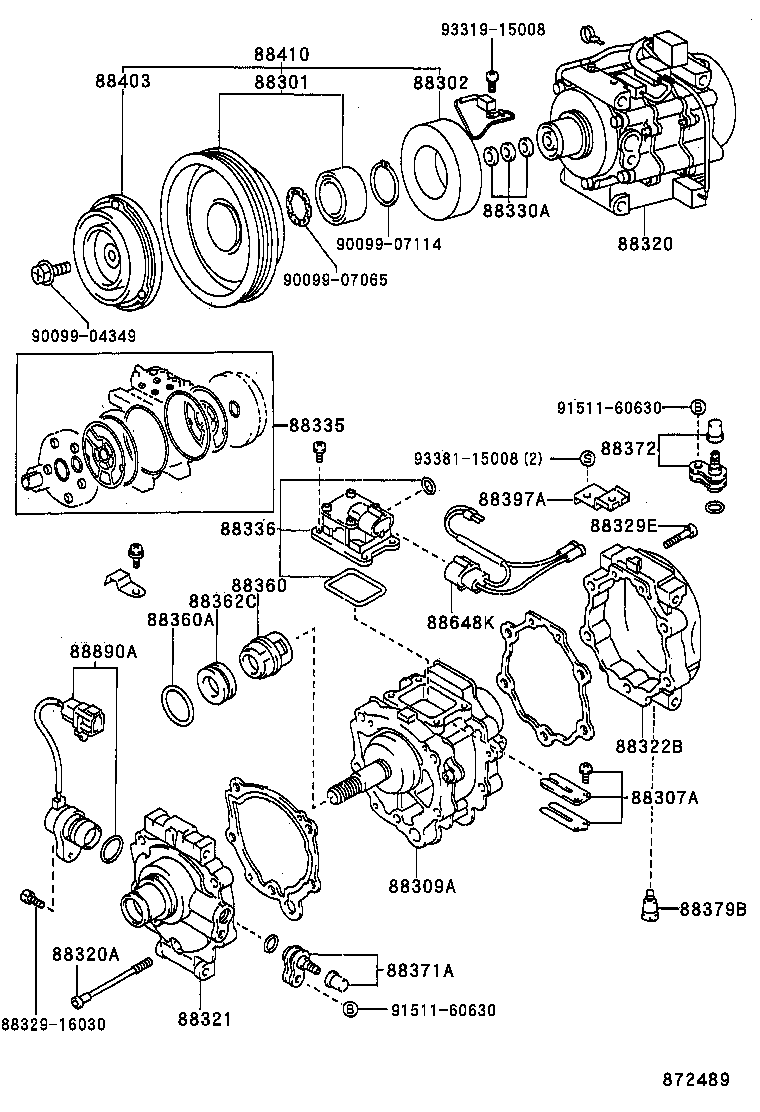

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-16050	AE101,EE10#..GL,GTAPX,L,STD,XL	08/1991 - 05/1992	1
88412-1A010	EE100,101..GEN;AE101,EE105,108..(CP,WG)..(GTAPX,L,STD,XL)	05/1992 - 05/1993	1
88412-1A090	EE10#..GEN,TUR	05/1993 - 12/2999	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16021	AE101,EE10#..GL,GTAPX,L,STD,XL	08/1991 - 05/1992	1
88411-1A010	AE10#,CE100,EE10#..GEN DEALER OPTION	05/1992 - 05/1993	1
88411-60030	EE100,101,105..GEN MAKER OPTION	09/1992 - 05/1993	1
88411-1A040	AE101..RHD;AE101..LHD..ATM..GEN;AE101..LHD..5F..(GLI,XLI)..GEN;AE100,CE100,EE10#..(GL,GLI,L,STD,XL,XLI)..GEN	05/1993 - 08/1993	1
88411-1A040	AE101..RHD;AE101..LHD..ATM..GEN;AE100,CE100,EE10#..GEN;AE101..LHD..5F..(GLI,XLI)..GEN	08/1993 - 09/1993	1
88411-60030	AE101..GCC;EE100,101,105;AE101..LHD..(GL,STD,XL) MAKER OPTION	07/1992 - 09/1992	1
88411-1A040	AE10#,CE100,EE10#..GEN,TUR MAKER OPTION	09/1995 - 04/1997	1
88411-1A040	AE101..RHD..GL;AE101..3FC..GL;AE100,102,CE100,EE10#..GEN;AE101..(GLI,GTAPX,SEG,SJ,XL,XLI)..GEN	09/1993 - 09/1994	1
88411-1A040	AE10#,CE100,EE10#..GEN,TUR MAKER OPTION	05/1995 - 09/1995	1
88411-1A040	AE101..RHD..GL;AE101..3FC..GL;AE100,102,CE100,EE10#..GEN,TUR;AE101..(GLI,GTAPX,SEG,SJ,XL,XLI)..(GEN,TUR)	09/1994 - 05/1995	1
88411-1A040	EE105	04/1997 - 10/1999	1
88307A - REED SUB-ASSY, VALVE
88307-12050	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88307-12050	AE101,102,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88307-12050	AE10#,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88307-12050	AE101,102,EE100,101,105..SED,WG	06/1994 - 12/2999	1
88309A - PUMP SUB-ASSY, COMPRESSOR
88309-12110	AE101,102,EE100,101,105..(SED,WG)..GEN	05/1993 - 09/1994	1
88309-12030	AE101,EE100,101,105..(SED,WG)..GEN	05/1992 - 05/1993	1
88309-12110	AE101,102,EE100,101,105..(SED,WG)..(GEN,TUR)	09/1994 - 09/1995	1
88309-12130	EE100,105..GEN,TUR	05/1996 - 05/1998	1
88309-12110	AE10#,EE100,101,105..GEN,TUR	09/1995 - 05/1996	1
88309-12140	EE100,105..GEN,TUR W(POWER STEERING)	05/1996 - 05/1998	1
88309-12200	EE105	05/1998 - 10/1999	1
88320 - COMPRESSOR ASSY, COOLER
88320-1A260	EE100,101,105..GEN	05/1992 - 05/1993	1
88320-1A280	EE101,105;EE100..GL;EE100..(3FC,4F)..GEN;EE100..LHD..5F..XL..GEN W(POWER STEERING)	05/1992 - 05/1993	1
88320-1A370	EE101,105;EE100..RHD..GL;EE100..(3FC,4F)..GEN;EE100..LHD..5F..(GEN,TUR) W(POWER STEERING)	05/1993 - 12/2999	1
88320-1A360	EE100,101,105..GEN,TUR	05/1993 - 12/2999	1
88320A - BOLT, THROUGH
88329-16010	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	5
88329-16010	AE10#,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	5
88329-16010	AE101,102,EE100,101,105..SED,WG	06/1994 - 12/2999	5
88329-16010	AE101,102,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	5
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-16040	EE100,101,105 W(POWER STEERING)	05/1992 - 05/1993	1
88321-12140	EE100..GEN,TUR;AE101,102,EE101,105..SED,WG	05/1993 - 11/1995	1
88321-16030	EE100..GEN;AE101,EE101,105..SED,WG	05/1992 - 05/1993	1
88321-12130	EE100,101,105 W(POWER STEERING)	05/1993 - 12/2999	1
88321-12140	AE10#,EE105;EE100..LHD..GL;EE100..(STD,XL)..(GEN,TUR)	11/1995 - 12/2999	1
88322B - CASE, OIL SEPARATOR
88322-12100	AE101,102,EE100,101,105..SED,WG	05/1993 - 12/2999	1
88322-12060	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88329E - BOLT, COMPRESSOR, NO.1
88329-16020	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	2
88329-16020	AE10#,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	2
88329-16020	AE101,102,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	2
88329-16020	AE101,102,EE100,101,105..SED,WG	06/1994 - 12/2999	2
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01553	AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL T=0.1	08/1991 - 05/1992	1
90099-01554	AE101..SJ;AE101..GCC;AE100,CE100,EE10#;AE101..LHD..(GL,STD,XL) T=0.3	05/1992 - 05/1993	1
90099-01555	AE101..SJ;AE101..GCC;AE100,CE100,EE10#;AE101..LHD..(GL,STD,XL) T=0.5	05/1992 - 05/1993	1
90099-01553	AE101..SJ;AE101..GCC;AE100,CE100,EE10#;AE101..LHD..(GL,STD,XL) T=0.1	05/1992 - 05/1993	1
90099-01554	AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL T=0.3	08/1991 - 05/1992	1
88335-14020	AE100,102,CE100,EE10#..GEN,TUR;AE101..(GL,GLI,SEG,SJ,STD,XL,XLI)..GEN 3 PIECE SET	05/1993 - 11/1995	1
90099-01553	AE100,102,CE100,EE10#..GEN,TUR;AE101..(GL,GLI,SEG,SJ,STD,XL,XLI)..GEN T=0.1	05/1993 - 11/1995	1
88335-14020	EE100,105;AE101,EE101..GLI,GTAPX,SEG,XLI	05/1993 - 09/1994	1
88335-14020	EE100,105;AE101,EE101..GLI,GTAPX,SEG,XLI	09/1994 - 05/1995	1
88335-14020	AE101,CE100,EE100,101,105	05/1995 - 09/1995	1
88335-14020	AE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI 3 PIECE SET	08/1991 - 05/1993	1
90099-01553	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN;AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) T=0.1	11/1995 - 12/2999	1
90099-01554	AE100,102,CE100,EE10#..GEN,TUR;AE101..(GL,GLI,SEG,SJ,STD,XL,XLI)..GEN T=0.3	05/1993 - 11/1995	1
90099-01554	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN;AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) T=0.3	11/1995 - 12/2999	1
88335-14020	AE101,CE100,EE100,101,105	09/1995 - 04/1997	1
88335-14020	AE101..LHD..GEN;AE101..4FC..XLI;AE102,CE100,EE10#..GLI,XL 3 PIECE SET	04/1997 - 12/2999	1
88335-14020	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN;AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) 3 PIECE SET	11/1995 - 04/1997	1
90099-01555	AE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL T=0.5	08/1991 - 05/1992	1
90099-01555	AE100,102,CE100,EE10#..GEN,TUR;AE101..(GL,GLI,SEG,SJ,STD,XL,XLI)..GEN T=0.5	05/1993 - 11/1995	1
90099-01555	AE101..GL,XL;AE101..WG..GEN;EE100..LHD..GL;AE101..4FC..XLI..GEN;AE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN;AE102,CE100,EE10#..(GLI,L,STD,XL)..(GEN,TUR) T=0.5	11/1995 - 12/2999	1
88335 - GASKET KIT, OVERHAUL
88335-16050	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88335-12110	AE101,102,EE100,101,105..SED,WG	05/1993 - 12/2999	1
88336 - SENSOR, COMPRESSOR
88336-12070	EE100,101,105 W(POWER STEERING),LOCK SENSOR	05/1992 - 05/1993	1
88336-16010	EE100..GEN;AE101,102,EE101,105..SED,WG	06/1994 - 09/1994	1
88336-16010	AE10#,EE105;EE100..GCC,GEN	11/1995 - 05/1996	1
88336-16010	EE100..GEN;AE10#,EE101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88336-16010	EE100..GEN;AE101,EE101,105..SED,WG	05/1992 - 05/1993	1
88336-16010	EE100..GEN;AE101,102,EE101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88336-16010	EE100..GEN;AE101,102,EE101,105..SED,WG	09/1994 - 09/1995	1
88336-16010	EE100,101,105 W(POWER STEERING),TEMPERATURE SENSOR	05/1992 - 05/1996	1
88336-12090	EE10# W(POWER STEERING),LOCK SENSOR	03/1998 - 05/1998	1
88336-16010	EE100..GEN;AE10#,EE101,105	09/1995 - 11/1995	1
88336-12090	EE100,101,105 W(POWER STEERING),LOCK SENSOR	05/1993 - 05/1996	1
88336-12090	CE100,EE100,105 W(POWER STEERING),LOCK SENSOR	05/1996 - 03/1998	1
88336-16060	EE100,105	05/1996 - 12/2999	1
88336-16070	EE10# W(POWER STEERING)	05/1998 - 12/2999	1
88336-16070	EE100,105 W(POWER STEERING),TEMPERATURE SENSOR	05/1996 - 05/1998	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-16010	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88360-12100	AE101,102,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88360-12100	AE10#,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88360-12100	AE101,102,EE100,101,105..SED,WG	06/1994 - 12/2999	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	AE101,102,CE100,EE100,101,105..SED,WG	05/1993 - 09/1994	1
90096-90022	AE10#,CE100,EE100,101,105	09/1995 - 12/2999	1
90096-90022	AE101,102,CE100,EE100,101,105..SED,WG	09/1994 - 09/1995	1
88362C - PLATE, PULSE
88362-12020	EE100,101,105	05/1993 - 12/2999	1
88371A - VALVE, SUCTION
88376-16020	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88376-12010	AE101,102,CE100,EE100,101,105..SED,WG	06/1994 - 12/2999	1
88376-12010	AE101,102,CE100,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88376-12010	AE10#,CE100,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88372 - VALVE, DISCHARGE
88376-16040	AE101,EE100,101,105..SED,WG	05/1992 - 05/1993	1
88376-12020	AE101,102,CE100,EE100,101,105..SED,WG	06/1994 - 12/2999	1
88376-12020	AE101,102,CE100,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88376-12020	AE10#,CE100,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88397A - CLIP, COMPRESSOR
88397-16030	AE101,102,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1994 - 06/1994	1
88397-16030	EE100,101,105;AE101..(SED,WG)..GEN	05/1992 - 05/1993	1
88397-16030	AE101,102,EE100,101,105..SED,WG	06/1994 - 12/2999	1
88397-16030	AE10#,EE100,101,105..GL,GLI,SEG,SJ,STD,XL,XLI	05/1993 - 05/1994	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011	AE10#,EE10#..GL,GLI,GTAPX,L,SEG,SJ,STD,XL	08/1991 - 05/1992	1
88403-1A010	AE101..RHD;AE100,102,CE100,EE10#..GEN,TUR;AE101..LHD..(GLI,XLI)..(GEN,TUR)	09/1994 - 05/1995	1
88403-1A010	AE10#,CE100,EE10#..GEN,TUR	05/1995 - 09/1995	1
88403-1A010	AE101..RHD;AE100,102,CE100,EE10#..GEN;AE101..LHD..(GLI,XLI)..GEN	08/1993 - 09/1994	1
88403-1A010	AE101..RHD;AE101..LHD..(GLI,XLI)..GEN;AE100,CE100,EE10#..(GL,GLI,L,STD,XL,XLI)..GEN	05/1992 - 08/1993	1
88403-1A010	AE10#,CE100,EE10#..GEN,TUR	09/1995 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-10210	AE101,EE10#..GL,GTAPX,L,STD,XL	08/1991 - 05/1992	1
88410-1A010	EE100,101..GEN;AE101,EE105,108..(CP,WG)..(GTAPX,L,STD,XL)	05/1992 - 05/1993	1
88648K - WIRE SUB-ASSY, SENSOR
88648-12530	EE100,101,105	05/1992 - 05/1993	1
88648-12600	CE100,EE100,101,105	05/1993 - 05/1998	1
88890A - PICK UP, ASSY
88336-12070	EE100,101,105..GEN	05/1992 - 05/1993	1
Common parts
88329-16030
90099-04349
90099-07065
90099-07114
91511-60630
93319-15008
93381-15008

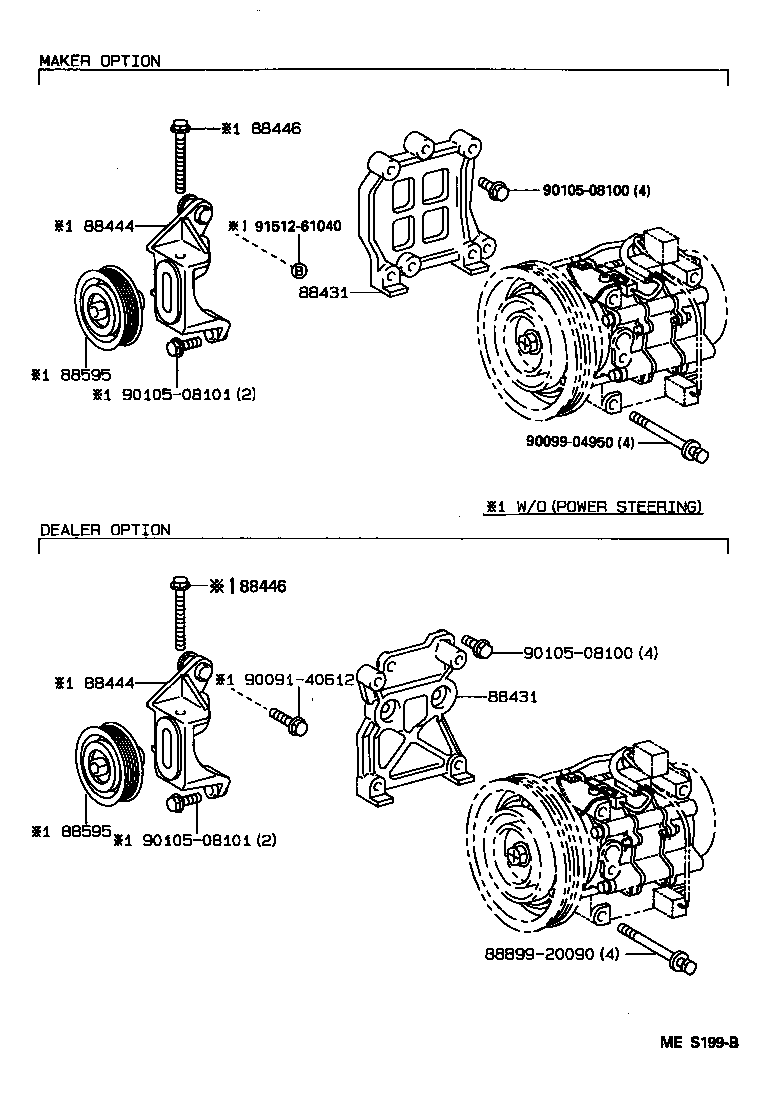

ILLUST NO. 1 OF 2(9108- )EE10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10#	08/1991 - 05/1993	1
88431-12540	EE10#	05/1993 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10#	08/1991 - 05/1993	1
88431-12540	EE10#	05/1993 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-10031	EE100,101,105	08/1991 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-10031	EE100,101,105	08/1991 - 12/2999	1
88446 - BOLT, IDLE PULLEY
88446-12030	AE101..RHD..GL;AE100,102,EE100,101,105;AE101..GLI,SEG,SJ,XL,XLI	05/1993 - 09/1994	1
88446-12030	AE10#,EE100,101,105	05/1995 - 09/1995	1
88446-12030	AE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 05/1993	1
88446-12030	AE10#,EE100,101,105	09/1995 - 12/2999	1
88446-12030	AE101..RHD..GL;AE100,102,EE100,101,105;AE101..GLI,SEG,SJ,XL,XLI	09/1994 - 05/1995	1
88446 - BOLT, IDLE PULLEY
88446-12030	AE101..RHD..GL;AE100,102,EE100,101,105;AE101..GLI,SEG,SJ,XL,XLI	05/1993 - 09/1994	1
88446-12030	AE10#,EE100,101,105	05/1995 - 09/1995	1
88446-12030	AE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI	08/1991 - 05/1993	1
88446-12030	AE10#,EE100,101,105	09/1995 - 12/2999	1
88446-12030	AE101..RHD..GL;AE100,102,EE100,101,105;AE101..GLI,SEG,SJ,XL,XLI	09/1994 - 05/1995	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12210	EE100,101,105	02/1994 - 05/1995	1
88440-12170	CE100,EE100,101,105	05/1993 - 02/1994	1
88440-12210	EE105;EE100..RHD..(STD,XL) MAKER OPTION	05/1995 - 04/1997	1
88440-12170	EE100,101,105	08/1991 - 05/1993	1
88440-12240	EE105	04/1997 - 10/1999	1
88440-12230	CE100,EE105;EE100..RHD..XL DEALER OPTION	04/1997 - 12/2999	1
88440-12210	EE105..LHD;EE100..XL..GEN MAKER OPTION	05/1998 - 12/2999	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12210	EE100,101,105	02/1994 - 05/1995	1
88440-12170	CE100,EE100,101,105	05/1993 - 02/1994	1
88440-12210	EE105;EE100..RHD..(STD,XL) MAKER OPTION	05/1995 - 04/1997	1
88440-12170	EE100,101,105	08/1991 - 05/1993	1
88440-12240	EE105	04/1997 - 10/1999	1
88440-12230	CE100,EE105;EE100..RHD..XL DEALER OPTION	04/1997 - 12/2999	1
88440-12210	EE105..LHD;EE100..XL..GEN MAKER OPTION	05/1998 - 12/2999	1
Common parts
88899-20090
90091-40612
90099-04950
90105-08100
90105-08101
91512-61040

EE105L-AWMDS (1992)

ILLUST NO. 2 OF 2(9108- )

ILLUST NO. 1 OF 2(9108- )EE10#

Part Price Details
