EE105L-AWMDS (1992)
Toyota Corolla Sed/Cp/Wg

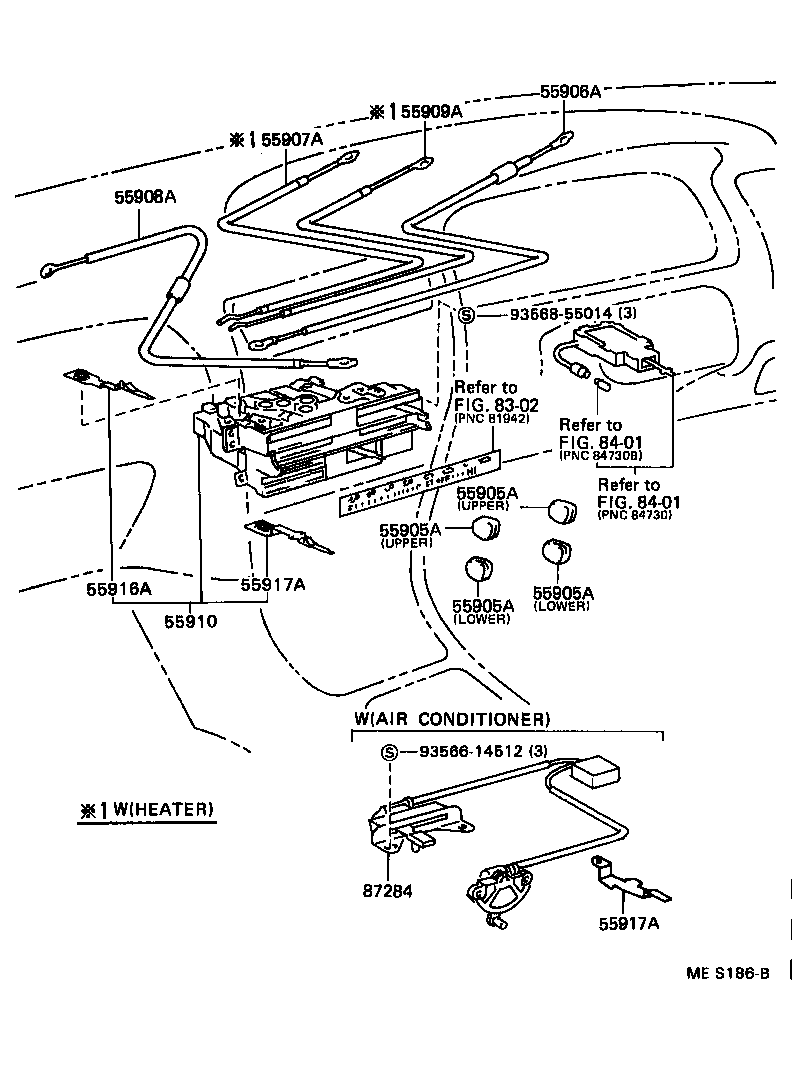

ILLUST NO. 1 OF 3(9108- )GL,GLI,L,LX,SEG,SJ,STD,XL,XLI
CONTROL(SEG;W/BOOST VENTILATOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12140 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12150 |
AE101,102,CE100,EE100,101,105..(SED,WG)..GEN W(BOOST VENTILATOR & COOLER),LOWER |
1 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905-12150 |
EE105 |
2 | ||
| 55905-12150 |
EE105 W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12140 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12150 |
AE101,102,CE100,EE100,101,105..(SED,WG)..GEN W(BOOST VENTILATOR & COOLER),LOWER |
1 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905-12150 |
EE105 |
2 | ||
| 55905-12150 |
EE105 W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12140 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12150 |
AE101,102,CE100,EE100,101,105..(SED,WG)..GEN W(BOOST VENTILATOR & COOLER),LOWER |
1 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905-12150 |
EE105 |
2 | ||
| 55905-12150 |
EE105 W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12140 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12140 |
AE10#,CE100,EE10#..SED,WG UPPER |
2 | ||
| 55905-12150 |
AE101,102,CE100,EE100,101,105..(SED,WG)..GEN W(BOOST VENTILATOR & COOLER),LOWER |
1 | ||
| 55905-12140 |
AE10#,CE100,EE10# UPPER |
2 | ||
| 55905-12150 |
EE105 |
2 | ||
| 55905-12150 |
EE105 W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12330 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 55906-12330 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55906-12330 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55906-12330 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55906-12330 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12360 |
AE101..GLI;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 55907-12400 |
AE101,CE100,EE100,105..LHD |
1 | ||
| 55907-12401 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55907-12401 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55907-12401 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12260 |
AE10#,CE100,EE10#..SED,WG |
1 | ||
| 55908-12260 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 55908-12260 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55908-12260 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55908-12260 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12270 |
AE10#,CE100,EE10#..GL,GLI,L,LX,STD,XL,XLI |
1 | ||
| 55909-12270 |
AE10#,CE100,EE10#..GL,GLI,L,LX,STD,XL,XLI |
1 | ||
| 55909-12240 |
AE101..GLI;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 55909-12240 |
AE10#,CE100,EE10#..GL,GLI,L,LX,STD,XL,XLI |
1 | ||
| 55909-12270 |
AE10#,CE100,EE10#..GL,GLI,L,STD,XL,XLI |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12570 |
AE101,CE100,EE100,105..LHD W(HEATER) OR W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55910-12600 |
AE101,CE100,EE100,105..LHD W(BOOST VENTILATOR) |
1 | ||
| 55910-12600 |
AE101,102,CE100,EE100,105..LHD..(GCC,GEN) |
1 | ||
| 55910-12570 |
AE101,102,CE100,EE100,105..LHD..(GCC,GEN) W(COOLER) |
1 | ||
| 55910-12570 |
AE101..WG..GCC;AE101..LHD..SED..(GCC,GEN);CE100,EE100,105..LHD..(GCC,GEN) W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55910-12571 |
EE105..LHD;AE101,EE100..TUR |
1 | ||
| 55910-12570 |
EE105..LHD W(HEATER) OR W(BOOST VENTILATOR & COOLER) |
1 | ||
| 55910-12600 |
EE105..LHD W(BOOST VENTILATOR) |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-12110 |
AE101,102..(SED,WG)..GEN;AE100,CE100,EE100,101,105..(GL,LX,STD,XL,XLI)..GEN |
1 | ||
| 55917-12110 |
EE105;AE101,CE100,EE100..RHD |
1 | ||
| 55917-12110 |
AE10#,CE100,EE100,105..LHD..GEN W(AIR CONDITIONER) |
1 | ||
| 55917-12110 |
AE101,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-12110 |
AE101,102..(SED,WG)..GEN;AE100,CE100,EE100,101,105..(GL,LX,STD,XL,XLI)..GEN |
1 | ||
| 55917-12110 |
EE105;AE101,CE100,EE100..RHD |
1 | ||
| 55917-12110 |
AE10#,CE100,EE100,105..LHD..GEN W(AIR CONDITIONER) |
1 | ||
| 55917-12110 |
AE101,CE100,EE100,101,105..(SED,WG)..GEN |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12150 |
AE101,102,CE100,EE100,105..LHD..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

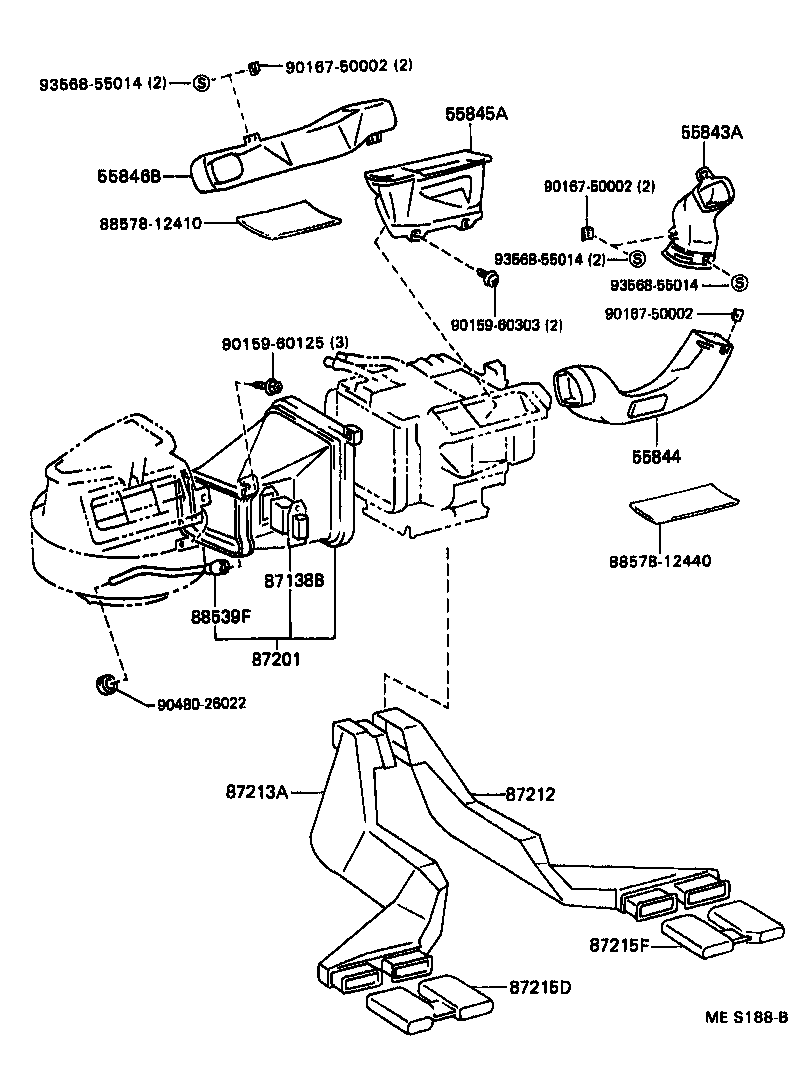

ILLUST NO. 2 OF 3(9108-9508)SED,WG ; (9508- )AE10#,CE100,EE100,101,105
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12230 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55843-12230 |
EE105..LHD |
1 | ||
| 55843-12230 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55843-12230 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12360 |
AE101,CE100,EE100,105..LHD W(AIR CONDITIONER) |
1 | ||
| 55844-12350 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55844-12380 |
AE101,102,CE100,EE100,105..LHD W(AIR CONDITIONER) |
1 | ||
| 55844-12360 |
AE101,EE100,105..LHD..(GL,STD,XL)..GEN MIDDLE EAST SPEC & W(AIR CONDITIONER) |
1 | ||
| 55844-12350 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55844-12350 |
EE105..LHD |
1 | ||
| 55844-12350 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55844-12380 |
AE101,102,CE100,EE100,105..LHD W(AIR CONDITIONER) |
1 | ||
| 55844-12380 |
EE105..LHD W(AIR CONDITIONER) |
1 | ||
| 55844-12380 |
AE10#,CE100,EE100,105..LHD W(AIR CONDITIONER) |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12170 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55845-12170 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55845-12170 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55845-12170 |
EE105..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12180 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55846-12190 |
AE101,102,CE100,EE100,105..LHD W(AIR CONDITIONER) OR W(COOLER) |
1 | ||
| 55846-12180 |
AE101,102,CE100,EE100,105..LHD |
1 | ||
| 55846-12180 |
AE10#,CE100,EE100,105..LHD |
1 | ||
| 55846-12180 |
EE105..LHD |
1 | ||
| 55846-12190 |
AE101,EE100..SED..TUR;AE101,102,CE100,EE100,105..LHD..(GCC,GEN) W(AIR CONDITIONER) OR W(COOLER) |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12130 |
AE101..SED;AE100,EE10#..GL,L,LX,STD,XL |
1 | ||
| 87138-02010 |
AE101,102,CE100,EE100,105..LHD NUMMI |
1 | ||
| 87138-12140 |
AE101,102,CE100,EE100,105..LHD DENSO |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12430 |
AE101,102,CE100,EE100,105..LHD..(GEN,TUR) DENSO |
1 | ||
| 87201-02050 |
AE101,102,CE100,EE100,105..LHD..(GEN,TUR) NUMMI |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-02010 |
AE101,102,CE100,EE100,105..LHD..(GEN,TUR) NUMMI |
1 | ||
| 88539-12110 |
AE101,102,CE100,EE100,105..LHD..(GEN,TUR) DENSO |
1 | ||
| Common parts | ||||
| 88578-12410 | ||||
| 88578-12440 | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| 93568-55014 | ||||
